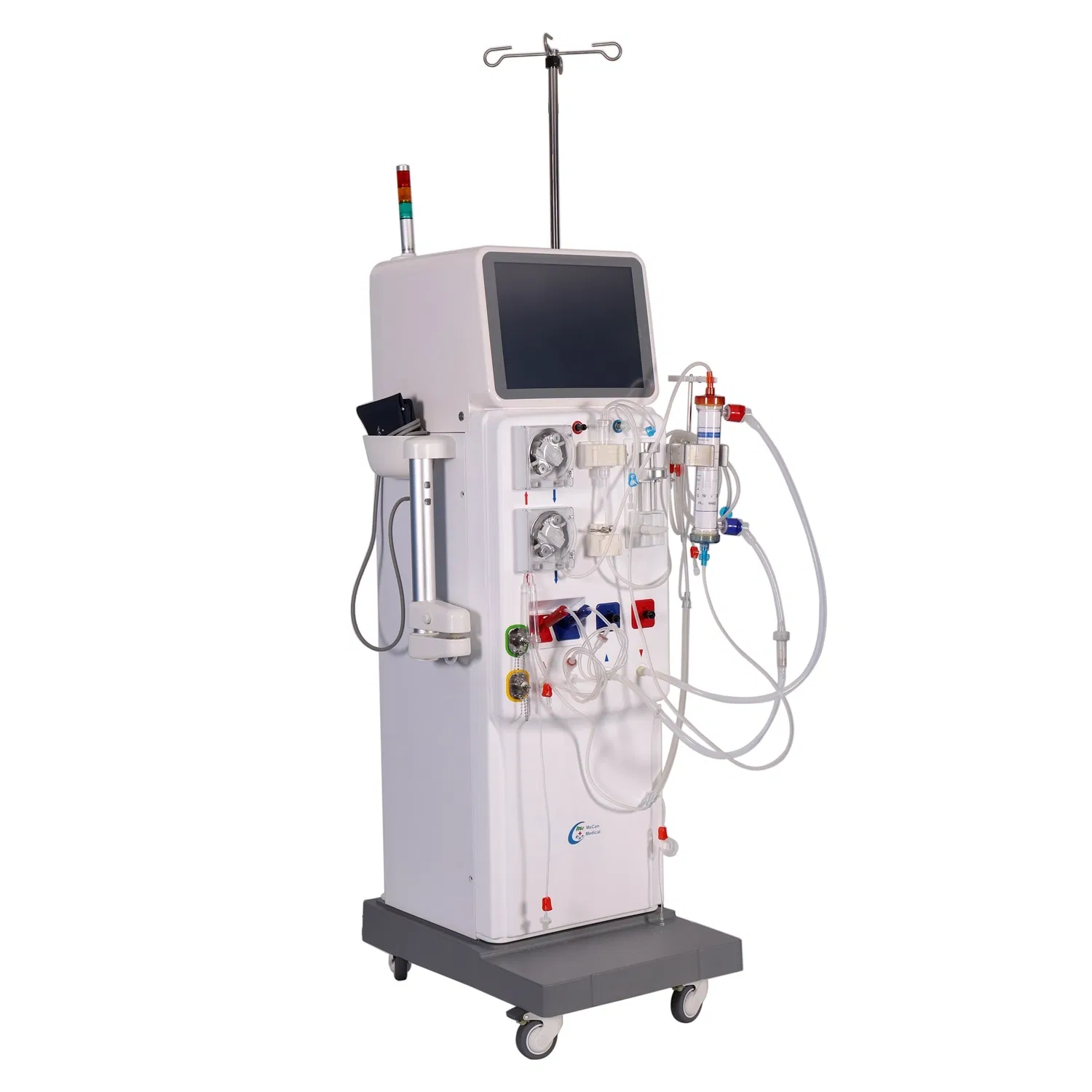

Medical Blood Dialysis Machine HD Hemodialysis Machine

1 / 5

Medical Blood Dialysis Machine HD Hemodialysis Machine

Customization:	Available
Certification:	CE, ISO13485
Colour:	White

Send Inquiry

Product Description

Basic Information

Model NO.

MCX0022

Product Name

Haemodialysis Machine

Device Type

Ingredients Blood Transfusion Device

Treatment Modes

On-Line HDF, HD, On-Line HF

Application

Dialysis Treatment

LCD Display

15 Inches

Dialysate Filter

Ultra-Pure Dialysis Safety

Net Weight

88KG

Product Description

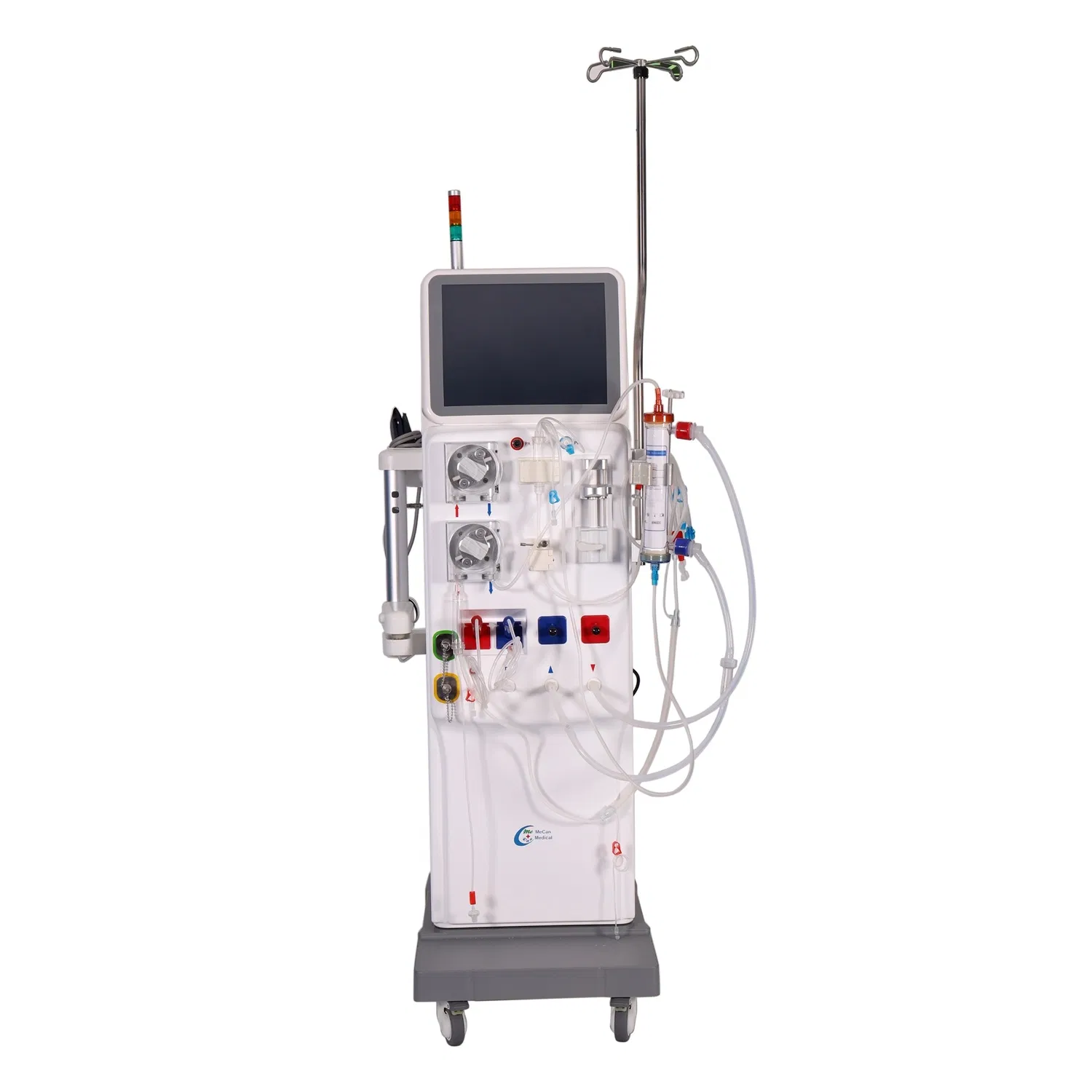

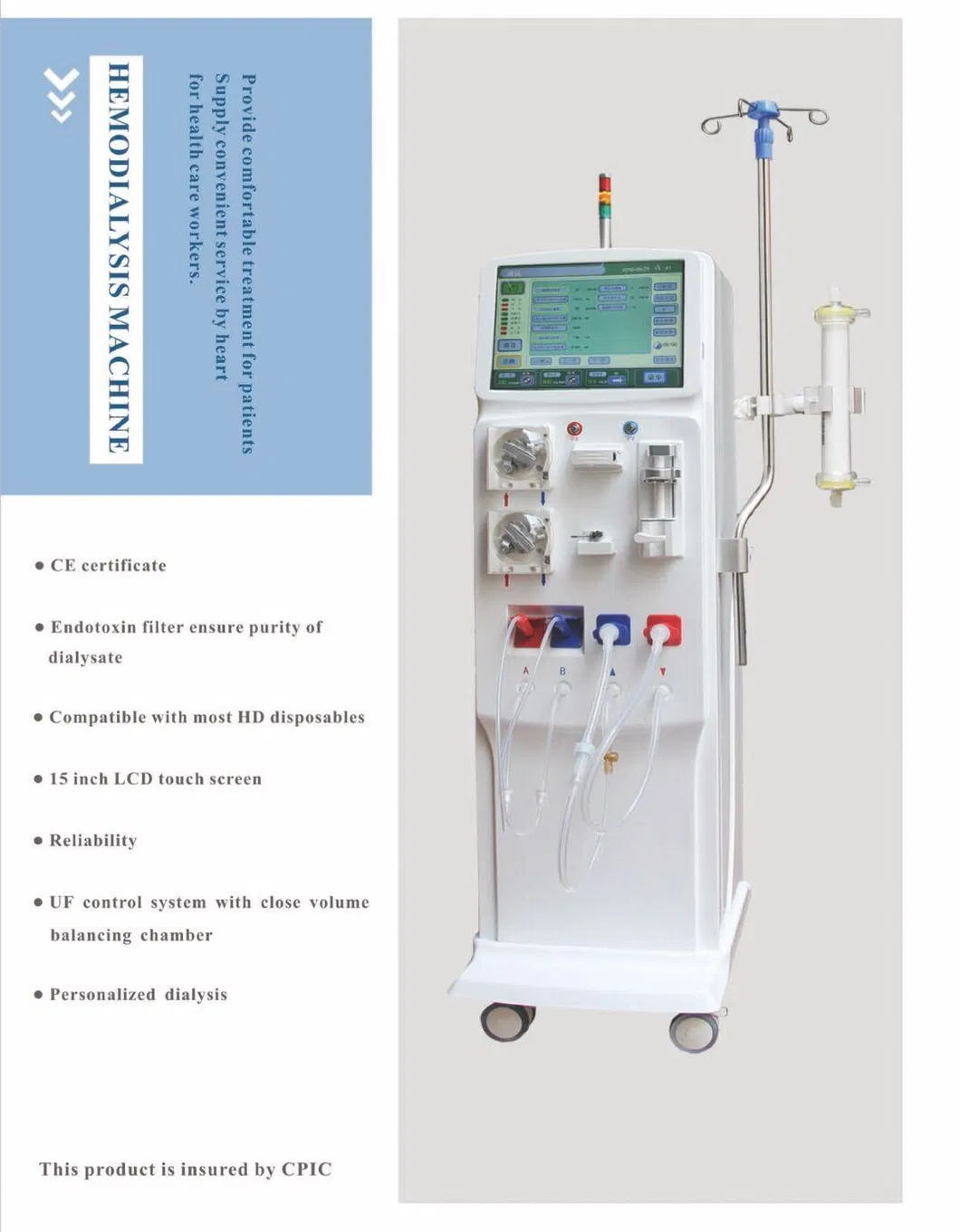

Medical Blood Dialysis Machine HD Hemodialysis Machine (MCX0022)

Technical Parameters

Size & Weight: Size: 380mm x 400mm x 1380mm (L*W*H)
Net Weight: approx. 88KG | Gross Weight: approx. 100KG

Power Supply: AC220V, 50Hz/60Hz, 10A | Input power: 1500W
Back-up battery: 30 minutes

Working Condition: Water input pressure: 0.1Mpa~0.6Mpa
Water input temperature: 5ºC~30ºC

UF Rate: Flow range: 0ml/h~4000ml/h | Precision: ±30ml/h

Disinfection & Sanitize: 1. Hot disinfection: 80ºC at 500ml/min
2. Chemical disinfection: 36ºC~50ºC
3. Rinse: 37ºC at 800ml/min

Pumps & Monitoring: Blood pump flow: 10ml/min~600ml/min
Heparin pump syringe: 20, 30, 50ml
Venous pressure: -180mmHg ~ +600mmHg
Dialysate temperature: 34.0ºC~39.0ºC

Main Performance Features

System Functions	Monitoring Capabilities
1. Self-checking function	8. Arterial & Venous pressure monitoring
2. On-line HDF	9. Rolling blood pump
3. Double needle dialysis	10. Heparin pump system
4. Liquid level detector	11. Capacity controlled dehydration
5. Bubble detector	12. Automatic disinfection program
6. Blood leakage detector	13. Stand-by power for blood pump
7. Conductivity monitoring	14. Carbonate dialysis support

Specifications Summary

After-sale Service	Online technical support
Category	Haemodialysis Equipment
Profiling	Sodium concentration and UF curve
Dialysate Filter	Ultra-pure dialysis safety system
Usage	Medical Hospital Clinical
Feature	Safety and efficiency

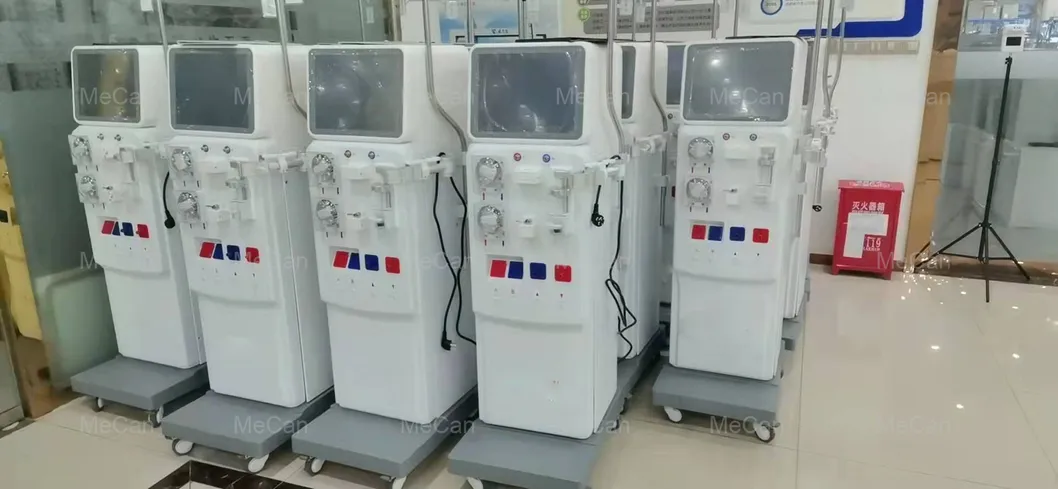

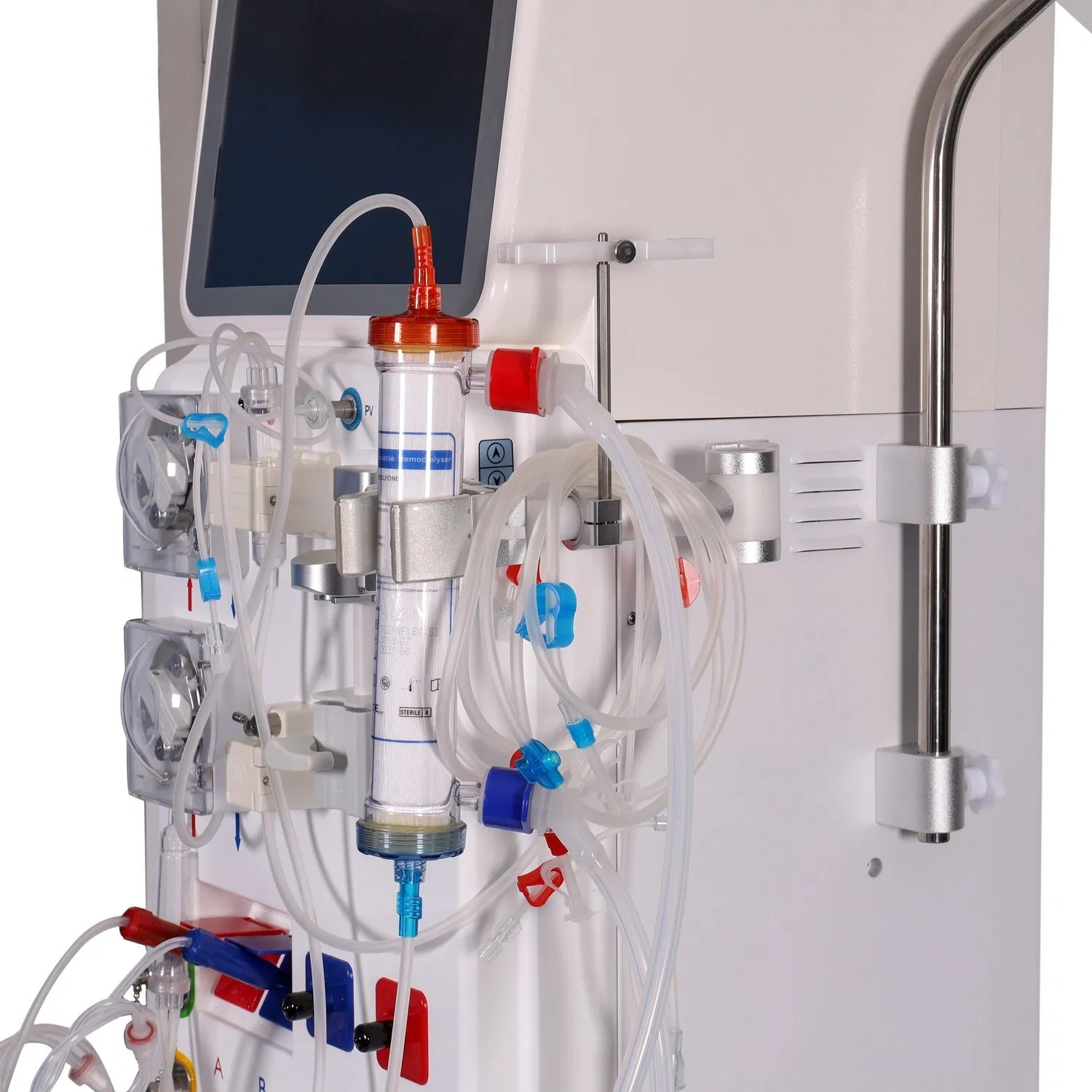

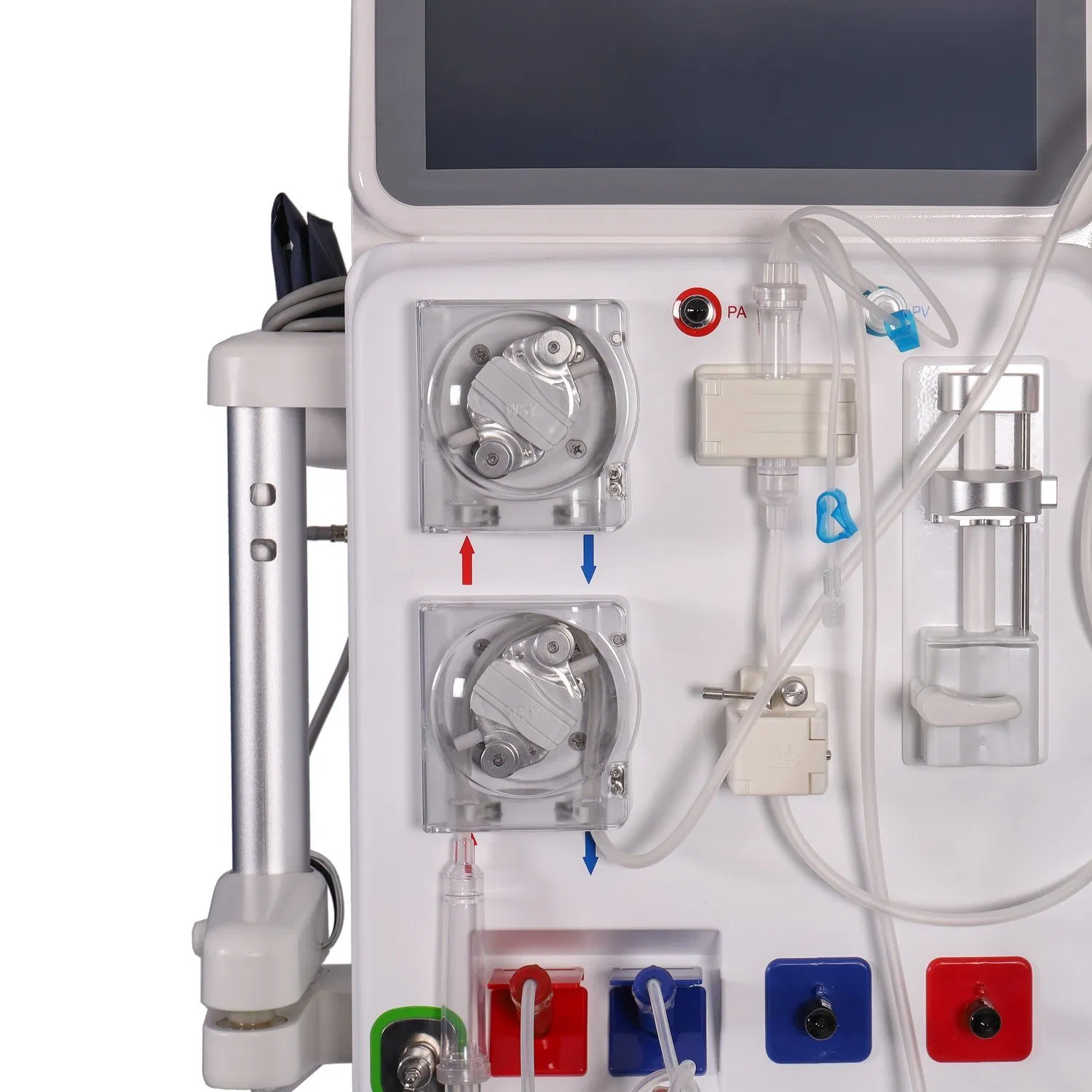

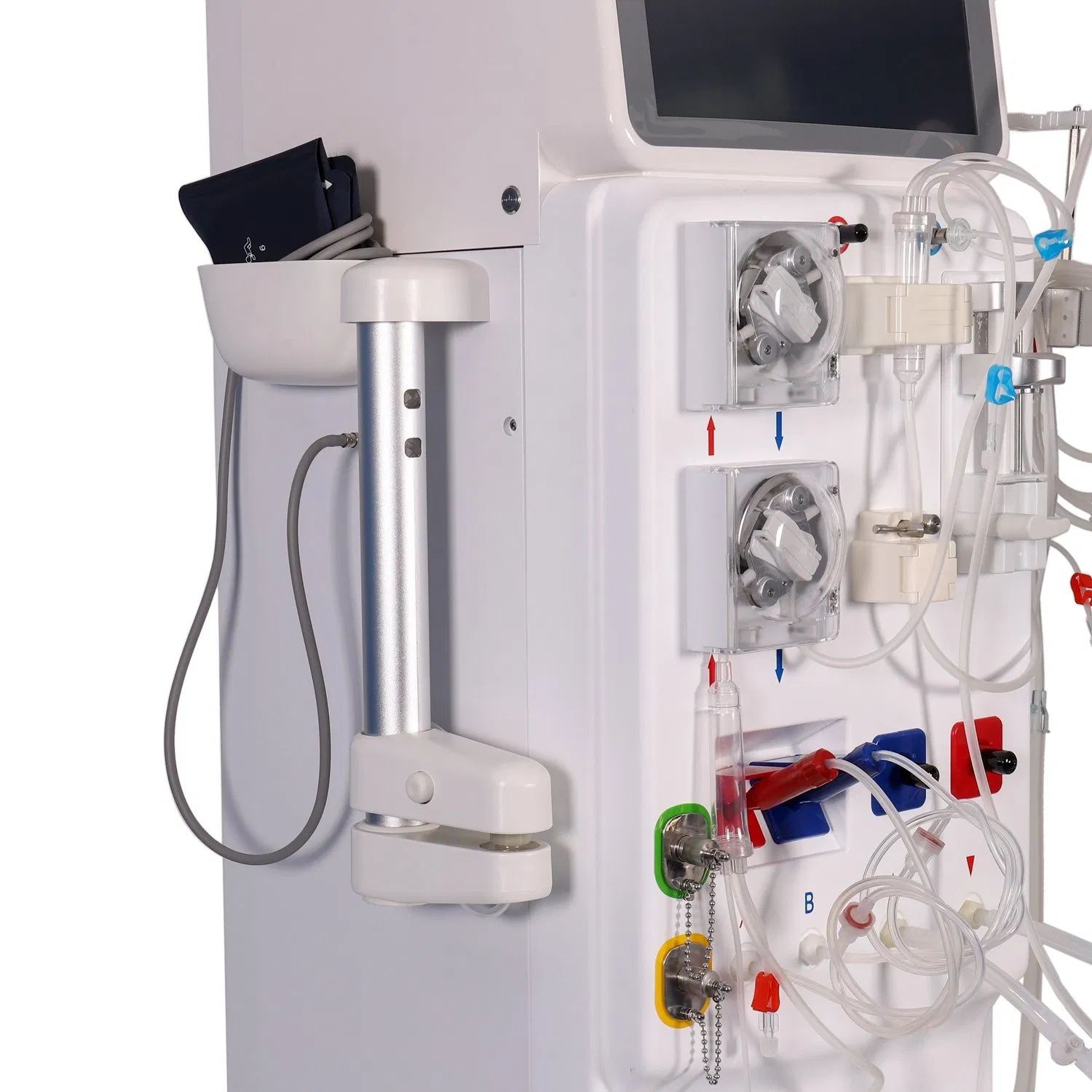

Detailed Photos

Frequently Asked Questions

What treatment modes does the MCX0022 support?

The machine supports On-Line HDF (Hemodiafiltration), HD (Hemodialysis), and On-Line HF (Hemofiltration) modes.

Does the machine have a backup power supply?

Yes, it is equipped with a back-up battery that can support the machine for approximately 30 minutes during a power failure.

What is the size of the display screen?

The machine features a large 15-inch LCD screen for clear monitoring of all parameters and curves.

What types of disinfection are available?

It supports multiple disinfection methods including hot disinfection (80ºC), chemical disinfection, and a specialized rinsing program.

How is the ultra-filtration (UF) rate controlled?

The UF rate has a flow range of 0ml/h to 4000ml/h with a resolution of 1ml and a precision of ±30ml/h.

What safety sensors are included in the system?

The system includes blood leak detection (photochromic), bubble detection (ultrasonic), and continuous monitoring for arterial, venous, and transmembrane pressure.
