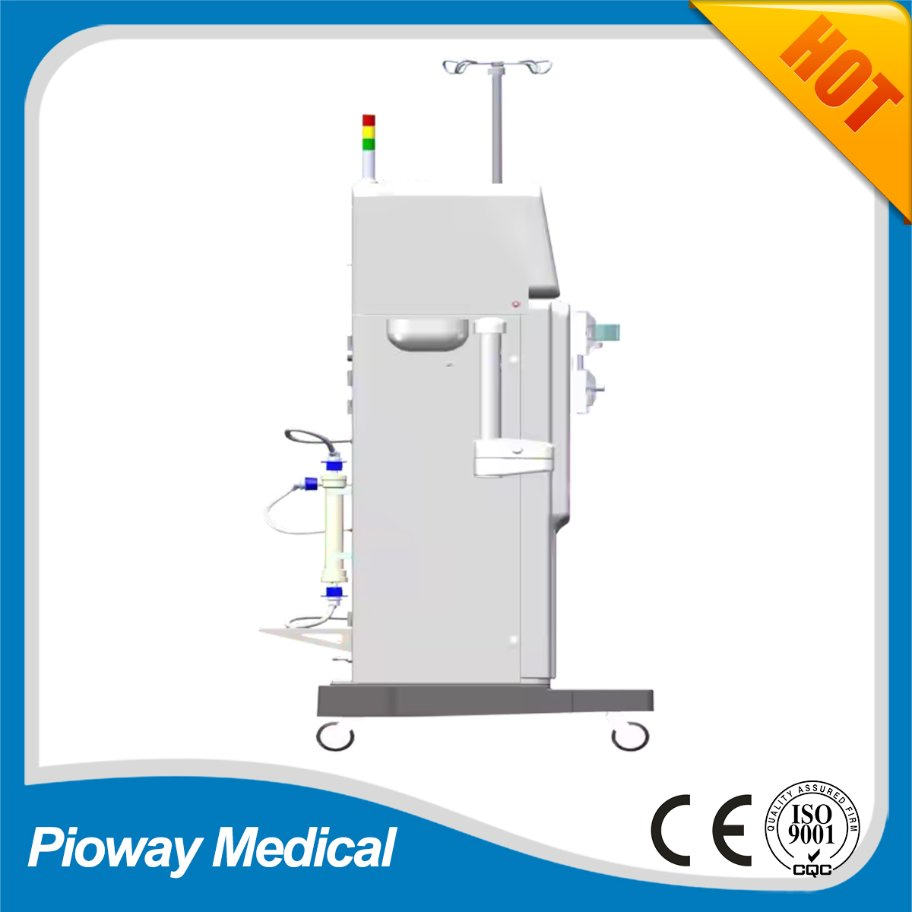

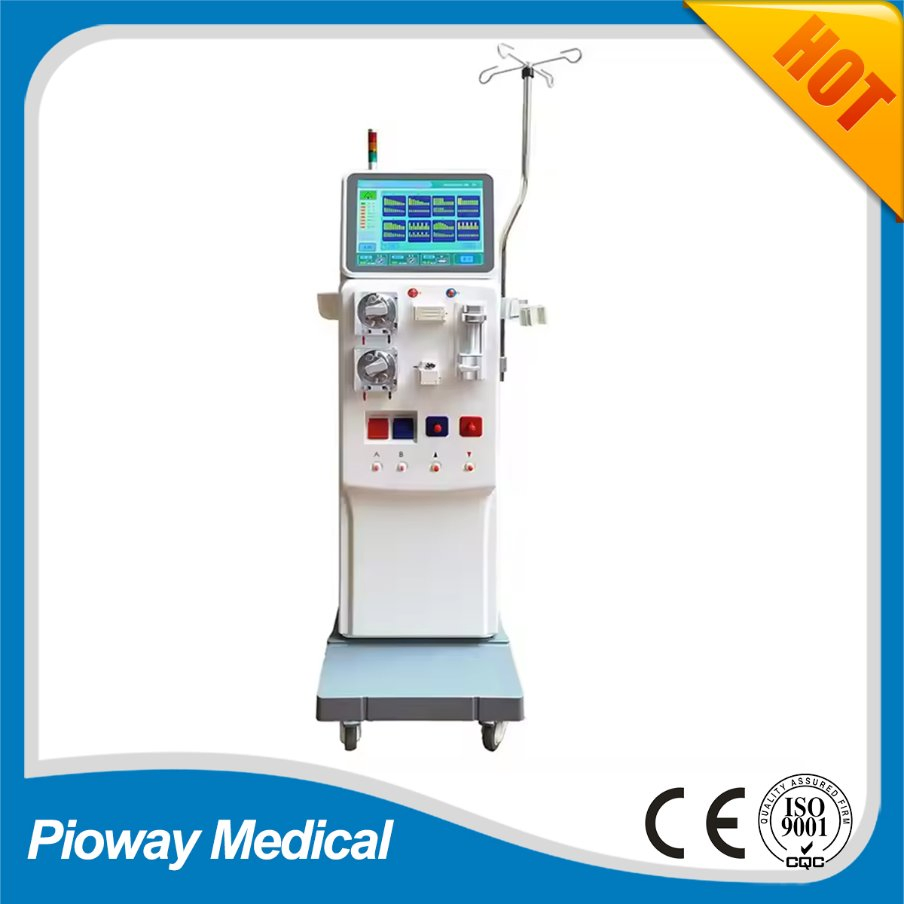

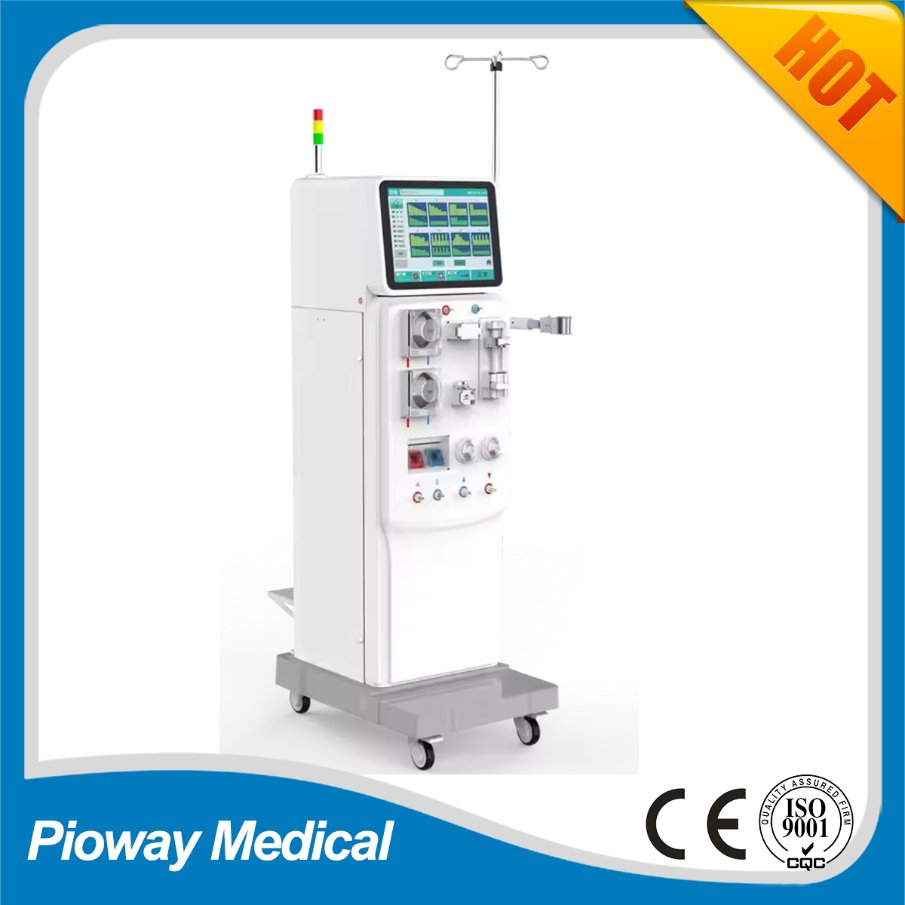

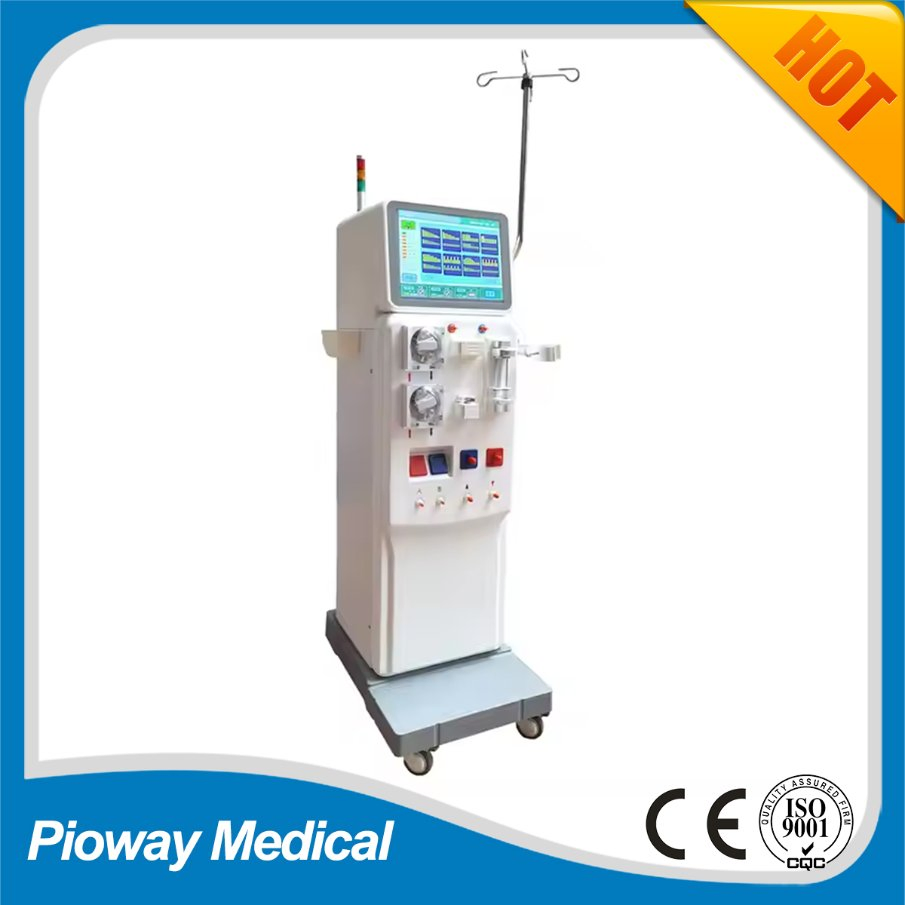

Single Pump Haemodialysis Machine for HD Dialysis Treatment (W-T2008-B)
Single Pump Haemodialysis Machine for HD Dialysis Treatment (W-T2008-B)
Single Pump Haemodialysis Machine for HD Dialysis Treatment (W-T2008-B)
Single Pump Haemodialysis Machine for HD Dialysis Treatment (W-T2008-B)
Single Pump Haemodialysis Machine for HD Dialysis Treatment (W-T2008-B)
1 / 5
Single Pump Haemodialysis Machine for HD Dialysis Treatment (W-T2008-B)
Single Pump Haemodialysis Machine for HD Dialysis Treatment (W-T2008-B)
Single Pump Haemodialysis Machine for HD Dialysis Treatment (W-T2008-B)
Single Pump Haemodialysis Machine for HD Dialysis Treatment (W-T2008-B)
Single Pump Haemodialysis Machine for HD Dialysis Treatment (W-T2008-B)

Single Pump Haemodialysis Machine for HD Dialysis Treatment (W-T2008-B)

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
W-T2008-B Single Pump
Display
LCD Touch Screen
Water Input Pressure
0.15~0.6 MPa
Dialysate Flux
300~800 Ml/Min
UF Rate Flow Range
0~4000 Ml/H
Resolution Ratio
1ml
Precision
±30 Ml/H
Lead Time
Within 7-10 Days
Warranty
12 Months
Production Capacity
6000 Units/Month
HS Code
9018904000

Single Pump Haemodialysis Machine (W-T2008-B)

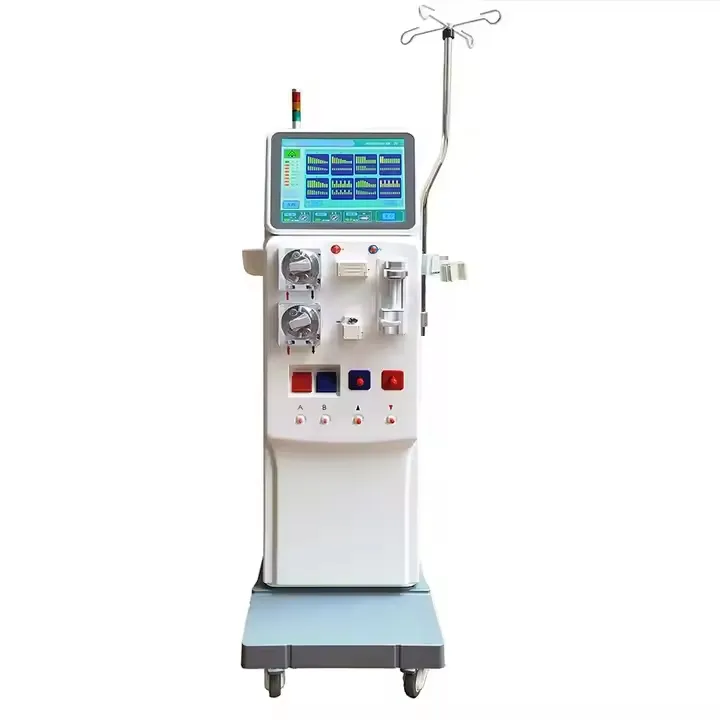

Single Pump Haemodialysis Machine

The W-T2008-B haemodialysis machine is specifically designed for chronic renal failure and various blood purification treatments in medical departments.

System Overview

Device Name: Haemodialysis Machine
Class of MDR: IIb
Configurations: Circuit control system, monitoring system, blood extracorporeal circulation control system, and hydraulic system.

Intended Use: HD dialysis treatment for adult patients with chronic renal failure. It is specially designed and produced for renal failure patients to receive haemodialysis treatment.

Forms of Therapy

Haemodialysis, Isolated Ultrafiltration, Sequential Ultrafiltration, Hemoperfusion, etc.

Key Features

Intelligent Double Operation System
LCD touch screen with button interface
Emergency power 30Mins (Optional)
Dual Blood Pumps (Standby/Hemoperfusion)
Precise Heparin Pump System
Advanced Hydraulic Balance Chamber
Operation & Alarm Memory Function
High-precision Ceramic Proportion Pump

Technical Parameters

Physical & Environment

Size: 380mm×400mm×1380mm (L*W*H) | Area: 500*520 mm | Weight: 88KG
Power: AC220V, 50Hz/60Hz, 1500W
Working Temp: 10ºC~30ºC | Humidity: ≤70%

Dialysate System

Temp Range: 34.0ºC~39.0ºC | Flux: 300~800 ml/min
Concentration: 12.1~16.0 mS/cm | UF Rate: 0~4000 ml/h

Extracorporeal Part

Venous Pressure: -180~+600 mmHg | Arterial Pressure: -380~+400 mmHg
Blood Pump Flow: 20~400 ml/min | Heparin Syringe: 20, 30, 50 ml

Sanitization Modes

1. Hot Decalcification (20 mins, 30~60ºC)
2. Chemical Disinfection (45 mins, 30~40ºC)
3. Heat Disinfection (60 mins, >85ºC)

Monitoring & Alarms

Blood Leak: Photochromic (Alarm at ≥1ml blood/liter dialysate)
Bubble Detection: Ultrasonic (Alarm at >200µl at 200ml/min)

Workshop Display

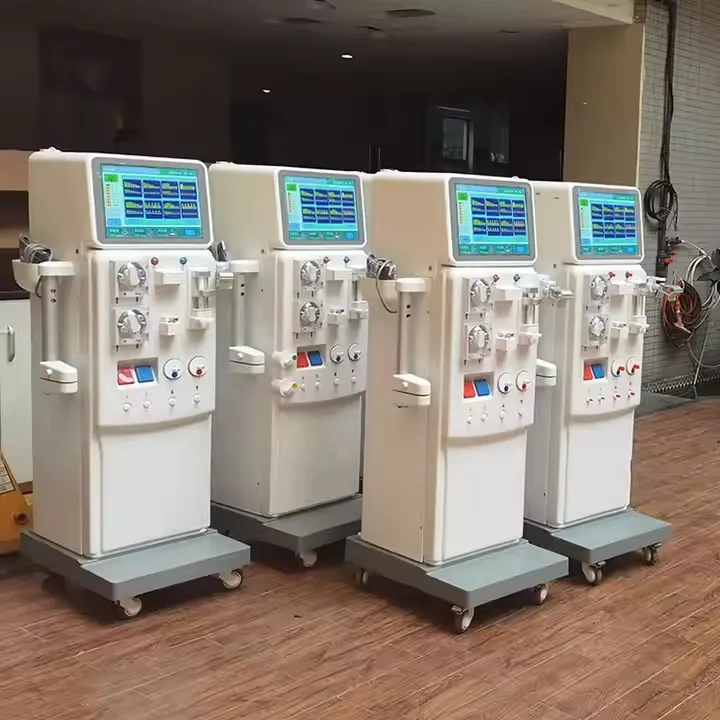

Production Workshop

Frequently Asked Questions

What therapies can be performed with the W-T2008-B?
The machine supports Haemodialysis, Isolated Ultrafiltration, Sequential Ultrafiltration, and Hemoperfusion.
How long does the backup battery last?
The machine features an optional backup battery that provides up to 30 minutes of emergency power.
What are the available disinfection methods?
It supports three modes: Hot Decalcification (20 mins), Chemical Disinfection (45 mins), and high-temperature Heat Disinfection (>85ºC for 60 mins).
What is the accuracy of the ultrafiltration (UF) rate?
The machine has a resolution ratio of 1ml and a precision of ±30 ml/h.
Does it have a blood leak detection system?
Yes, it uses a photochromic detection system that triggers an alarm when the blood leak volume reaches 1ml or more per liter of dialysate.
What sizes of syringes are compatible with the heparin pump?
The heparin pump is compatible with standard 20ml, 30ml, and 50ml syringes.
