Home > Endoscopes > 2.8mm Industrial Video Inspection Endoscope with 5 Inch Monitor, WiFi Function, 1m Length

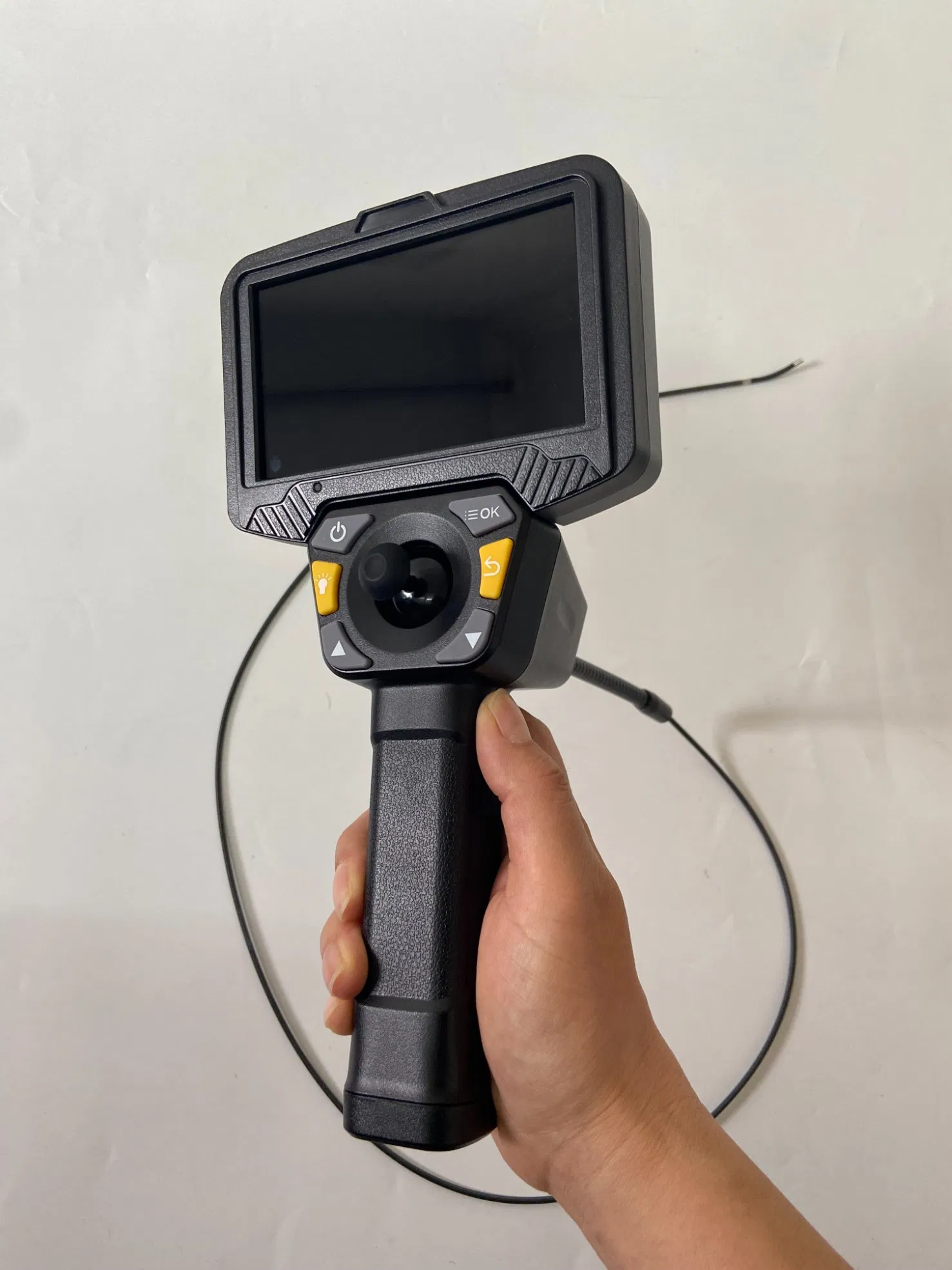

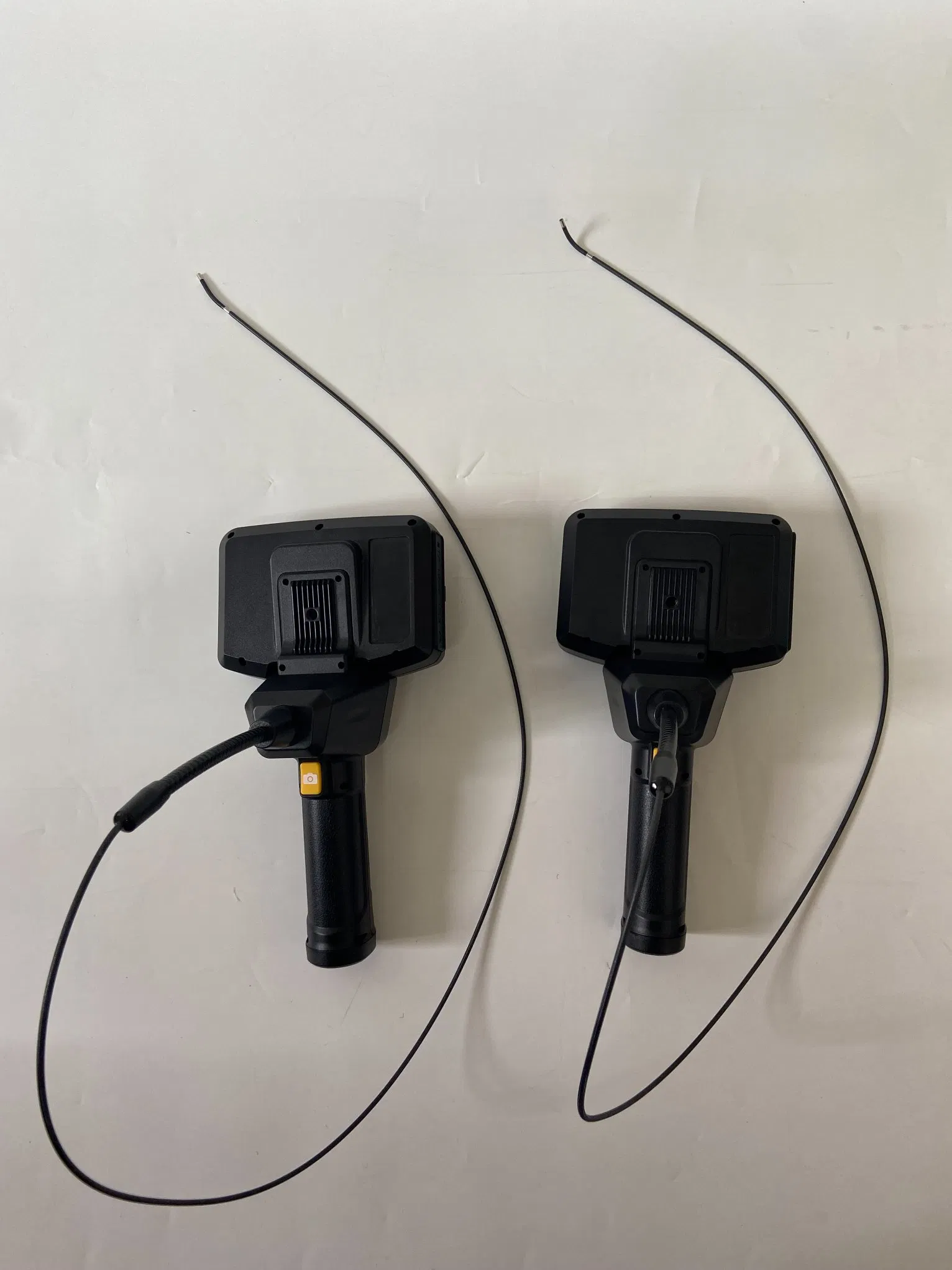

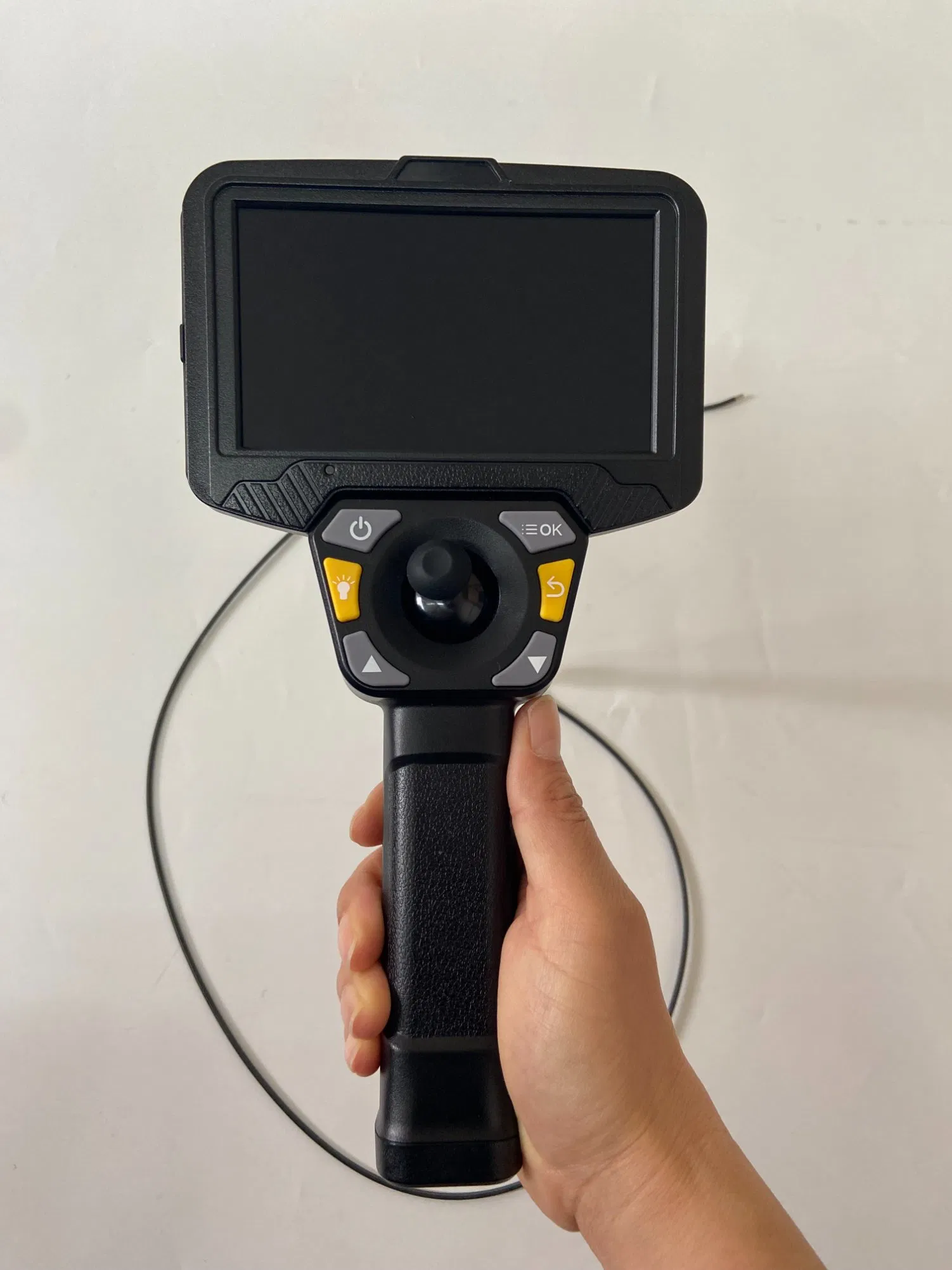

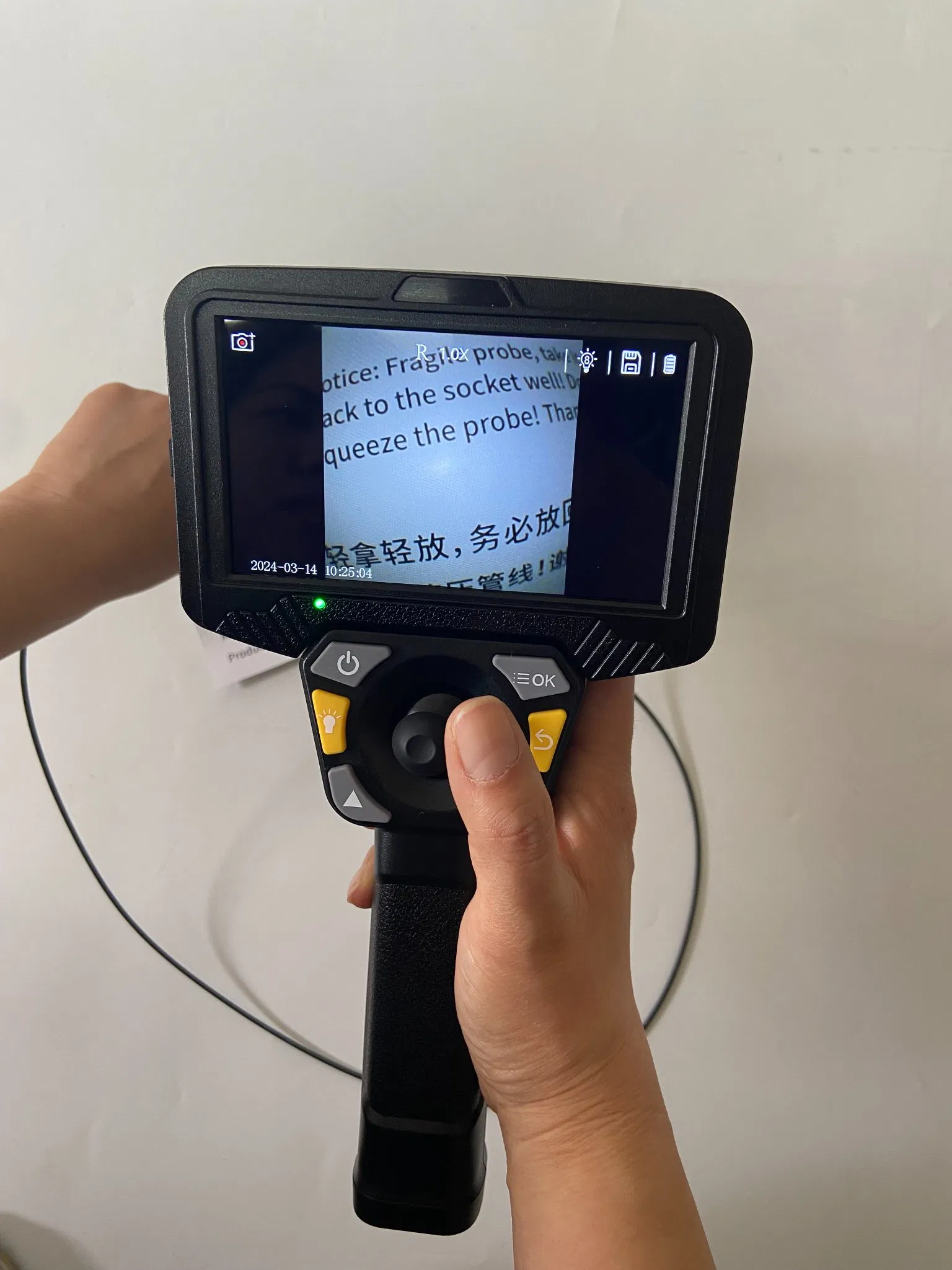

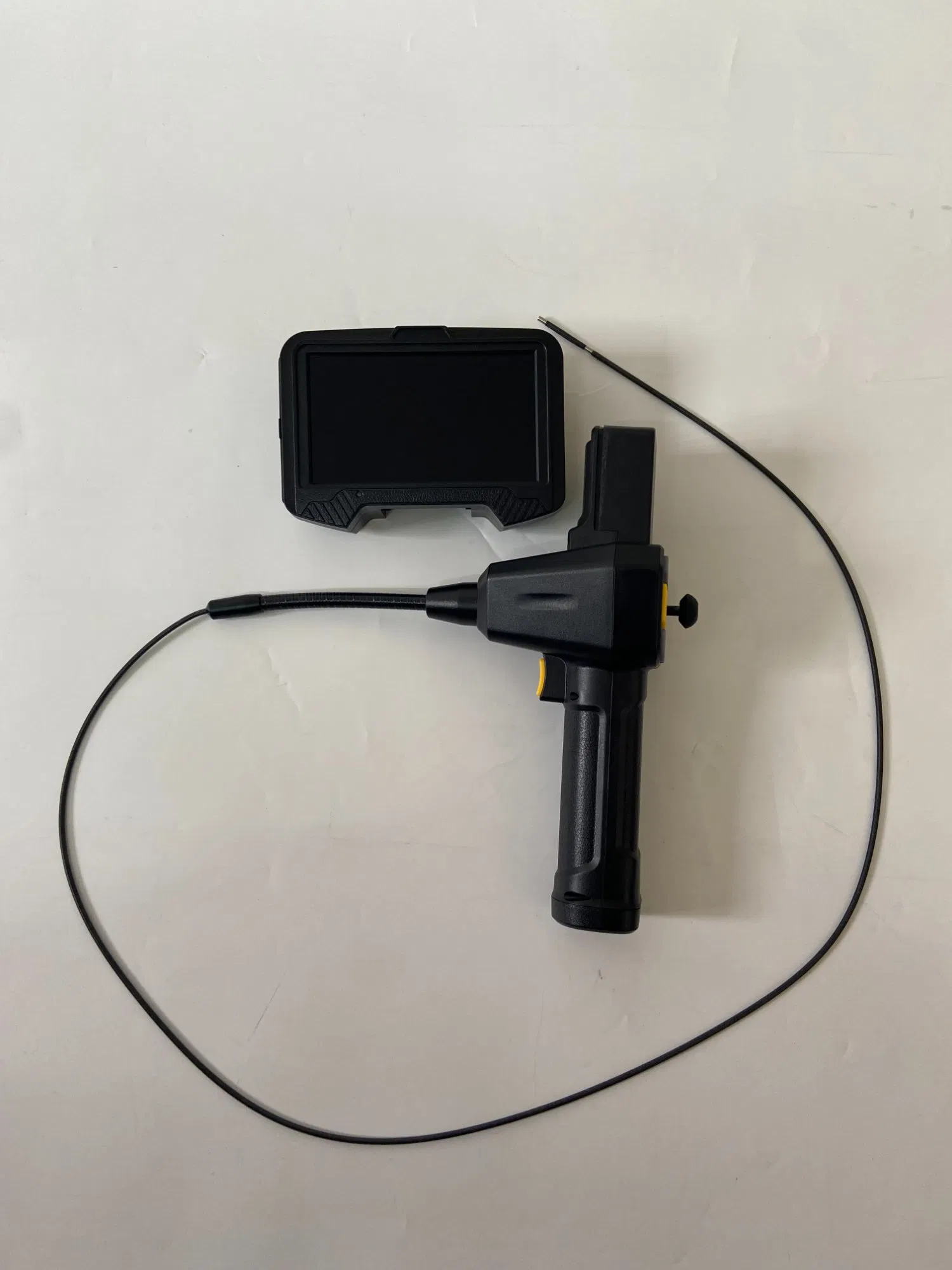

2.8mm Industrial Video Inspection Endoscope with 5 Inch Monitor, WiFi Function, 1m Length
2.8mm Industrial Video Inspection Endoscope with 5 Inch Monitor, WiFi Function, 1m Length
2.8mm Industrial Video Inspection Endoscope with 5 Inch Monitor, WiFi Function, 1m Length
2.8mm Industrial Video Inspection Endoscope with 5 Inch Monitor, WiFi Function, 1m Length
2.8mm Industrial Video Inspection Endoscope with 5 Inch Monitor, WiFi Function, 1m Length
1 / 5
2.8mm Industrial Video Inspection Endoscope with 5 Inch Monitor, WiFi Function, 1m Length
2.8mm Industrial Video Inspection Endoscope with 5 Inch Monitor, WiFi Function, 1m Length
2.8mm Industrial Video Inspection Endoscope with 5 Inch Monitor, WiFi Function, 1m Length
2.8mm Industrial Video Inspection Endoscope with 5 Inch Monitor, WiFi Function, 1m Length
2.8mm Industrial Video Inspection Endoscope with 5 Inch Monitor, WiFi Function, 1m Length

2.8mm Industrial Video Inspection Endoscope with 5 Inch Monitor, WiFi Function, 1m Length

Customization: Available
After-sales Service: 12 Months
Warranty: 12 Months
Send Inquiry

Product Description

Basic Specifications
Model NO.SW301J
Diameter2.8mm
Cable Length1.0m
Camera Length5mm
View Angle90 Degree
Monitor5 Inch IPS HD
Depth of Field5mm-50mm
Bending Angle180 Degree
Storage32GB (Max 128GB)
OriginChina
HS Code8525801390
Capacity300PCS / Month
Product Overview
2.8mm Industrial Video Inspection Endoscope with 5 Inch Monitor, WiFi Function, 1m Length

This professional-grade industrial endoscope features an ultra-slim 2.8mm probe, designed for high-precision inspections in narrow spaces. Equipped with a 5-inch IPS HD monitor and 180-degree articulation, it provides clear visuals and flexible navigation for complex maintenance tasks.

2.8mm Industrial Video Inspection Endoscope
Technical Parameters
Host Dimension 265*140*132.7mm
Screen 5 inch IPS HD monitor
Output Port TYPE-C
Power 26650 Li-battery, working time >= 4 hours
Waterproof IP54
Working Temp -10ºC ~ 50ºC
System Operation Button navigation, one-click photo and video
Functions Freeze, zoom, photo, flip, playback, analog ruler
File Format Image: JPG, Video: MOV
Language Eight languages + Traditional Chinese
Case Weight Less than 0.8kg with battery
L*W*H 345 × 265 × 91mm
Frequently Asked Questions
What is the diameter of the camera probe?
The camera probe has an ultra-slim diameter of 2.8mm, making it ideal for inspecting very small pipes and narrow engine components.
Does the probe support articulation?
Yes, the probe features a 180-degree bending angle, allowing you to navigate through complex bends and view areas from multiple angles.
How long can the device operate on a full charge?
The device is powered by a 26650 Li-battery, providing a continuous working time of 4 hours or more.
What is the display quality of the monitor?
The endoscope is equipped with a 5-inch IPS HD monitor, which offers high resolution and wide viewing angles for accurate inspections.
Is the device protected against water and dust?
The host unit has an IP54 rating, providing protection against dust ingress and water splashes from any direction.
What storage capacity is included?
The system comes with a 32GB SD card and supports expansion up to 128GB for storing high-quality photos and videos.
