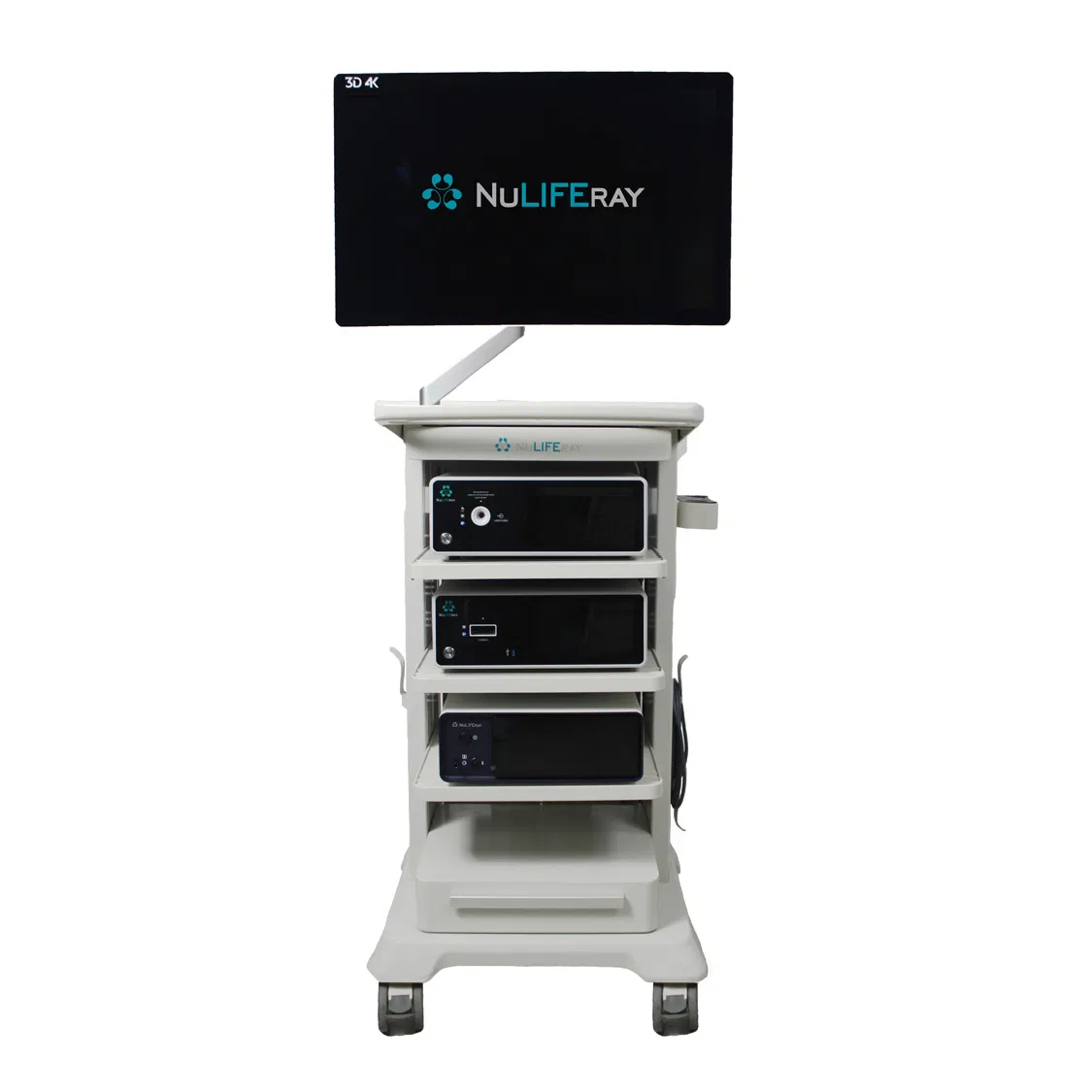

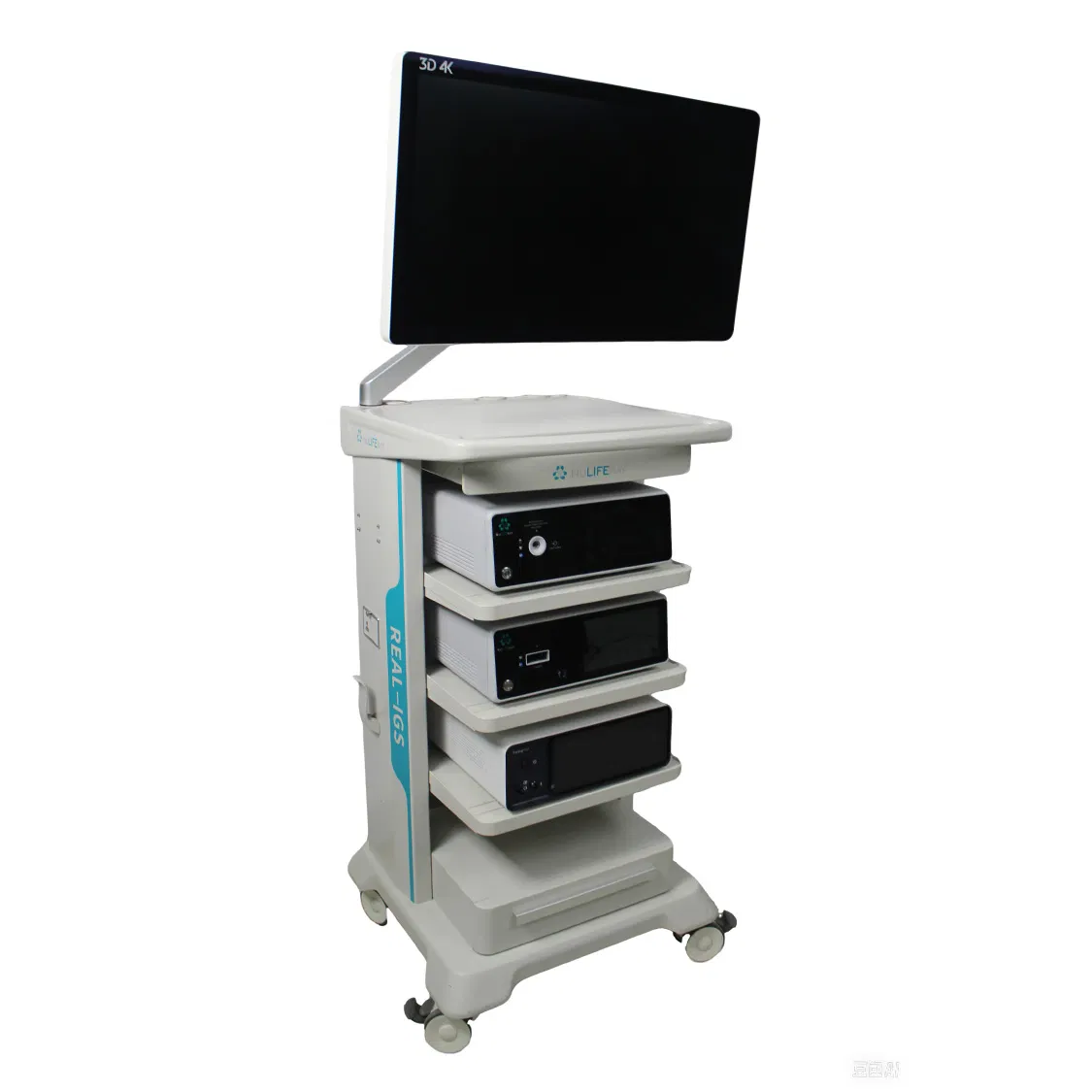

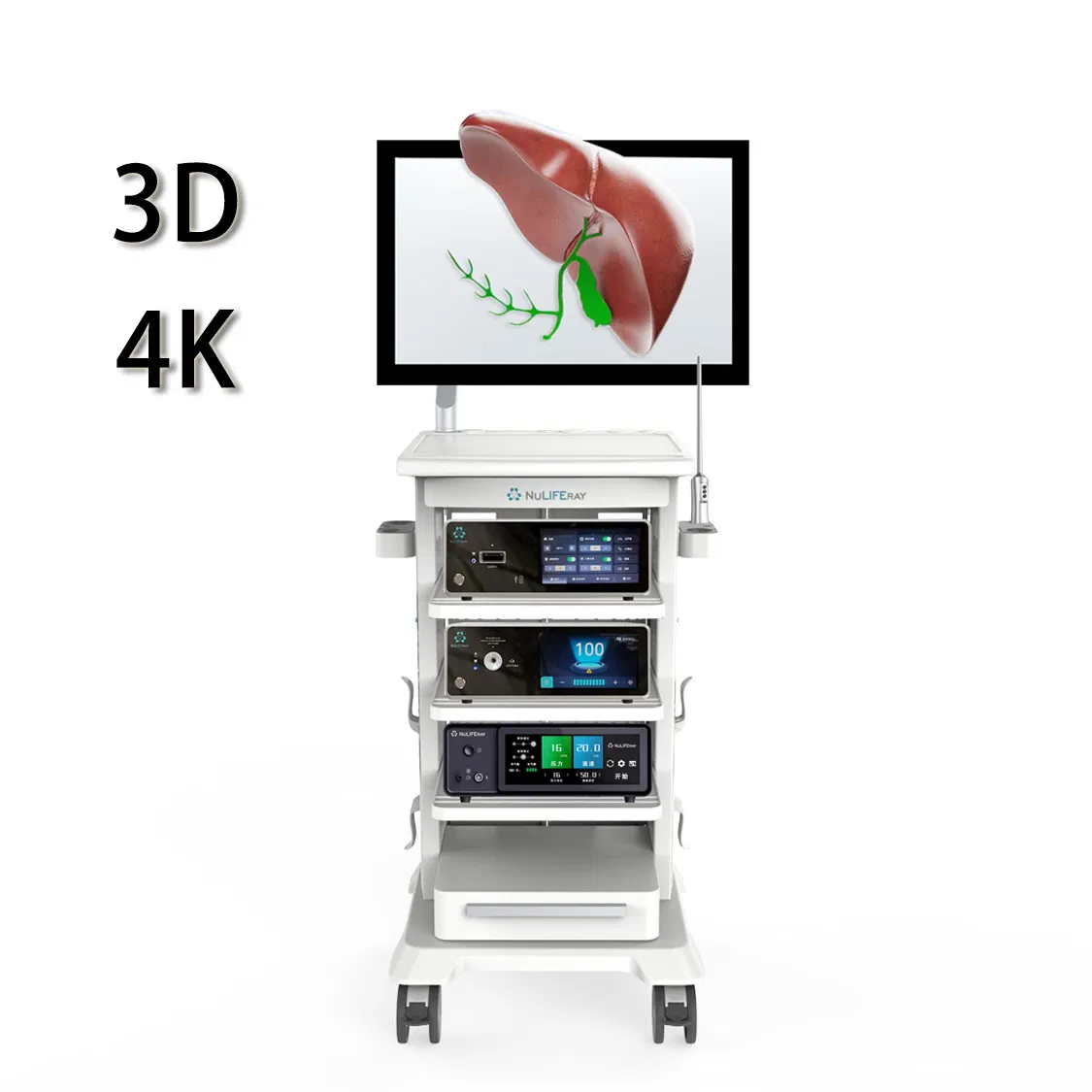

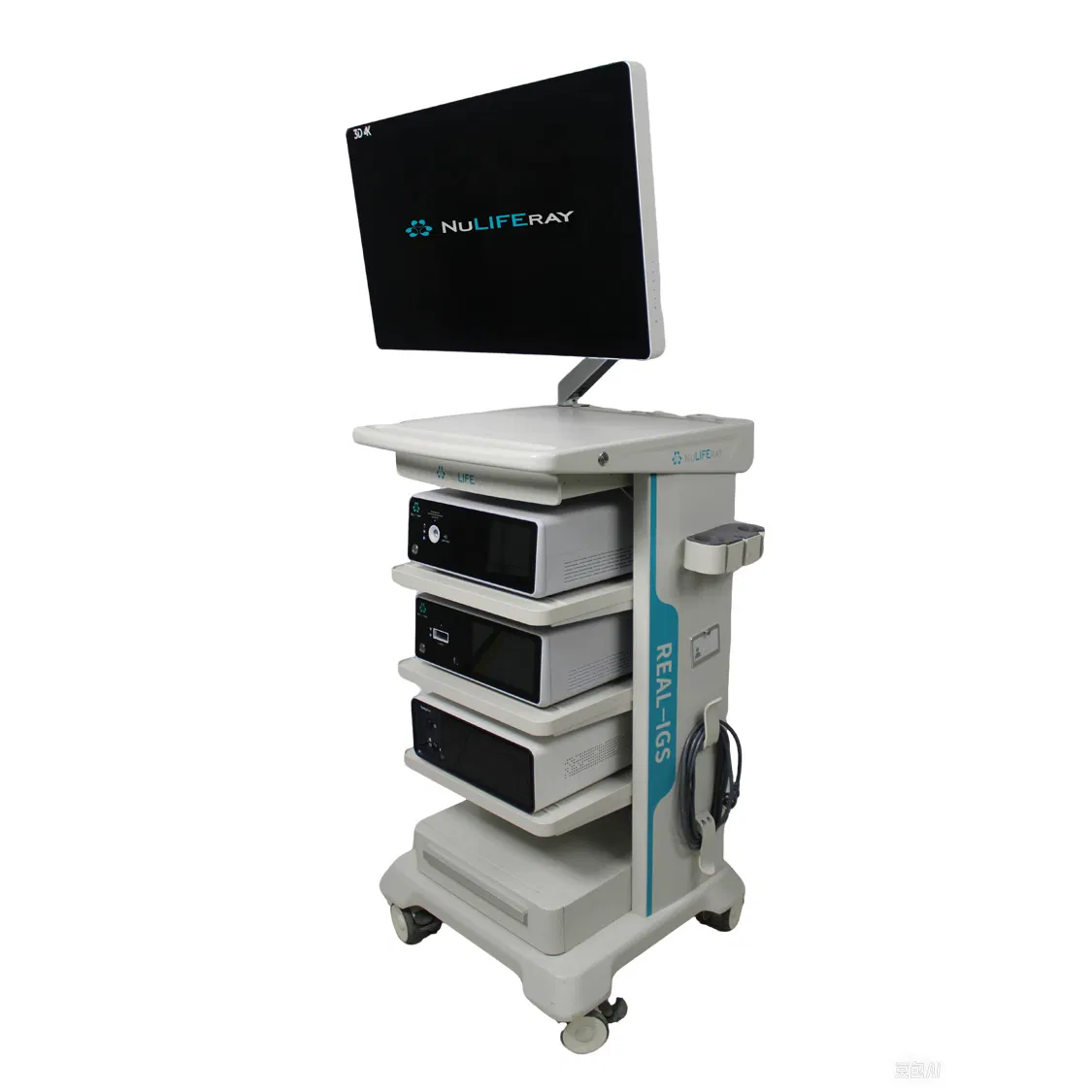

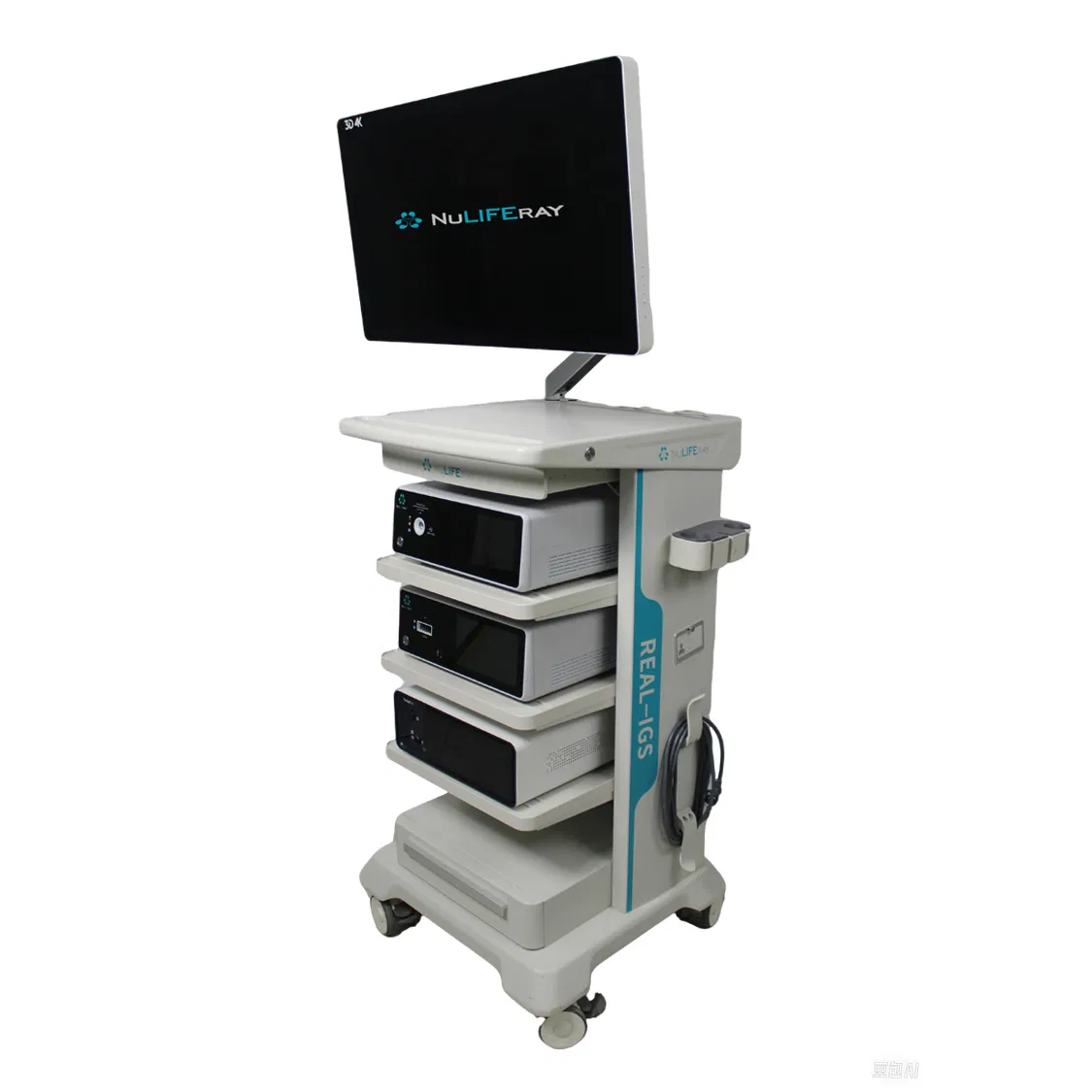

Cutting-Edge 3D 4K Endoscope Camera System for Precision Surgery

1 / 5

Cutting-Edge 3D 4K Endoscope Camera System for Precision Surgery

Customization:	Available
Certification:	CE, FDA, ISO13485
Group:	All People

Send Inquiry

Product Description

Basic Specifications

Resolution

3840*2160p

Light Source Lifespan

≥ 30000 Hours

Laser Wavelength

785nm

Color Temperature

3000~7000K

Origin

China

HS Code

9018903010

Product Advantages

2D/3D one click switching, white light/fluorescence/fusion one click switching.
30-200mm no focus large depth of field design & physical heating anti-fog.
The joystick buttons support multifunctional customization.
The handle supports low-temperature plasma sterilization (≥ 600 times).
Built-in recording system with high-definition/4K options available.

Technical Parameters

Project	Content (Reference)
Number of camera chips	Two CMOS sensors in total for both left and right eyes
Image Mode	6 Types: White light 3D/Fluorescence 3D/Fusion 3D/white light 2D/Fluorescence 2D/Fusion 2D
Monitor Size	Standard 32 inch, optional 55 inch
Output Interface	HDMI, 3G/12G SDI, USB, DP, DVI
Depth of Field of Lens	30-200mm
Lens Defogging Function	Equipped with physical heating and anti-fog properties
Shortcut Keys	3 customizable keys (White balance, mode switching, etc.)
Light Source Flux	≥700lm (Dual light source dual light path)
Chassis Panel	Host & Light source: 8-inch touch screen
Video Recorder	4K&60p ultra high definition acquisition

Patent Certificates

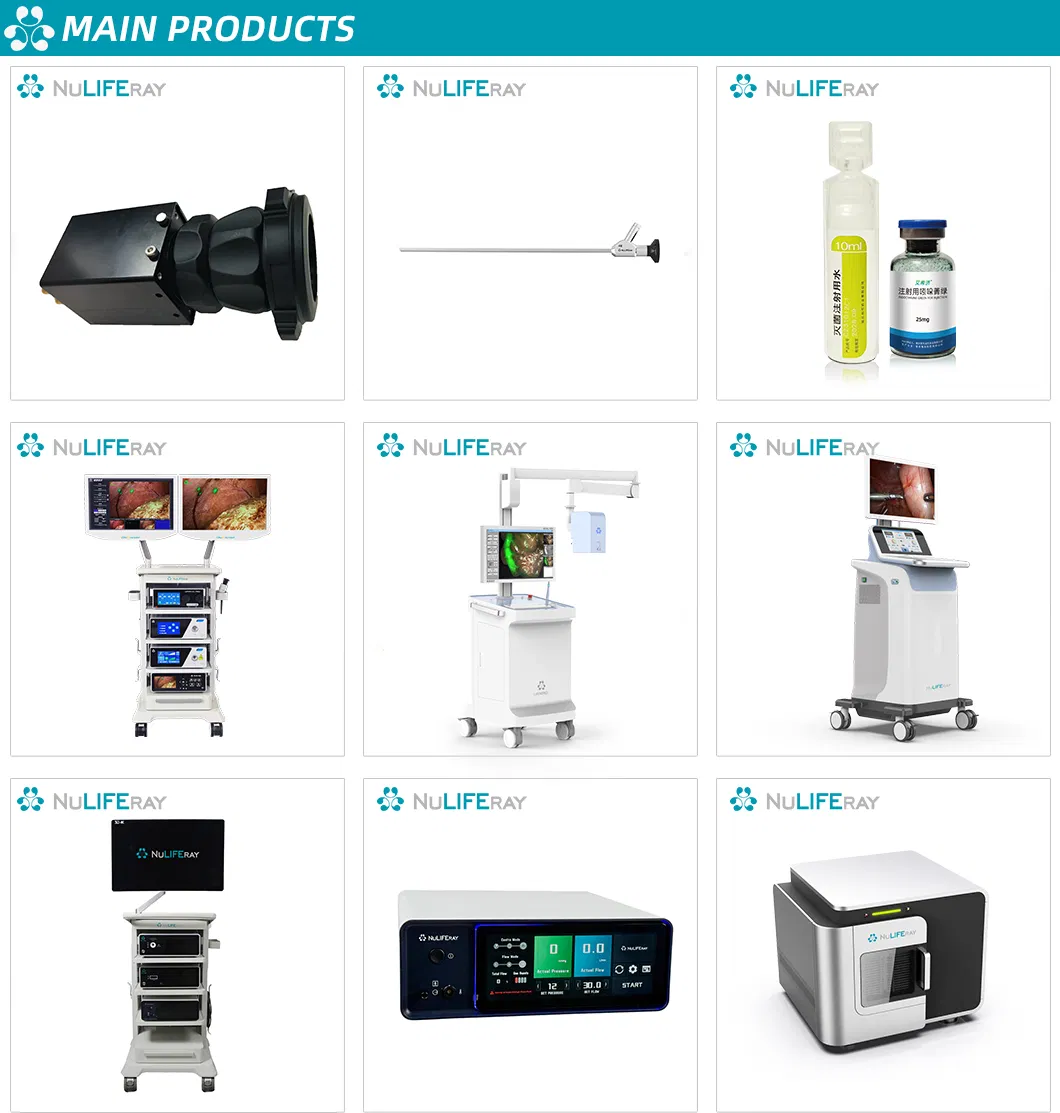

Main Products

Our product range covers the research, development, production, and sales of high-end medical devices, including fluorescence imaging series, contrast agents (ICG), and core components like fluorescence CMOS camera modules and endoscopes. These solutions have been implemented in over 500 large hospitals.

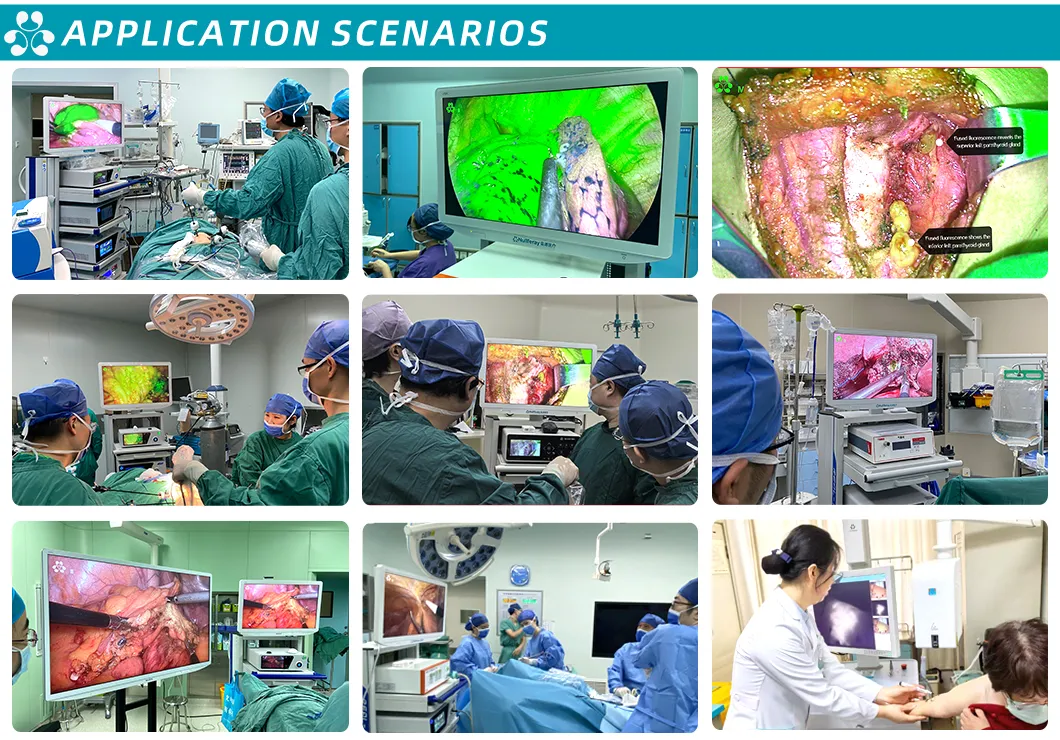

Clinical Application

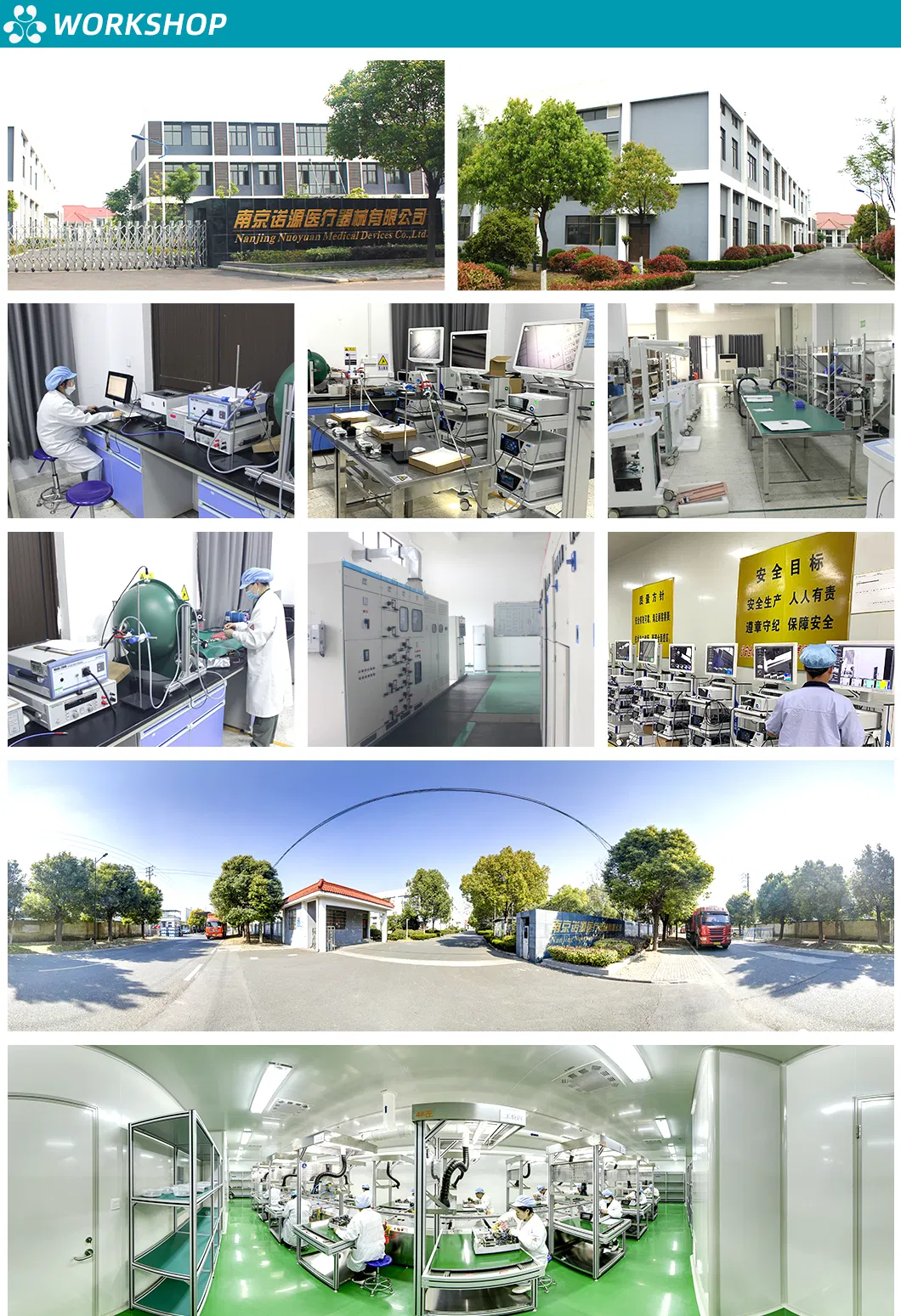

Company Profile

Founded in 2011, we focus on core technologies such as molecular fluorescence, Raman spectroscopy, AI, and computer-aided drug molecular design (CADD). As a specialized "little giant" enterprise, we hold 131 core invention patents and 7 US invention patents.

Packaging & Global Presence

We are strategic partners with international leaders in Germany and Japan, establishing cooperative businesses in more than 10 overseas countries.

Frequently Asked Questions

Q1: How can I purchase your medical products?

You can order directly through our platform or contact our sales team. They will assist with product configuration, shipping details, and guide you through the entire procurement process.

Q2: What payment methods do you accept?

We accept T/T bank transfers, Western Union, MoneyGram, PayPal, and LC. Other payment methods can be discussed based on your requirements.

Q3: What is the estimated delivery time and shipping method?

Standard delivery takes 3-7 days if items are in stock. We cooperate with global freight forwarders to provide express, air, or sea delivery options based on your specific needs.

Q4: What kind of after-sales service do you provide?

We provide a two-year warranty. During this period, replacements or maintenance are free of charge. We also offer lifelong technical support and service beyond the warranty period.

Q5: How is the security of the transaction guaranteed?

As a professional medical company with multiple government certifications, we ensure all transactions are secure. Our goal is to provide quality products with safe payment methods worldwide.

Q6: Can the system be customized for specific surgical needs?

Yes, the system supports multifunctional customization for joystick buttons, and the recording system offers both high-definition and 4K options to suit different clinical requirements.
