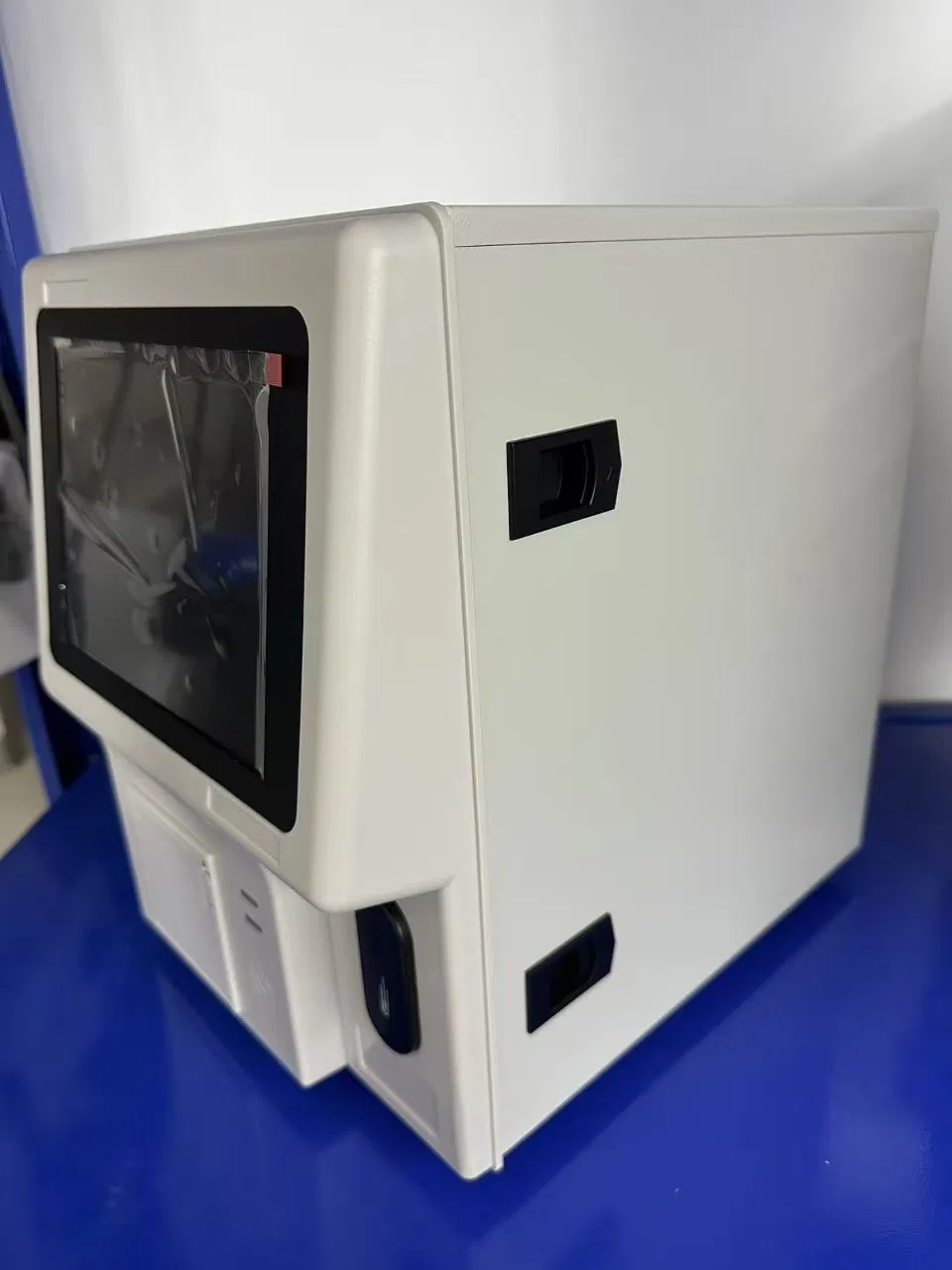

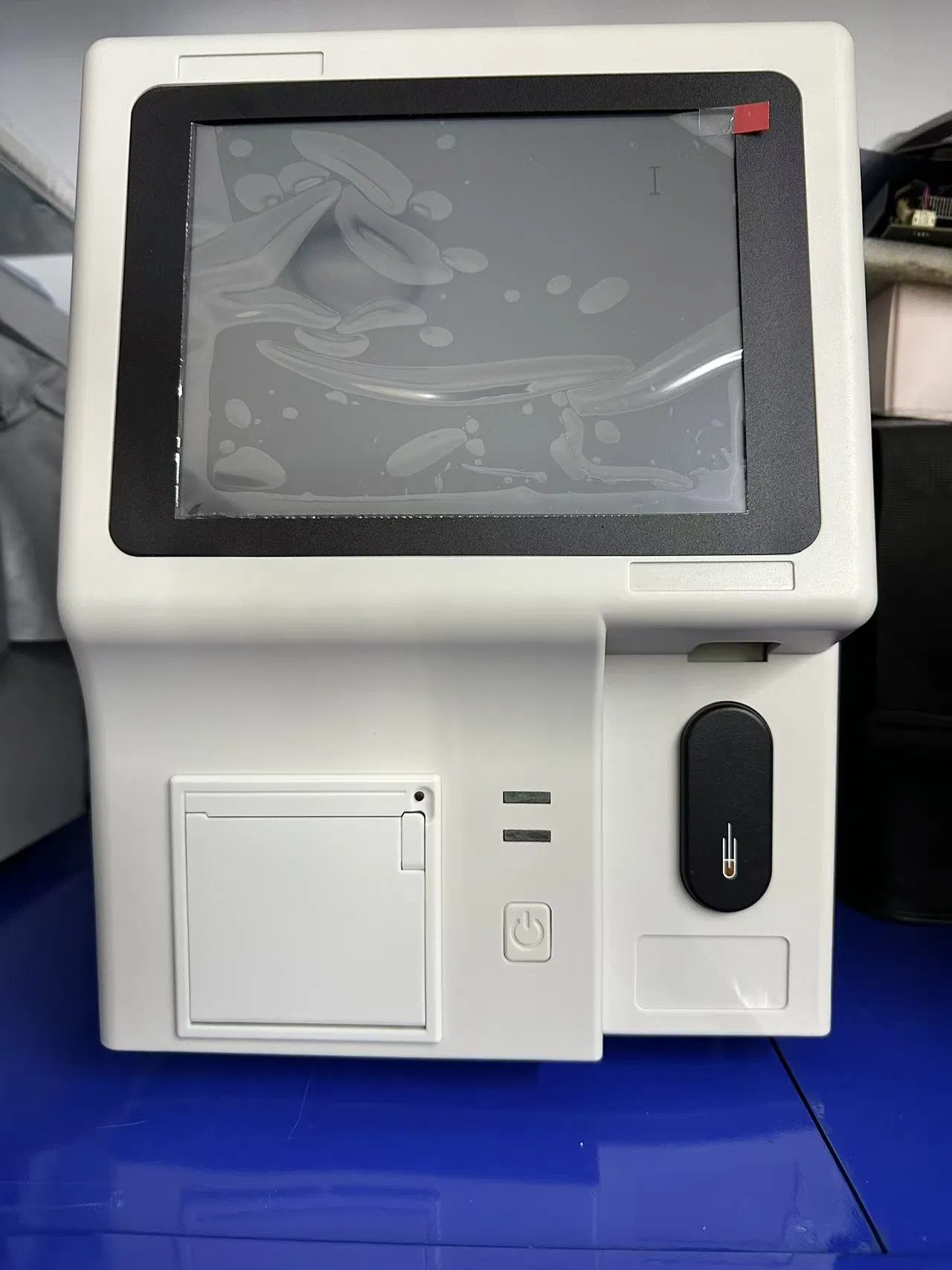

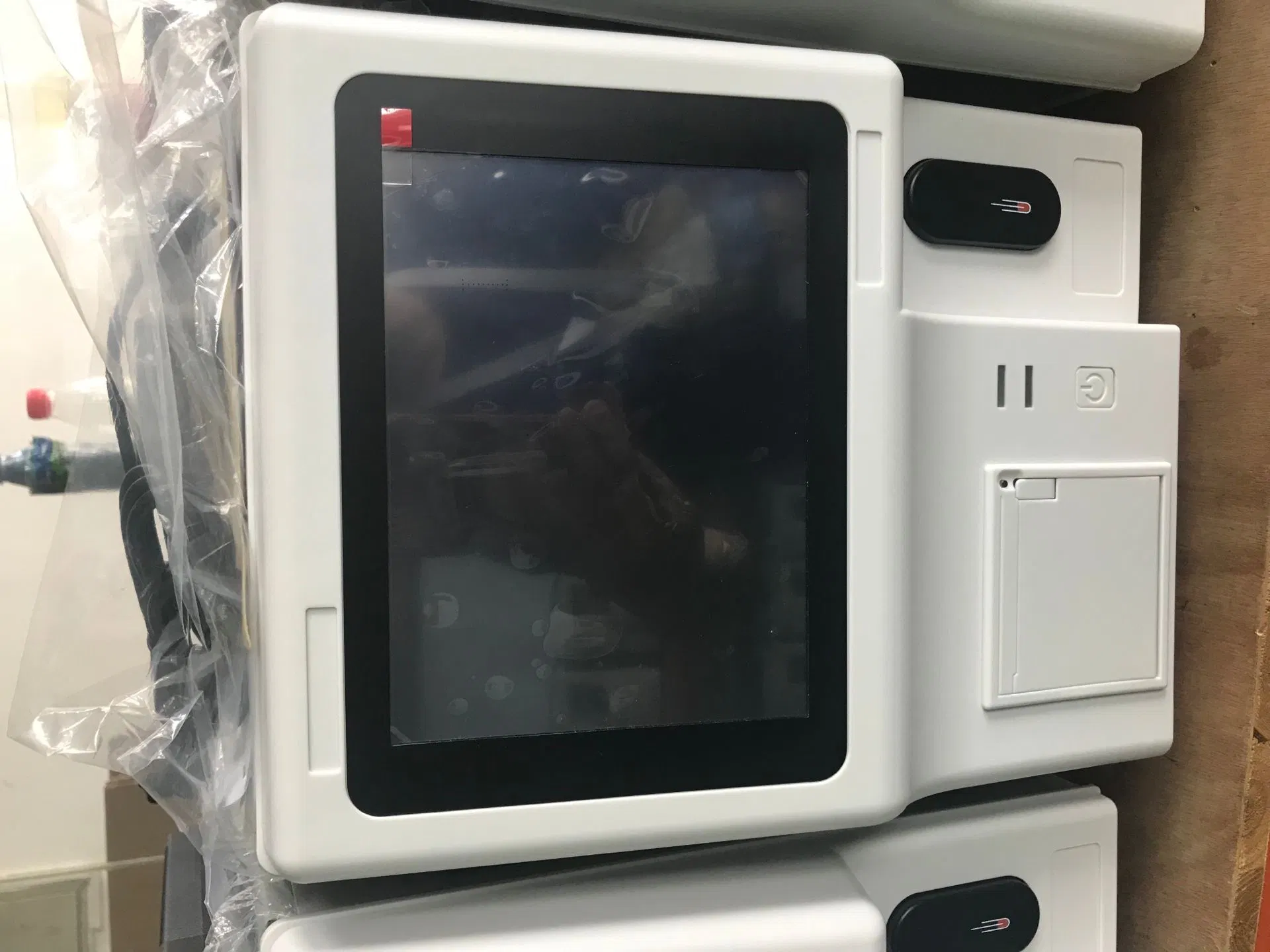

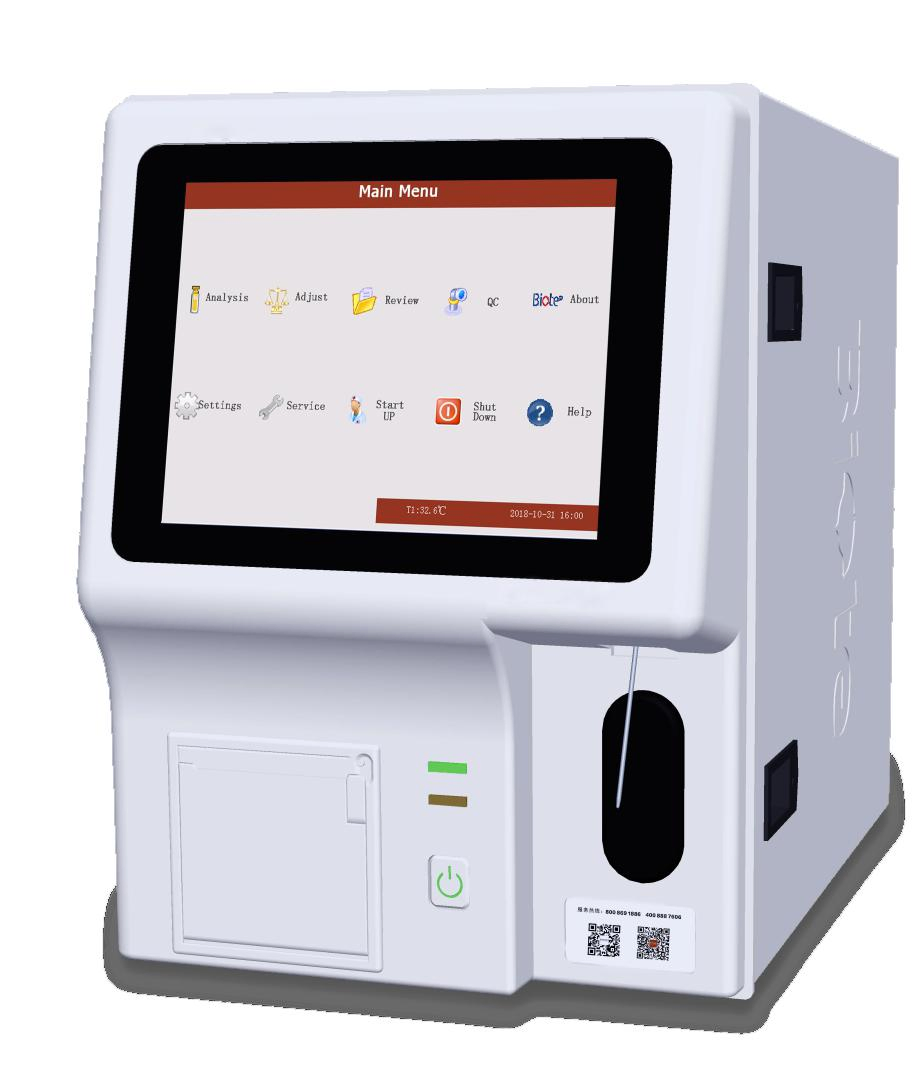

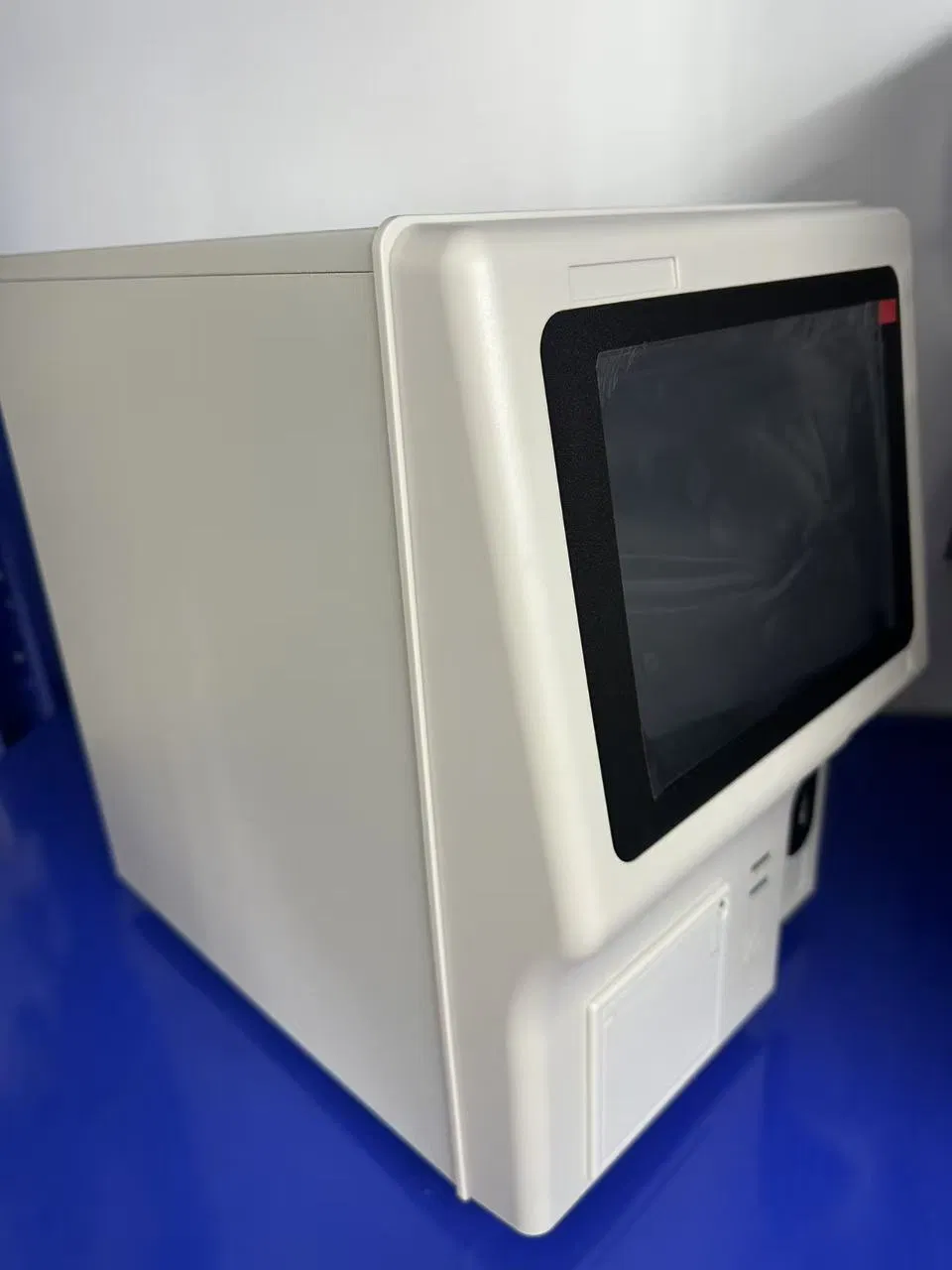

3 Part Differential Auto Hematology Analyzer Stable Performance

1 / 5

3 Part Differential Auto Hematology Analyzer Stable Performance

Customization:	Available
Type:	Urine Analyzer
Certification:	CE, ISO13485

Send Inquiry

Product Description

Basic Information

Model NO.

AJ-3128

Function

Automated Wbc 3-Part

Principal

Electronic Impedance, Sft Method for Hemoglobin

Display

8 Inch TFT LCD (Optional Touch Screen)

Transport Package

Standard Export Packing

Specification

CE ISO

Origin

China

Product Description

3 Part Differential Auto Hematology Analyzer Stable Performance AJ-3128

📱 Smart & Compact

Portable & Affordable

⚖️ Real Portable

Only 12Kg weight

⚡ Fast Testing

60 Tests per Hour

💎 Unique Functions

Precise & Reliable, Compact design.
Economical: Integrated Hydraulic design uses less reagents.
English operation interface with optional touch screen.

⚙️ Simple Operation & Low Consumption

Sample volume: Venous blood 9.6µL, capillary blood 20µL.
Remained reagent volume detection with operator reminders.
Supports external printers (mini matrix, ink jet, stylus, laser).
Data transmission via RS232 port to external computers.

🛡️ Advanced Design & Stable Performance

Automatic sleep and wake up function to save energy.
Automatic sampling needle retraction to avoid contamination.
Large storage: At least 400,000 test results with SD card support.
Automatic reference range selection based on age and sex.

🔬 Accurate Analysis & Perfect Quality

Modes: Venous blood, capillary blood, and prediluted.
QC Modes: L-J, X-B, and X-r (Westguard regulation).
Manual and automatic calibration; fresh blood calibration available.
Traceable to International Standard Systems.

🛠️ Convenient Maintenance & Safety

Intelligent diagnosis and automatic maintenance log generation.
Block-clearing via soak, back & forth flush, and high-pressure burning.
Leaf door construction for easy access during maintenance.
Automatic tittle sampling and advanced malfunction diagnosis.

Technical Specifications

Performance Parameters
Parameters	WBC, RBC, HGB, HCT, MCV, MCH, MCHC, PLT, LYM%, LYM#, GRAN%, MID%, MID#, PDW, MPV, PCT, RCDW, LCDW, RDW, P-LCR and WBC, RBC, PLT histograms.
Throughput	≥60T/H
Sample Volume	Whole blood ≤9.6µL, Capillary blood ≤9.6µL, Prediluted ≤20µL
Working Mode	Automatic sampling, detecting, and testing with internal dilutor.
Storage	≥400,000 results, SD card supported.
Display	8 inch TFT LCD (Optional Touch Screen)
Connection	USB, RS-232, Network interface, LPT
Dimension/Weight	345mm×245mm×330mm / 12Kg

Reagent Packages

Ordinary Package (Suggested for AIR):

CODE	DESCRIPTION	SPEC
30201	Diluents	5L
30202	Lyse	400ml
30203	Detergent	500ml

Big Package (Suggested for SEA):

CODE	DESCRIPTION	SPEC
30201	Diluents	20L
30202	Lyse	1L
30203	Detergent	5L
30204	Enzyme cleaner	100ml

Frequently Asked Questions

Q1: What is the testing speed of the AJ-3128? A: The analyzer offers a high throughput of at least 60 tests per hour (60T/H).

Q2: How much blood sample is required for a test? A: It requires very small volumes: ≤9.6µL for venous or capillary whole blood, and ≤20µL for prediluted capillary blood.

Q3: Does the device support data export to a computer? A: Yes, data can be transmitted to an external computer via the RS232 port or USB/Network interfaces.

Q4: How does the machine handle aperture blockages? A: It features an automated block-clearing system using soaking, back-and-forth flushing, and high-pressure burning.

Q5: What is the storage capacity for test results? A: The internal memory can store at least 400,000 test results with comprehensive information, and it supports extended SD memory.

Q6: Is the reagent system open or closed? A: It features an open reagent system and uses non-cyanogen reagents for environmental protection.
