Fully Auto Five Diff 5-Part Hematology Analyzer

1 / 5

Fully Auto Five Diff 5-Part Hematology Analyzer

Classification:	Biological Diagnostics
Type:	Urine Analyzer
Certification:	CE, FDA, EEC, MSDS, ISO13485

Send Inquiry

Product Description

📋

Basic Information

Model NO.

MS-6500

Group

Middle-aged and Old

G.W

39 Kg

N.W

36 Kg

Transport Package

1 Piece in a Box

Specification

480*375*517

Trademark

customized

Origin

China

HS Code

9018193010

Production Capacity

1000PCS/Year

🔬

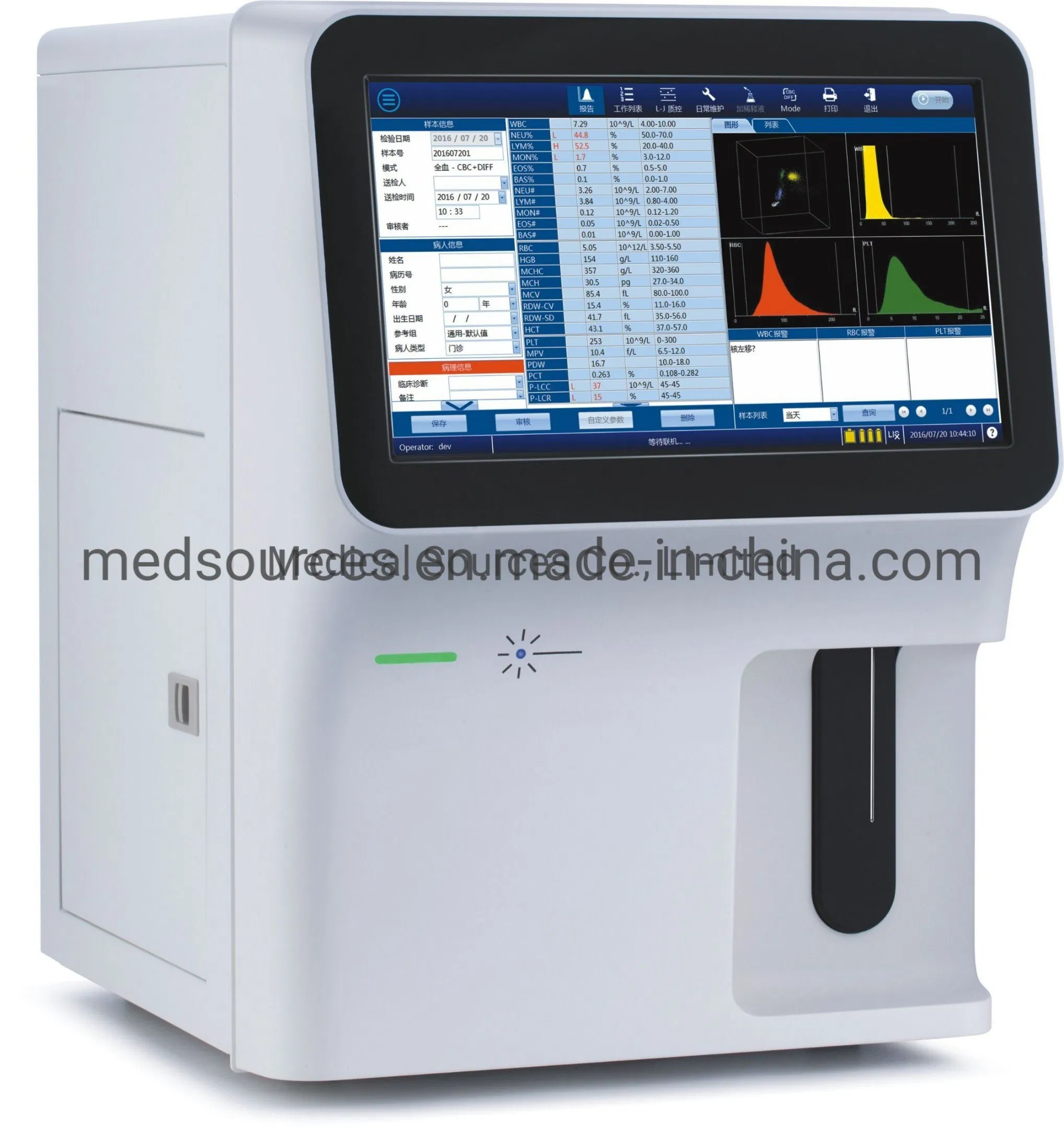

MS-6500 Fully Auto Five Diff 5-Part Hematology Analyzer

⚙️

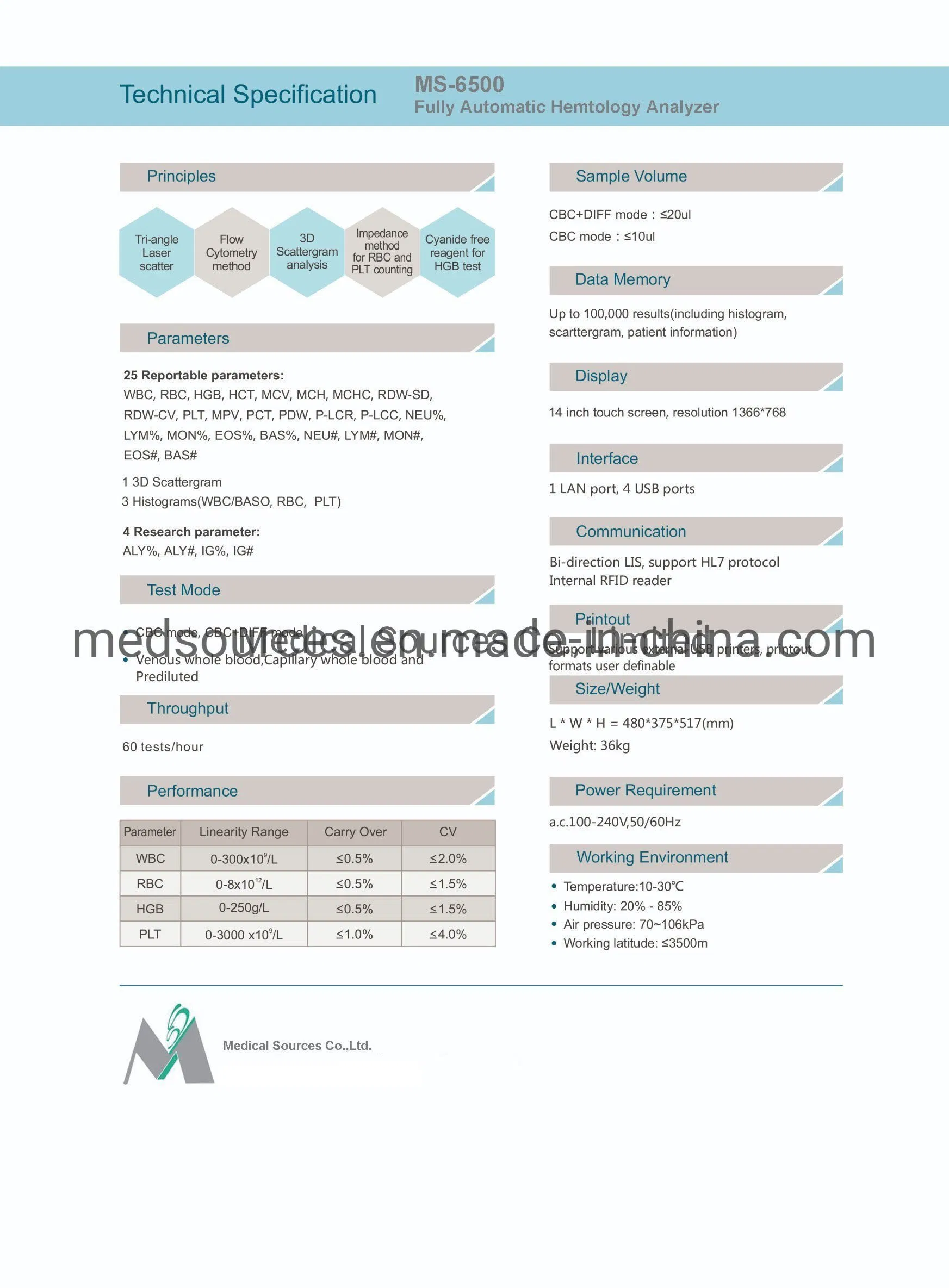

Technical Specifications

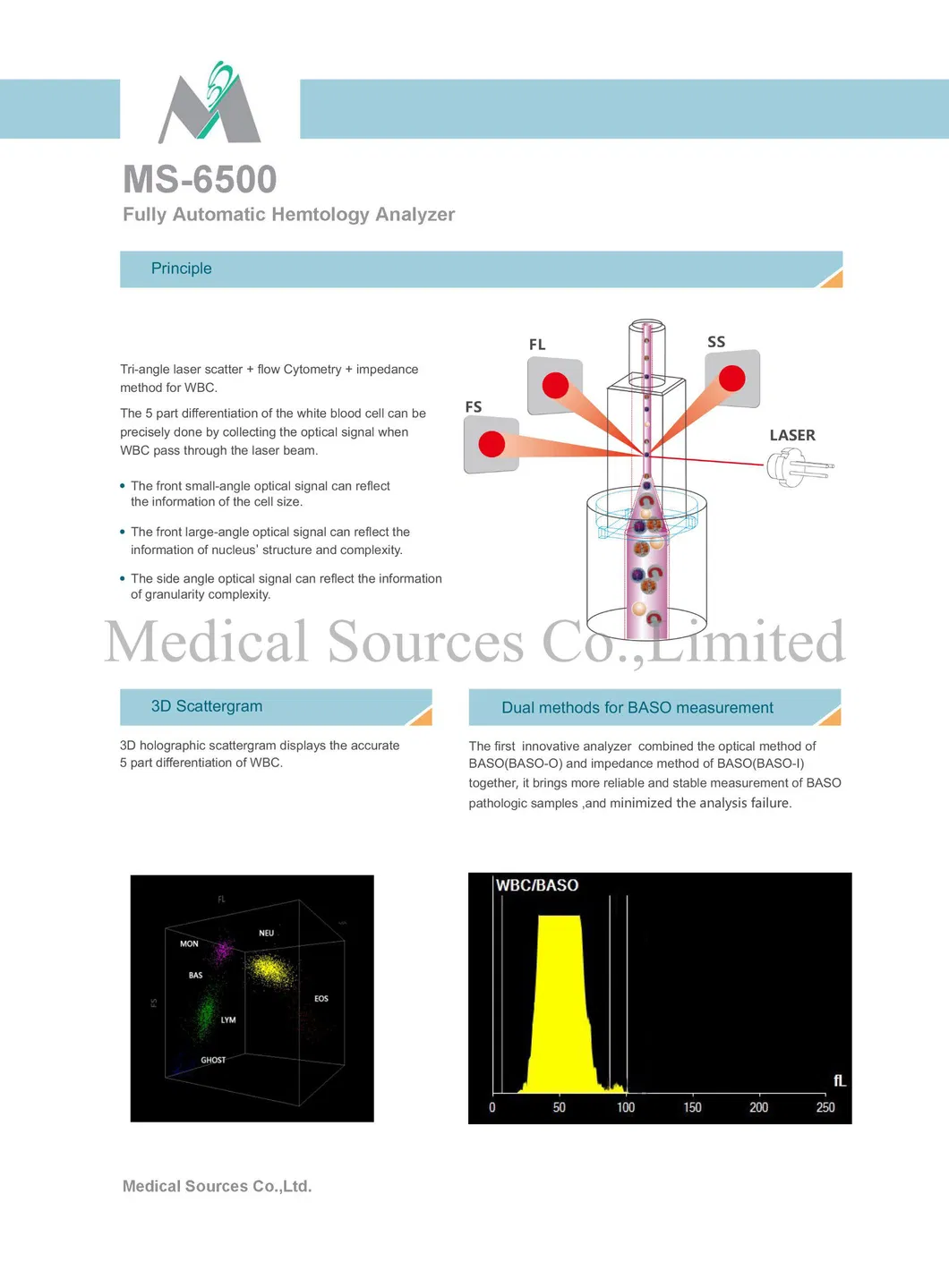

Principles

Trp-angle Laser Scatter
Flow Cytometry method
3D scattergram analysis
Impedance method for RBC and PLT counting
Cyanide free reagent for HGB test

Parameters

25 Reportable parameters: WBC, RBC, HGB, HCT, MCV, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT, PDW, P-LCR P-LOC, NEU%, LYM%, MON%, EOS%, BAD%, NEU#, LYM#, MON#, EOS#, BAS#

Graphics: 1 3D Scattergram, 3 Histograms (WBC/BASO, RBC, PLT)

Research parameters: ALY%, ALY#, IG%, IG#

Parameter	Linearity Range	Carry Over	CV
WBC	0-300*10⁹/L	≤0.5%	≤2.0%
RBC	0-8*10¹²/L	≤0.5%	≤1.5%
HGB	0-250g/L	≤0.5%	≤1.5%
PLT	0-3000*10⁹/L	≤1.0%	≤4.0%

Test Performance

Throughput: 60 tests/hour

Test Mode: CBC mode, CBC+DIFF mode

Sample Type: Venous whole blood, capillary whole blood and prediluted

Sample Volume: CBC+DIFF: ≤20ul | CBC: ≤10ul

Hardware & Software

Display: 14 inch touch screen (1366*768)

Memory: Up to 10,000 results (including histograms/scattergrams)

Interface: 1 LAN port, 4 USB ports

Communication: Bi-direction LIS, support HL7 protocol, Internal RFID reader

🌡️

Operating Requirements

Size

480*375*517 (mm)

Weight

36kg

Power

a.c. 100-240v, 50/60 Hz

Temperature

10-30ºC

Humidity

20%-85%

Altitude

≤3500m

❓

Frequently Asked Questions

Q: What is the testing capacity of the MS-6500?

A: The analyzer has a throughput of 60 tests per hour, making it efficient for laboratory workflows.

Q: How many parameters does the MS-6500 report?

A: It provides 25 reportable parameters and 4 research parameters (ALY%, ALY#, IG%, IG#), along with 3D scattergrams and histograms.

Q: Does the device support connection to laboratory information systems?

A: Yes, it supports bi-directional LIS and uses the HL7 protocol for seamless data communication.

Q: What sample volume is required for a standard test?

A: For CBC+DIFF mode, it requires ≤20ul, while the standard CBC mode requires only ≤10ul.

Q: What type of screen does the analyzer have?

A: It is equipped with a large 14-inch touch screen with a resolution of 1366*768 for easy operation.

Q: Can I use an external printer with this unit?

A: Yes, the system supports various external USB printers with user-definable printout formats.
