Product Description

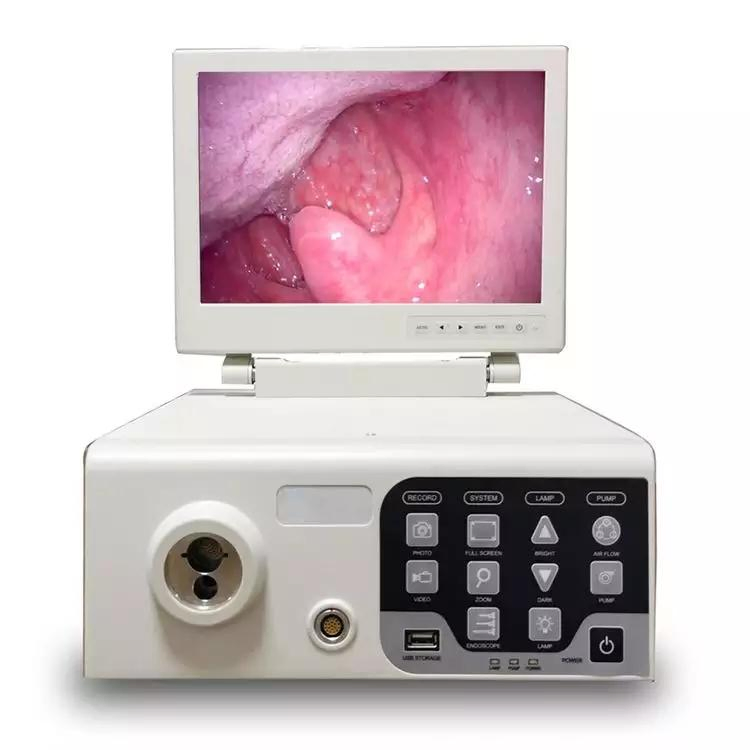

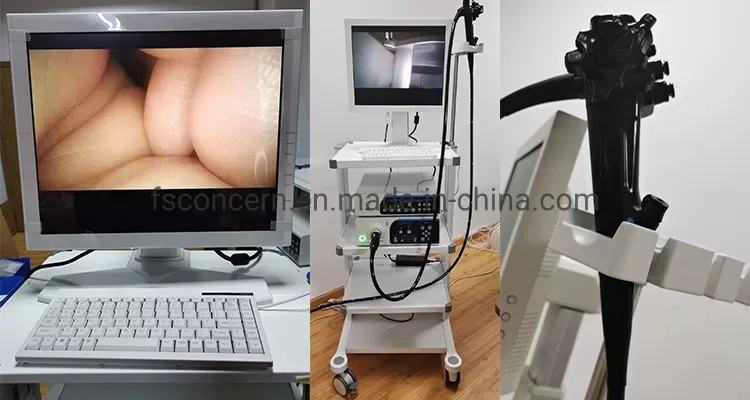

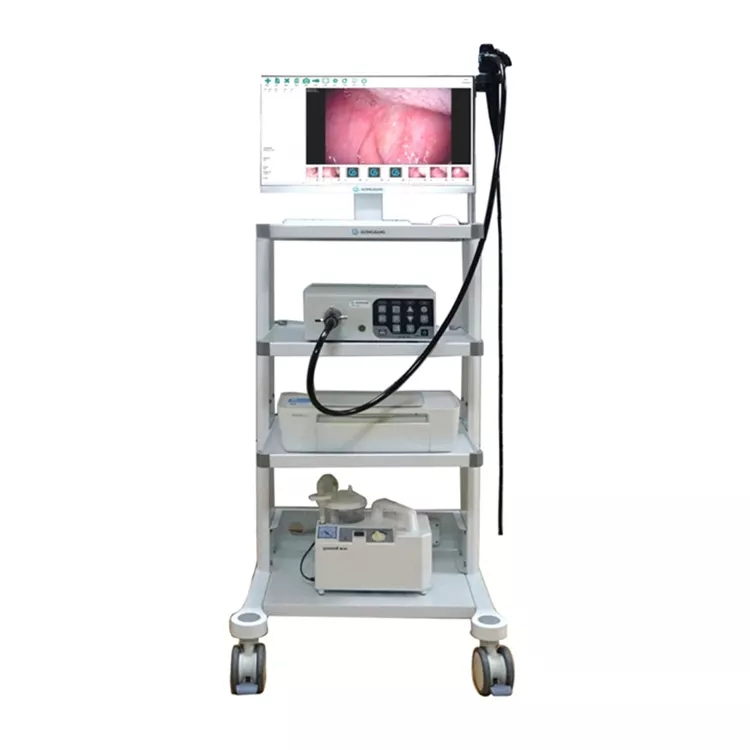

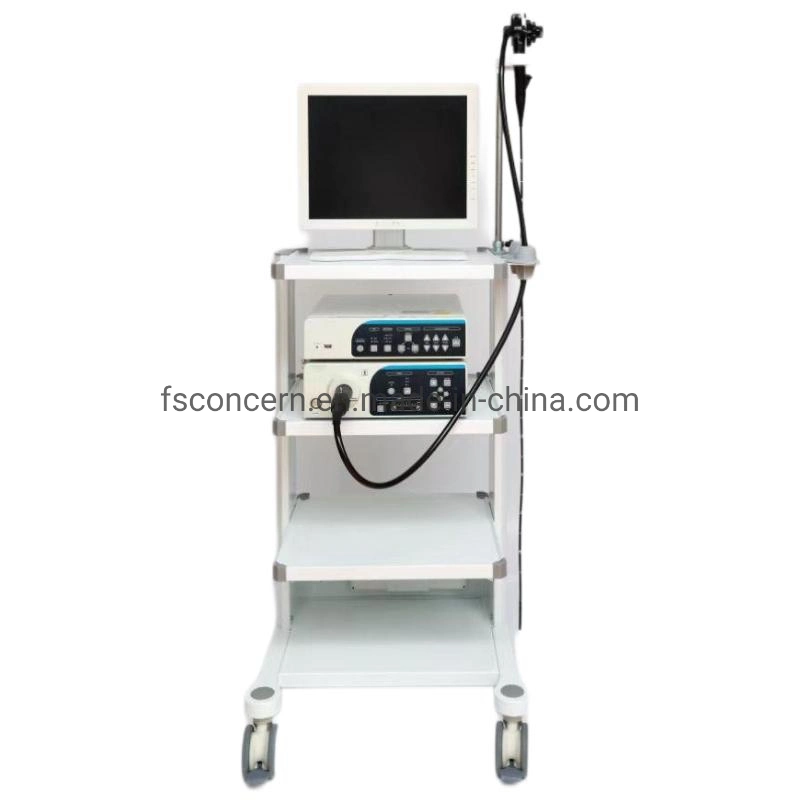

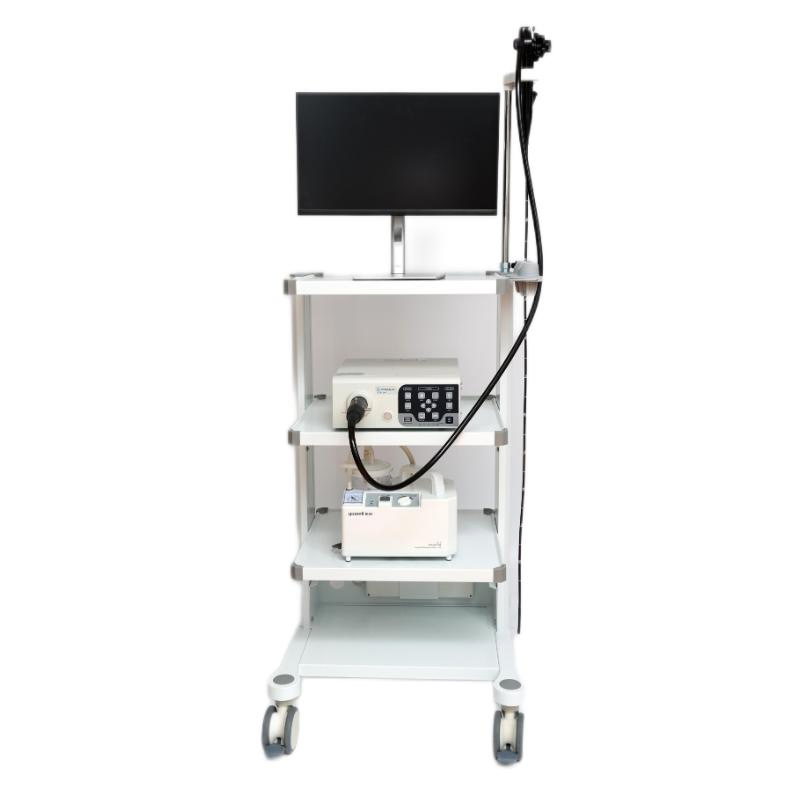

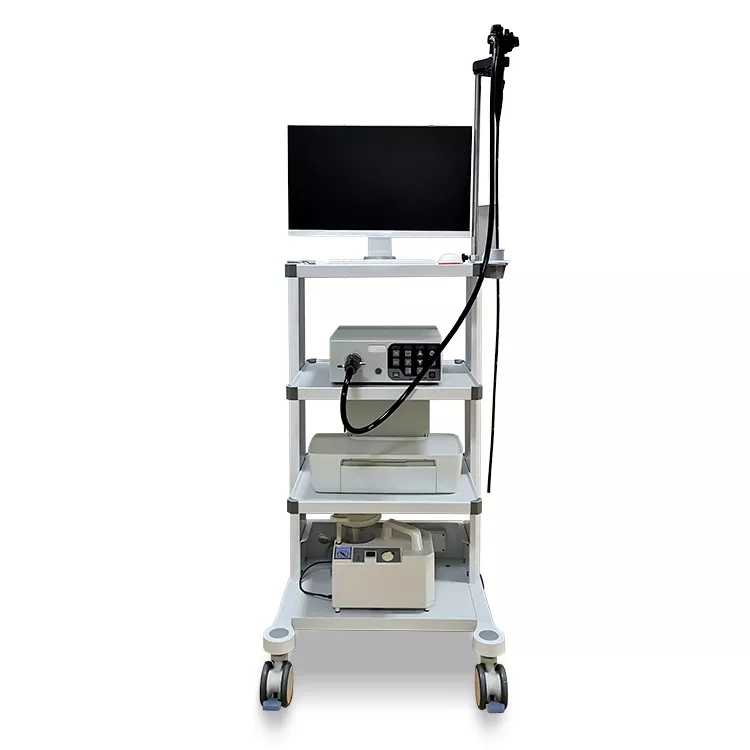

Medical Hot Sale HD Video Endoscope Digital Endoscope System Tower
Model: CC-EN100
🔹 Image Processor Specifications
| Video output | DVI/HDMI |
Lamp type | LED 40W |
| Color adjustment | AWB R/G/B |
CRI | 90 |
| Enhancement | H/M/L |
Color temp | 5600K |
| IRIS | Ave/Peak |
Lamp life span | 25000H |
| Gamma level | 1-15 |
Pump life span | 5000H |
| Gain level | 1-15 |
Air pressure | 0.05MPa |
| SD memory | Freeze/ Save/ View |
Air level | H/M/L |
| USB memory | Record / USB video |
Voltage | ~110V-240V, 50Hz-60Hz |
🔹 Gastroscope Specifications
| Insertion tube diameter | φ8.4mm |
| Working length | 1050mm |
| Working channel | φ2.8mm |
| Tip bending | Up 210° Down 90° Left 100° Right 100° |
| Field angle | 145° |
| Depth of view | 3-100mm |
| Image definition | 720P |
🔹 Colonoscope Specifications
| Insertion tube diameter | φ12.8mm |
| Working length | 1300/1650mm |
| Working channel | φ3.7mm |
| Tip bending | Up 180° Down 180° Left 160° Right 160° |
| Field angle | 120° |
| Depth of view | 3-100mm |
| Image definition | 720P |
🔹 One-stop Hospital Medical Equipment Solutions
| Endoscope Series |
Video Endoscope |
| Fiber Endoscope |
| Rigid Endoscope |
| Endoscope Washer |
| Endoscope Storage Cabinet |
❓ Frequently Asked Questions
Q1: What are the primary video output options for the CC-EN100 system?
A: The system supports high-definition video output via DVI and HDMI interfaces, ensuring compatibility with modern medical monitors.
Q2: What is the lifespan of the LED light source?
A: The integrated 40W LED lamp has a long life span of approximately 25,000 hours, reducing maintenance frequency and costs.
Q3: Does the system support image and video recording?
A: Yes, it features both SD memory for freezing, saving, and viewing images, and USB memory for video recording.
Q4: What are the diameters of the gastroscope and colonoscope insertion tubes?
A: The gastroscope insertion tube has a diameter of φ8.4mm, while the colonoscope insertion tube is φ12.8mm.
Q5: Can the air pressure and air level be adjusted during procedures?
A: Yes, the system provides adjustable air levels (High/Medium/Low) with a pump air pressure of 0.05MPa.
Q6: What is the image resolution provided by this endoscope system?
A: Both the gastroscope and colonoscope provide 720P high-definition image definition for clear clinical visualization.
