Portable B/W Ultrasound Scanner with Clear Image Quality
Portable B/W Ultrasound Scanner with Clear Image Quality
Portable B/W Ultrasound Scanner with Clear Image Quality
Portable B/W Ultrasound Scanner with Clear Image Quality
Portable B/W Ultrasound Scanner with Clear Image Quality
1 / 5
Portable B/W Ultrasound Scanner with Clear Image Quality
Portable B/W Ultrasound Scanner with Clear Image Quality
Portable B/W Ultrasound Scanner with Clear Image Quality
Portable B/W Ultrasound Scanner with Clear Image Quality
Portable B/W Ultrasound Scanner with Clear Image Quality

Portable B/W Ultrasound Scanner with Clear Image Quality

Customization: Available
Classification: Imaging Diagnostic Equipment
Type: Ultrasound Scanner
Send Inquiry

Product Description

Basic Information
Model NO.
BW-5
Certification
CE, ISO13485
Group
All
Display
12 Inch LED Monitor
Imaging Mode
B, B/B, B/M, 4b, M
Gain
up to 120dB
Pseudo Color
16 Colors Selectable
N.W.
6kg
Power Supply
AC 110-220V 50Hz
Connectors
Two Transducer Connector
Cine Loop
256 Frames
Scanning Depth
up to 250mm
Image Memory
up to 128 Frames
Origin
China
HS Code
9018121000

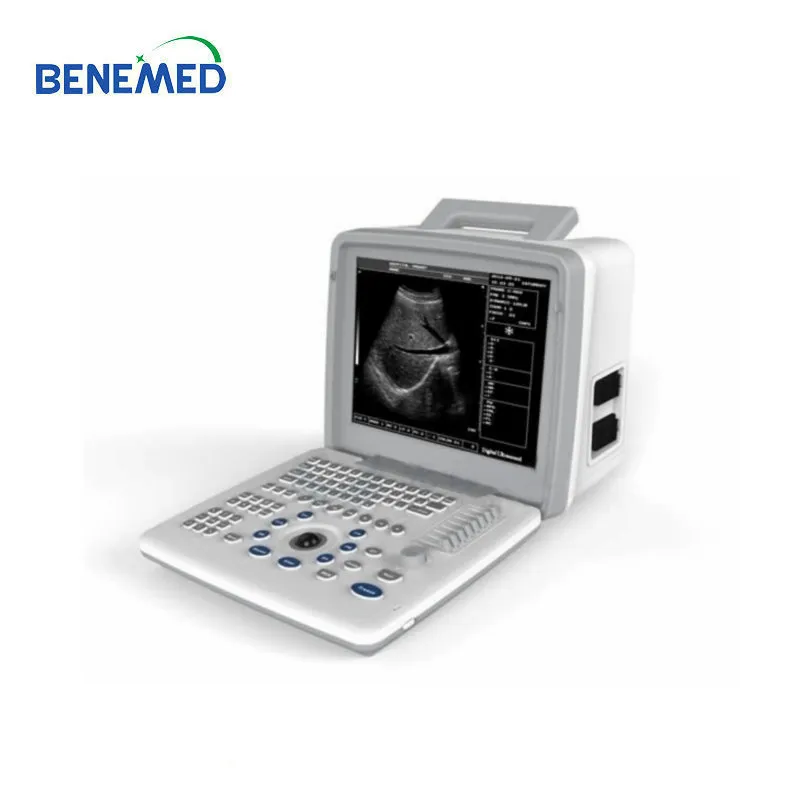

Portable Ultrasound Diagnostic Scanner
Portable Ultrasound Scanner
Key Features
✓
Digital Beam Forming
✓
Superior image quality
✓
Dynamic Receiving Apodization
✓
Dynamic Frequency Scan
✓
Advanced imaging processing
✓
USB port for convenient image transfer

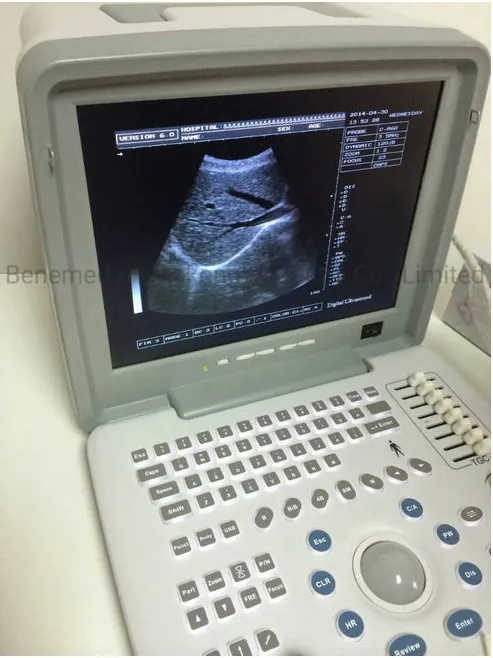

Ultrasound Scanner Detail 1

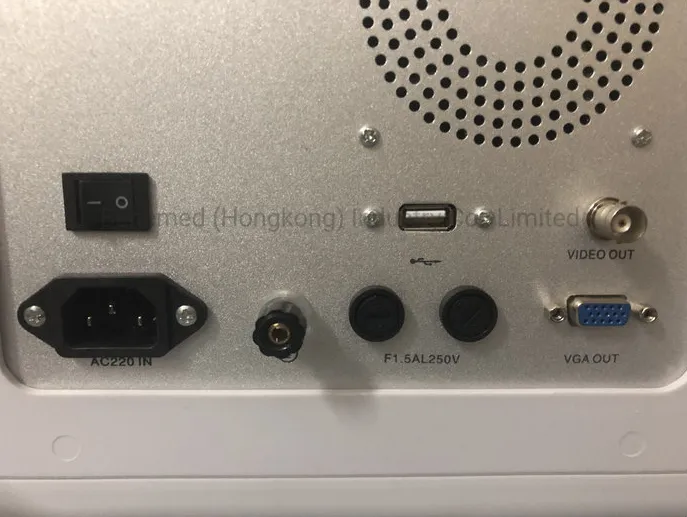

Ultrasound Scanner Detail 2
General Description

Imaging Modes: B, B/B, B/M, 4B, M
Scanning Modes: Convex, Linear
Gray Scale: 256
Display: 12'' LED monitor
Gain: up to 120dB
Scanning depth: up to 250mm
Imaging technology: Digital Beam-forming, Dynamic Frequency Scan, Dynamic Receiving Focusing, Dynamic Receiving Apodization, Real-time Dynamic Aperture

Imaging Processing

Pre-processing: 8-segment TGC adjustment, Dynamic range, Frame correlation, Edge enhance
Post-processing: Gray scale, Polarity reverse, Left/Right reverse, Up/down reverse
Functions: Local zoom, Panoramic zoom, 128 frames image memory, 256 frames Cine Loop
Pseudo color: 16 colors selectable

Software & Measurement

General measurement: distance, circumference, area, volume, angle, ration, etc
Calculation package: abdomen, cardiac, gynecology, obstetrica, urology, orthopedics, small parts, etc
Obstetric measurement: BPD, CRL, GS, FL, HC, AC, EDD, AFI, FW

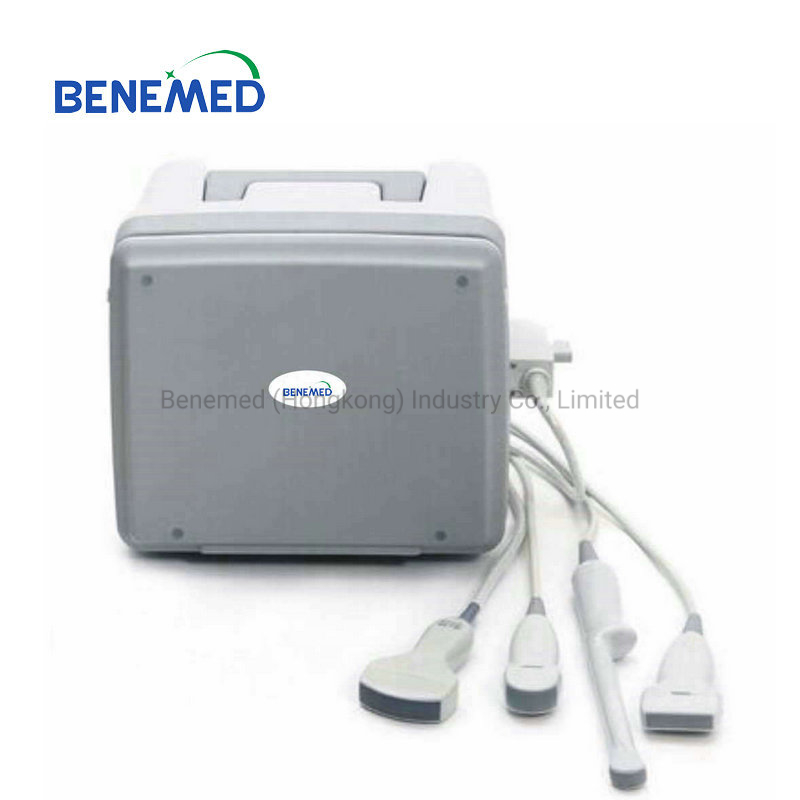

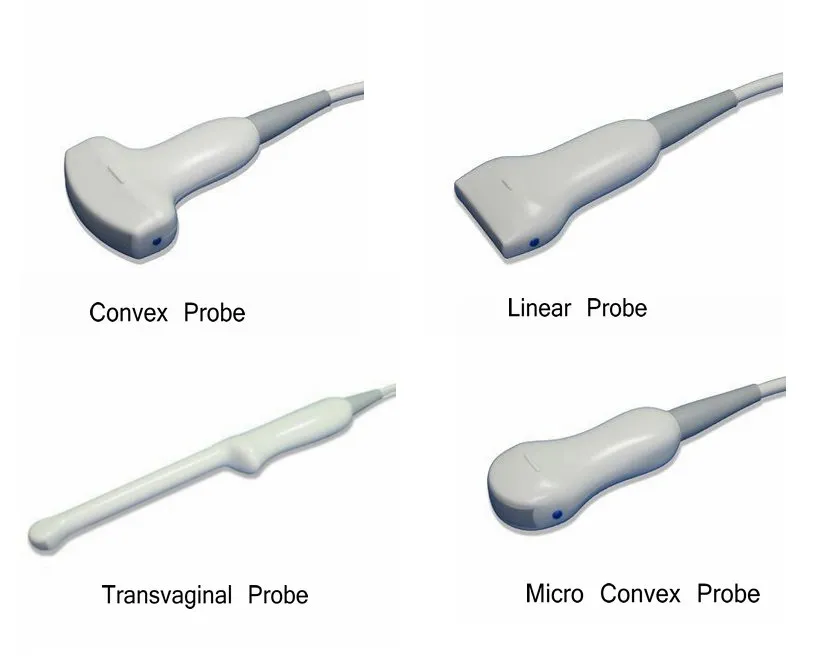

Ultrasound Scanner Probe

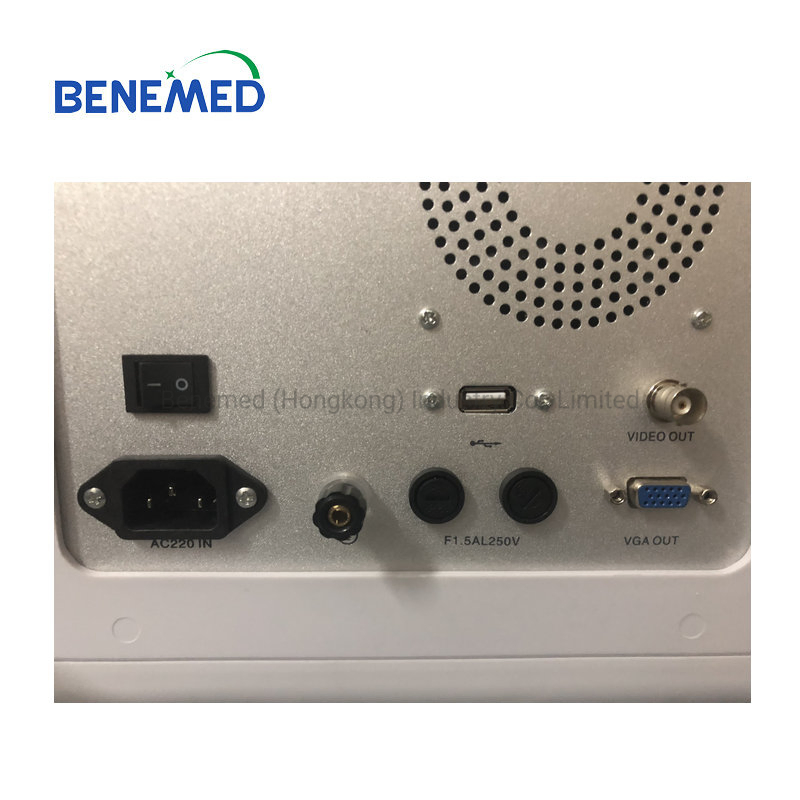

Ultrasound Scanner Interface

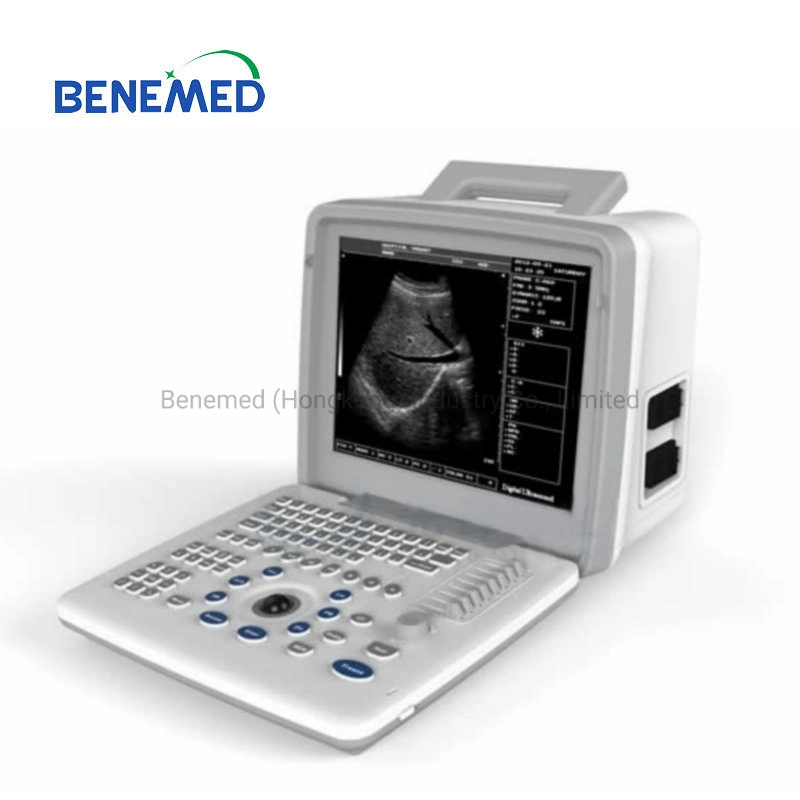

Ultrasound Scanner Full View
Ultrasound Scanner Bottom
Frequently Asked Questions
What imaging modes does the BW-5 support?
The BW-5 supports multiple imaging modes including B, B/B, B/M, 4B, and M mode for versatile diagnostic applications.
Is the monitor high resolution?
Yes, it features a 12-inch LED monitor with 256 gray scales to ensure clear and detailed image quality.
How portable is this ultrasound scanner?
The device is highly portable with a net weight of only 6.0kg, making it easy to move between clinical settings.
Can I export images to a computer?
Yes, the BW-5 includes a USB port specifically designed for convenient image transfer and storage.
What are the standard configurations?
The standard package includes the BW-5 main unit, a 12'' LED monitor, two transducer connectors, a 256-frame cine loop, and an electronic convex transducer.
What types of measurements can be performed?
It includes comprehensive calculation packages for abdomen, cardiac, gynecology, obstetrics, urology, and orthopedics, covering distance, area, volume, and fetal growth parameters.
