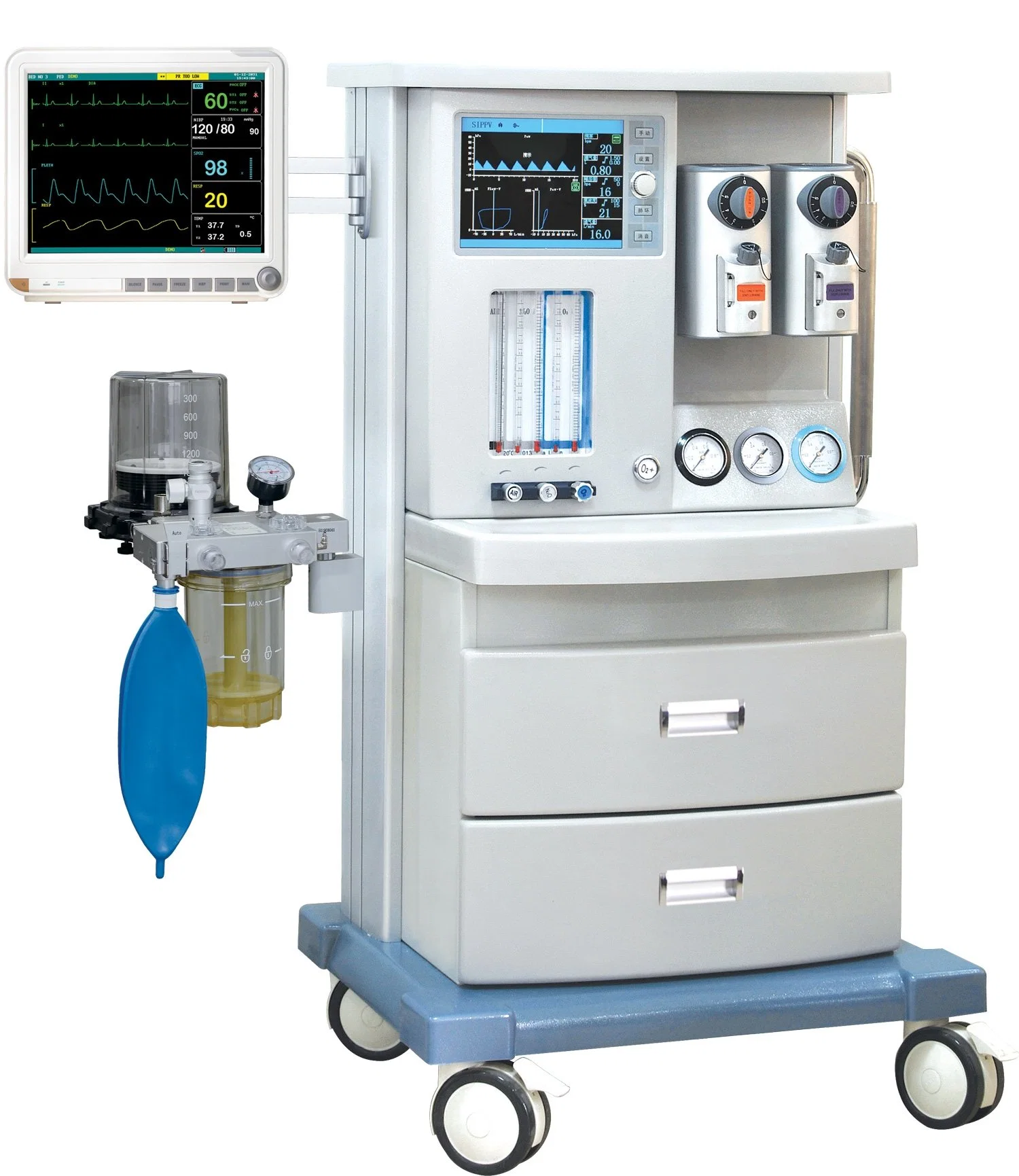

Cheap Price Medical Equipment Operating Room Anesthesia Machine
Cheap Price Medical Equipment Operating Room Anesthesia Machine
Cheap Price Medical Equipment Operating Room Anesthesia Machine
Cheap Price Medical Equipment Operating Room Anesthesia Machine
Cheap Price Medical Equipment Operating Room Anesthesia Machine
1 / 5
Cheap Price Medical Equipment Operating Room Anesthesia Machine
Cheap Price Medical Equipment Operating Room Anesthesia Machine
Cheap Price Medical Equipment Operating Room Anesthesia Machine
Cheap Price Medical Equipment Operating Room Anesthesia Machine
Cheap Price Medical Equipment Operating Room Anesthesia Machine

Cheap Price Medical Equipment Operating Room Anesthesia Machine

Customization: Available
Type: Anaesthesia Machine
Kind: Operation Room
Send Inquiry

Product Description

📋

Basic Info.

Model NO.
JINLING-850
Certification
ISO13485
Group
Adult and Children
LCD Display
With LCD Display
Display
8.4inch Color TFT Display
Ventilation Mode
Ippv, Sippv, Vcv, Pcv, Imv, Simv, Manual, Standby
Tidal Volume
20-1500ml
Respiratory Rate
1-100bpm
(I:E) Ratio
8:1-1:10
Peep Range
0-20CMH2o
Oxygen Monitor
21-100%
Simv Rate
1-20bpm
Origin
China
HS Code
9018907010
🏥

Product Description

Operating Room anesthesia machine Cheap price medical equipment
Operating Room Anesthesia Machine
Medical Equipment Anesthesia Machine

Common Features

Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open
Anesthesia Ventilator: Built-in 8.4 inch color TFT display, displays Pressure-Time, Frequency-Time, Pressure-Volume and Frequency-Volume waveforms.
Standard integrated metallic modular respiratory circuit; high temperature disinfection gas sealing, easy to clean.
Power Failure Support: Automatically converts to backup power mode during AC power outages.
Equipped with electronic pressure differential flow sensor and imported respiratory control valve.

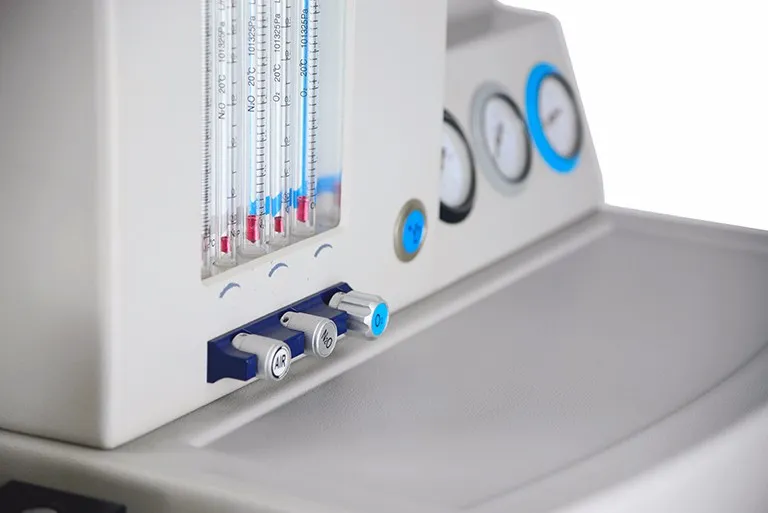

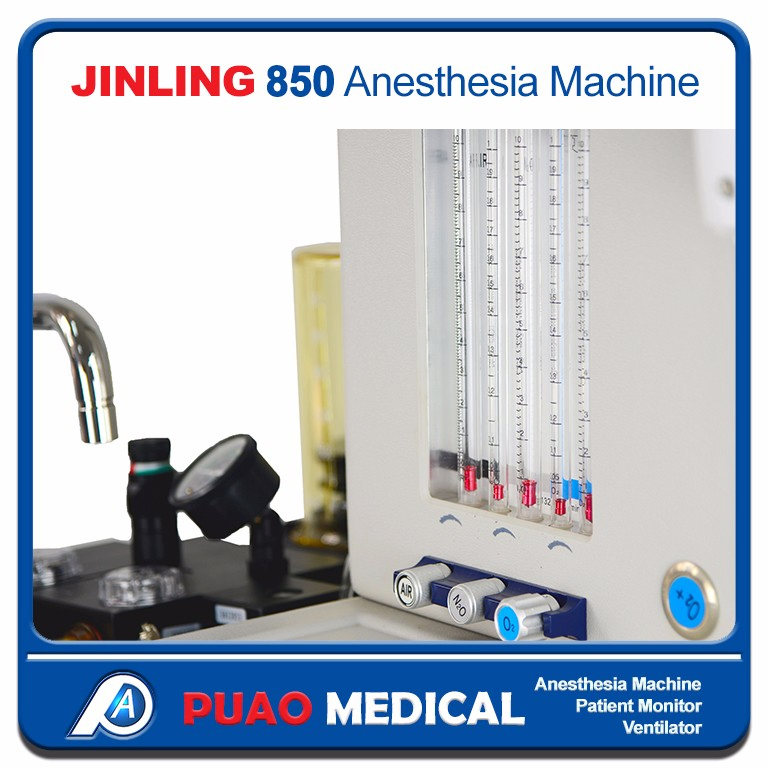

High precision five tube flowmeter with interlocking O2-N2O supply (min 21% Oxygen).
Nonhazardous environmentally friendly frame with automated self-checking and self-calibrating sensor.
Comprehensive Alarms: Tidal volume, airway pressure, oxygen concentration, asphyxia, power/oxygen failure.

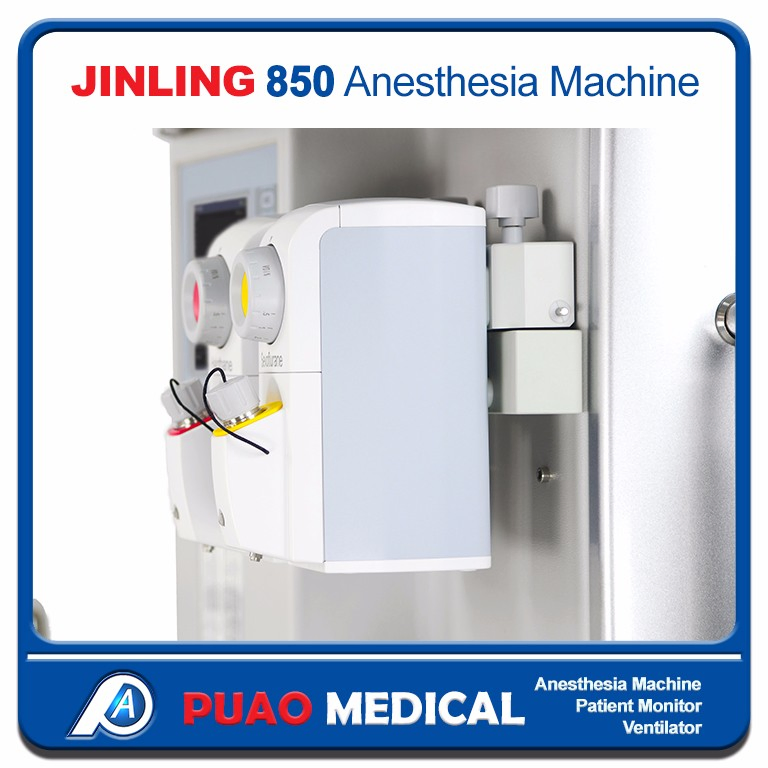

Vaporizer: Enflurane, Isoflurane and Sevoflurane (Halothane optional) with self-compensating functionality.
Advanced stable Adjustable Pressure Limiting (APL) valve for low flow anesthesia.
Advanced international rotating Na-lime tank, PPSU material, temperature resistant to 134°C.
📊

Technical Specifications

Parameter Details
ModelJinling-850 (Standard Model)
Display8.4 inch TFT display
Flowmeter RangeO2: 0.1-10L/min; N2O: 0.1-10L/min; Air: 0.1-10L/min
Ventilation ModeIPPV, SIPPV, VCV, PCV, IMV, SIMV, MANUAL, Standby
Back-up Power SupplyAt least 4 hours
Tidal VolumeAdjustable: 20-1500ml; Display: 0-2000ml
Respiratory Rate1-100bpm
I:E Ratio8:1-1:10 (Inverse ratio ventilation capable)
PEEP Range0-20cmH2O (Electronically controlled)
Pressure Trigger-10-10cmH2O
SIGH1 sigh breath in every 80-120 breaths
SIMV Rate1-20bpm
Vaporizer SlotsDouble PA-I type slots (0-5% range)
Anesthesia Machine Detail
Anesthesia Machine Component
❓

Frequently Asked Questions

What patient groups is the JINLING-850 suitable for?
The machine is designed for both adult and pediatric (children) patient groups.
What are the available ventilation modes?
It supports multiple modes including IPPV, SIPPV, VCV, PCV, IMV, SIMV, MANUAL, and Standby.
How long does the battery last during a power failure?
The system includes a back-up power supply that provides at least 4 hours of operation.
What is the tidal volume range for this anesthesia machine?
The adjustable tidal volume range is from 20ml to 1500ml, making it versatile for different clinical needs.
Is the respiratory circuit easy to sterilize?
Yes, it features a standard integrated metallic modular circuit that is resistant to high-temperature disinfection and easy to clean.
What safety alarms are integrated into the system?
The machine includes audible and visual alarms for tidal volume, airway pressure, oxygen concentration, asphyxia, and power or oxygen failure.
