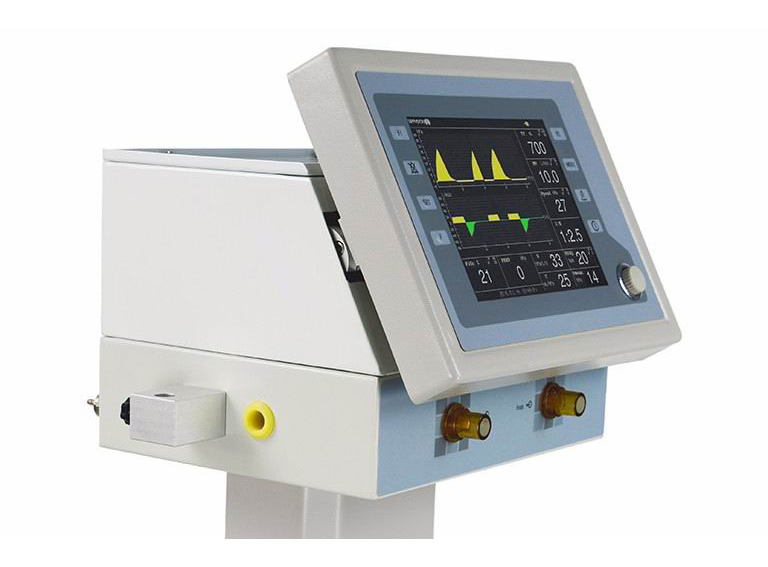

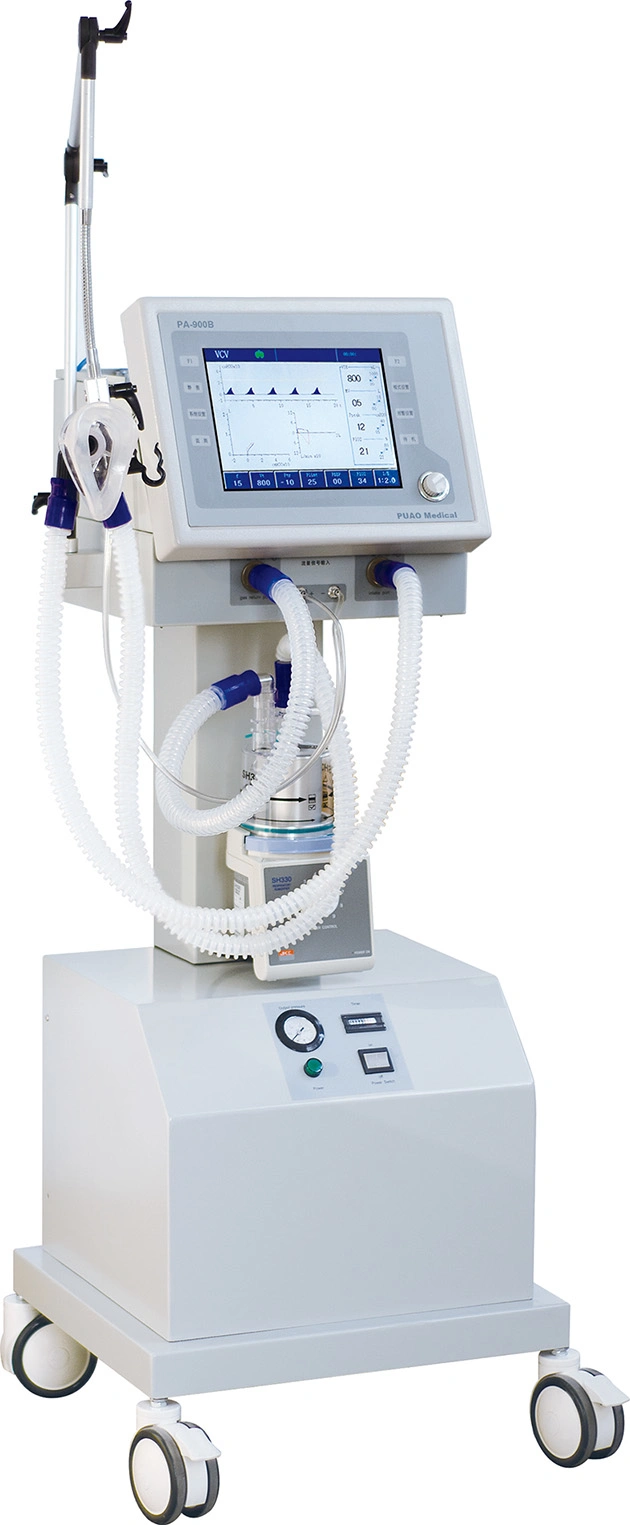

Automatic Medical ICU Ventilator with 10.4 Inch High Visibility Color TFT Display
Automatic Medical ICU Ventilator with 10.4 Inch High Visibility Color TFT Display
Automatic Medical ICU Ventilator with 10.4 Inch High Visibility Color TFT Display
Automatic Medical ICU Ventilator with 10.4 Inch High Visibility Color TFT Display
Automatic Medical ICU Ventilator with 10.4 Inch High Visibility Color TFT Display
1 / 5
Automatic Medical ICU Ventilator with 10.4 Inch High Visibility Color TFT Display
Automatic Medical ICU Ventilator with 10.4 Inch High Visibility Color TFT Display
Automatic Medical ICU Ventilator with 10.4 Inch High Visibility Color TFT Display
Automatic Medical ICU Ventilator with 10.4 Inch High Visibility Color TFT Display
Automatic Medical ICU Ventilator with 10.4 Inch High Visibility Color TFT Display

Automatic Medical ICU Ventilator with 10.4 Inch High Visibility Color TFT Display

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
PA-900B
Model Name
PA-900b Advanced Ventilator
Display
10.4 Inch High Visibility Color TFT
Ventilation Mode
Sippv, Ippv, Simv, Psimv, Psv, CPAP, Pcv
Minute Volume
≥ 18L
Back up Power
At least 4 Hours
Tidal Volume
20 ~ 1500ml
Respiratory Rate
1 ~ 99bpm
I:E Ratio
4:1 ~ 1:4
PEEP
0 ~ 10CMH2o
Gas Requirement
280 - 600 Kpa Medical Oxygen
Pressure Limit
1.0kpa ~ 6.0kpa

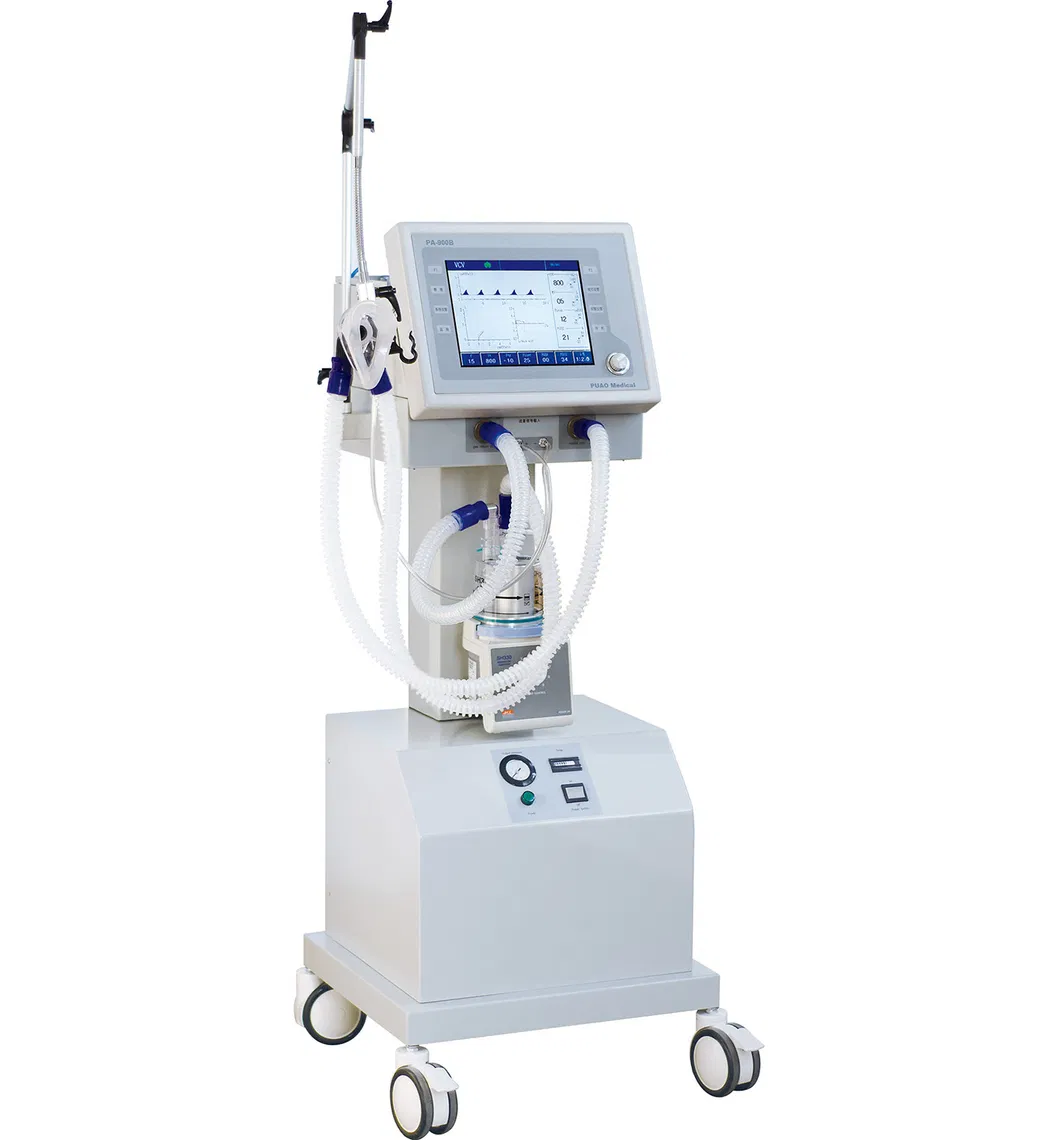

ICU Ventilator Main View

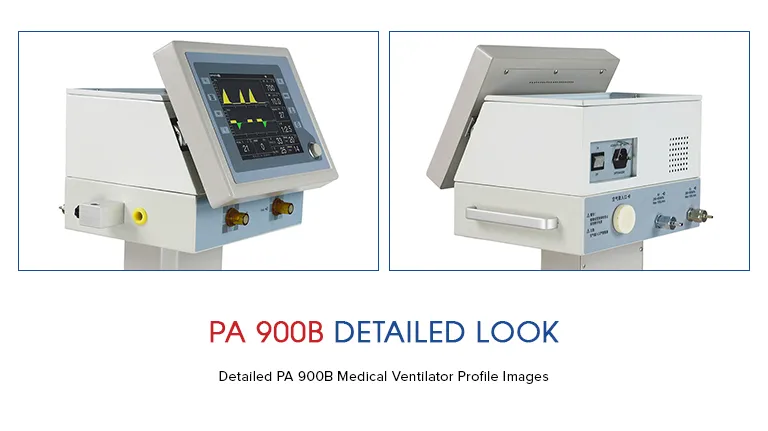

ICU Ventilator Display
✨

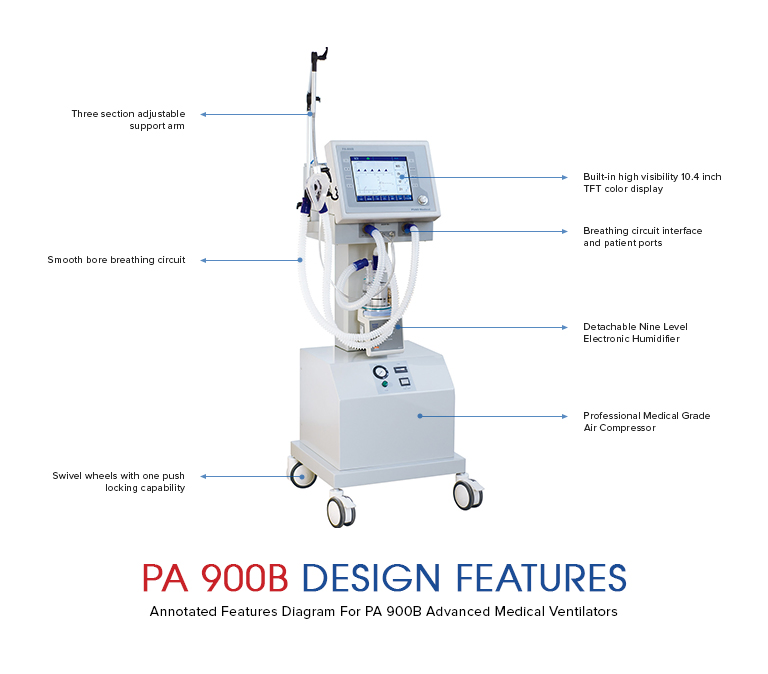

Common Features

  • Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open.
  • Clinical Use: Suitable for emergency clinical resuscitation and respiratory therapy.
  • Advanced Display: Built-in 10.4 inch color TFT fully adjustable display; shows Pressure-Time, Frequency-Time, Pressure-Volume, Frequency-Volume and dual waveforms simultaneously.
  • Triggering: Supports both Pressure trigger and Flow trigger.
  • Sigh Function: Ability to insert 1-8 sigh breaths in every 100 breaths (no less than 1.5 times the tidal volume).
  • Sensors: Features built-in dual electronic flow sensors and dual respiratory modules.
  • Safety: Automatically converts to standby mode during AC power outages.
  • Monitoring: Tracks tidal volume, respiration rate, airway pressure, I:E ratio, and inspiratory/expiratory status.
  • Humidifier: 9 Level adjustable humidifier for patient comfort.
  • Alarms: Comprehensive audible and visual alarms for volume, oxygen concentration, asphyxia, airway pressure, and power failure.
Ventilator Interface

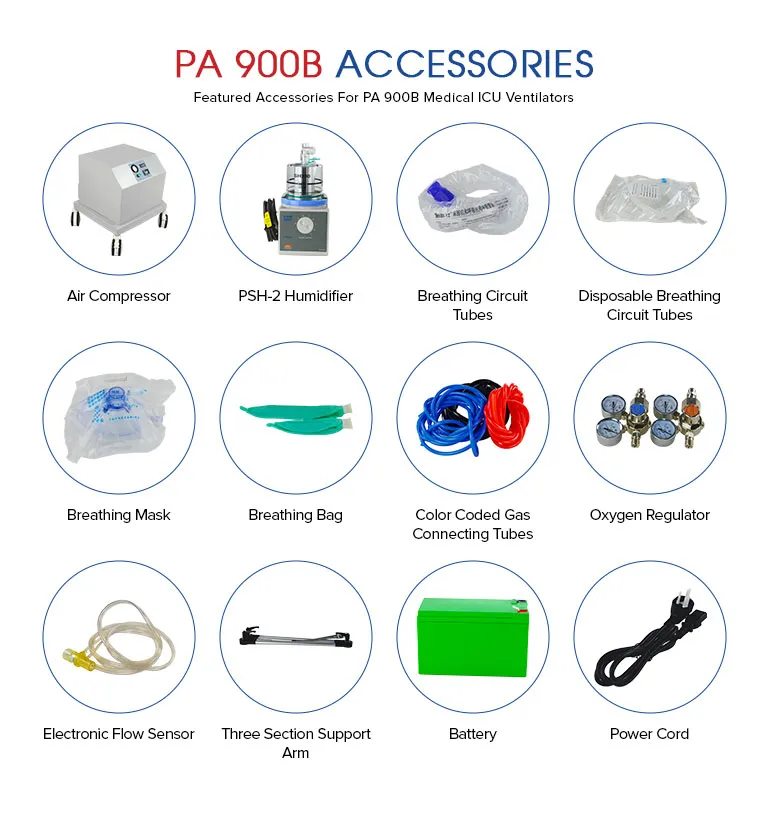

Ventilator Components
🚀

Advanced Model Exclusive Features

Medical Grade Air Compressor: Tailored for long clinical times with low noise requirements.

  • Power: 220V AC±10%, 50±1Hz, 700VA.
  • Output Gas Pressure: 0.4MPa±20%.
  • Continuous Flow: ≥ 20L/min.
  • Instantaneous Flow: ≥ 60L/min.
📊

Detailed Specifications

Parameter Standard Model (900B) Advanced Model (900B)
Display10.4 inch high visibility color TFT display
Ventilation ModeA/C, SIPPV, IPPV, SIMV, PSIMV, PSV, CPAP, PCV, VCV, SPONT MANUAL
Minute Volume≥ 18L
Back-up PowerAt least 4 hours
Tidal VolumeAdjustable: 20-1500ml, Display: 0-2000ml
Respiratory Rate1-99bpm
I:E Ratio4:1 - 1:4
PEEP0-10cmH2O
Oxygen Concentration45-100%21-100%
Pressure Limit1.0kPa ~ 6.0kPa
Ventilator Side View

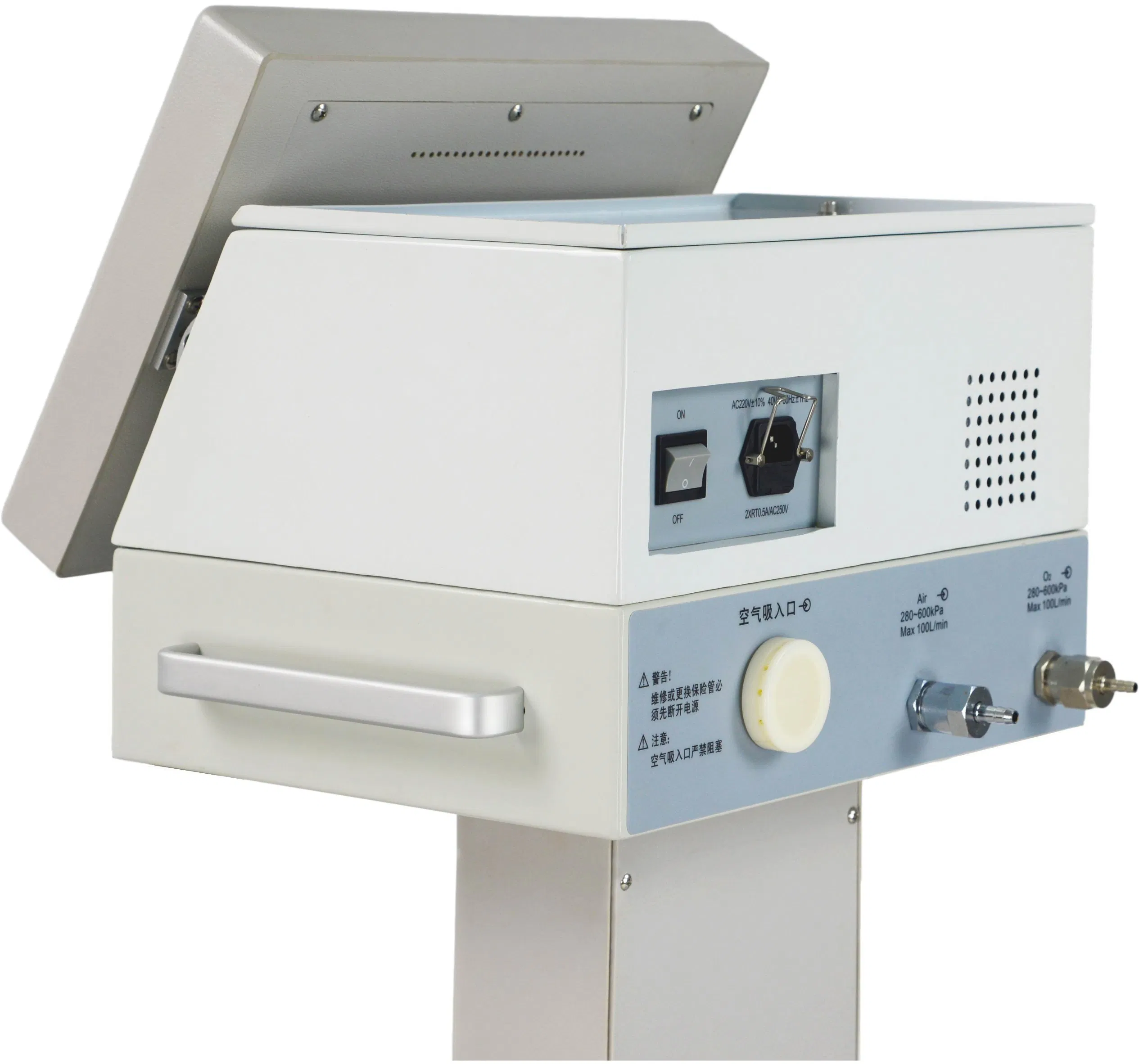

Ventilator Back View
Ventilator System
❓

Frequently Asked Questions

What are the primary ventilation modes supported?
The PA-900B supports a wide range of modes including SIPPV, IPPV, SIMV, PSIMV, PSV, CPAP, and PCV to accommodate various clinical needs.
How long can the ventilator operate during a power failure?
The device is equipped with a backup power supply that ensures at least 4 hours of continuous operation during AC power outages.
What is the display capability of the 10.4-inch screen?
The high-visibility color TFT display can show Pressure-Time, Frequency-Time, Pressure-Volume, and Frequency-Volume waveforms, with the ability to display any two waveforms simultaneously.
Does the ventilator include a sigh function?
Yes, it can insert 1-8 sigh breaths for every 100 breaths, with ventilation volume reaching at least 1.5 times the set tidal volume.
What safety alarms are integrated into the system?
It features audible and visual alarms for ventilation volume, tidal volume, oxygen concentration, asphyxia, airway pressure, intubation disconnection, and low power.
Is there a difference in oxygen concentration between models?
Yes, the standard model offers an adjustable oxygen concentration of 45-100%, while the advanced model provides a wider range of 21-100%.
