Hospital Medical ICU Apparatus Anaesthesia Instruments OEM Anesthesia Machine with Vaporizers
Hospital Medical ICU Apparatus Anaesthesia Instruments OEM Anesthesia Machine with Vaporizers
Hospital Medical ICU Apparatus Anaesthesia Instruments OEM Anesthesia Machine with Vaporizers
Hospital Medical ICU Apparatus Anaesthesia Instruments OEM Anesthesia Machine with Vaporizers
Hospital Medical ICU Apparatus Anaesthesia Instruments OEM Anesthesia Machine with Vaporizers
1 / 5
Hospital Medical ICU Apparatus Anaesthesia Instruments OEM Anesthesia Machine with Vaporizers
Hospital Medical ICU Apparatus Anaesthesia Instruments OEM Anesthesia Machine with Vaporizers
Hospital Medical ICU Apparatus Anaesthesia Instruments OEM Anesthesia Machine with Vaporizers
Hospital Medical ICU Apparatus Anaesthesia Instruments OEM Anesthesia Machine with Vaporizers
Hospital Medical ICU Apparatus Anaesthesia Instruments OEM Anesthesia Machine with Vaporizers

Hospital Medical ICU Apparatus Anaesthesia Instruments OEM Anesthesia Machine with Vaporizers

Customization: Available
Type: Anaesthesia Machine
Kind: Surgical
Send Inquiry

Product Description

📋 Basic Information
Model NO.
01
Certification
CE, ISO13485
Group
Adult
LCD Display
With LCD Display
Ventilation Mode
A/C, IPPV, SIPPV, Manual
Tidal Volume
50-1500ml
(I:E) Ratio
1:1.5~1:3.0
Respiratory Rate
4~40 Bpm
Origin
China
HS Code
9018907010
🏥 Hospital Medical ICU Anesthesia Machine

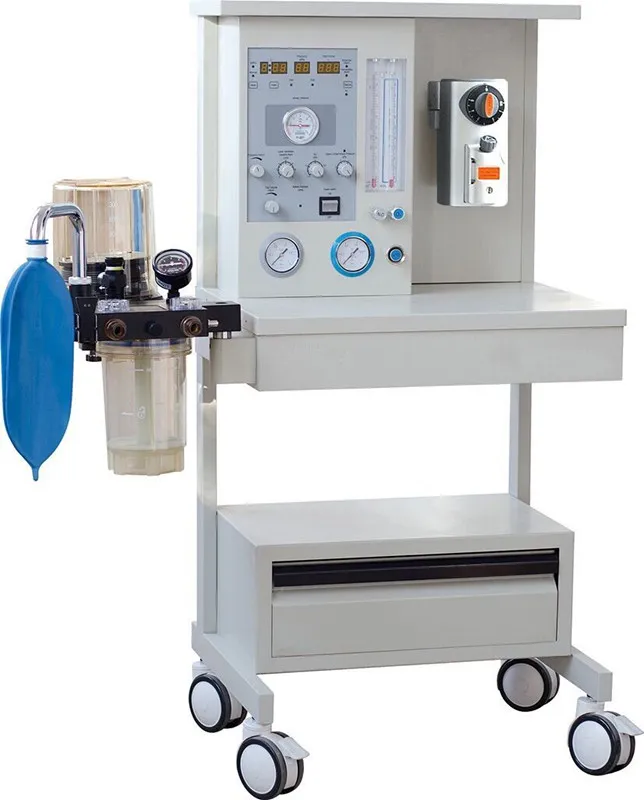

Anesthesia Machine Main View

Advanced OEM Anesthesia Machine with Vaporizers

⚙️ Common Features
🔹
Operating Modes: Pneumatically driven & electronically controlled, supports closed, semi-closed and semi-open systems.
🔹
Integrated Circuit: Standard metallic modular respiratory circuit; solves gas sealing under high-temperature disinfection.
🔹
High Precision Flowmeter: Two-tube flowmeter with interlocking O2-N2O supply, ensuring oxygen output ≥ 21%.
🔹
Power Backup: Automatically converts to backup power mode during AC power outages.
🔹
Safety Alarms: Audible and visual alarms for tidal volume, airway pressure, power failure, and oxygen failure.
🔹

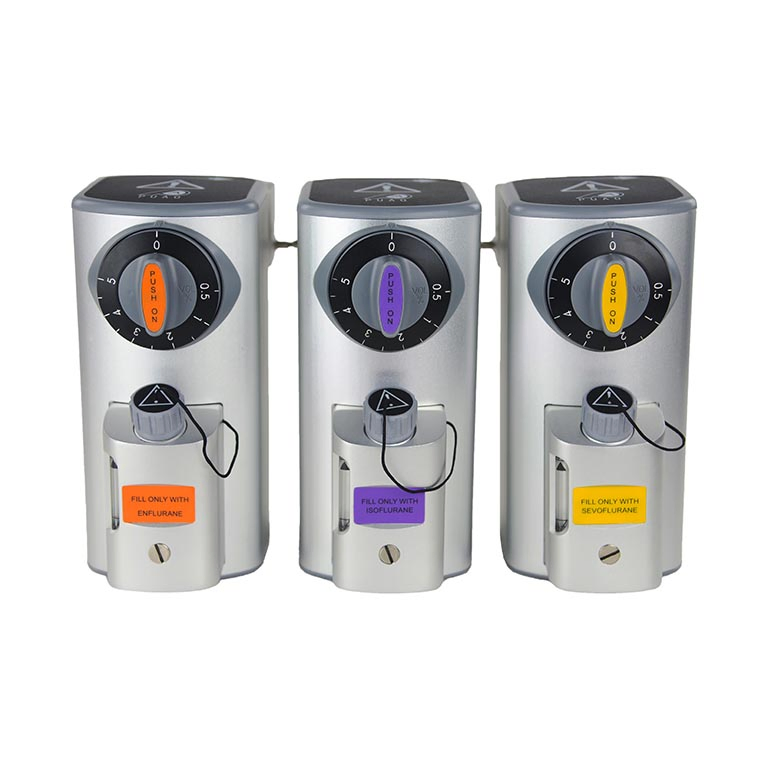

Advanced Vaporizer: Supports Enflurane, Isoflurane, and Sevoflurane with self-compensating functionality.
🔹
Na-lime Tank: Advanced international rotating tank, easy one-hand operation, temperature resistant to 134°C.
🔹
Self-Checking: Equipped with automated self-checking during startup and an automatic self-calibrating sensor.
📊 Technical Specifications
Parameter Standard Model Advanced Model
Display LED
Flowmeter Range O2: 0.1-10L/min | N2O: 0.1-10L/min
Ventilation Mode IPPV, SIPPV, MANUAL
Back-up Power At least 4 hours
Tidal Volume Adjustable: 50-1500ml (Display: 0-2000ml)
Respiratory Rate 4-40bpm
I:E Ratio 1:1.5 - 1:3.0
Vaporizer Slots Single PA-80 type slot Double PA-80 type slots
🔍 Product Details
Anesthesia Machine Detail 1 Anesthesia Machine Detail 2
Frequently Asked Questions
❓ What ventilation modes does this machine support?
The machine supports multiple ventilation modes including IPPV (Intermittent Positive Pressure Ventilation), SIPPV (Synchronized Intermittent Positive Pressure Ventilation), and Manual mode.
❓ How long can the machine operate during a power failure?
It is equipped with an internal backup power supply that provides at least 4 hours of continuous operation during AC power outages.
❓ What is the adjustable range for tidal volume?
The tidal volume is highly adjustable, ranging from 50ml to 1500ml, making it suitable for adult patients in various clinical scenarios.
❓ Does the machine ensure safe oxygen delivery?
Yes, it features a high-precision two-tube flowmeter with an interlocking oxygen-nitrous oxide supply mechanism, guaranteeing that oxygen concentration never falls below 21%.
❓ Are the respiratory circuits easy to clean?
The machine uses a standard integrated metallic modular respiratory circuit designed for high-temperature disinfection, ensuring excellent gas sealing and easy maintenance.
❓ Which anesthetic agents can be used with the vaporizers?
The vaporizers are compatible with Enflurane, Isoflurane, and Sevoflurane. Halothane is also available as an optional configuration.
