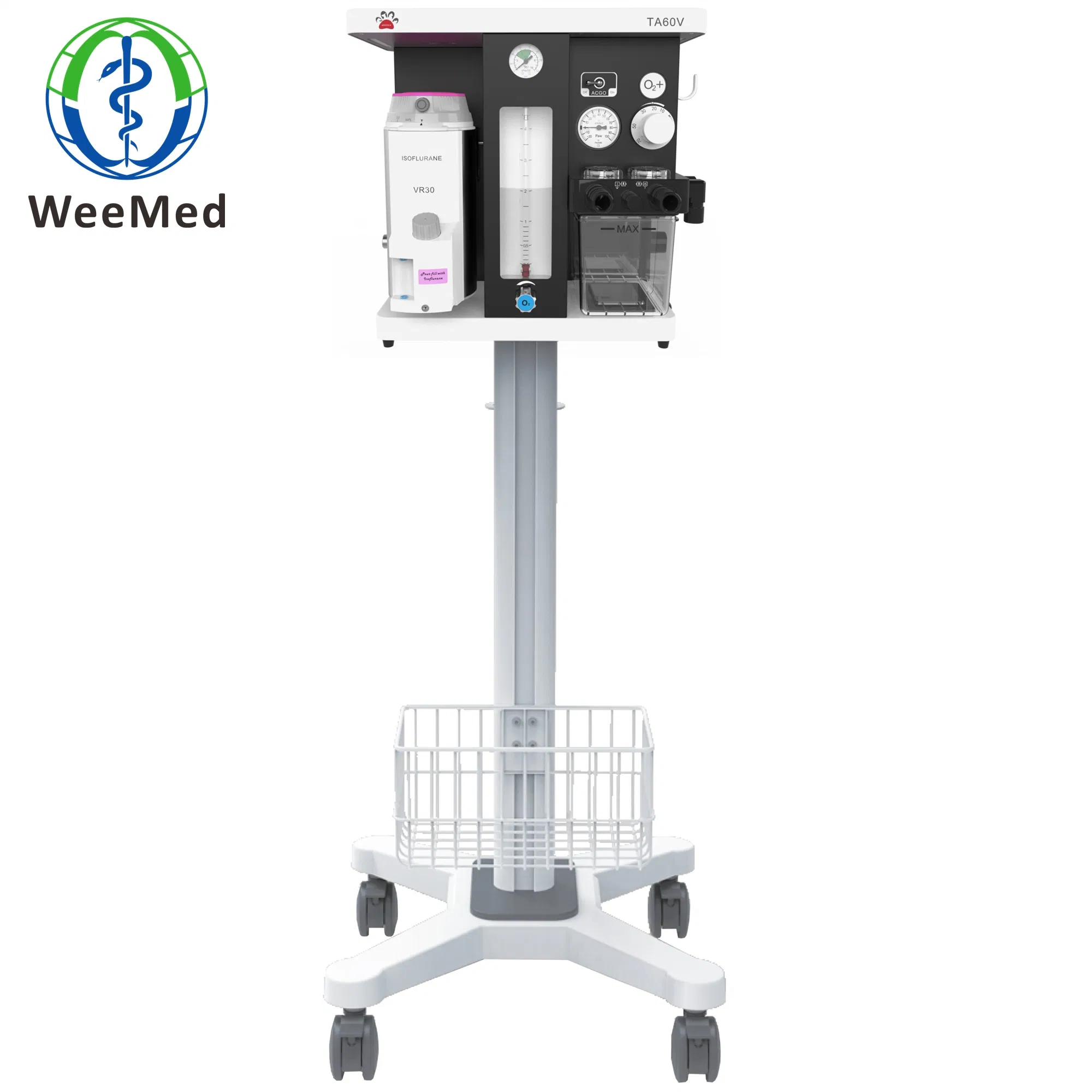

Ta-60V Vet Anesthesia Equipment Portable Medical Animal Veterinary Anesthesia Machine with Trolley Cart with Bain Module
Ta-60V Vet Anesthesia Equipment Portable Medical Animal Veterinary Anesthesia Machine with Trolley Cart with Bain Module
Ta-60V Vet Anesthesia Equipment Portable Medical Animal Veterinary Anesthesia Machine with Trolley Cart with Bain Module
Ta-60V Vet Anesthesia Equipment Portable Medical Animal Veterinary Anesthesia Machine with Trolley Cart with Bain Module
Ta-60V Vet Anesthesia Equipment Portable Medical Animal Veterinary Anesthesia Machine with Trolley Cart with Bain Module
1 / 5
Ta-60V Vet Anesthesia Equipment Portable Medical Animal Veterinary Anesthesia Machine with Trolley Cart with Bain Module
Ta-60V Vet Anesthesia Equipment Portable Medical Animal Veterinary Anesthesia Machine with Trolley Cart with Bain Module
Ta-60V Vet Anesthesia Equipment Portable Medical Animal Veterinary Anesthesia Machine with Trolley Cart with Bain Module
Ta-60V Vet Anesthesia Equipment Portable Medical Animal Veterinary Anesthesia Machine with Trolley Cart with Bain Module
Ta-60V Vet Anesthesia Equipment Portable Medical Animal Veterinary Anesthesia Machine with Trolley Cart with Bain Module

Ta-60V Vet Anesthesia Equipment Portable Medical Animal Veterinary Anesthesia Machine with Trolley Cart with Bain Module

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information

Model NO.
TA-60V
Transport Package
Wooden Case
Specification
1220x700x1830cm
Origin
China
Production Capacity
50000PCS/Year

Product Description

TA60V is a high-end anesthesia machine used in animal hospitals. The design of the product adheres to the concept of anesthesiologists-oriented, completely abandoning the design idea of traditional animal anesthesia machines that only considers product costs.
Through the innovation of product structure and circuit module design, all the gauges and main operating elements of TA60V are arranged on the front of the product to facilitate the operation and observation, and also realize a variety of installations and applications such as wall-mounted, desktop and stand for one model.

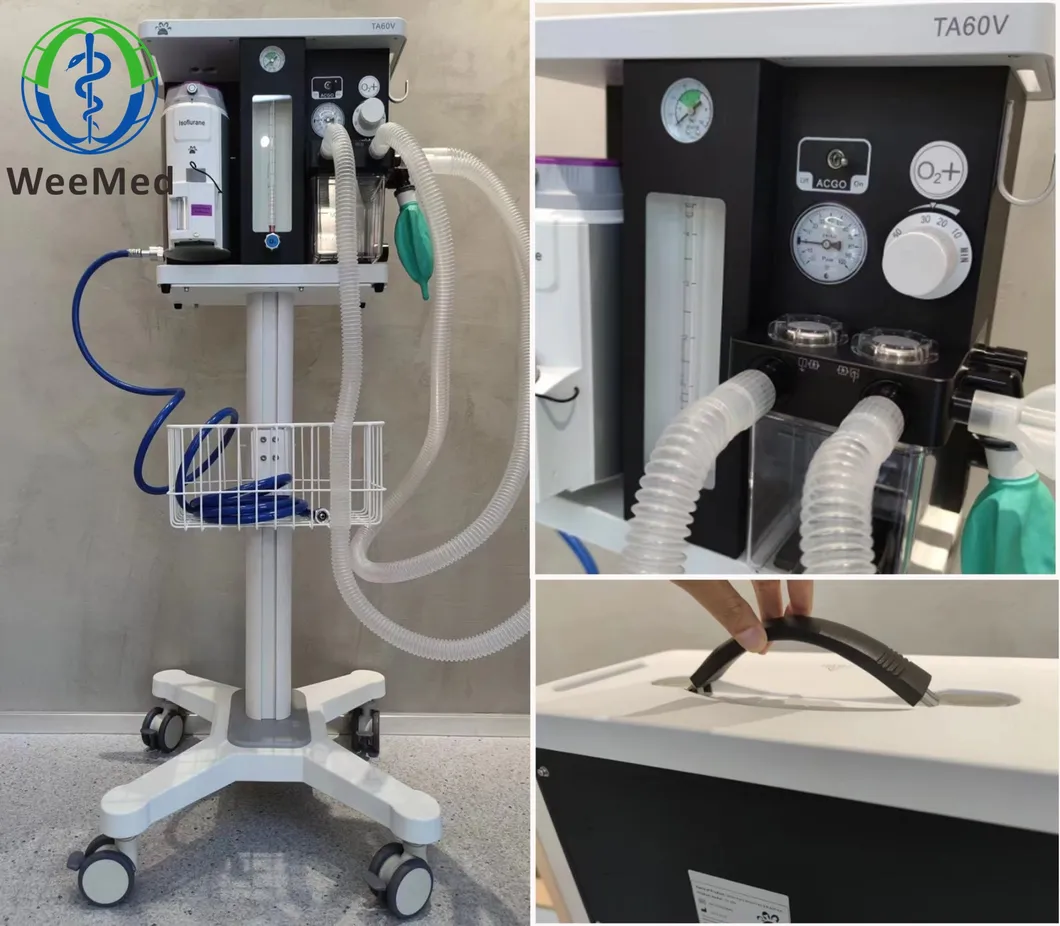

Vet Anesthesia Equipment TA-60V Portable Medical Anesthesia Machine Veterinary Anesthesia Machine with Trolley

Technical Specifications

Ventilation modesIPPV; A/C; SIMV;
Flow meterO2 (0-5L/min)
Rapid oxygen supply35L/min - 75L/min
Tidal volume (Vt)0, 20 mL ~ 1500 mL
Frequency (Freq)1bpm ~ 100 bpm
I/E Ratio2:1 ~ 1:6
Pressure triggering sensitivity-20 cmH2O ~ 0 cmH2O
Flow trigger sensitivity0.5 L/min ~ 30 L/min
Apnea VentilationOFF, 5 s ~ 60 s
Pressure Limit20 cmH2O ~ 100 cmH2O
Monitored ParametersFreq, Vt, MV
Graphical displayP-T (pressure-time), F-T (flow-time)
AC power failure alarmPower failure or no connection
Gas sourceO2 (280kPa-600kPa)
Voltage100-240V, 50/60Hz

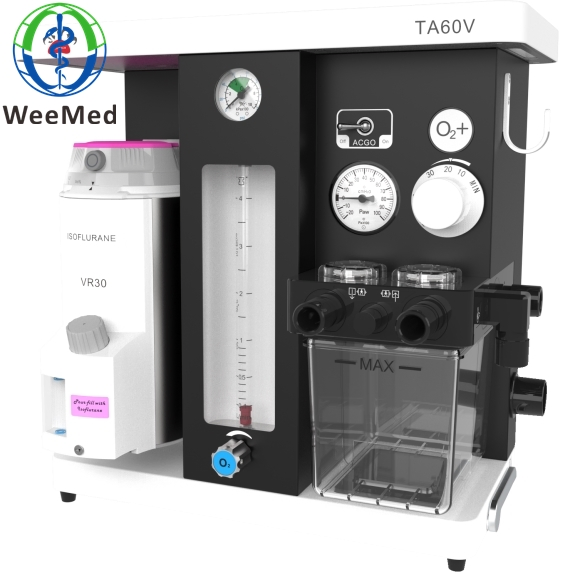

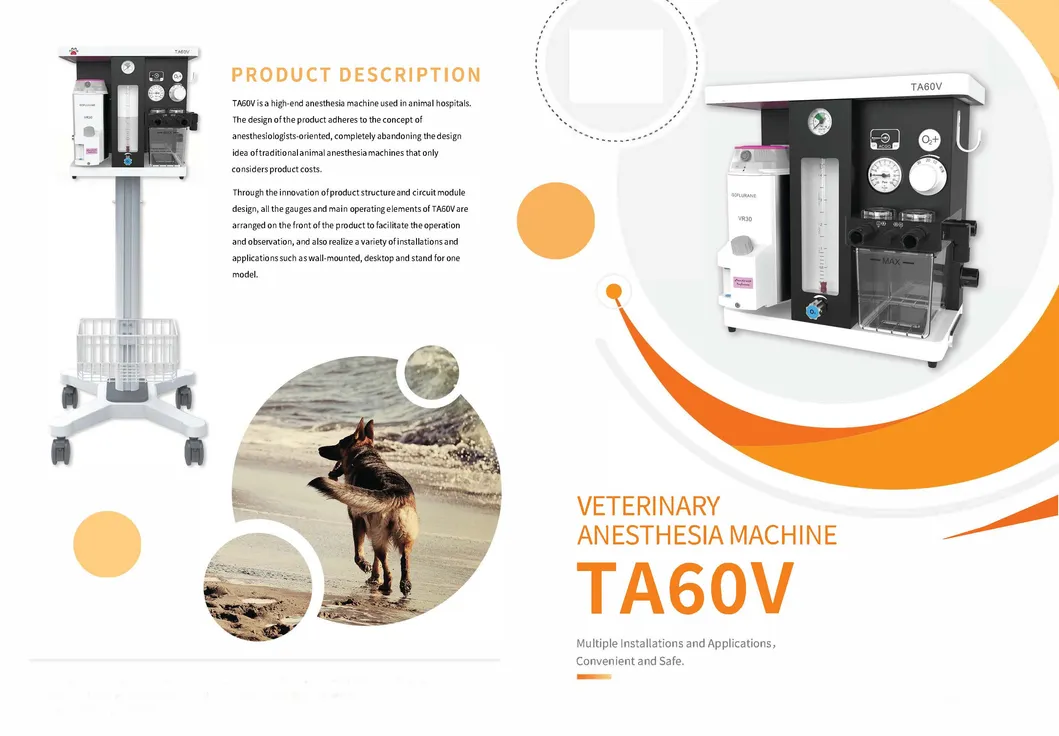

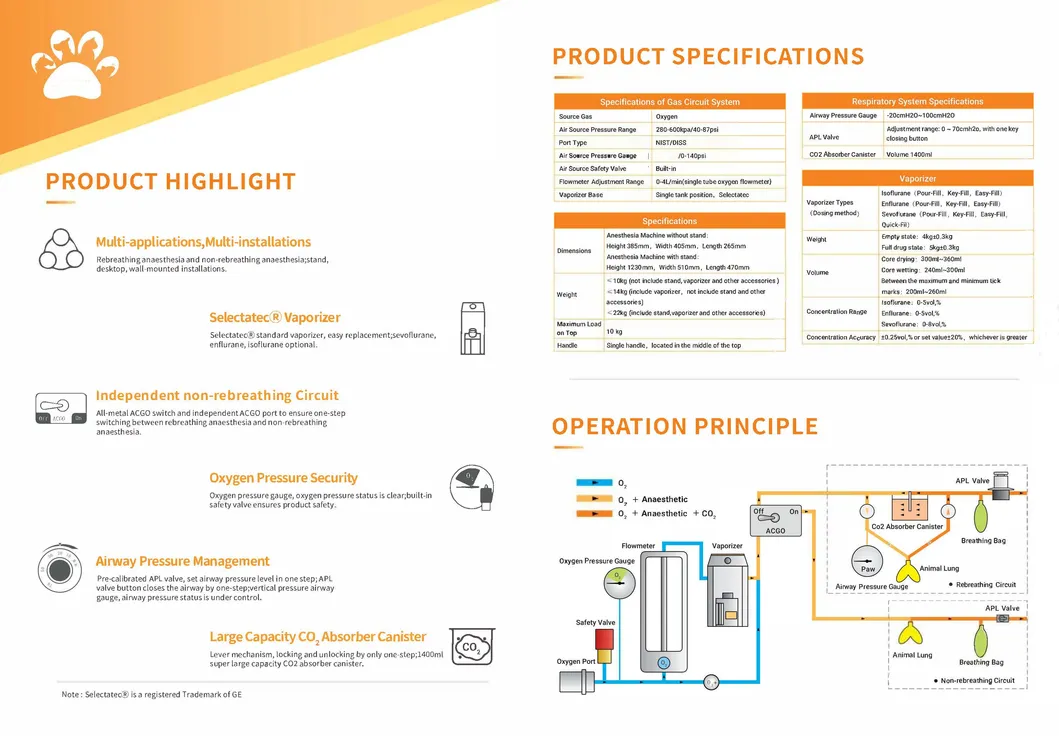

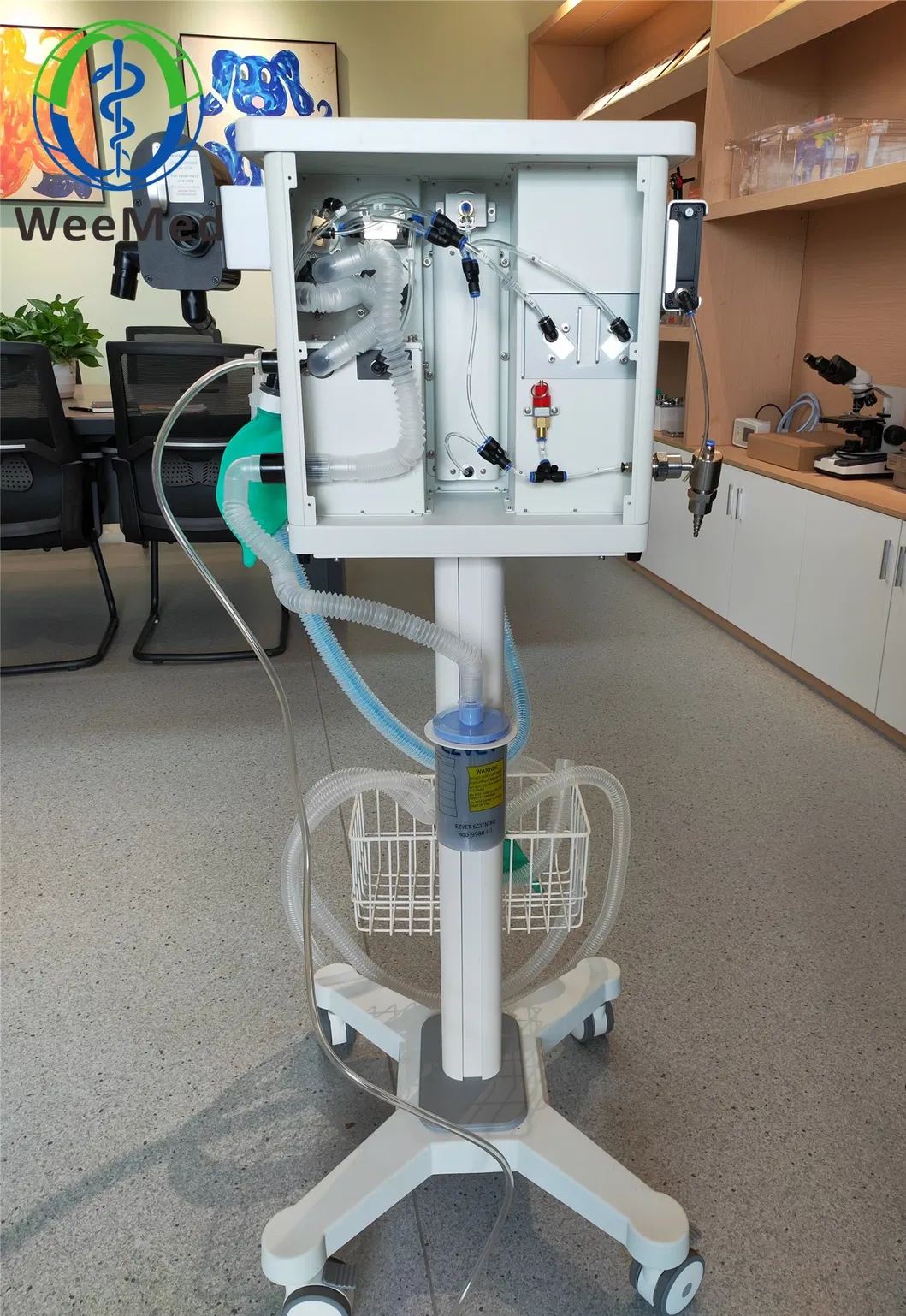

TA-60V Side View TA-60V Front Interface

Packaging & Applications

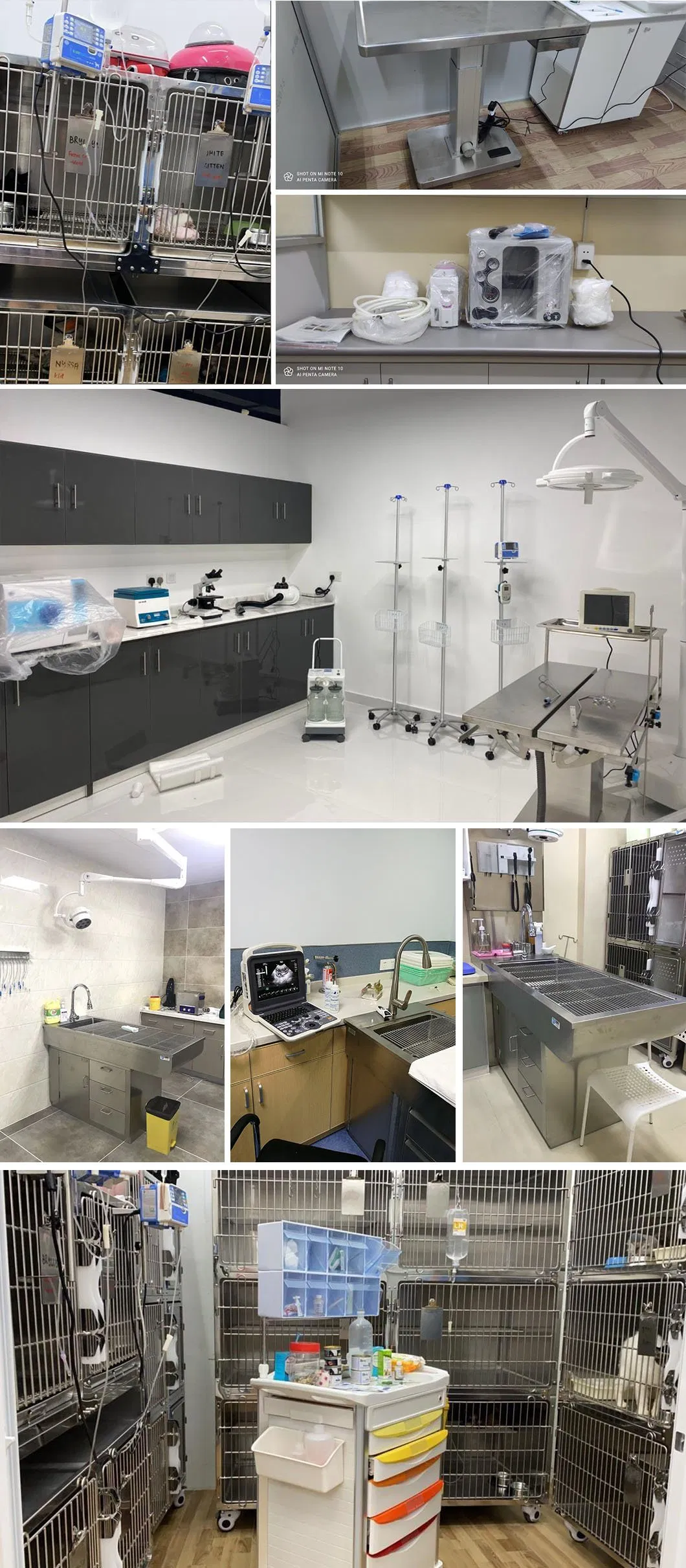

Packaging Detail Application Scenarios

Certificates & Factory Exhibition

Certificates

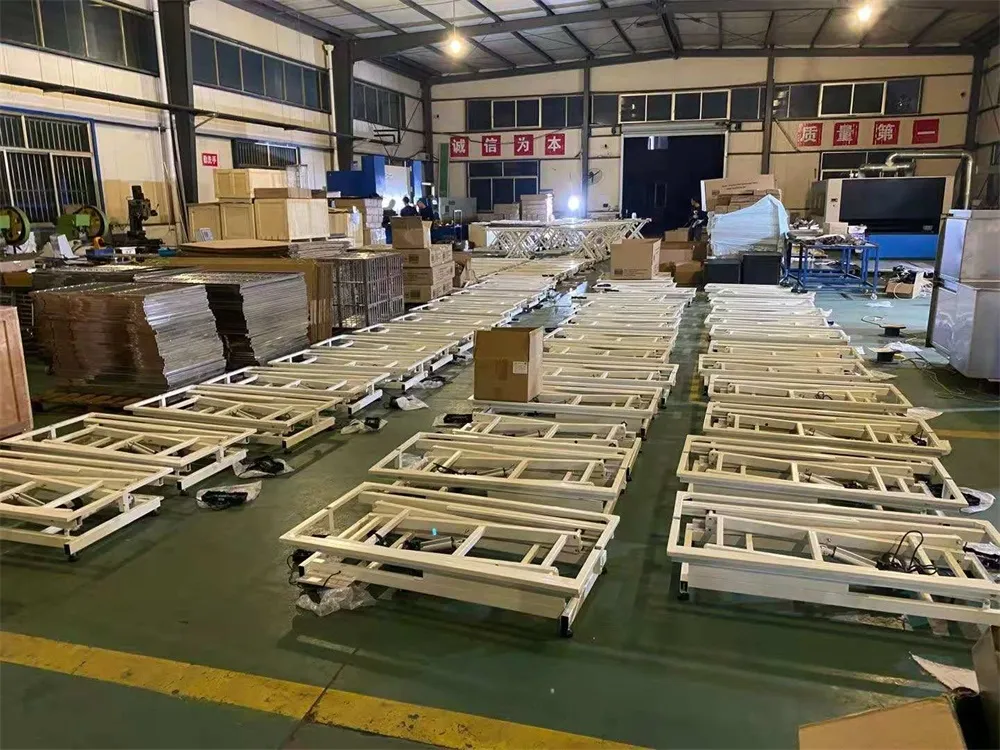

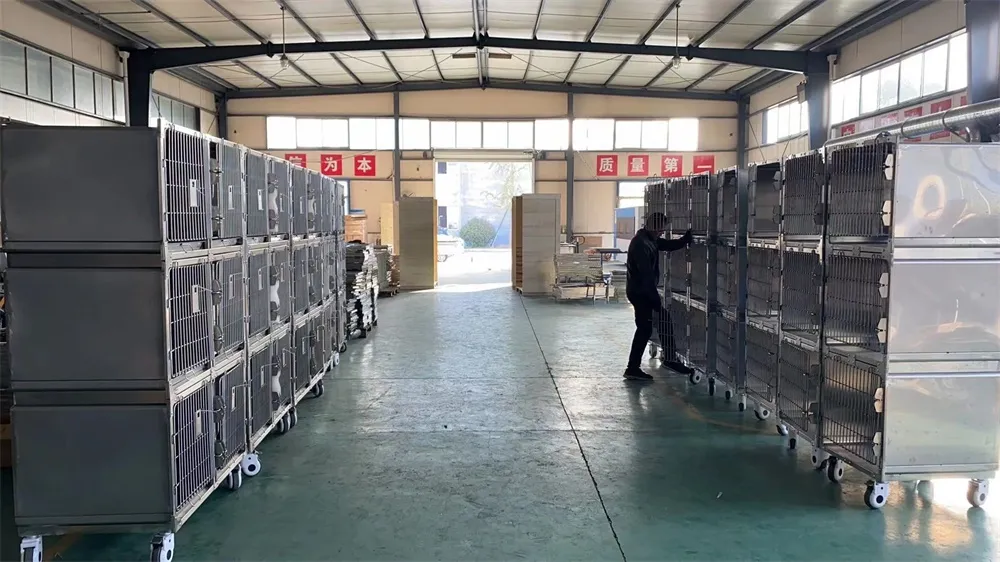

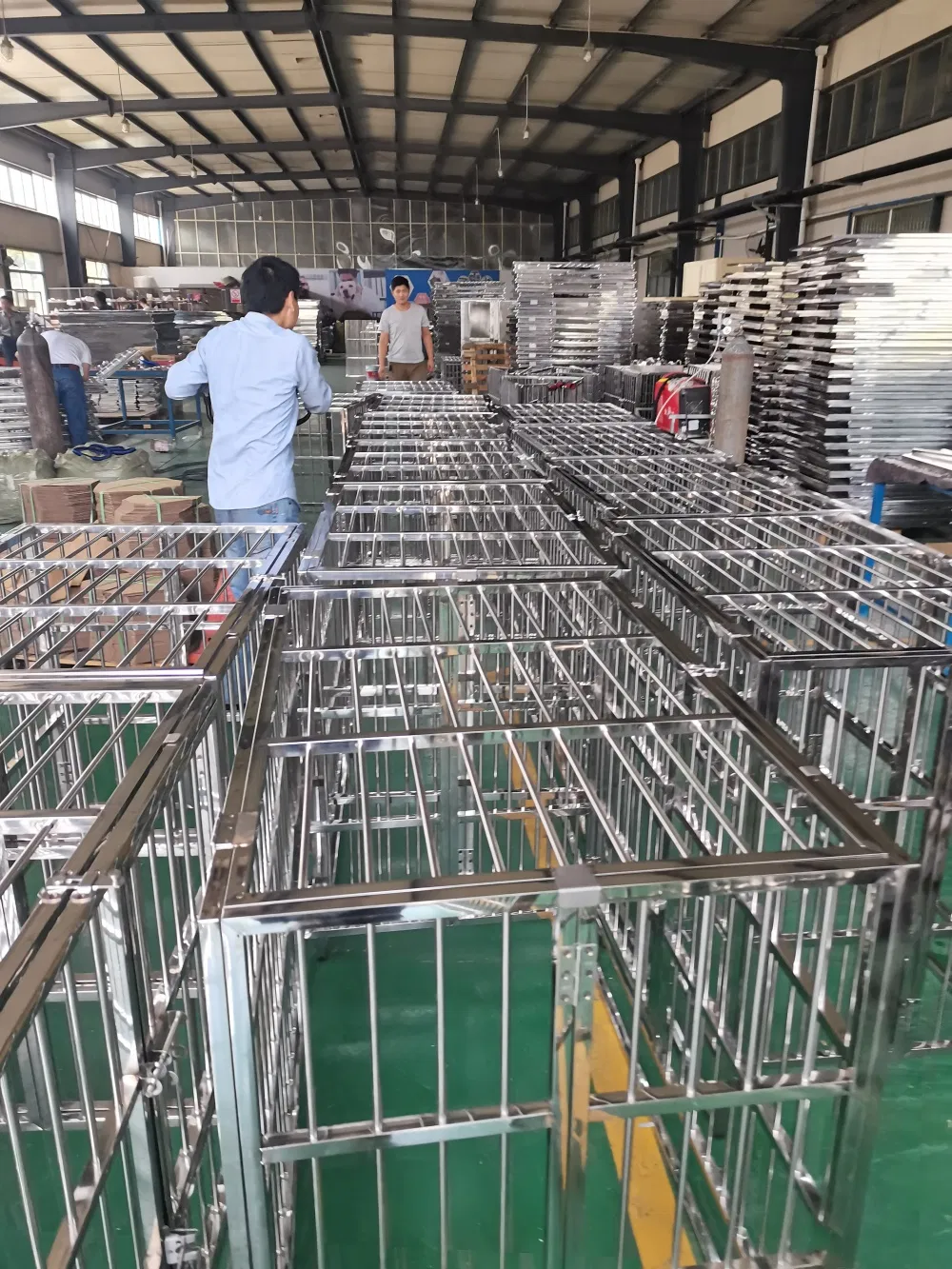

Factory Production Factory Testing Assembly Line
Exhibition Show International Exhibition

Customer Feedback

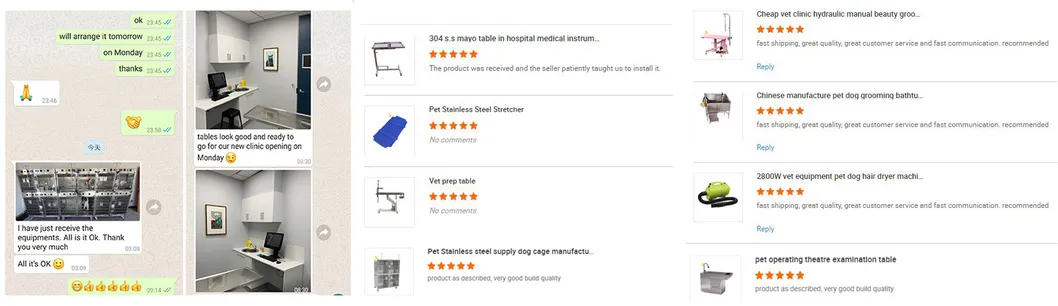

Feedback Review 1
Feedback Review 2

Related Products

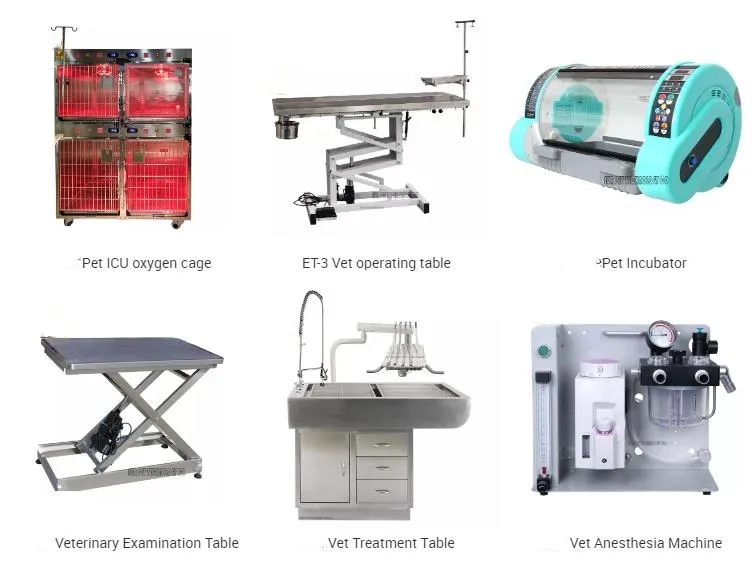

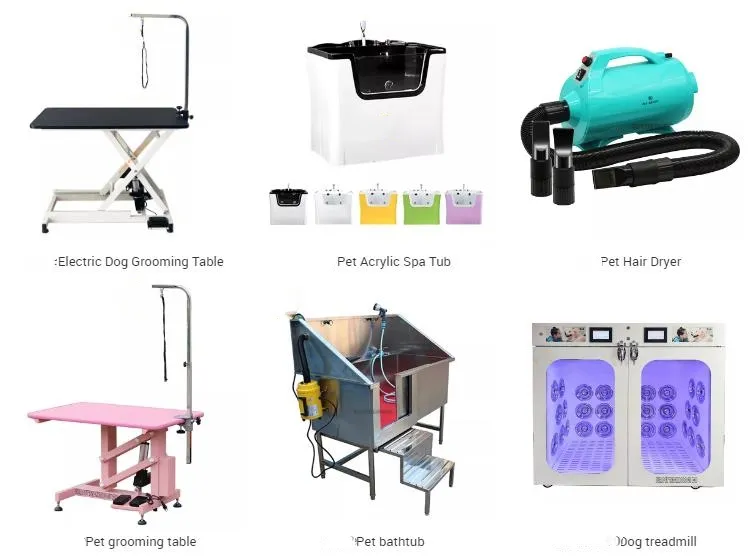

Related Product 1 Related Product 2 Related Product 3

Frequently Asked Questions

What types of animals is the TA-60V suitable for?
The TA-60V is a high-end anesthesia machine designed for use in animal hospitals, suitable for a wide range of animals including small to large pets, thanks to its adjustable tidal volume ranging from 20mL to 1500mL.
What installation options are available for this model?

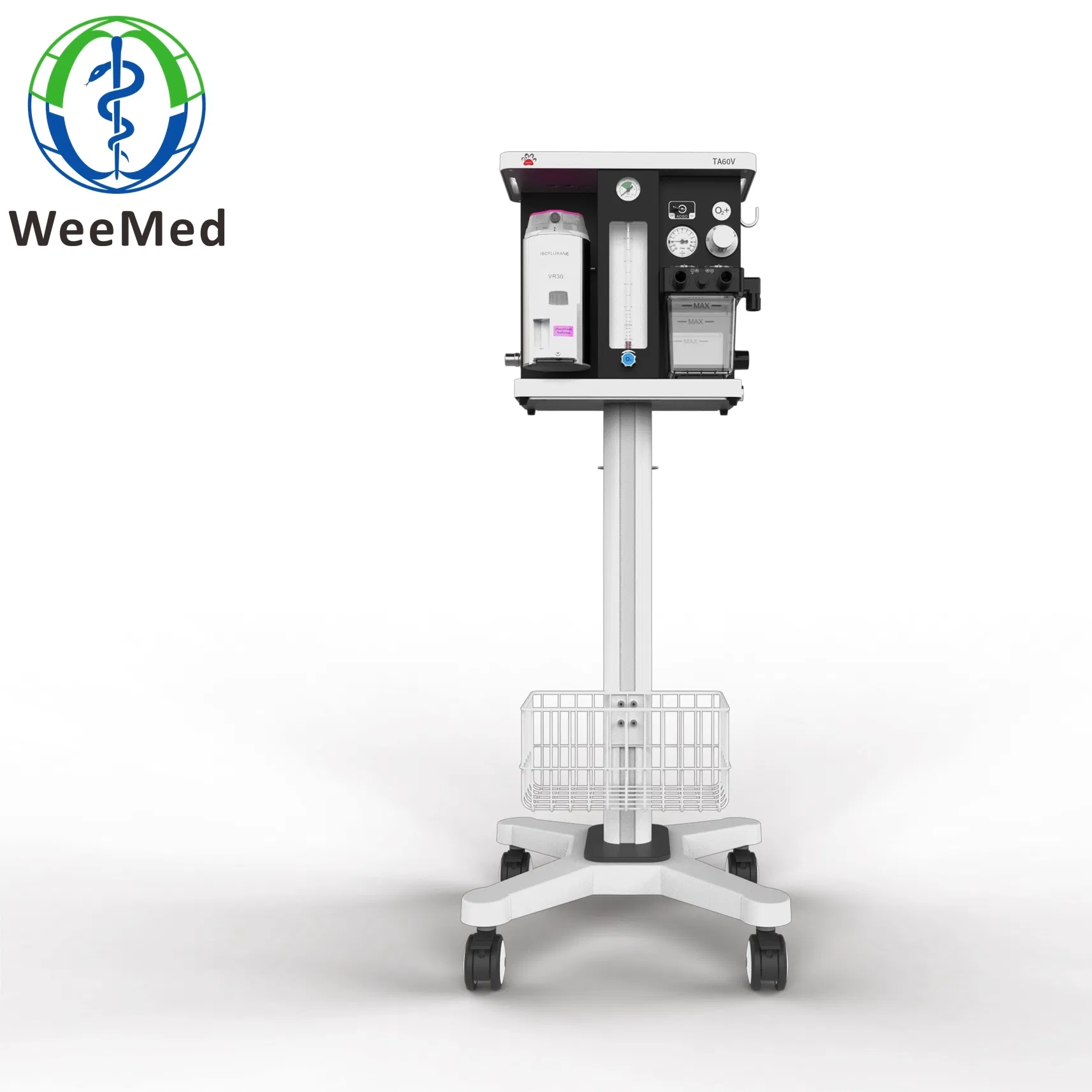

The TA-60V features a versatile design that supports multiple installation methods, including wall-mounted, desktop, and mobile stand (trolley) configurations.
What ventilation modes does the TA-60V support?
It supports several professional ventilation modes including IPPV (Intermittent Positive Pressure Ventilation), A/C (Assist/Control), and SIMV (Synchronized Intermittent Mandatory Ventilation).
How does the machine handle power failures?
The machine is equipped with an AC power failure alarm and an internal battery backup system with a low voltage alarm to ensure continuous operation and patient safety during power interruptions.
Does the machine monitor oxygen concentration?
Yes, it includes both high and low oxygen concentration alarms (ranging from 18% to 100%) as well as a suffocation warning and airway pressure monitoring.
What are the transport dimensions and weight?
The equipment is typically packed in wooden cases. Packing size options include 810x760x520mm (GW: 53KG) and 650x690x520mm (GW: 40KG) depending on the configuration.
