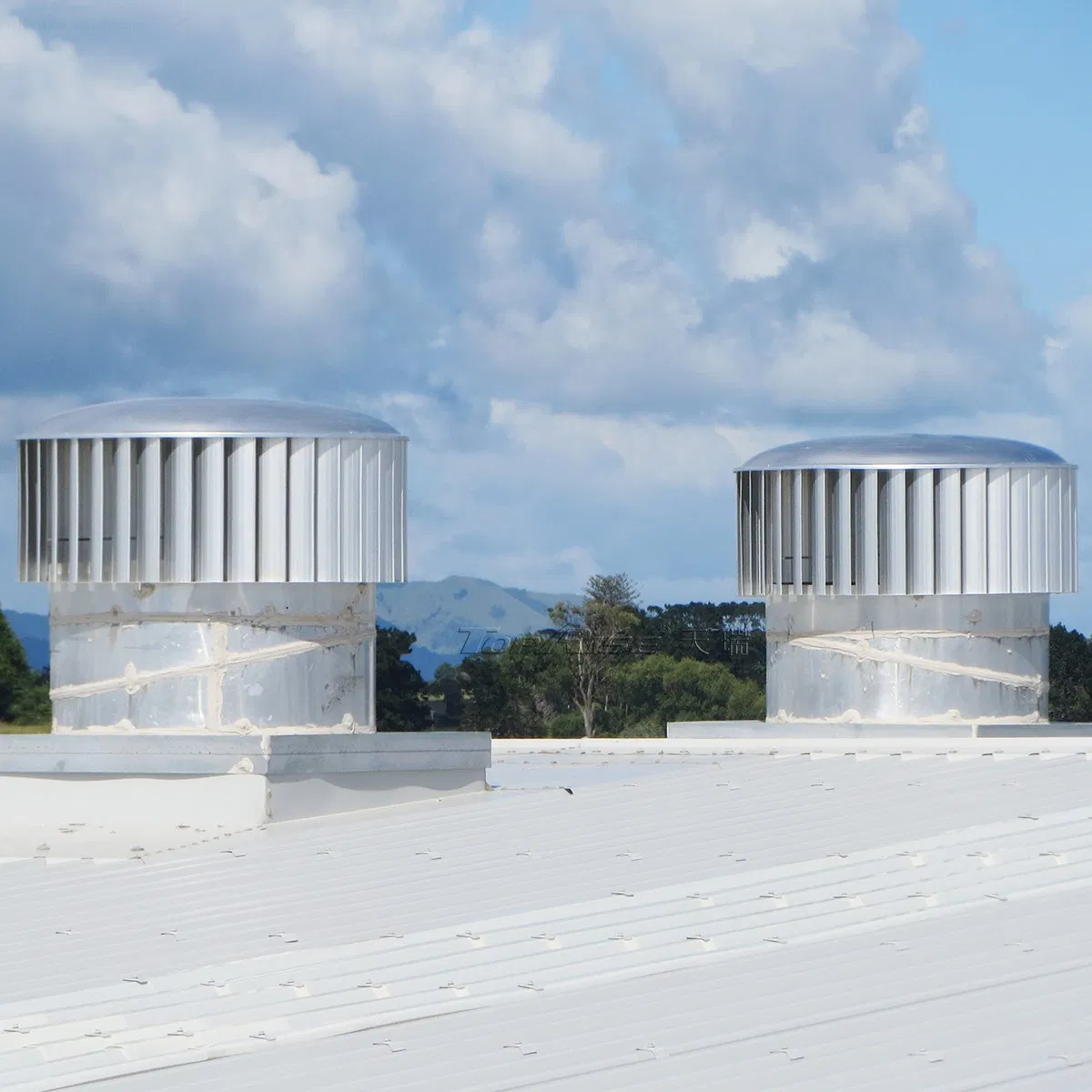

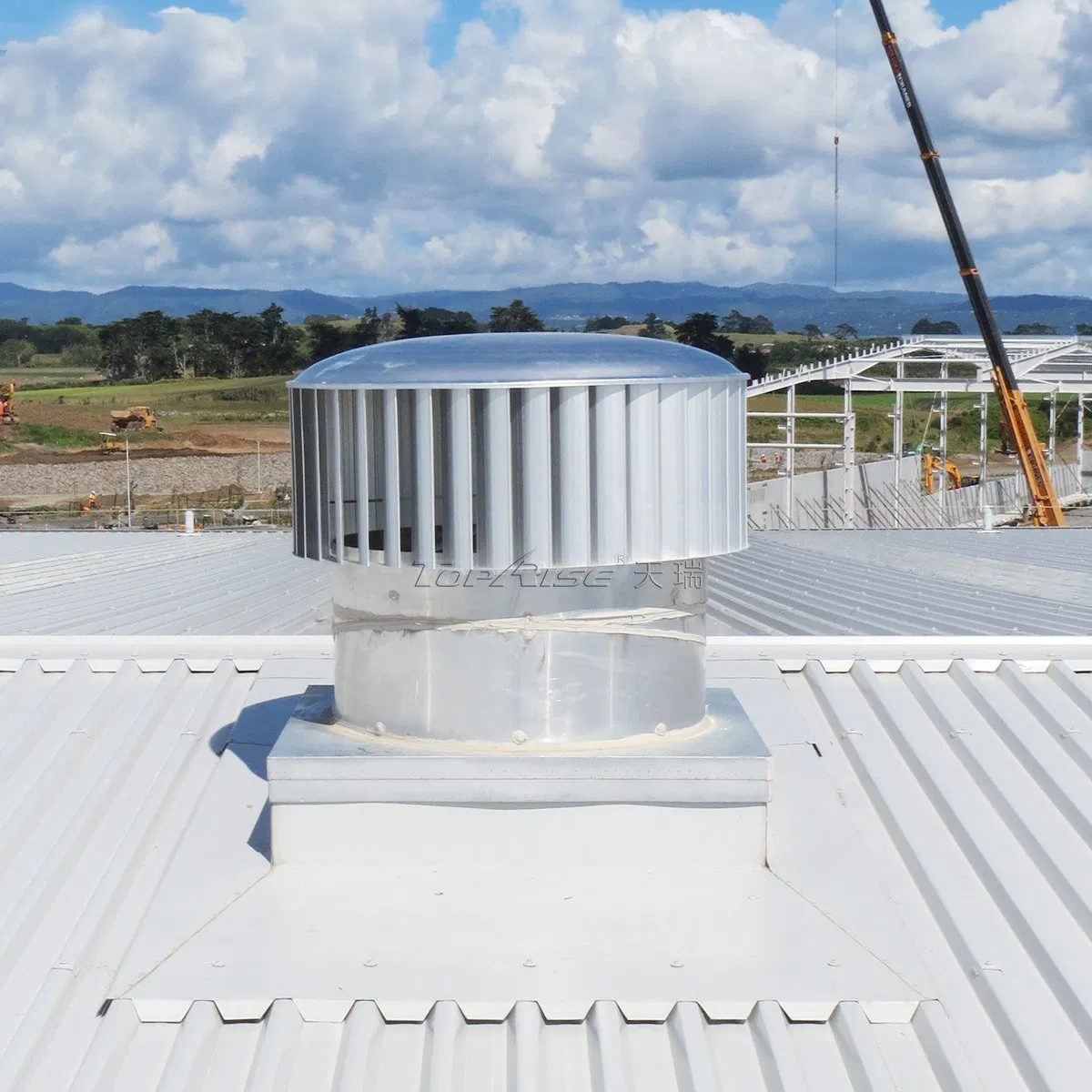

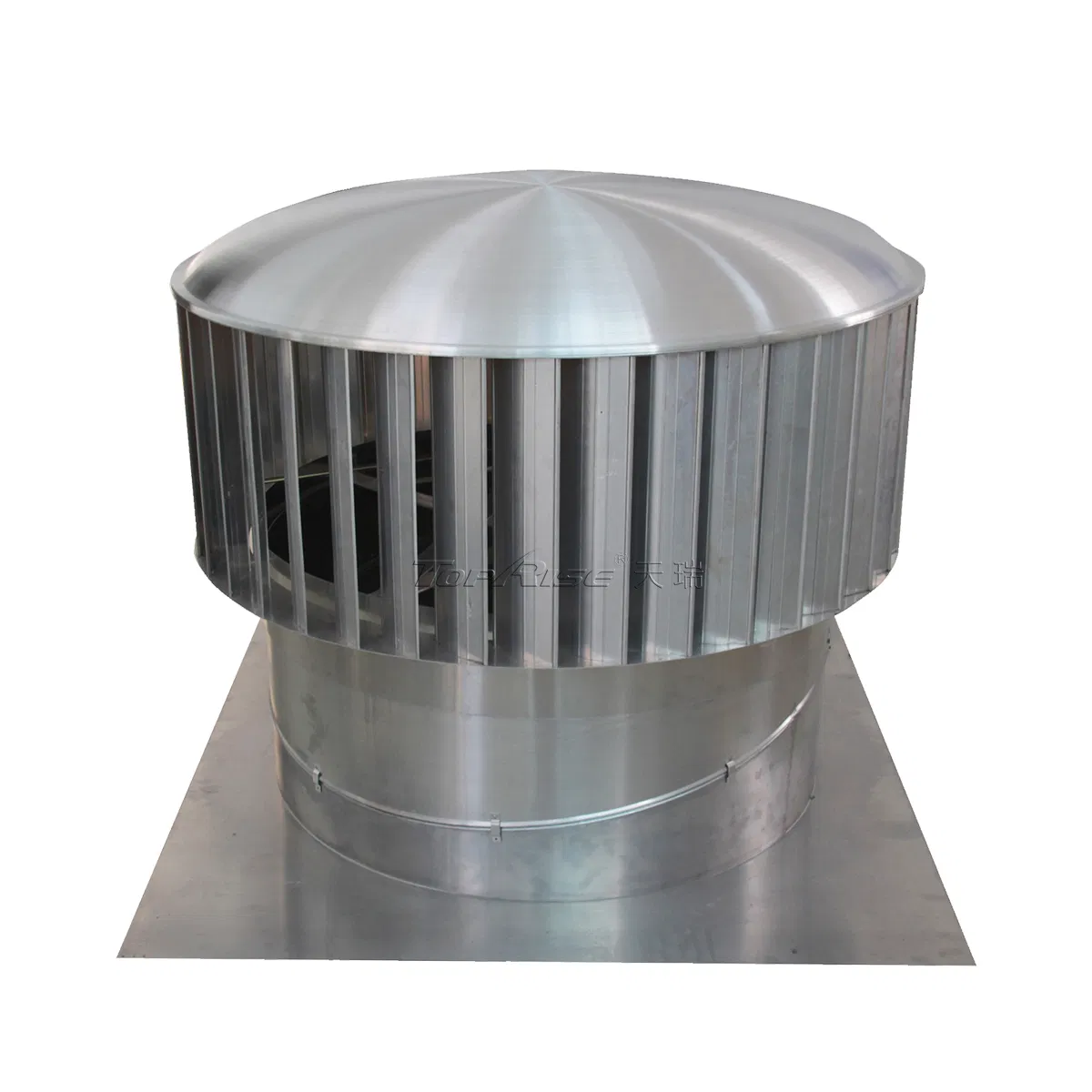

Toprise Wind Driven Roof Turbine Air Ventilator Wind Power Straight Vanes 900mm

1 / 5

Toprise Wind Driven Roof Turbine Air Ventilator Wind Power Straight Vanes 900mm

Customization:	Available
After-sales Service:	5 Years
Warranty:	2 Years

Send Inquiry

Product Description

📋 Basic Specifications

Model NO.

TOPRISE 900MM

Material

Anodized Aluminum Alloy

Function

Exhaust Ventilation

Diameter

900mm

Application

Industrial Cooling Ventilation Fans

Shape

Straight Vanes

Mounting

Roof Fan

Advantages

Larger Exhaust Capacity

Origin

China

HS Code

8414609090

📦 Packaging & Delivery

Package Size

112.00cm * 112.00cm * 68.50cm

Gross Weight

30.000kg

Transport Package

Carton

Capacity

20000 Units

🚀 Product Description

The Straight Vanes ventilator features a specialized design that provides higher flow coefficients and significantly larger exhausting capacity. By utilizing these high-efficiency units, fewer ventilators are required for your buildings, effectively reducing overall costs.

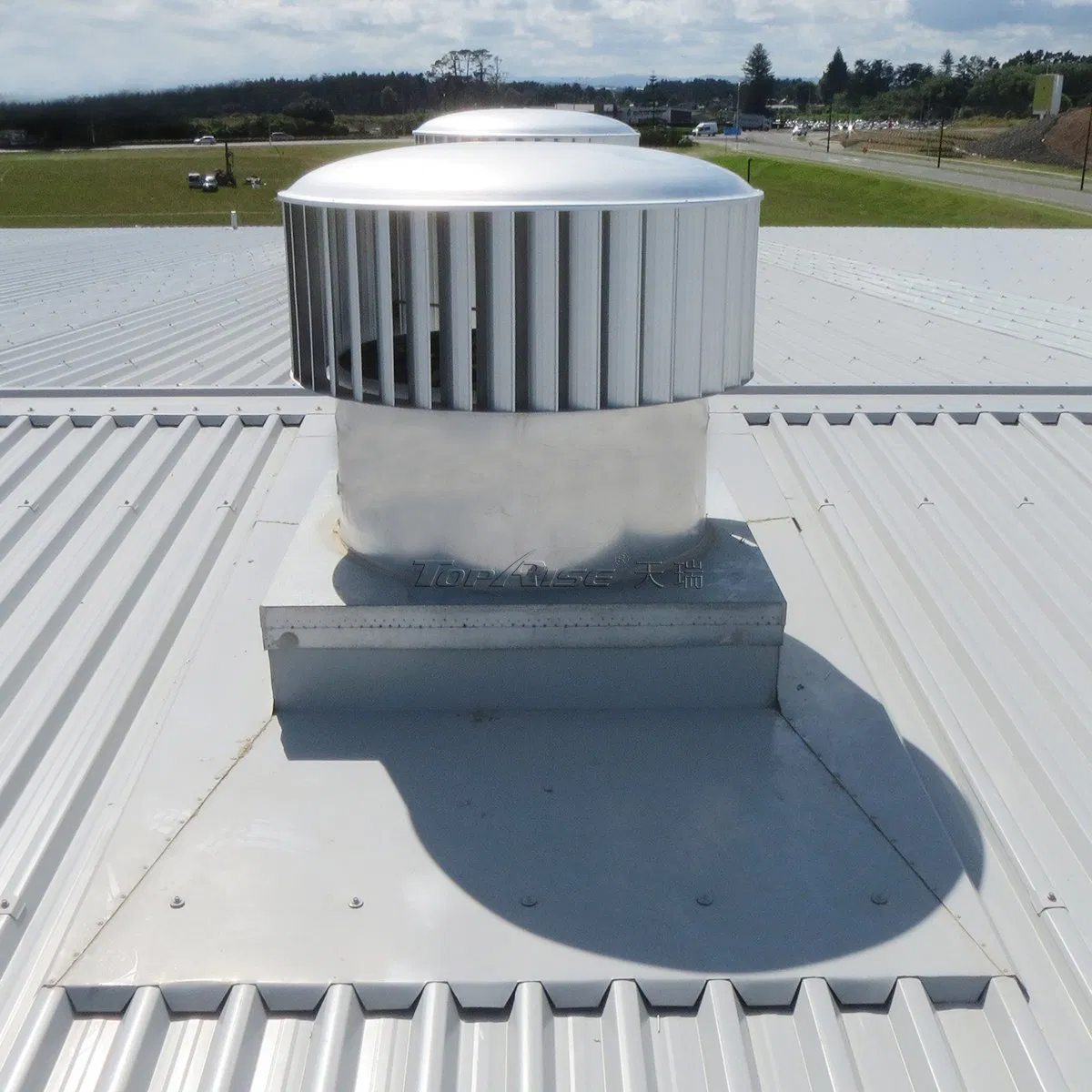

Engineered for durability and performance, it is both rain-proof and dustproof. The inclusion of a vari-pitch base, adjustable to a wide range of roof angles, ensures a much simpler installation process.

✔Made from lightweight and corrosion-resistant anodized aluminum alloy.

✔Responds exceptionally well to low wind speeds for continuous operation.

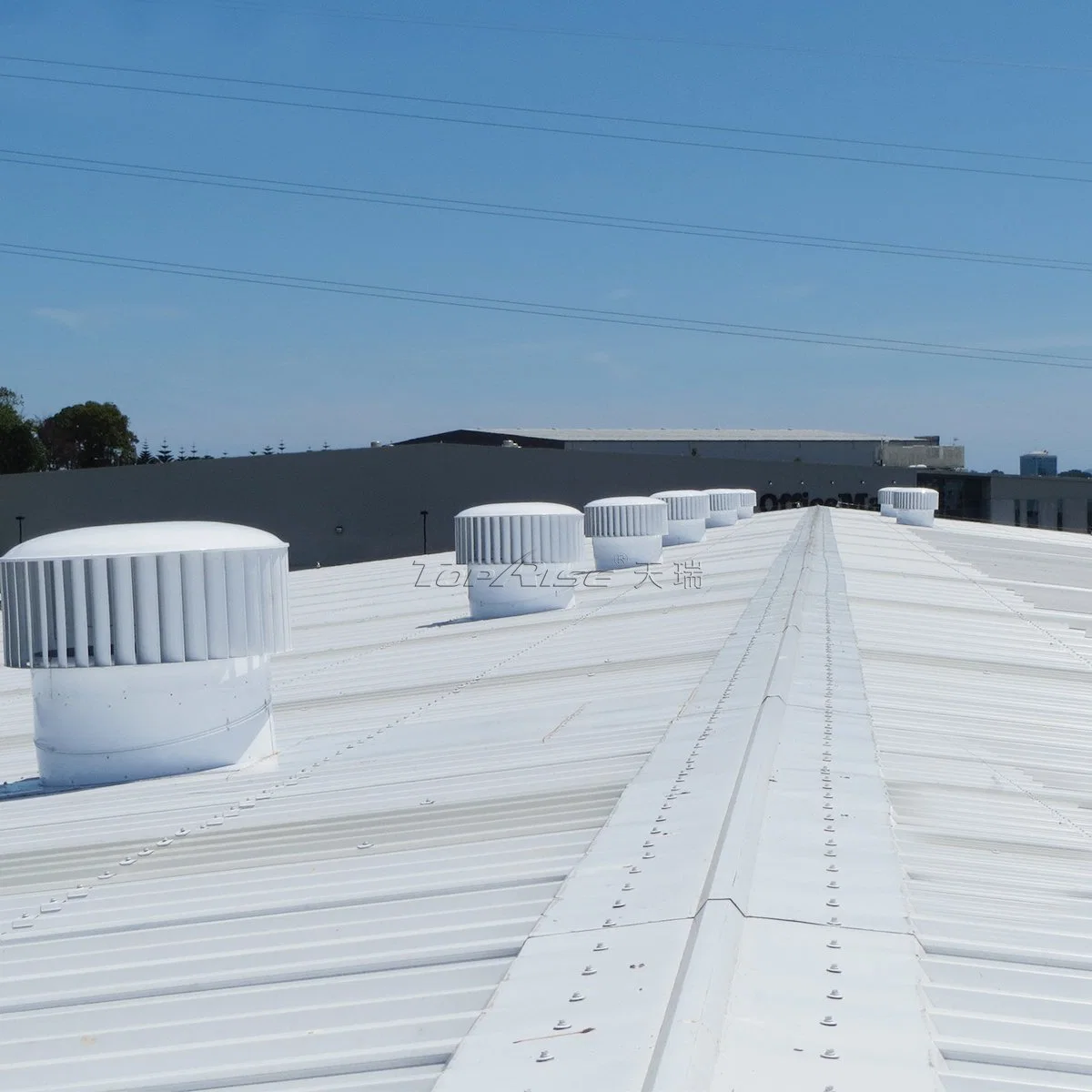

✔Specially designed for commercial and industrial buildings to reduce heat and pollutants.

✔Superior smoke release performance and high-temperature resistance.

✔Environmental protection through energy-saving wind-driven technology.

📊 Technical Parameters

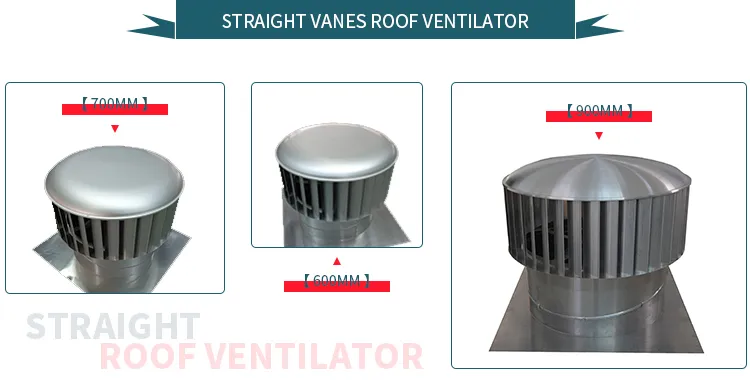

MODEL	VARIPITCH DIA.	VENT HEAD DIA.	HEIGHT	BLADE QTY	WEIGHT	BASE SIZE
600MM	600MM	785MM	658MM	27	12.5KG	1000X1000MM
700MM	700MM	870MM	780MM	31	15KG	1000X1000MM
900MM	900MM	1096MM	926MM	39	26KG	1200X1200MM

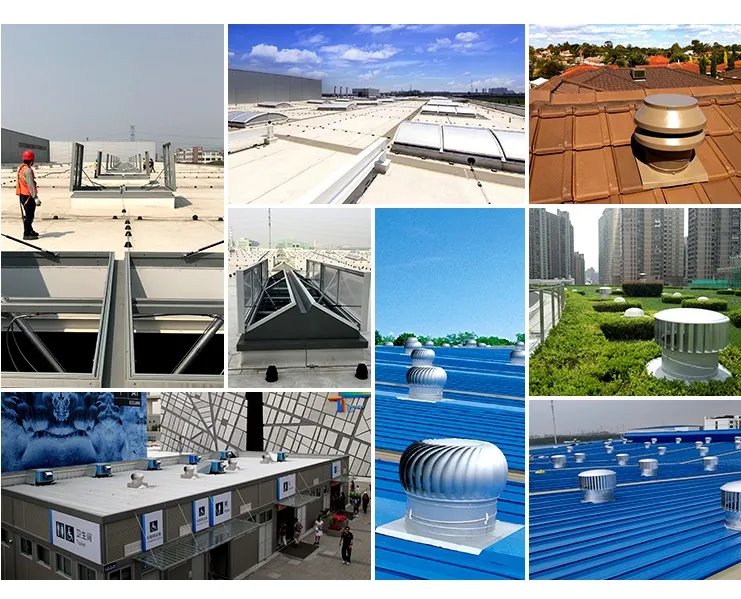

🖼️ Product Gallery

❓ Frequently Asked Questions

Which sizes of roof ventilator are available?

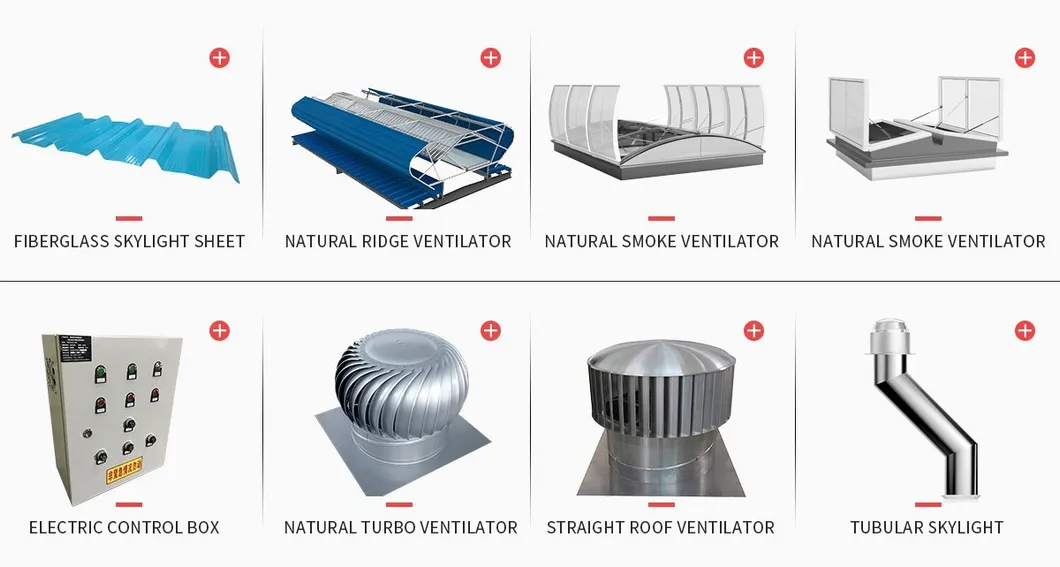

We offer multiple shapes and sizes: Spherical (150mm to 600mm), Straight Vanes (600mm, 700mm, 900mm), and Static Shape (300mm, 500mm, 700mm).

What is the Minimum Order Quantity (MOQ)?

The MOQ is 10 units for each size.

Can you provide recommendations for model and quantity?

Yes, we can design the specific model and calculate the required quantity based on your warehouse dimensions and type.

What is the typical lead time for an order?

Normally, the lead time is 2-3 weeks, depending on the order quantity and our current production schedule.

Do you offer CKD or semi-assembled shipping options?

Yes, we can supply products in CKD (Completely Knocked Down) or half-assembled formats to save space and shipping costs. Assembly instructions are provided.

What are the benefits of the Anodized Aluminum Alloy material?

The anodized aluminum alloy provides strong anti-corrosion properties, lightweight construction for better wind response, and a significantly longer service life.
