Basic Product Information
Product Description & Features

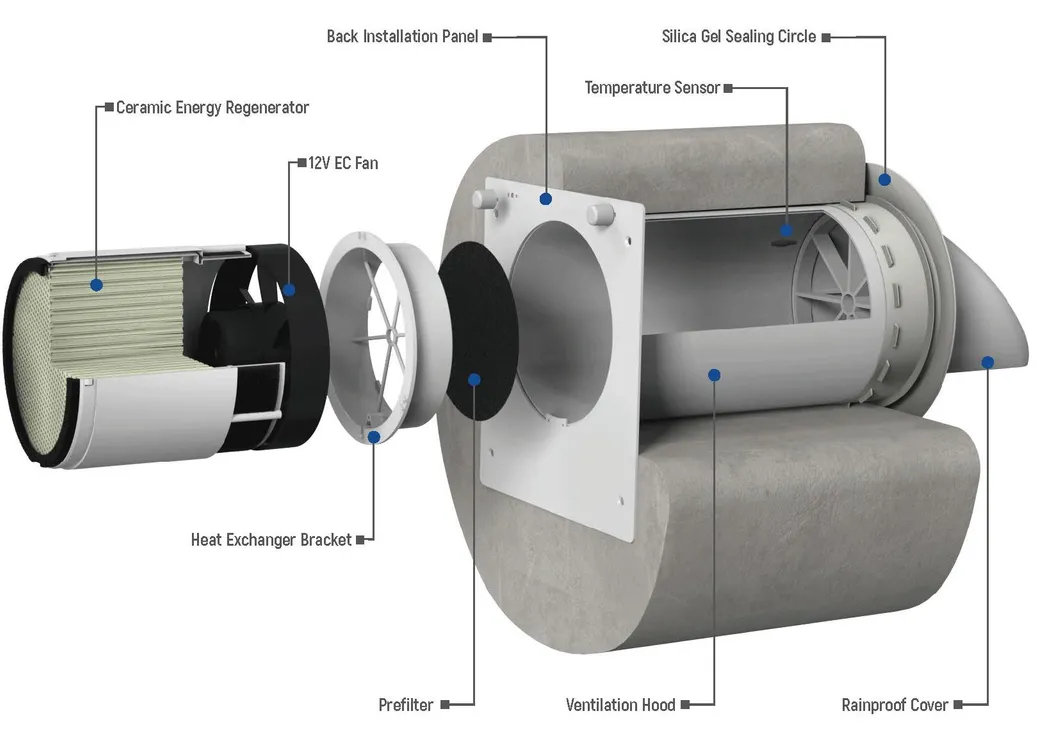

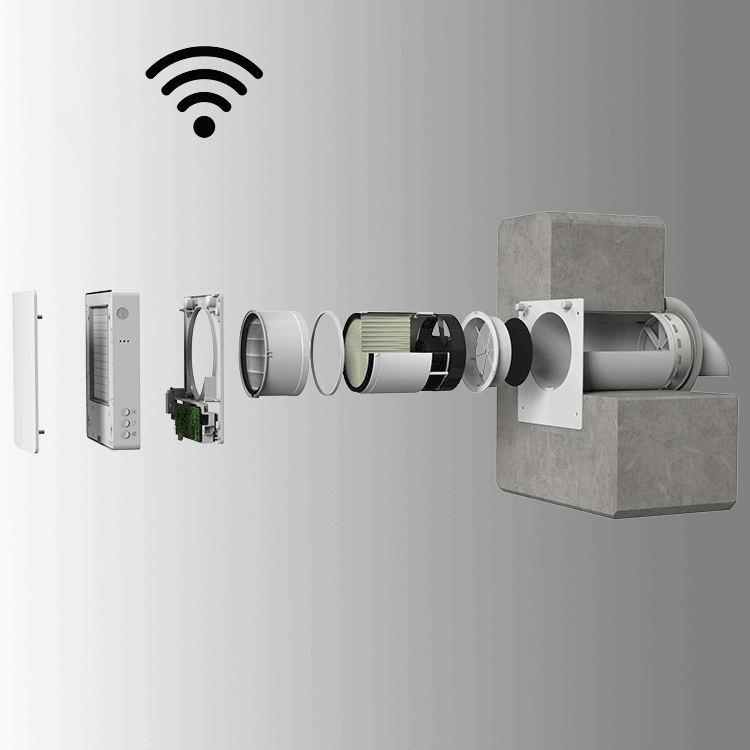

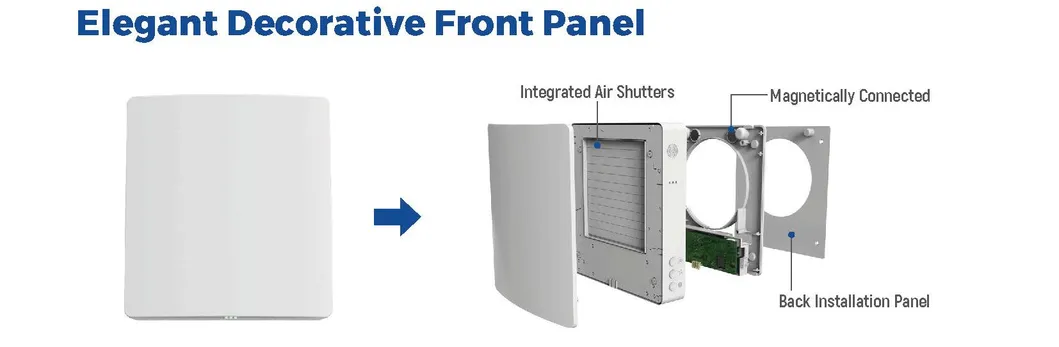

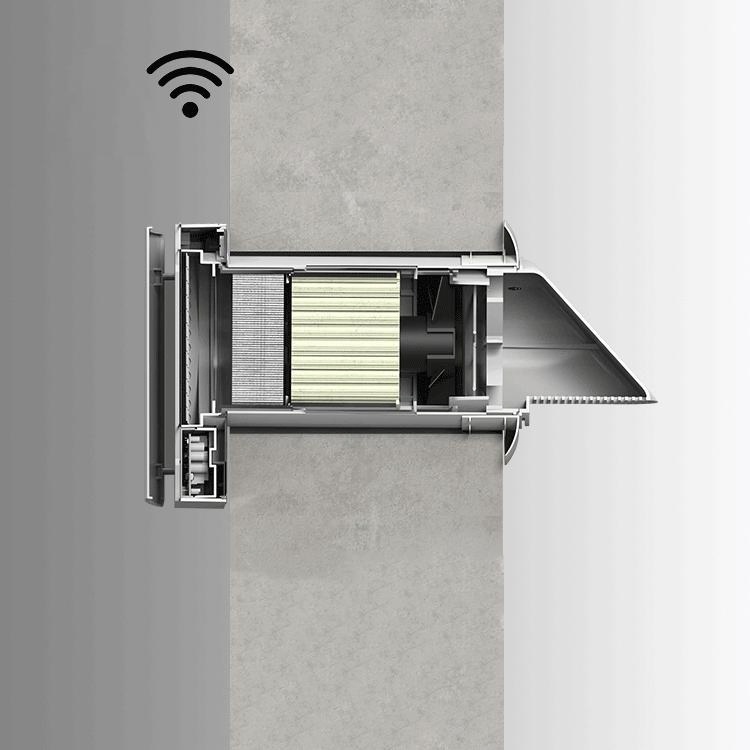

Product Structure
Reversible DC Motor: EC technology fan characterized by low power consumption and silent operation. Includes built-in thermal protection and ball bearings for long life.
Ceramic Energy Regenerator: High-tech cellular structure with antibacterial treatment. Ensures heat recovery from exhaust air to condition supply air.

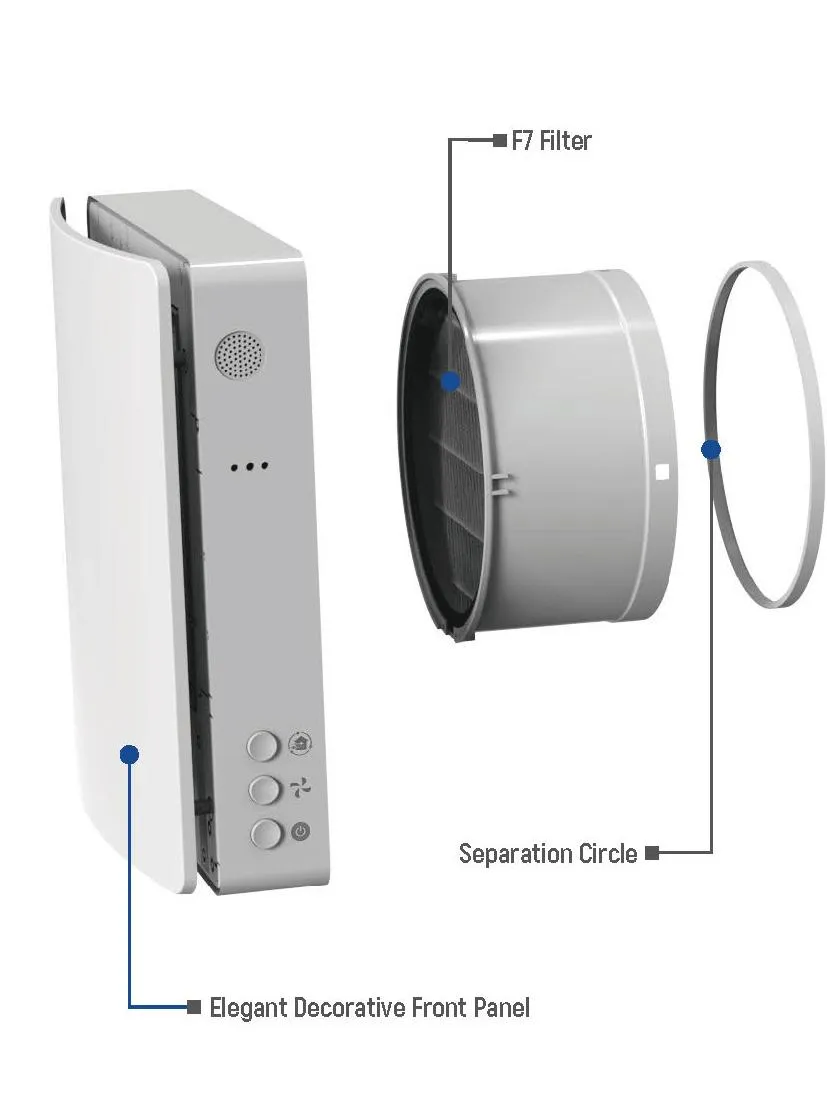

Air Filters: Two pre-filters and one F7 filter prevent dust and insects. Antibacterially treated and easy to clean with water or vacuum.
Energy Saving Performance

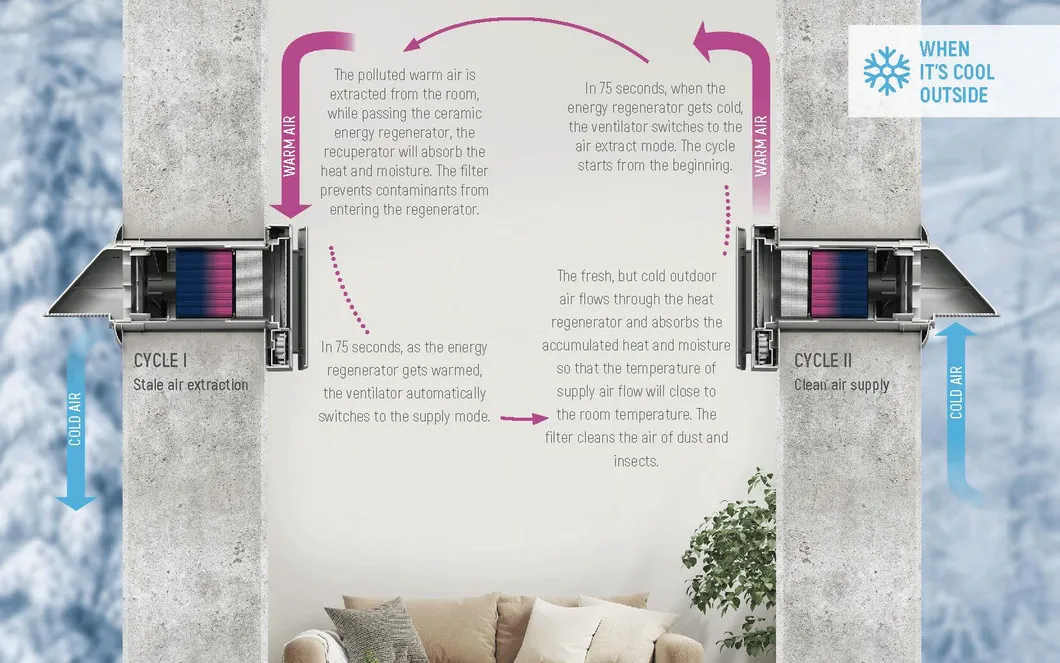

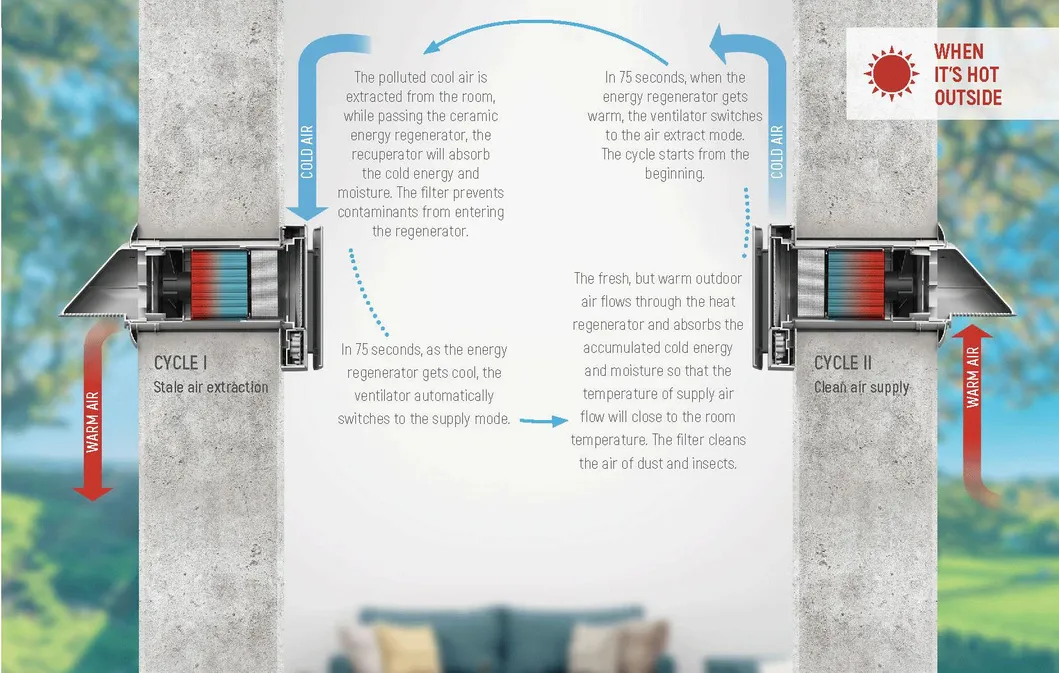

The ventilator operates in heat recovery mode with two cycles, saving energy by over 30% compared to normal exhaust fans. In winter, it recovers indoor heat to reduce heating loads. In summer, it reduces the load on cooling systems by recovering humidity and temperature.
Technical Specifications
| Model No. | DBM5-W | ||
| Voltage | 100V~240V AC / 50-60Hz | ||
| Power [W] | 6 | 7 | 7.8 |
| Current [A] | 0.04 | 0.05 | 0.06 |
| Air flow [m3/h] | 20 | 40 | 50 |
| Sound Pressure [dBA] | 32.7 | ||
| SEC Class | Class A | ||
| Temperature Range | -20°C ~ 50°C | ||
| Protection Rating | IP22 (Unit) / IPX4 (High Ingress) | ||

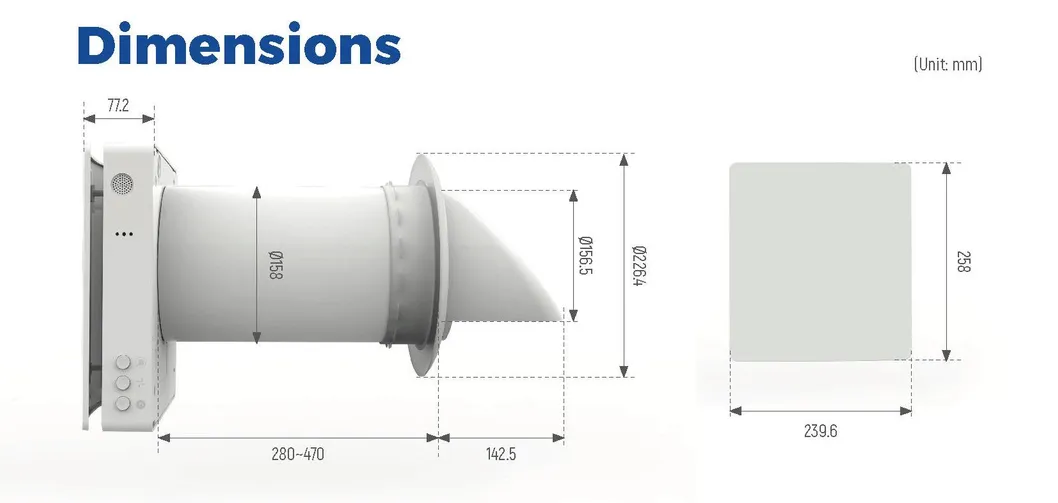

| Duct Diameter | 158mm | ||
| Net Weight | 4.2kg | ||
