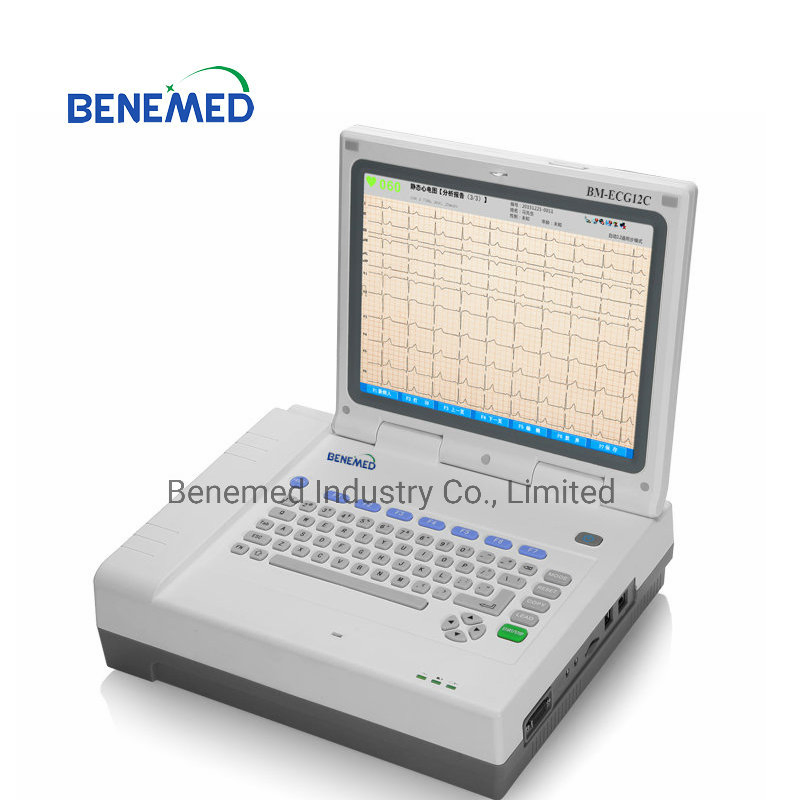

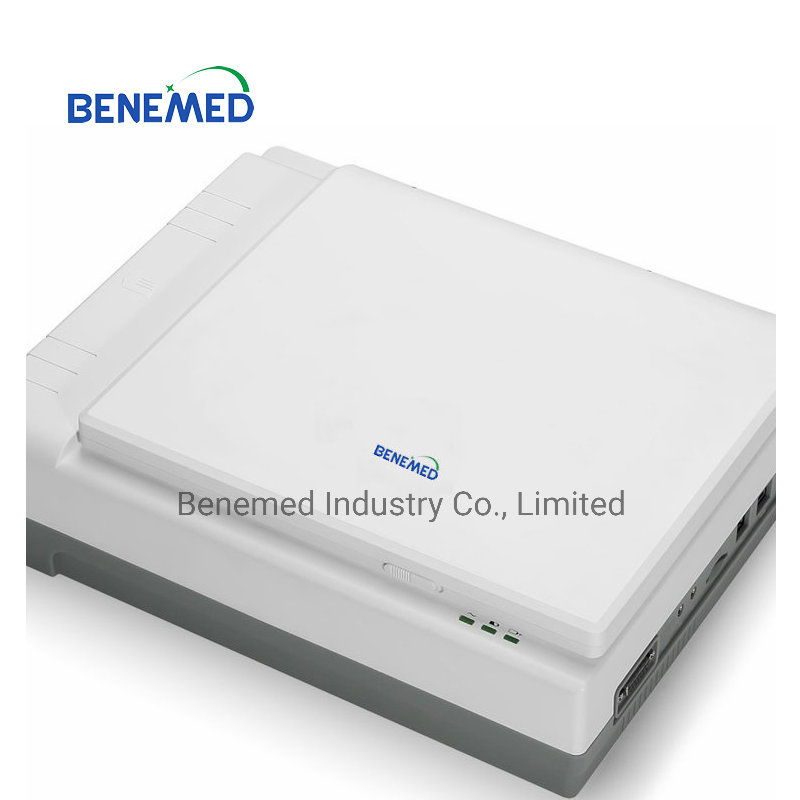

12 Inch Digital Hospital Electrocardiograph 12 Channel ECG Machine Bm-ECG12c
12 Inch Digital Hospital Electrocardiograph 12 Channel ECG Machine Bm-ECG12c
12 Inch Digital Hospital Electrocardiograph 12 Channel ECG Machine Bm-ECG12c
12 Inch Digital Hospital Electrocardiograph 12 Channel ECG Machine Bm-ECG12c
12 Inch Digital Hospital Electrocardiograph 12 Channel ECG Machine Bm-ECG12c
1 / 5
12 Inch Digital Hospital Electrocardiograph 12 Channel ECG Machine Bm-ECG12c
12 Inch Digital Hospital Electrocardiograph 12 Channel ECG Machine Bm-ECG12c
12 Inch Digital Hospital Electrocardiograph 12 Channel ECG Machine Bm-ECG12c
12 Inch Digital Hospital Electrocardiograph 12 Channel ECG Machine Bm-ECG12c
12 Inch Digital Hospital Electrocardiograph 12 Channel ECG Machine Bm-ECG12c

12 Inch Digital Hospital Electrocardiograph 12 Channel ECG Machine Bm-ECG12c

Customization: Available
Classification: Physiological Functions of Diagnosis and Monitoring Equipment
Type: ECG
Send Inquiry

Product Description

Basic Information

Model NO.
BM-ECG12C
Certification
CE, ISO13485
Display
12.1 Inch TFT LCD Screen
Lead
Standard 12 Lead
Channel
6/7/12channel Printout
Internal Memory
1500 Exams
Power Supply
220V/110V Built-in Battery
HS Code
9018110000

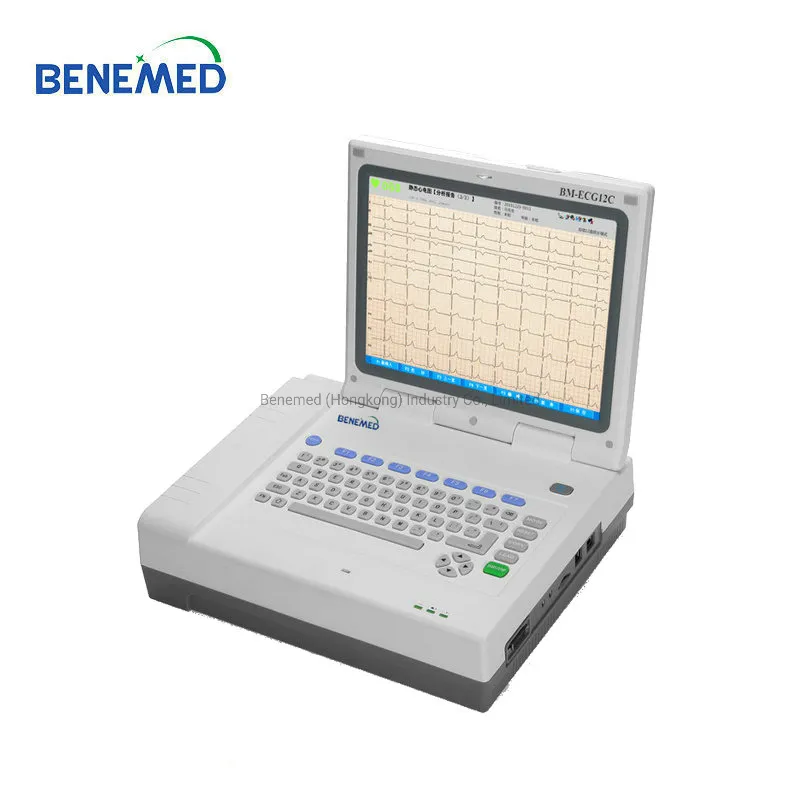

12 Channel ECG Machine

Key Features

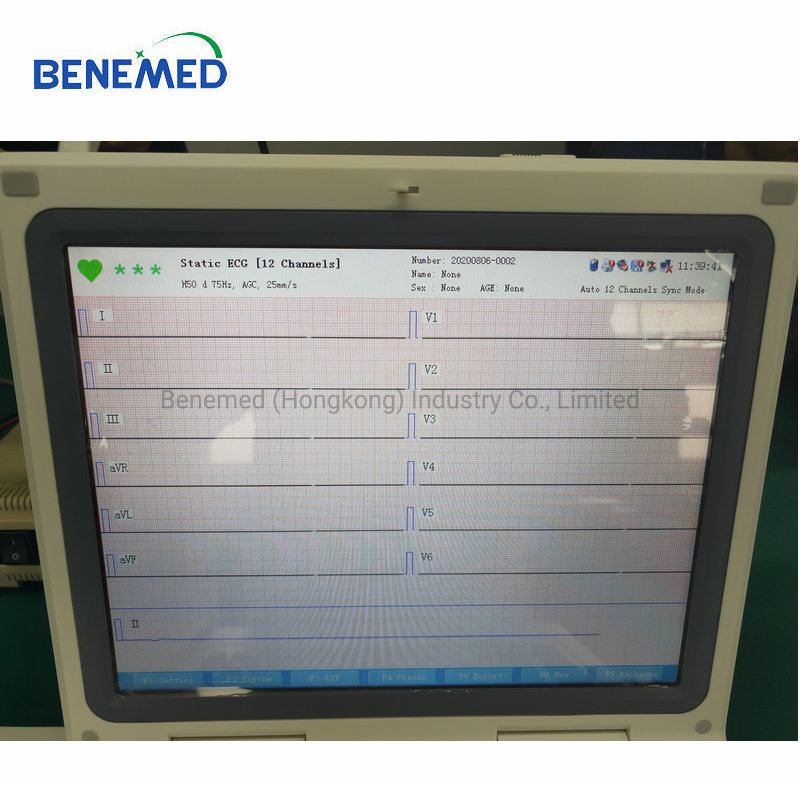

◈ 12.1 inch fold up high resolution TFT LCD (800*600) display for ECG trace and diagnosis.
◈ Support 6/7/12 channel printout formats for versatile reporting.
◈ Full alphanumeric keyboard for easy input of patient and hospital information.
◈ Advanced automatic measurement and interpretation system.
◈ Real-time waveform freezing with partial zoom capability.
◈ Instantaneous preview of waveforms and data reports before printing.
◈ Automatic arrhythmia detection and recording functionality.
◈ Built-in Li-ion battery supporting up to 50 exams on a single charge.
◈ Seamless communication with HIS in XML, JPG, and PDF formats.

Technical Specifications

Input Impedance≥50MΩ
Output Impedance≤100Ω
Time Constant3.2s
Frequency Response0.05-50Hz
Input CircuitIsolated with protector against pace making and defibrillation
Sensitivity2.5, 5, 10, 20 mm/mV, AGC
Printout Format6, 6+1, 6+2, 12+2, 12
Paper Size210mm x 20m roll or Z-folding paper
ECG Detail 1

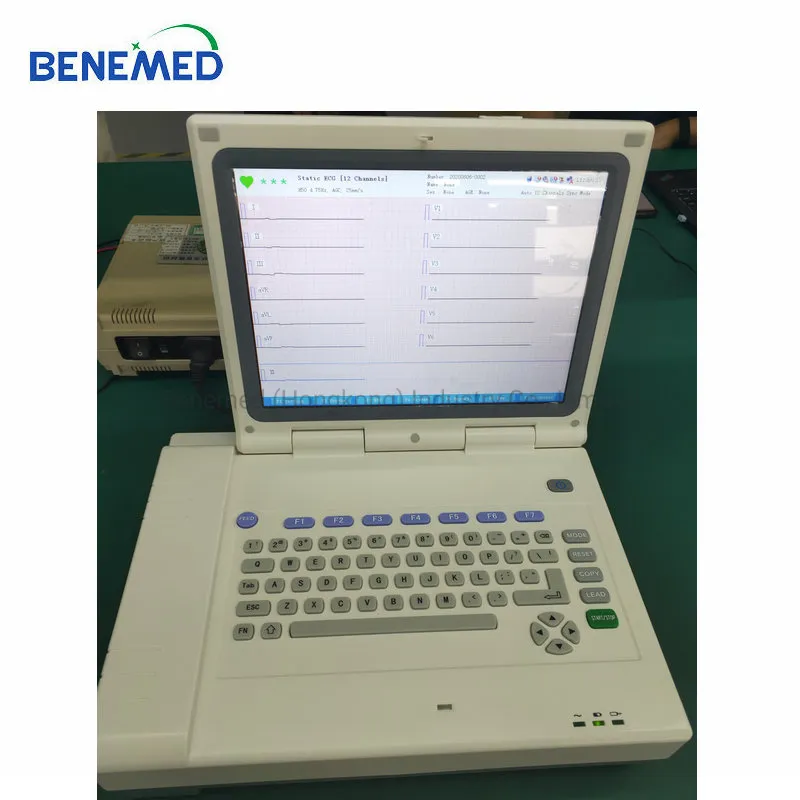

ECG Detail 2

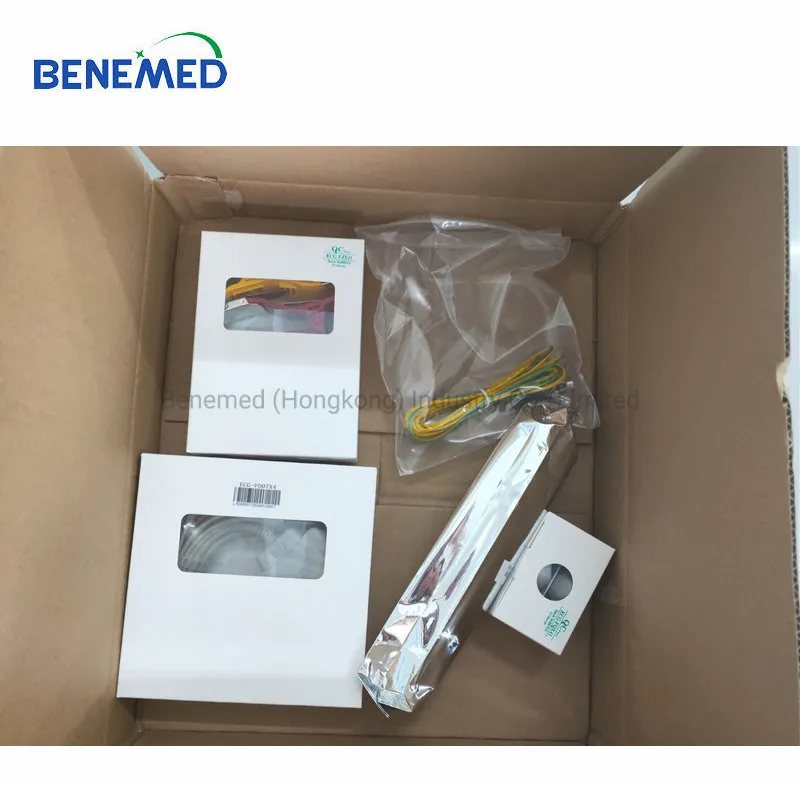

ECG Detail 3

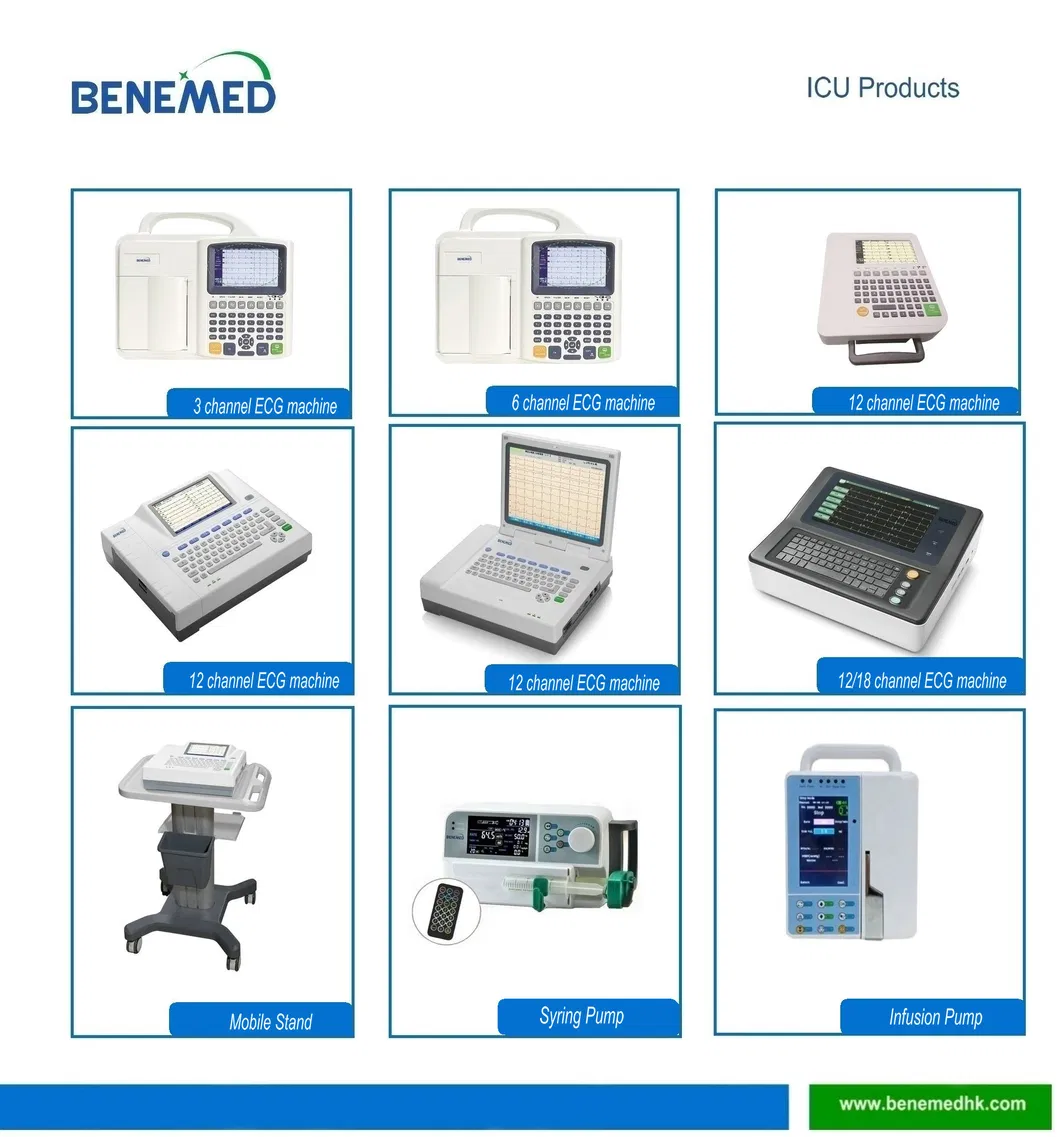

ECG Display Product Range ECG Features Chart ECG Components

Frequently Asked Questions (FAQ)

● What is the screen size of the BM-ECG12C machine?
The machine features a large 12.1-inch fold-up high-resolution TFT LCD screen (800x600) for clear waveform display.
● How many ECG records can the device store?
The internal memory is capable of storing up to 1500 individual exams for later review or export.
● Does this ECG machine support HIS communication?
Yes, it offers seamless communication with HIS (Hospital Information Systems) and can export data in XML, JPG, and PDF formats.
● What are the available printing formats?
It supports multiple channel printout formats, including 6, 6+1, 6+2, 12+2, and full 12-channel modes.
● Is the device portable for emergency use?
Yes, it has a built-in rechargeable lithium-ion battery that supports up to 50 exams, making it suitable for hospital bedside use.
● Can I preview the report before printing?
Absolutely. The system allows for an instantaneous preview of waveforms and data reports on the screen to save paper.
