📊 Basic Info.
Model NO.TLC5000
Number of Channels12 Channels
Sampling Rate10000Hz
Sampling Accuracy12bit
Recording Time24 H
Power2 Batteries in Size 5
Transport PackageCarton
🔍 Product Description

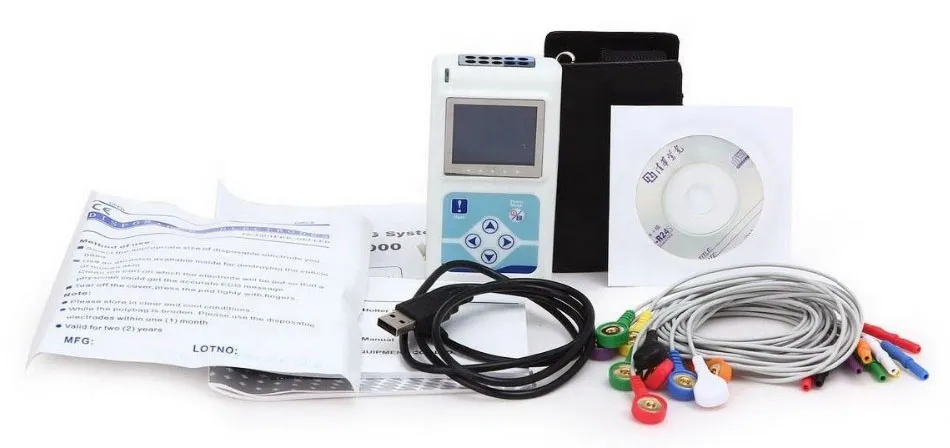

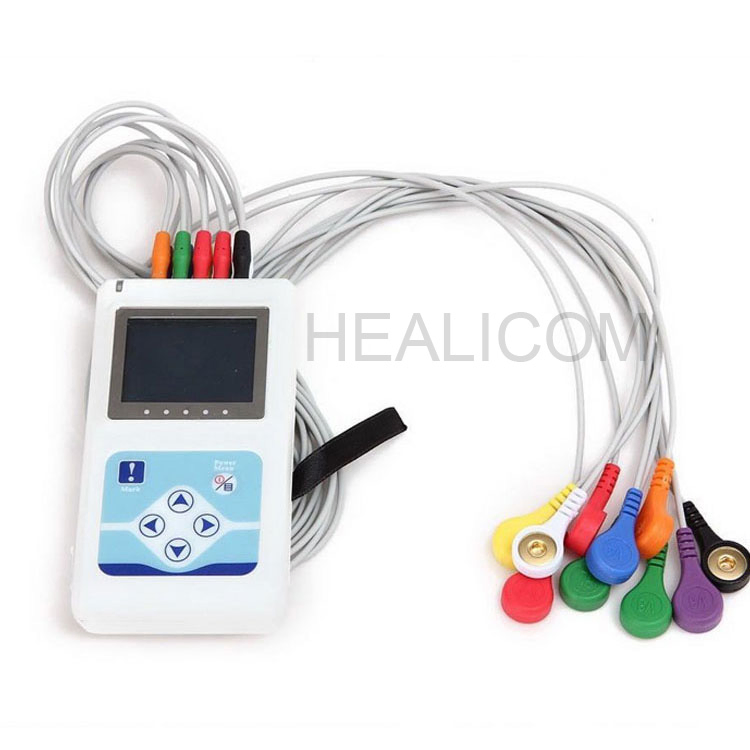

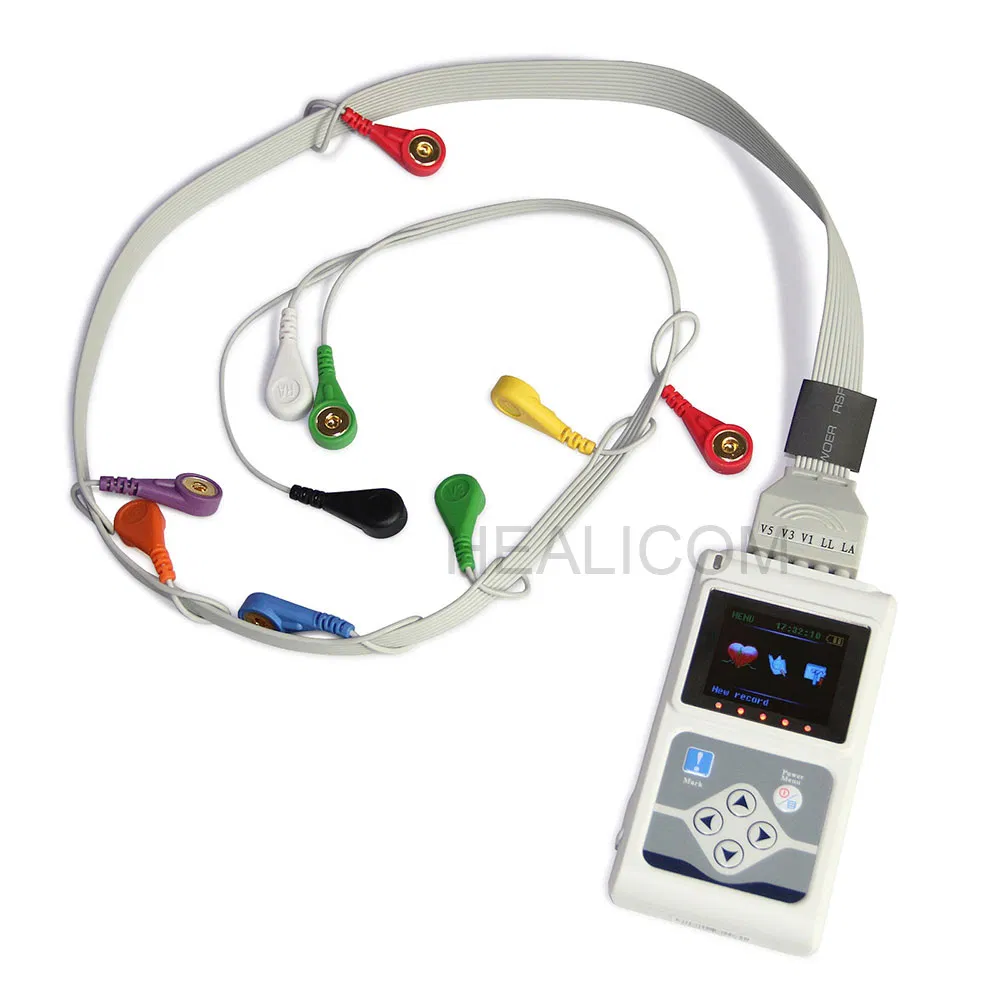

TLC5000 Dynamic Electrocardiograph System Holter ECG Machine
Dynamic ECG Systems adopt 12-lead system of international standard, which can continuously record ECG waveform for 24-hour and analyze ECG waveform by the PC software. It is applicable for use in medical institution and community.

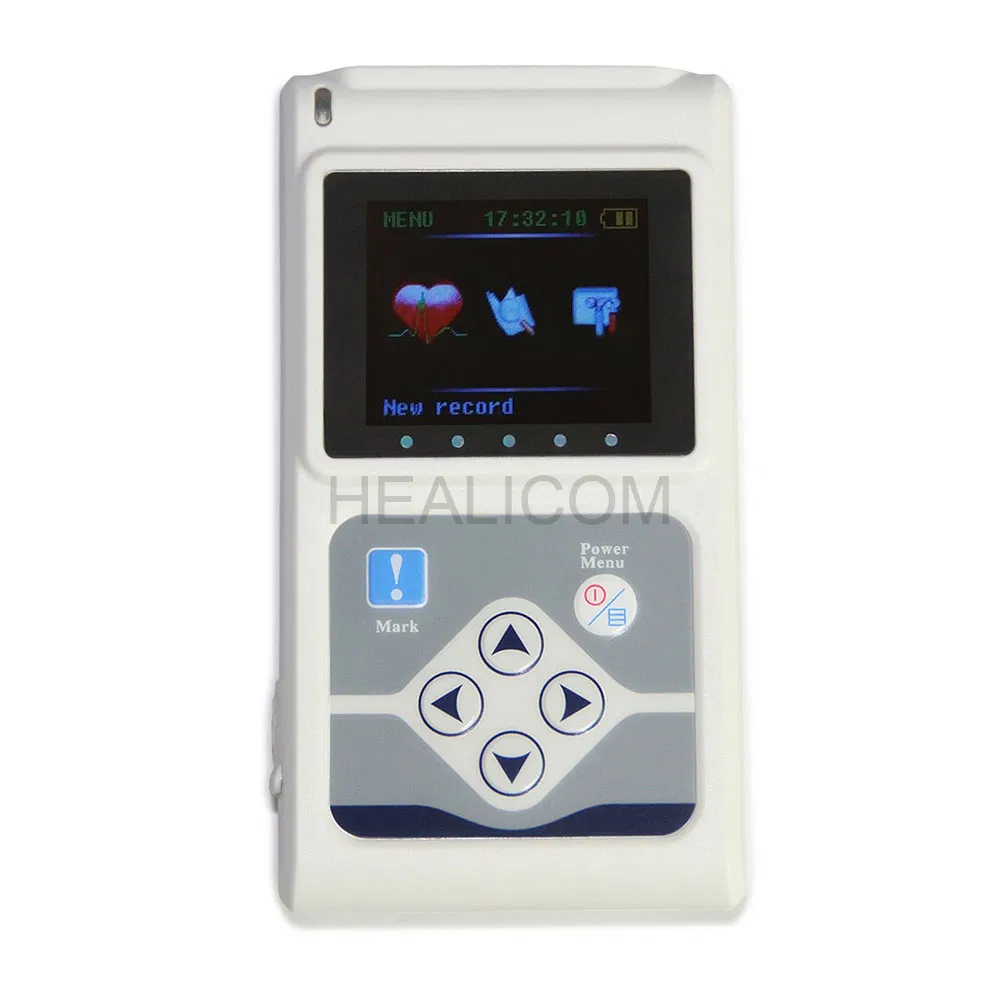

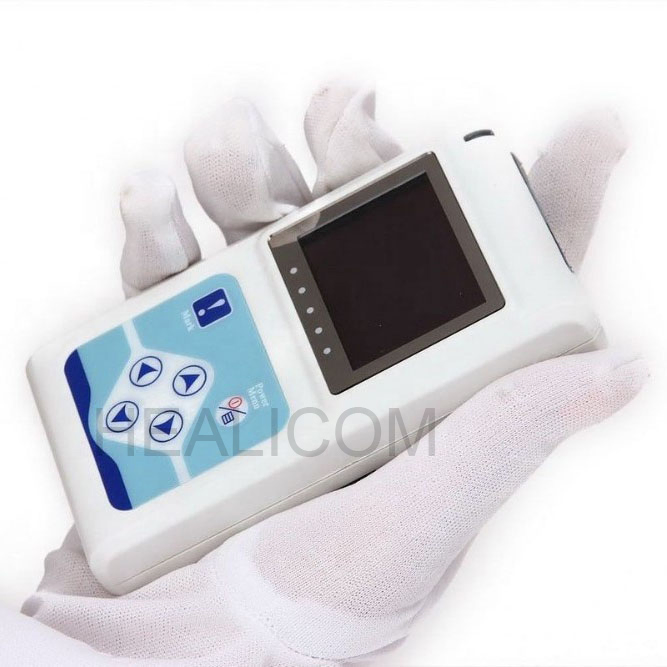

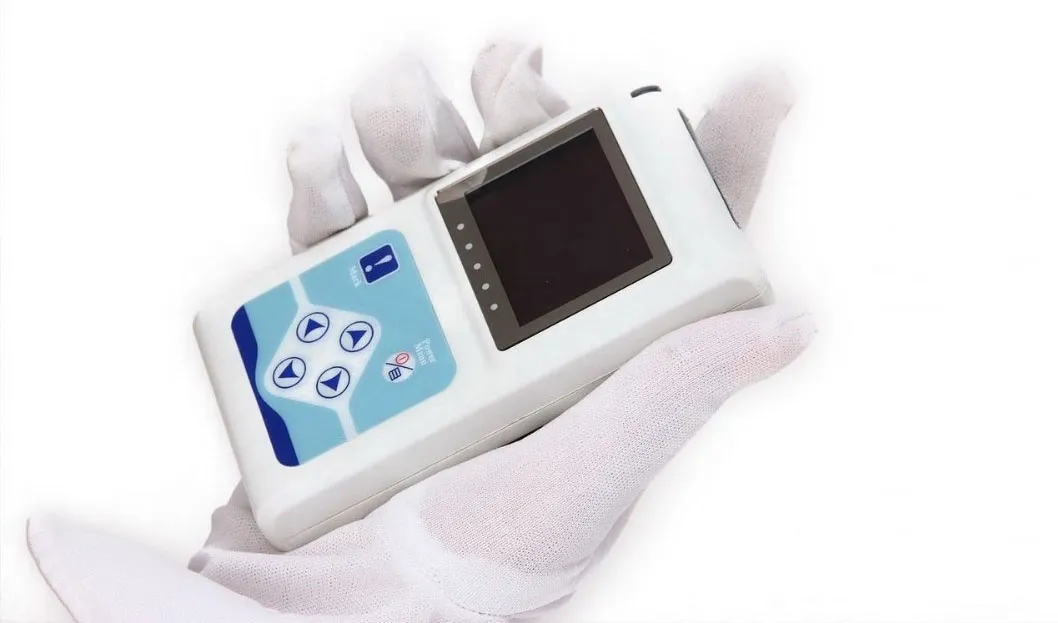

📟 Recorder Features
- Stable, dependable and durable performance.
- Anti-jamming and shock-proof capability.

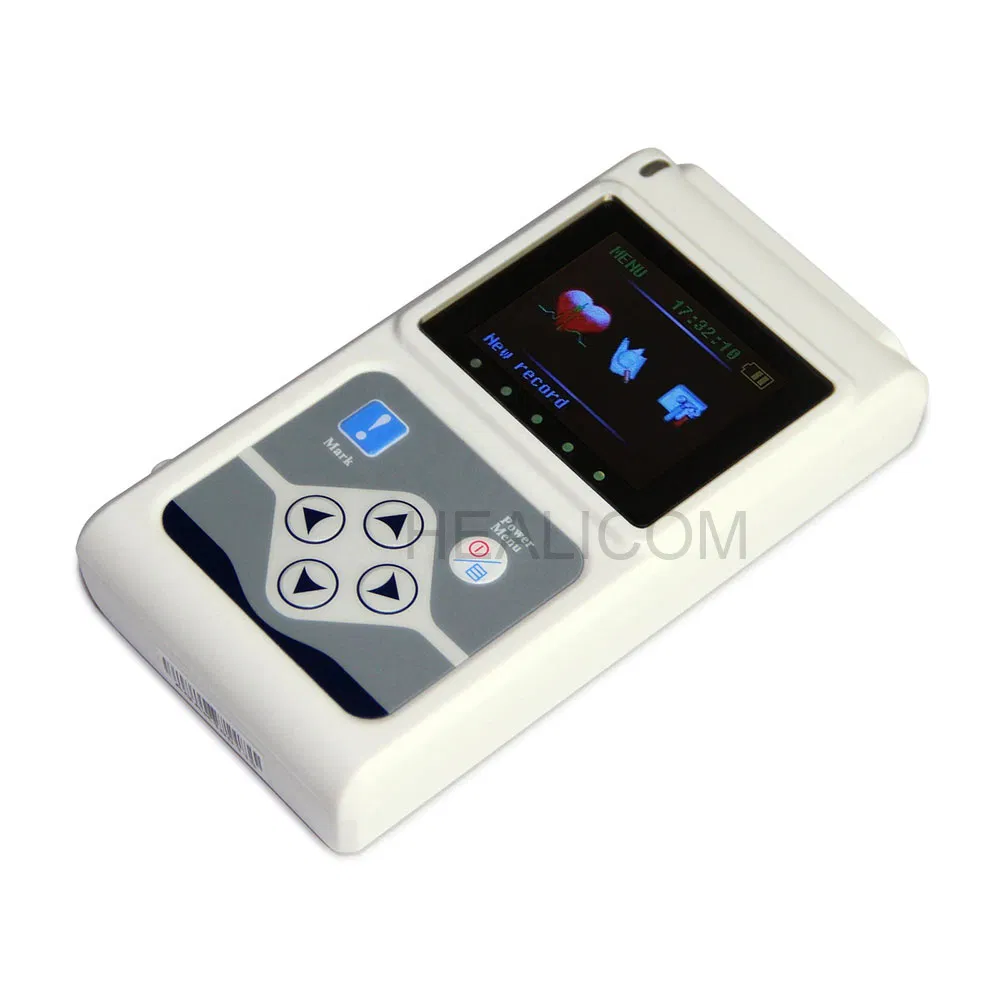

- Small volume with 160*128 OLED screen.
- Functions for waveform preview, record review, and event marking.
- Real-time clock for accurate sampling start times.
- Inbuilt TF card storage (up to 2GB) to avoid damage from repeated insertion.
- USB 2.0 interface for fast case review (less than 40 seconds).
- High precision sampling frequency for full waveform details.
- Exact record of pacemaker states.
- 24-hour DECG recording with standard ECG quality.
💻 Software Features
- Quick and accurate 12-lead synchro analysis system.
- 10+ templates including atrial premature beat, ventricular premature beat, long interval, atrial flutter, and atrial fibrillation.
- Agile "Atrial Fibrillation" analysis.
- Pacing analysis function for all pacemaker types.
- Fast waveform review and ST segment analysis.
- HR variability analysis (5-minute, 1-hour, or 24-hour).
- Specialized analysis: Sleep breath pause syndrome, HRT, T Wave alternation, VCG, VLP, TVCG, and QTD.
- Efficient case management and report printing.
📋 Technical Standards
| Number of channels | 12 channels |
| Sampling rate | 10000Hz |
| Sampling accuracy | 12bit |
| Recording time | 24 h |
| Interface | USB 2.0 |
| Scale voltage | 1mV±5% |
| Standard Sensitivity | 10mm/mV±5% |
| Noise level | ≤30μV |
| CMRR | ≥60dB |
| Low frequency features | Time constant > 3.2s |
| Scan speed | 25mm/s±5% |
| Enduring polarization voltage | ±300mV |
| Least measure signal | 50 µV p-p |
| Size | 111mm(L) * 60mm(W) * 25mm(H) |
🌟 Professional Quality Control

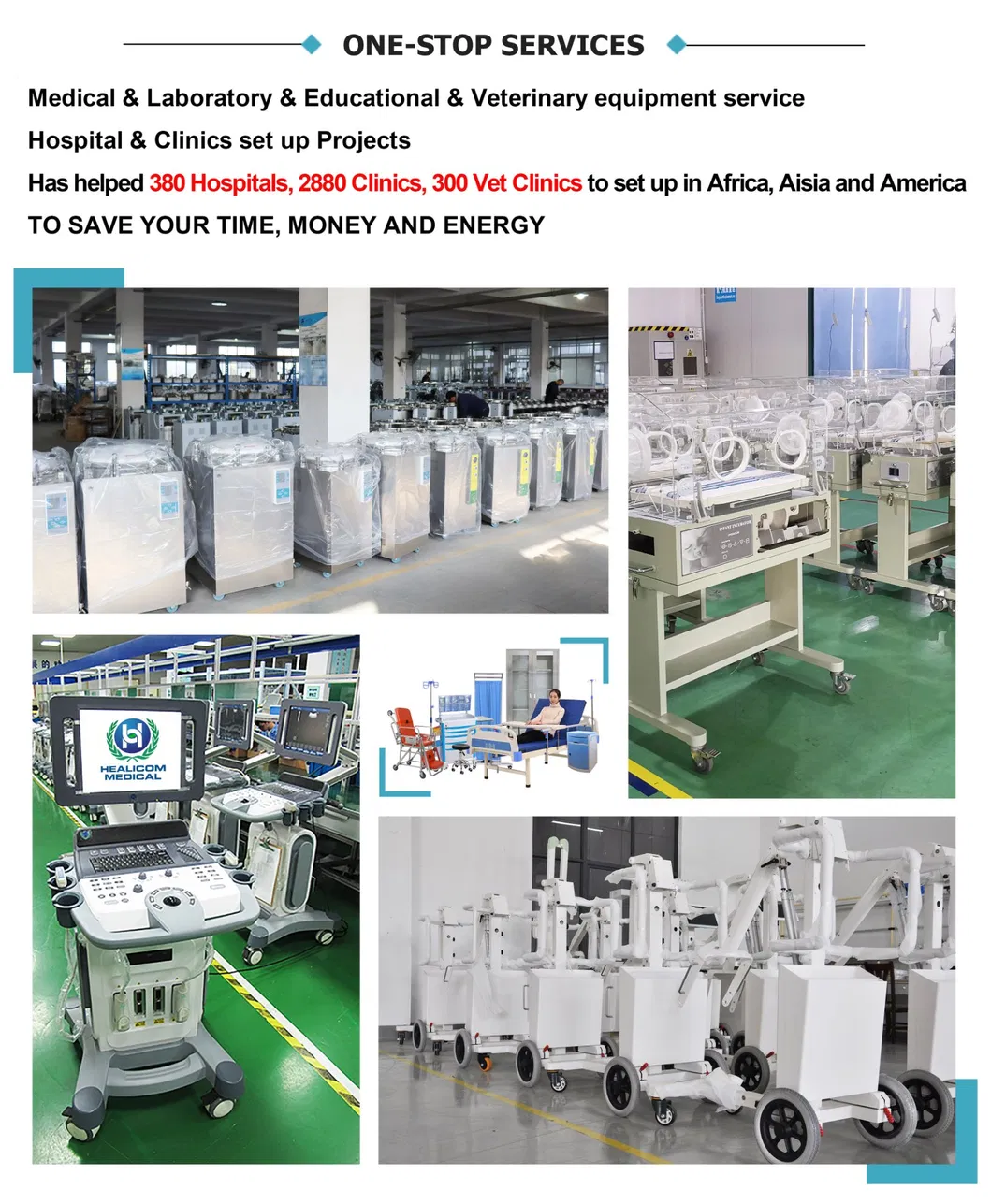

🏭 Manufacturing Overview
❓ Frequently Asked Questions
1. What is the typical time of delivery?
Products are produced according to specific orders; the standard delivery period is 15 days after confirmation. Small or sample orders may be fulfilled faster if stock is available.
2. What kind of quality assurance is provided?
We offer a one-year warranty beginning from the time of shipment. We provide free spare parts for minor issues and full replacements for serious manufacturing defects.
3. How do your prices compare to other suppliers?
We provide top-quality products at competitive prices, backed by over 20 years of experience in the medical equipment field.
4. Why do some similar-looking models have different prices?
Prices vary based on material quality and the level of quality control. Higher-priced units typically use superior components and undergo more rigorous testing.
5. What are the available payment terms?
We accept T/T in advance, L/C, Western Union, PayPal, and MoneyGram.
6. Which shipping methods are available?
We offer shipping via major sea carriers and international couriers like DHL, EMS, TNT, and UPS, depending on the buyer's preference and schedule requirements.
