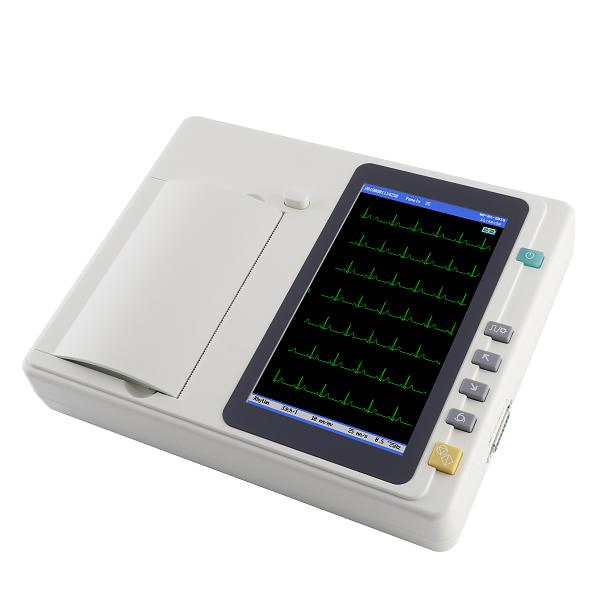

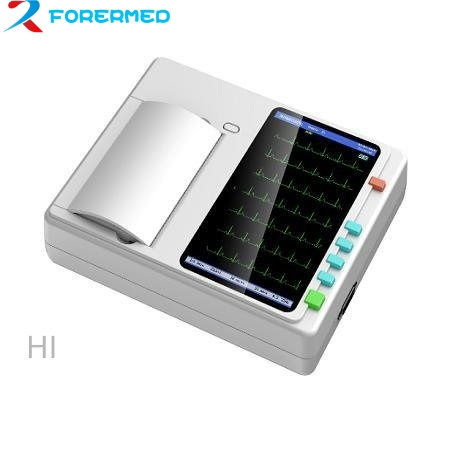

ECG Machine Electrocardiograph 12 Leads 6 Channels ECG Machine

1 / 5

ECG Machine Electrocardiograph 12 Leads 6 Channels ECG Machine

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.:YJ-ECG601

Certification:CE, ISO13485

Group:All

Name:Yj-ECG601 Electrocardiograph

Lead:Standard 12 Leads

Measurement Range:±5mvpp

Safety Standard:IEC I/CF

Acquisition Mode:Simultaneous 12 Leads Acquisition

Input Circuit:Floating; Protection Against Defibrillator

Input Impedance:≥50MΩ

Product Description

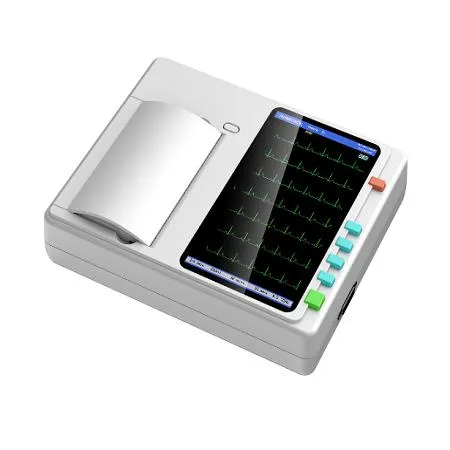

YJ-ECG601 6 channel Electrocardiograph

Key Features

✓

7 inch high resolution color touch screen

✓

12-lead simultaneous acquisition and display

✓

ECG Automatic measurement and interpretation function

✓

Complete digital filters, resisting baseline drift, AC and EMG interference

✓

Compact and lightweight design

✓

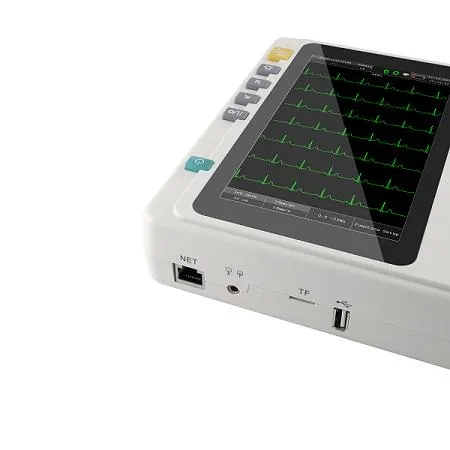

Support USB flash disk and micro SD card to extend memory

✓

Software upgrade via USB/SD card

✓

Built-in rechargeable Li-ion battery

Standard Configuration

• Main machine: 1 PC

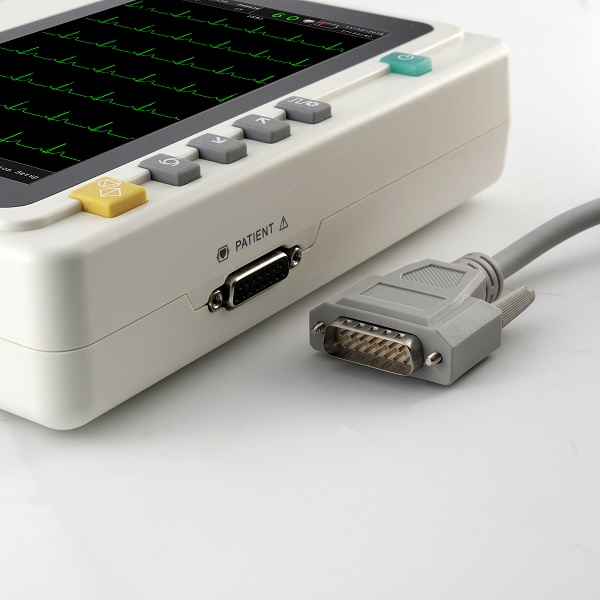

• Patient cable: 1 PC

• Limb electrode: 1 set (4pcs)

• Chest electrode: 1 set (6pcs)

• Power cable: 1 PC

• 80mm*20M recording paper: 1 PC

• Paper axis: 1 PC

Technical Specifications

Specification Details
Lead	Standard 12 leads
Acquisition Mode	Simultaneous 12 leads acquisition
Measurement Range	±5mVpp
Input circuit	Floating; Protection circuit against Defibrillator effect
Input Impedance	≥50MΩ
Record mode	Automatic: 3CH×4+1R, 3CH×4, 3CHx2+2CHx3, 6CHX2; Manual; Rhythm
Filter	EMG: 25-150Hz; DFT: 0.05-0.15Hz; AC: 50/60Hz
CMRR	>100dB
Frequency Response	0.05Hz~150Hz (-3dB)
Sensitivity	2.5, 5, 10, 20 mm/mV
Paper speed	12.5mm/s, 25mm/s, 50mm/s
Recording mode	Thermal printing system
Safety Standard	IEC I/CF
Power Supply	AC: 100~240V; DC: 14.8V/2200mAh Li-ion battery

Frequently Asked Questions

Q1: What kind of display does the YJ-ECG601 use? A: It features a 7-inch high-resolution color touch screen for easy operation and clear observation of waveforms.

Q2: Can the device acquire all 12 leads at once? A: Yes, it supports simultaneous 12-lead acquisition and display.

Q3: Is the ECG data interpretation automatic? A: Yes, the machine includes an automatic measurement and interpretation function to assist medical professionals.

Q4: How can I export or save ECG records? A: The device supports USB flash disks and micro SD cards for extending memory and transferring data.

Q5: What is the battery life and type? A: It is equipped with a built-in rechargeable 14.8V/2200mAh lithium-ion battery for portable use.

Q6: Does it have protection against defibrillation? A: Yes, the input circuit is floating and includes a protection circuit against defibrillator effects.
