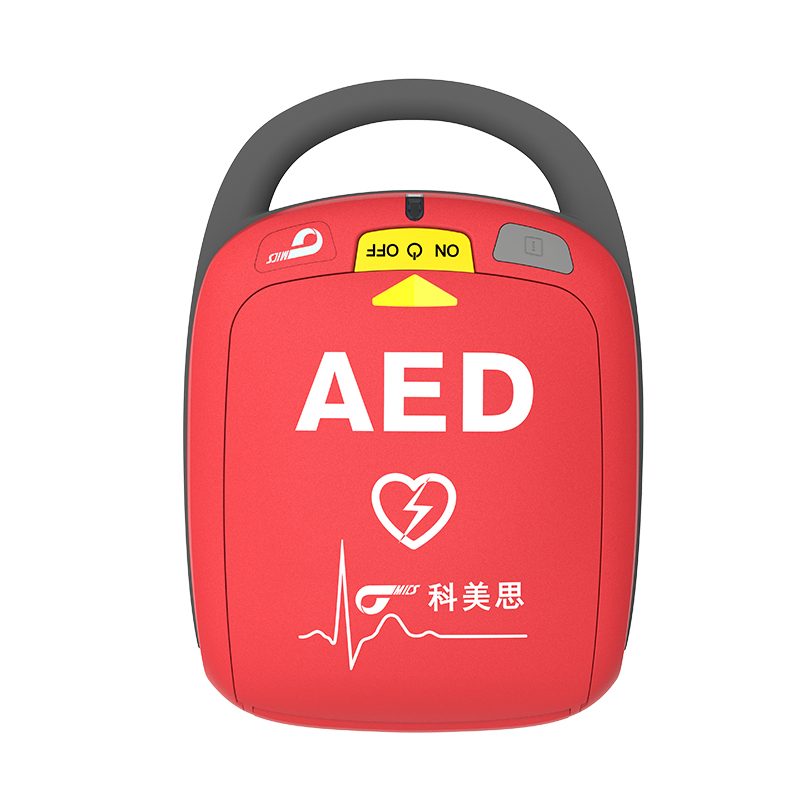

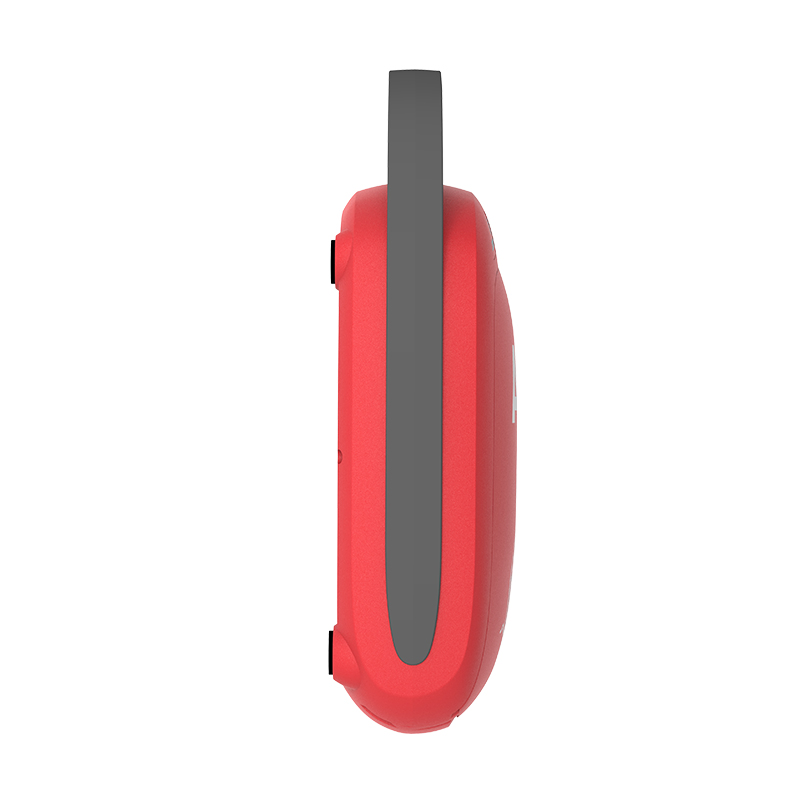

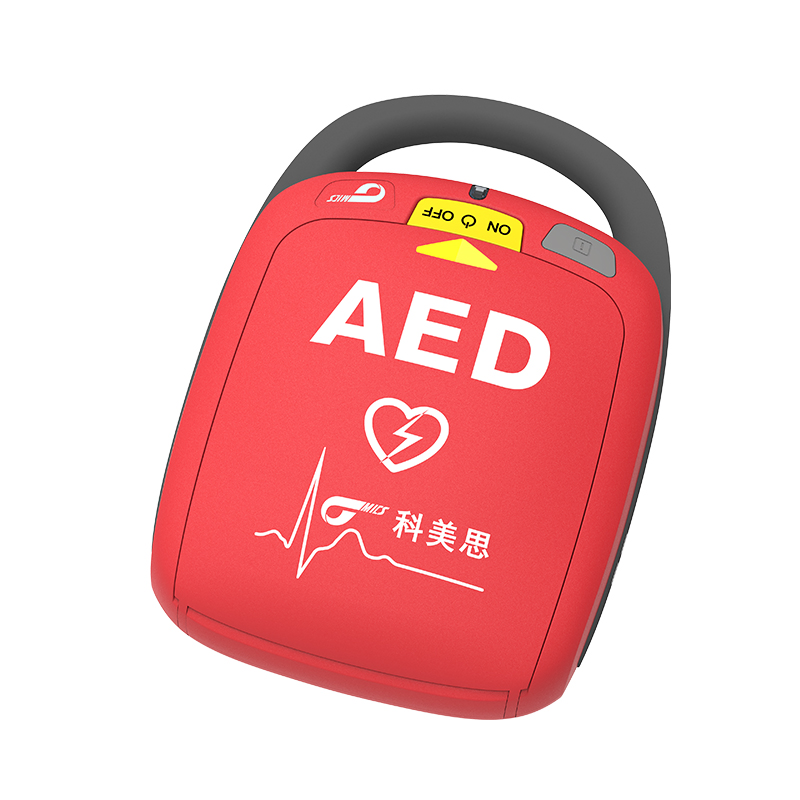

First Aid Automatic External Defibrillator (AED) with Preinstalled Pads, Low Energy Bte
First Aid Automatic External Defibrillator (AED) with Preinstalled Pads, Low Energy Bte
First Aid Automatic External Defibrillator (AED) with Preinstalled Pads, Low Energy Bte
First Aid Automatic External Defibrillator (AED) with Preinstalled Pads, Low Energy Bte
First Aid Automatic External Defibrillator (AED) with Preinstalled Pads, Low Energy Bte
1 / 5
First Aid Automatic External Defibrillator (AED) with Preinstalled Pads, Low Energy Bte
First Aid Automatic External Defibrillator (AED) with Preinstalled Pads, Low Energy Bte
First Aid Automatic External Defibrillator (AED) with Preinstalled Pads, Low Energy Bte
First Aid Automatic External Defibrillator (AED) with Preinstalled Pads, Low Energy Bte
First Aid Automatic External Defibrillator (AED) with Preinstalled Pads, Low Energy Bte

First Aid Automatic External Defibrillator (AED) with Preinstalled Pads, Low Energy Bte

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
Altai-DP1
Certification
CE, MSDS, ISO13485, Nmpa, FSC
Product Name
Automatic External Defibrillator (AED)
Battery Pack
Non Rechargeable Li-Mn (12 V, 6 Ah)
Shock Output
50 J (Child), 150 J (Adult)
Shock Frequency
up to 400 Times
ECG Analysis
8.5 Seconds
Net Weight
2.3 Kg
Data Storage
90 Minutes for ECG and Sounds
Specification
320*230*85 mm
Product Description

First Aid Automatic External Defibrillator (AED) with Preinstalled Pads, Low Energy BTE

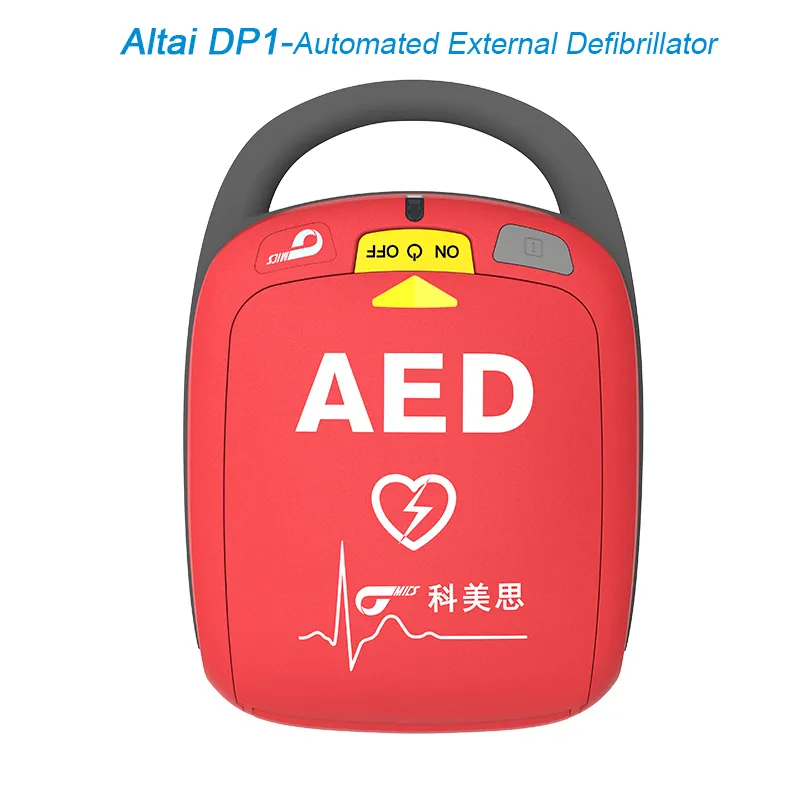

AED Product View
ECG Analysis 8.5 Seconds Battery Pack Non rechargeable Li-MnO2 battery, 12V, 6000 mAh, 4 year lifetime
Hi-Cap Charging 8 Seconds Shock Frequency Not less than 400 times
Shock output 50 J (child), 150 J (adult) Electrode Pads Disposable and adhesive, Adult/pediatric compatible, 6 year lifetime
Data Storage Complete process recording Voice Guide English/Chinese, Customized languages
Key Features
Smart TechnologyBiphasic Truncated Exponential with low energy to minimize myocardial injury.
High CapacitySupports up to 400 shocks with a non-rechargeable Li-MnO2 battery.
Data RecordingAutomatic recording of ECG data and ambient sounds throughout operation.
Universal PadsPreinstalled electrode pads compatible with both adult and child patients.
Easy OperationOne-step operating: cover opens and powers on simultaneously.
Self-DiagnosisDaily self-test and automatic self-test upon power on for reliability.
Advantages of Low Energy BTE
Waveform AdjustmentAutomatic compensation of waveform based on load impedance.
High EfficiencyShorter time in ECG analysis and shock preparation with simultaneous precharging.
Patient SafetyHigher success rate in defibrillating with minimum injury to myocardium.
Fast ResponseBetter for rehabilitation and faster in emergency response.
Product Gallery

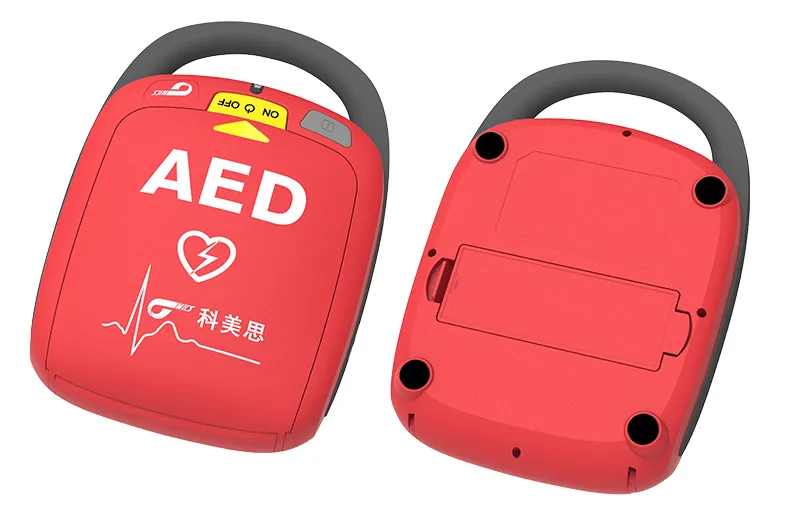

AED Usage

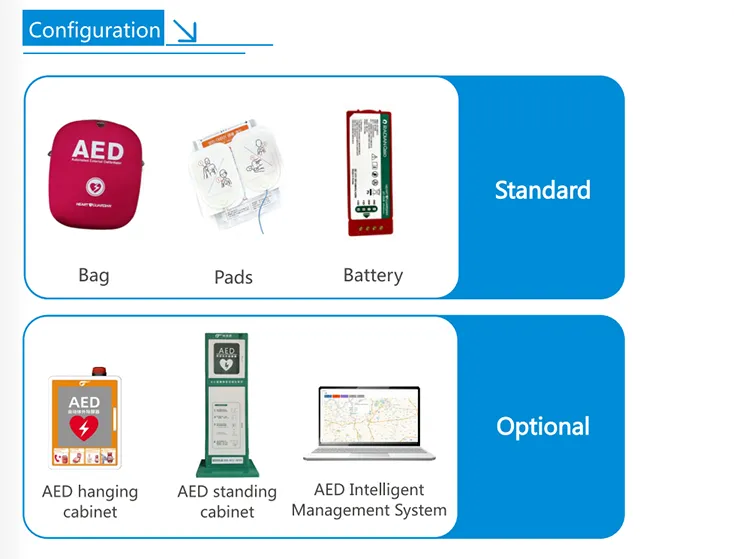

AED Detail
Manufacturing Overview

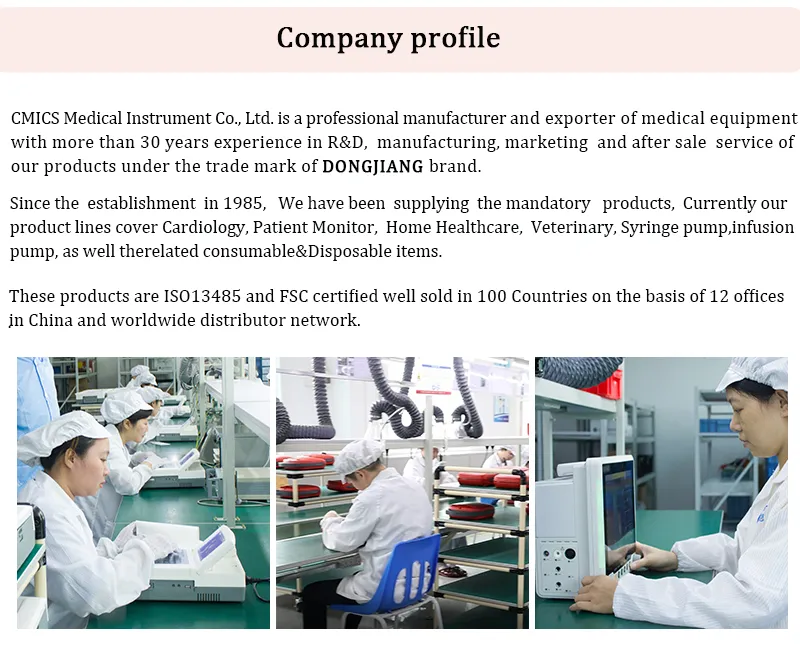

Production 1
Production 2
Production 3

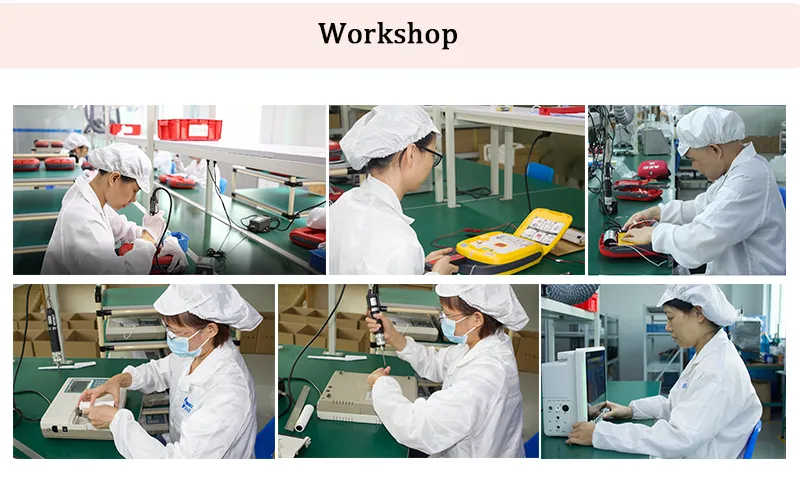

Production 4
Production 5
Production 6
Frequently Asked Questions
How long does the battery last on the Altai-DP1?
The non-rechargeable Li-MnO2 battery has a 4-year lifetime and can support up to 400 shocks.
Are the electrode pads suitable for children?
Yes, the preinstalled electrode pads are compatible with both adults and children, with adjustable shock outputs (150J for adults and 50J for children).
How quickly can the device analyze a heart rhythm?
The ECG analysis takes approximately 8.5 seconds, and the high-capacity charging takes only 8 seconds.
Does it record data during an emergency?
Yes, the device automatically records up to 90 minutes of ECG data and ambient sounds throughout the entire operation.
What certifications does this AED hold?
The Altai-DP1 is certified with CE, MSDS, ISO13485, Nmpa, and FSC.
What languages are supported for the voice guide?
The standard voice guide supports English and Chinese, but other languages can be customized as needed.
