Product Description

Basic Information

Model NO.
Altai DP1
Certification
CE, MSDS, ISO13485, FSC, Cfda
Group
All
Shock Output
50 J (Child), 150 J (Adult)
Electrode Pads
Adult/Child Compatible, Preinstalled
Battery Pack
Non Rechargeable Li-Mn of 12V, 6 Ah
Data Storage
90 Minutes Each for ECG and Sounds
Transport Package
Carton
Specification
320*230*85 mm
HS Code
9018199000

Product Description

Altai DP1: Automatic External Defibrillator (AED)
Featuring Automatic Recording, High Capacity Battery, and Universal Adult/Pediatric Pads.

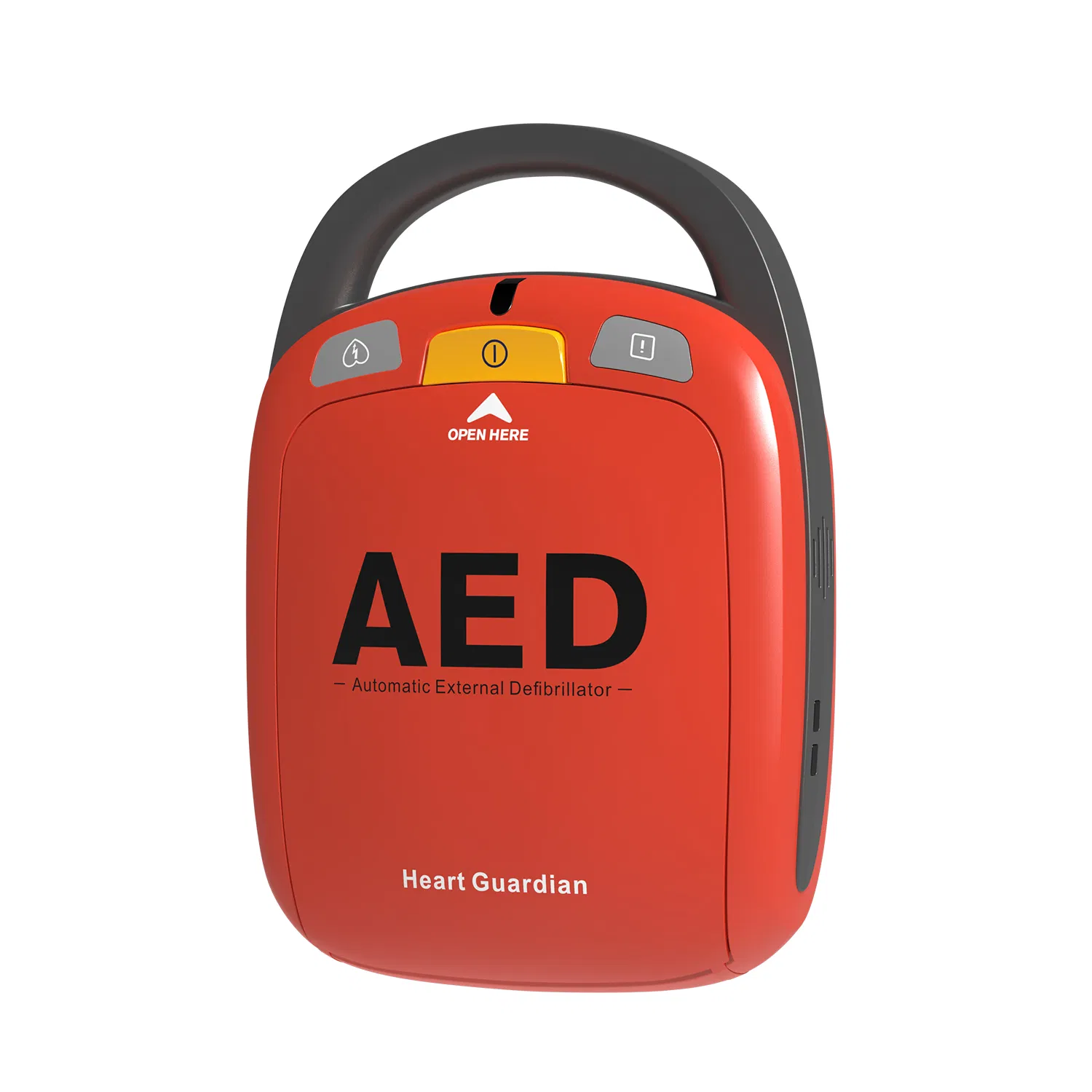

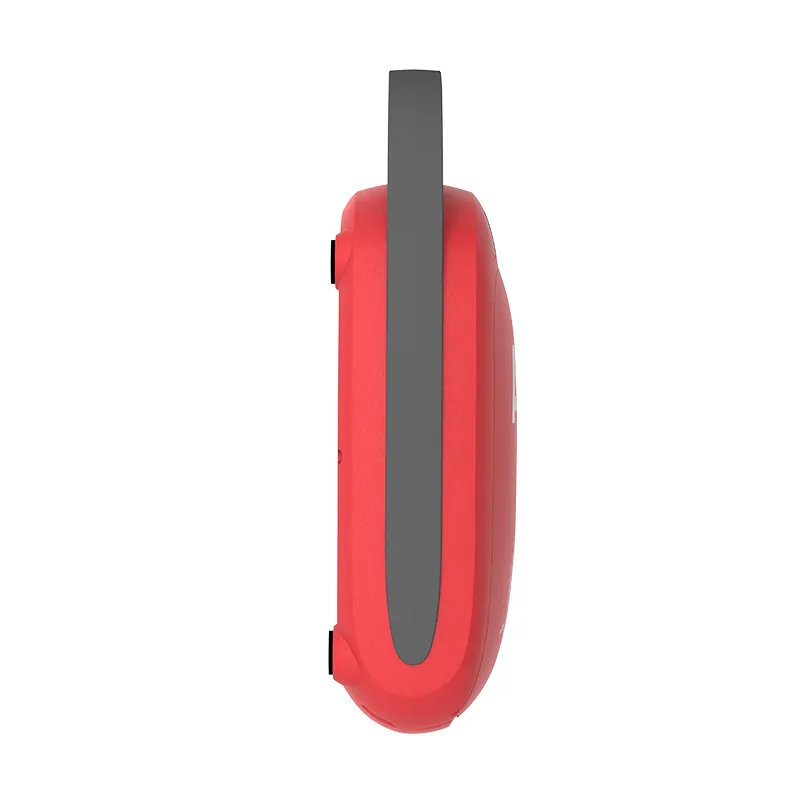

Altai DP1 AED

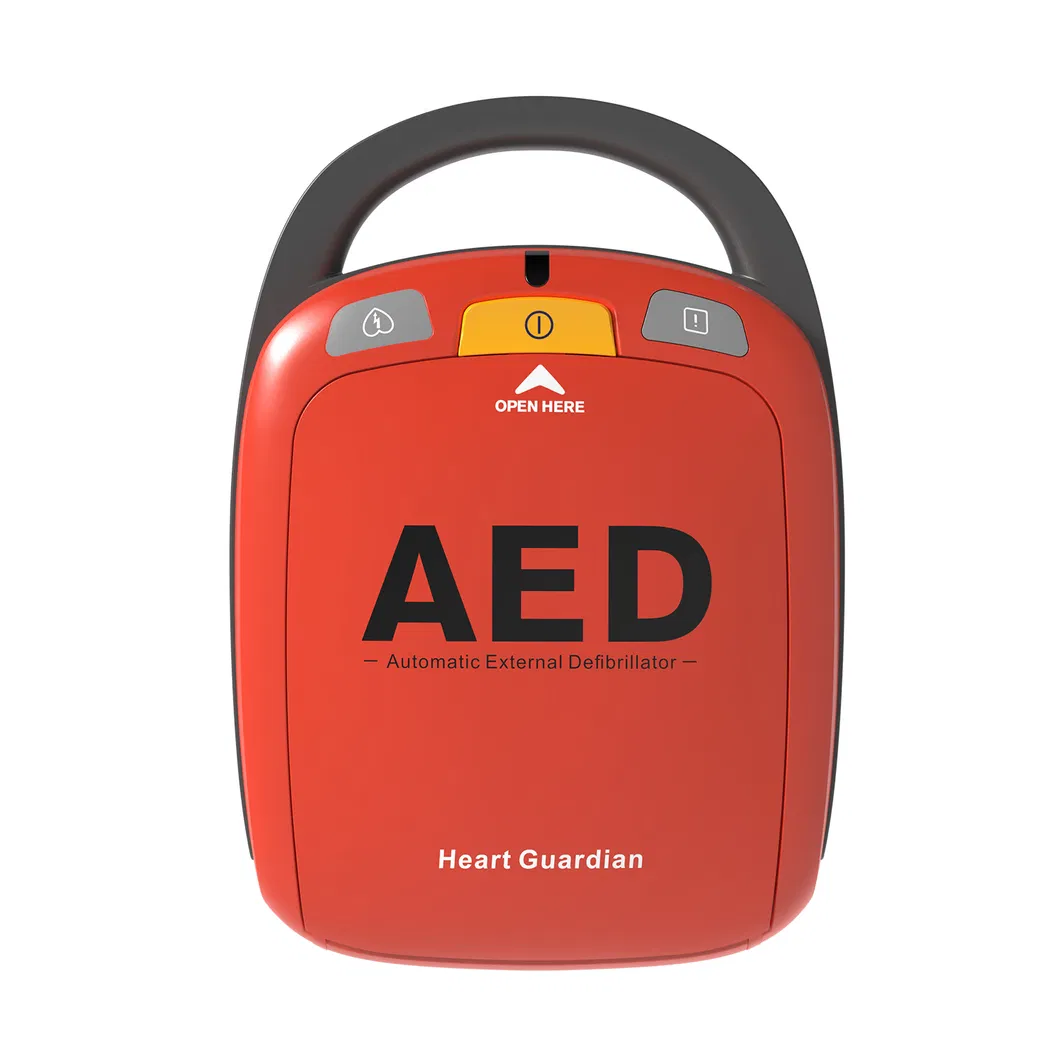

AED Device View

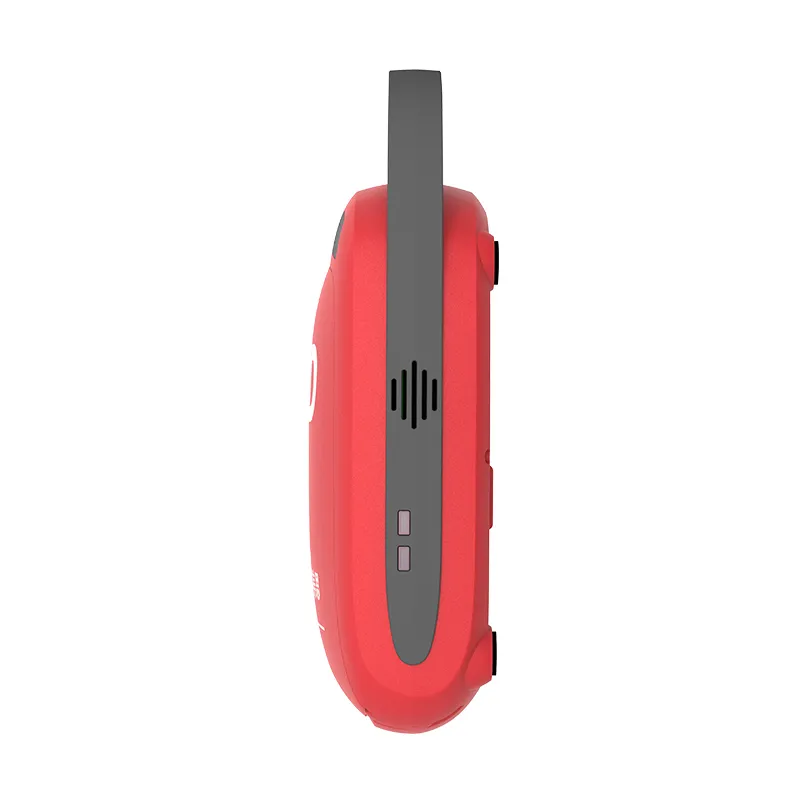

AED Portable Case
Key Features
  • Biphasic Truncated Exponential with low energy to minimize myocardial injury

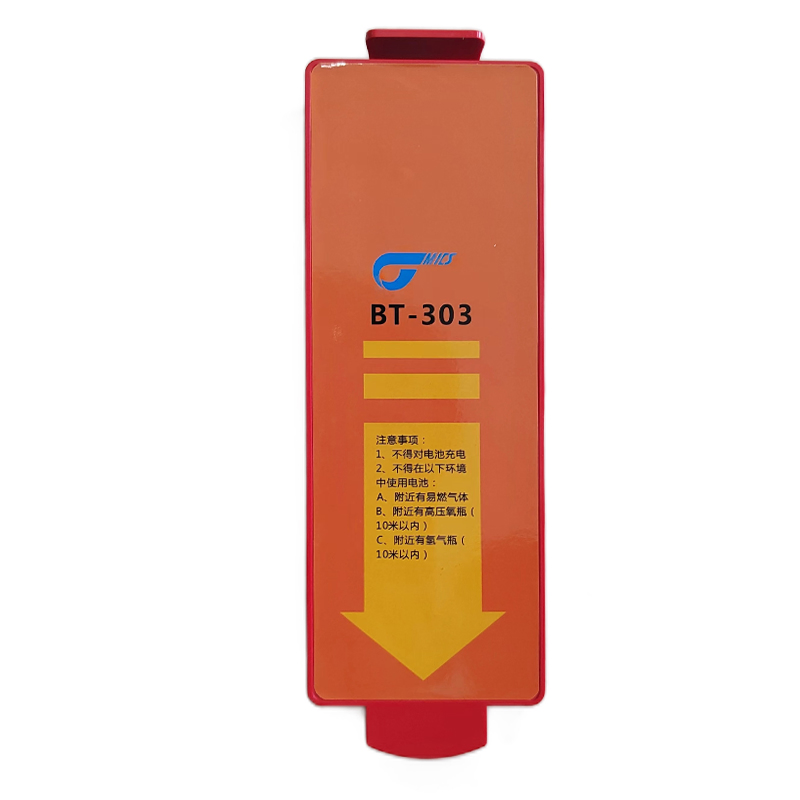

  • Non-rechargeable Li-MnO2 battery with high capacity supporting up to 400 shocks
  • Automatic recording of ECG data & ambient sounds throughout operation

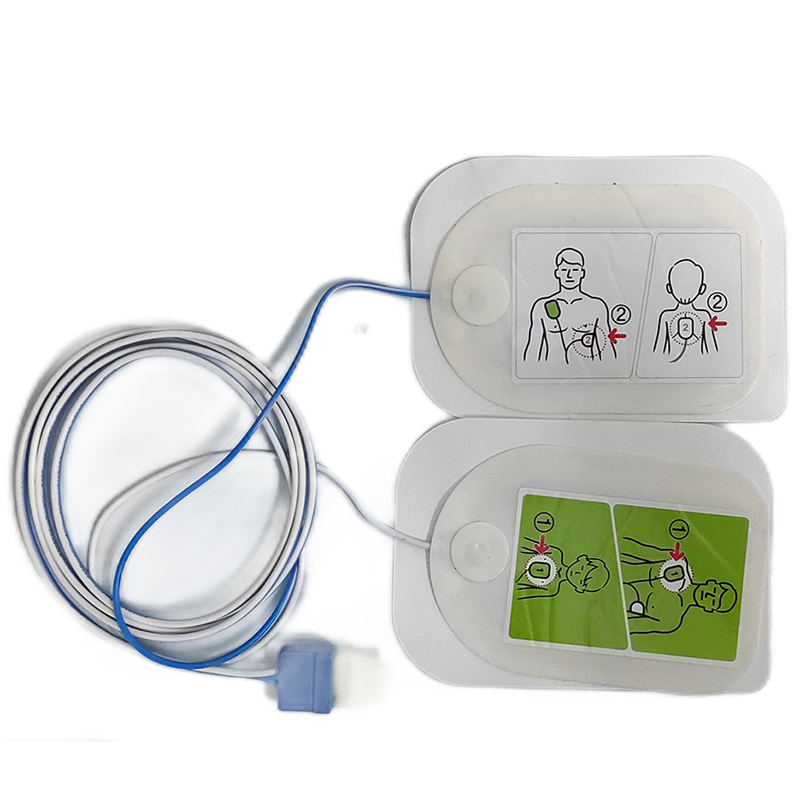

  • Preinstalled electrode pads compatible with both adults and children
  • One-step operation: covers open and powers on simultaneously
  • Daily self-test and automatic self-test upon power on
  • Available with dedicated adult and child modes
  • Automatic voice guidance throughout the complete operation
  • Automatic indication of unit status and low battery alarm
  • Optional PC software for data retrieval and download

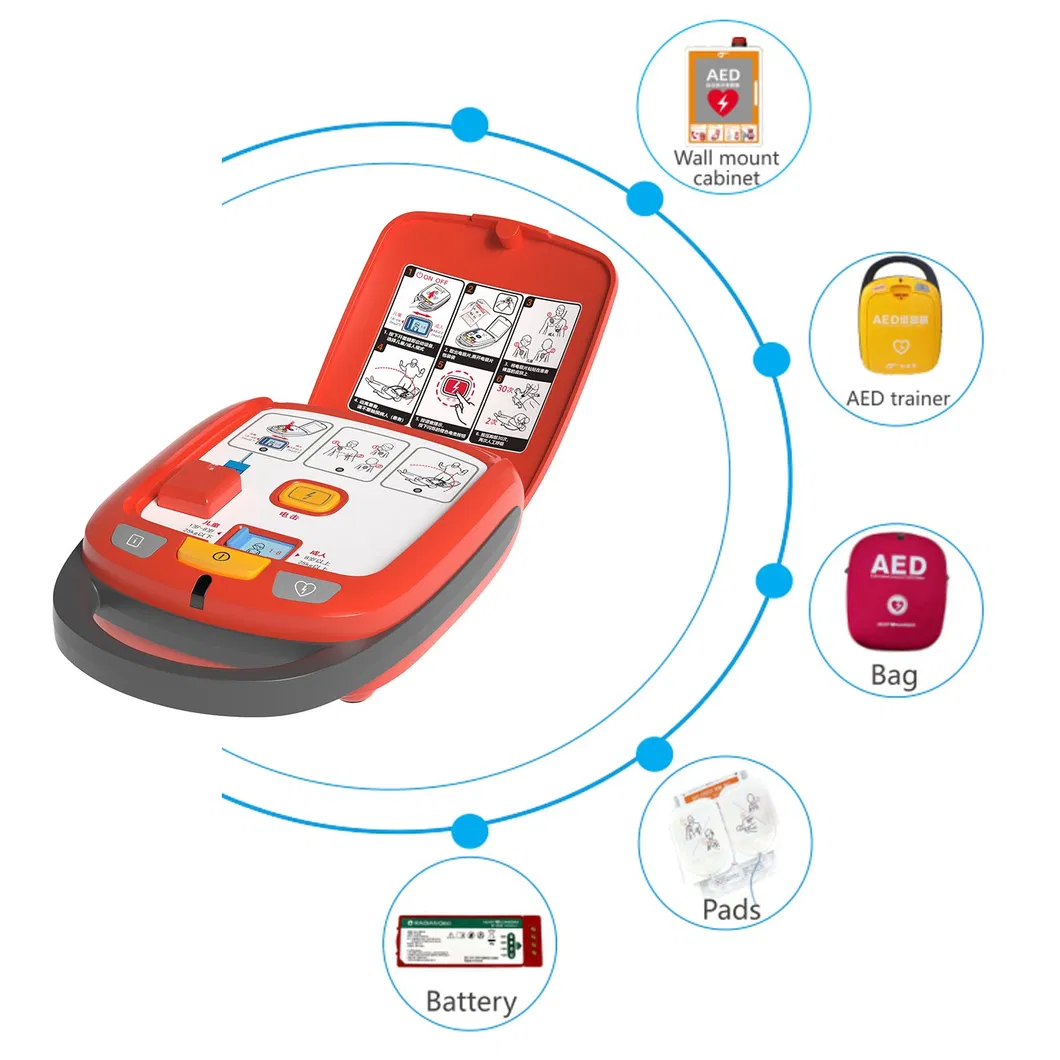

AED Usage

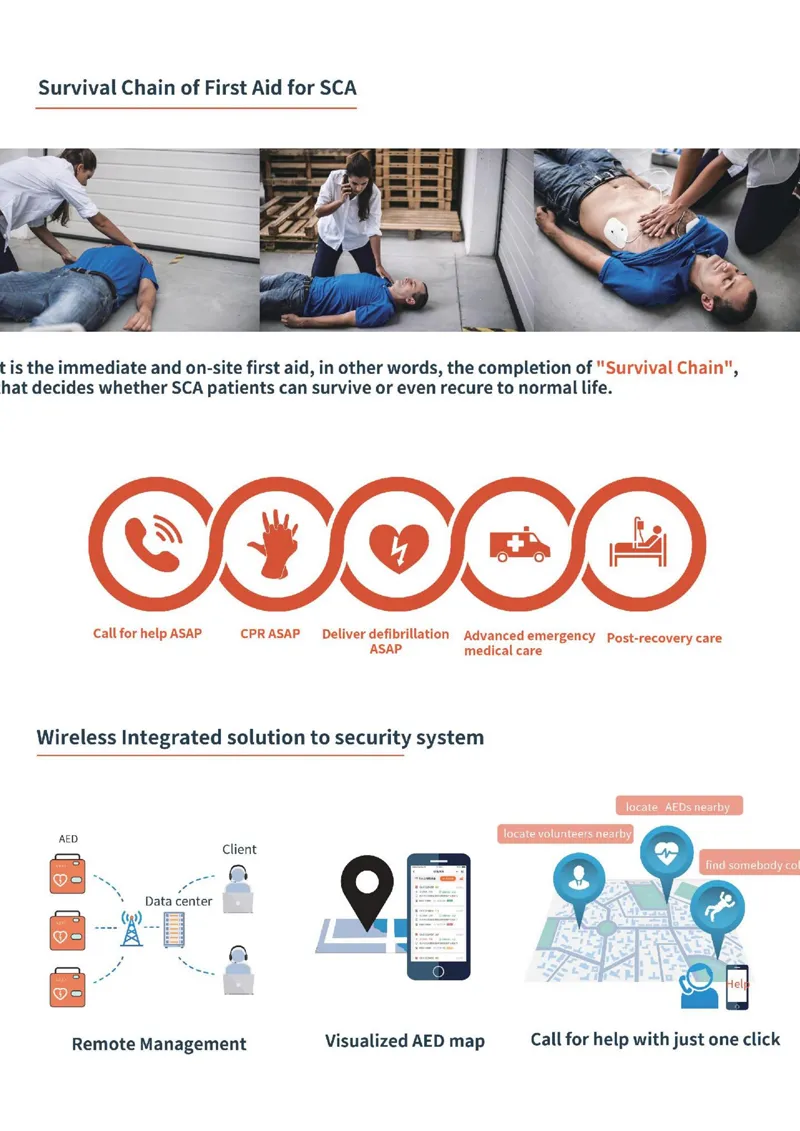

AED Internal Components

Product Parameters

ECG Analysis 8.5 Second Battery Pack Non-rechargeable Li-MnO2 battery, 12V, 6000 mAh, 4 year lifetime
Hi-Cap Charging 8 Second Shock Frequency Not less than 400 times
Shock Output 50 J (child), 150 J (adult) Electrode Pads Disposable and adhesive, Adult/pediatric compatible, Preinstalled, 6 year lifetime
Data Storage 90 mins each for ECG/Sounds Standard Configuration 1x main unit, 1x battery pack, 1x electrode pads, 1x carry case
Data Communication Bluetooth Optional Config AED trainer, First aid kit, PC software, Wall mount cabinet
Voice Guide English/Chinese (Customizable) Weight 2.3 Kg
AED Details

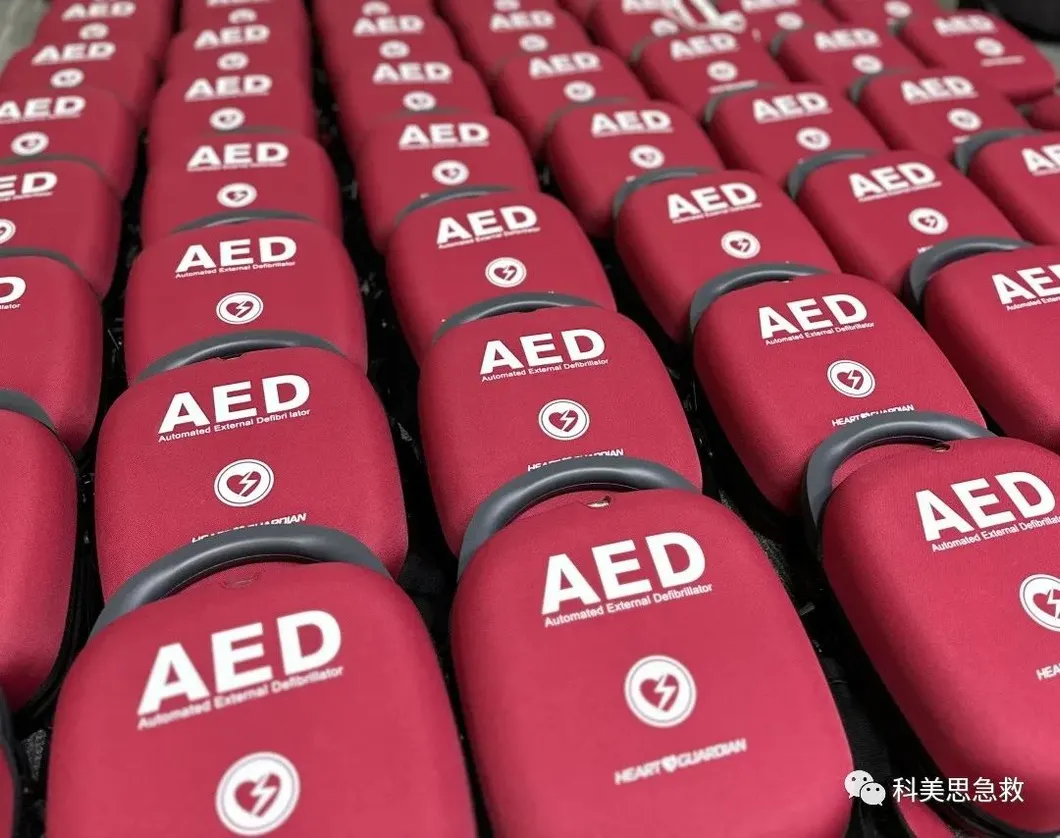

AED Accessories

Professional Environment

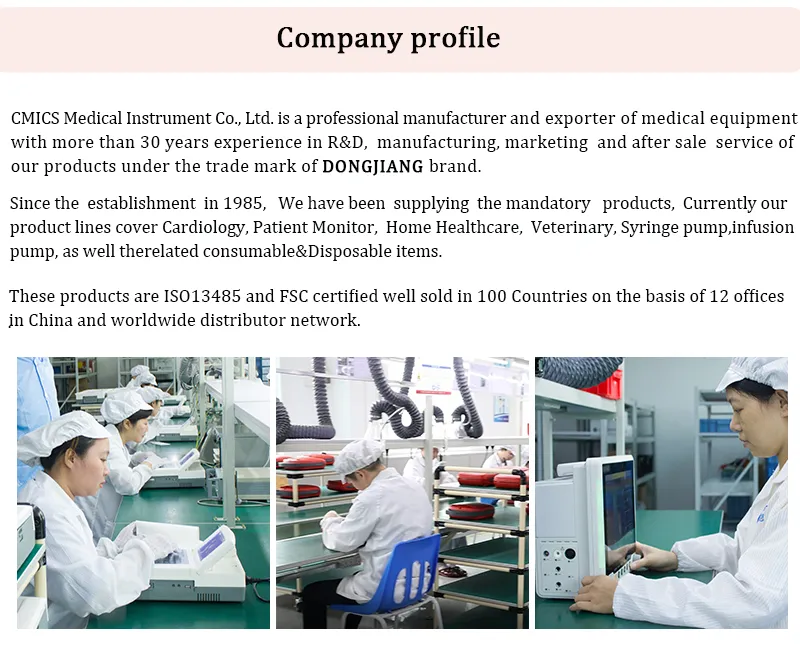

Facility 1

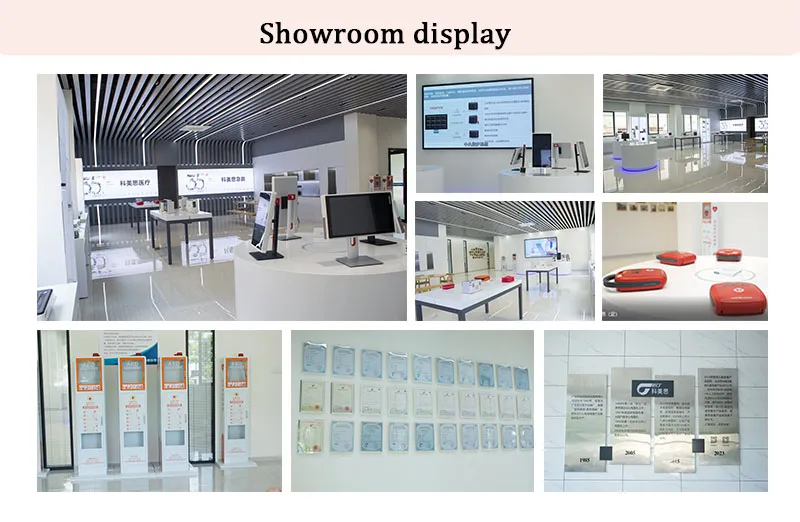

Facility 2
Facility 3
Facility 4
Facility 5
Facility 6

Frequently Asked Questions

What is the battery life and capacity of the Altai DP1?
The device uses a non-rechargeable 12V 6000 mAh Li-MnO2 battery with a 4-year lifetime, capable of delivering at least 400 shocks.
Are the electrode pads separate for adults and children?
No, the Altai DP1 comes with preinstalled electrode pads that are compatible with both adult and pediatric patients, simplifying emergency response.
Does the AED record data during an emergency?
Yes, the device automatically records up to 90 minutes of ECG data and ambient sounds during operation, which can be retrieved via Bluetooth or PC software.
How does the device assist the user during operation?
The Altai DP1 provides automatic voice guidance in English or Chinese (with other languages available) and features a one-step power-on system when the cover is opened.
What kind of maintenance does the Altai DP1 require?
The device performs daily self-tests and automatic self-tests every time it is powered on. It also features a low battery alarm to notify the user when a replacement is needed.
What are the shock energy levels for different patients?
The Altai DP1 is designed to deliver a 50 Joule shock for children and a 150 Joule shock for adults using Biphasic Truncated Exponential technology.
