Product Description

Basic Information
Model NO.
Altai DP1
Certification
CE, MSDS, ISO13485, FSC, Cfda
Product Name
Automated External Defibrillator (AED)
ECG Analysis
8.5 Second
Shock Output
150j (Adult), 50j (Pediatric)
Data Storage
40 Minute
Battery Pack
Non Rechargeable Li-Mn Battery (12V, 4.2ah)
Shock Frequency
Not Less Than 200 Times
Net Weight
1.9 Kg
Voice Guide
Customized Languages
Specification
320*230*85 mm
Product Description

Altai DP1: First Aid Automatic External Defibrillator (AED) with Low Energy BTE

The Altai DP1 is a professional-grade automated external defibrillator designed for rapid response during cardiac emergencies, supporting both adult and pediatric patients with advanced Biphasic Truncated Exponential (BTE) technology.

Technical Parameters
Feature Specifications
ECG Analysis8.5 Second
Hi - Cap Charging8 Second
Shock Output150J (Adult), 50J (Pediatric)
Data Storage40 Minute (built-in memory)
Data Transfer ProtocolBluetooth
Battery PackNon-rechargeable Li-Mn battery of 12 V, 4.2 Ah
Electrode PadsDisposable and adhesive, adult/pediatric compatible
Standard Configuration1x Main unit, 1x Battery pack, 1x Electrode pads (2 pcs), 1x Carry case
Key Features
✓Biphasic Truncated Exponential (BTE) with low energy to minimize myocardial injury.
✓High capacity Li-MnO2 battery supporting up to 400 shocks.
✓Automatic recording of ECG data and ambient sounds during operation.
✓One-step operating: cover open and power on simultaneously.
✓Daily self-test and automatic self-test upon power on.
✓Automatic voice guide throughout the complete operation.
Advantages of Low Energy BTE
★Automatic compensation and adjustment of waveform as per load impedance.
★Shorter time in ECG analysis and shock preparation.
★Simultaneous ECG analysis and precharging for faster response.
★Higher success rate in defibrillating with minimum injury to myocardium.
Product Showcase

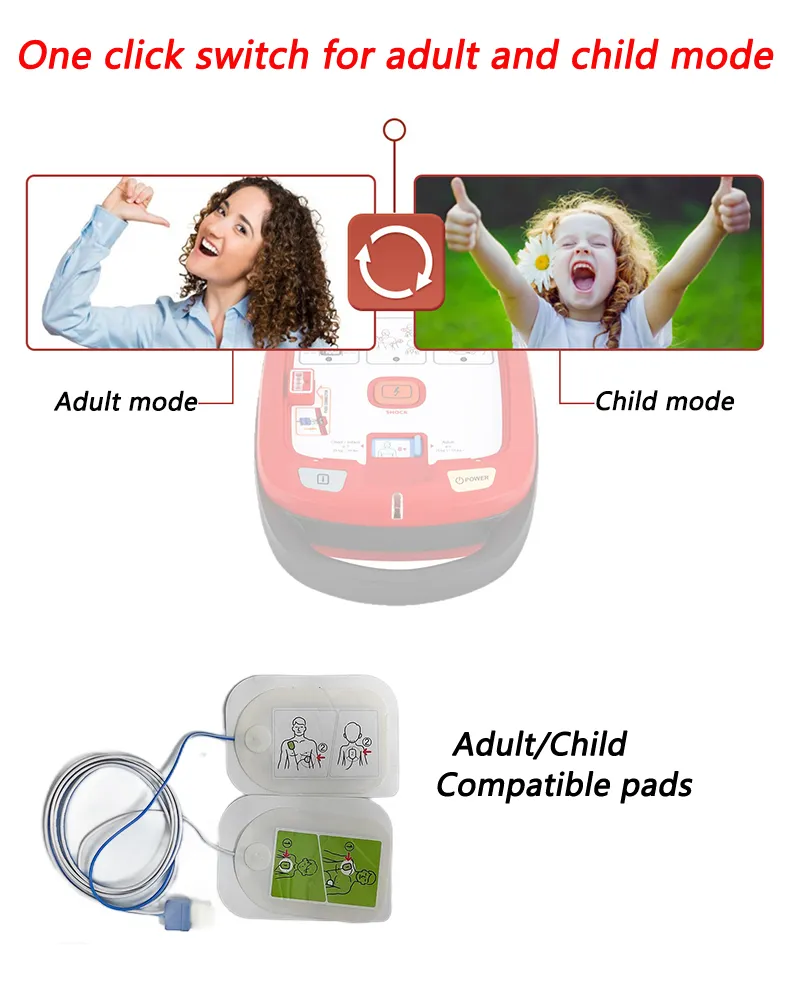

AED Product View 1

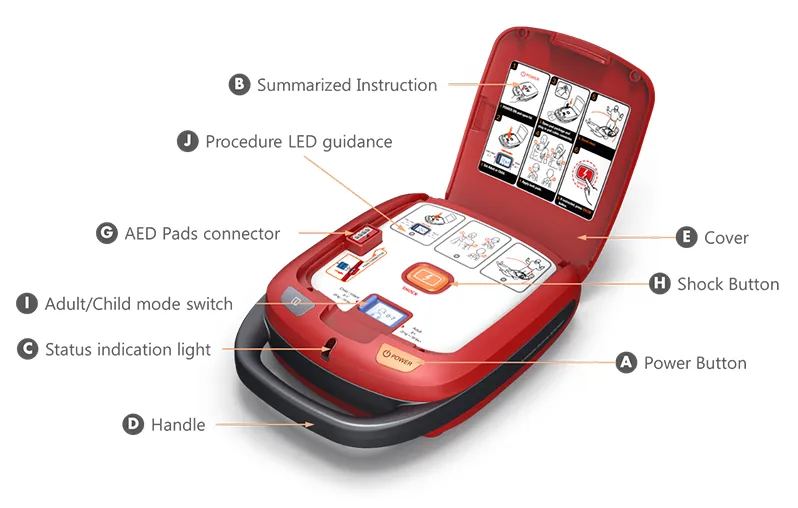

AED Product View 2

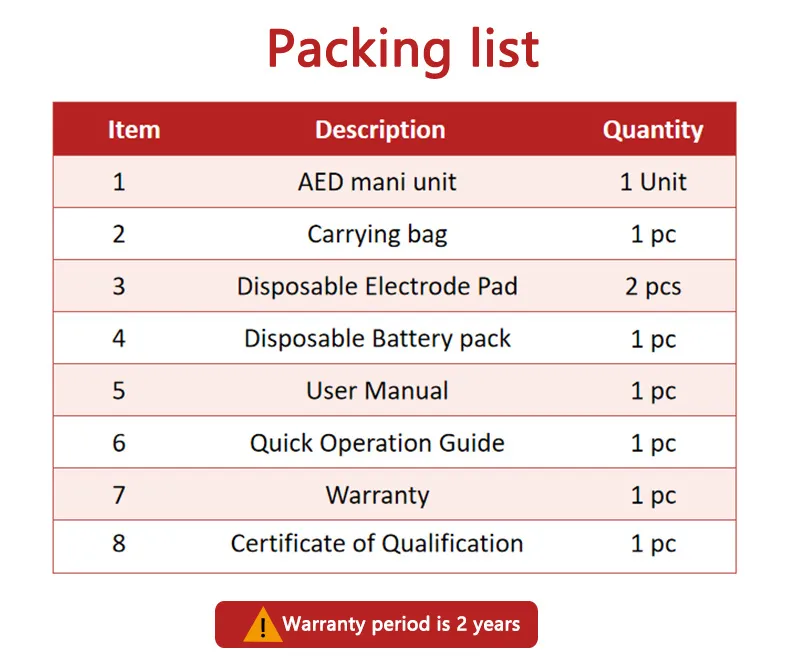

AED Product View 3
AED Production 1

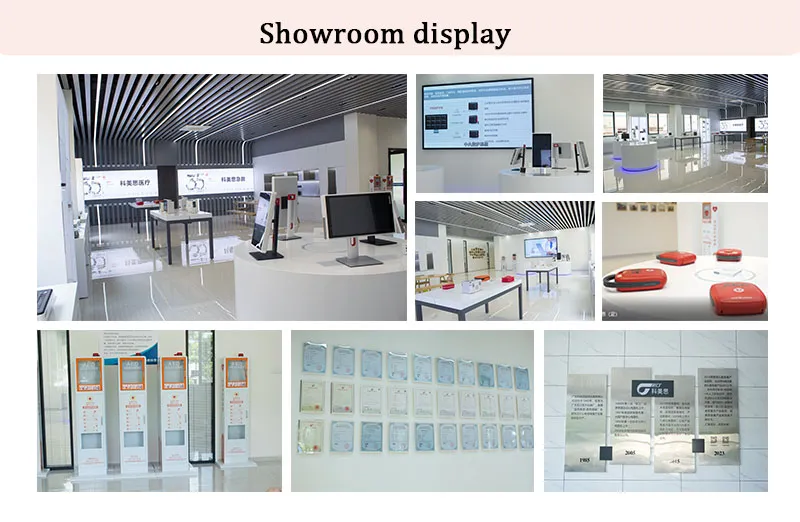

AED Production 2

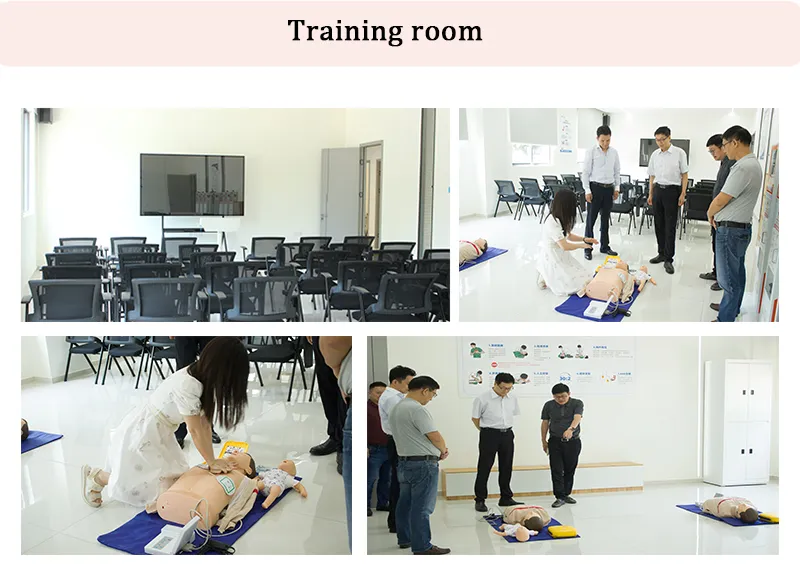

AED Production 3

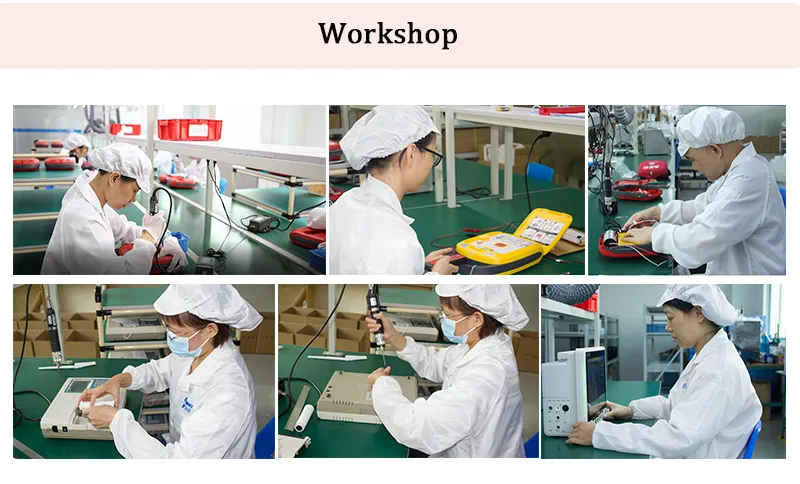

AED Production 4
AED Production 5
AED Production 6
Frequently Asked Questions
1. What is the shock energy level for different patients?
The Altai DP1 provides a shock output of 150J for adult mode and 50J for pediatric mode, ensuring appropriate energy levels for all ages.
2. How long does the ECG analysis take?
The device features a rapid ECG analysis time of just 8.5 seconds, allowing for quicker decision-making during emergencies.
3. What type of battery does the Altai DP1 use?
It uses a high-capacity, non-rechargeable Li-Mn battery (12V, 4.2Ah) that can support more than 200 shocks (up to 400 in some conditions).
4. Can the AED record event data?
Yes, it has built-in memory that can store up to 40 minutes of ECG data and ambient sounds throughout the operation.
5. Is the device easy for untrained users to operate?
Yes, it features a one-step operation (power on when cover is opened) and a full automatic voice guide to assist the user through every step.
6. Does the unit perform self-maintenance?
The Altai DP1 performs daily automatic self-tests and an additional self-test every time it is powered on to ensure it is always ready for use.
