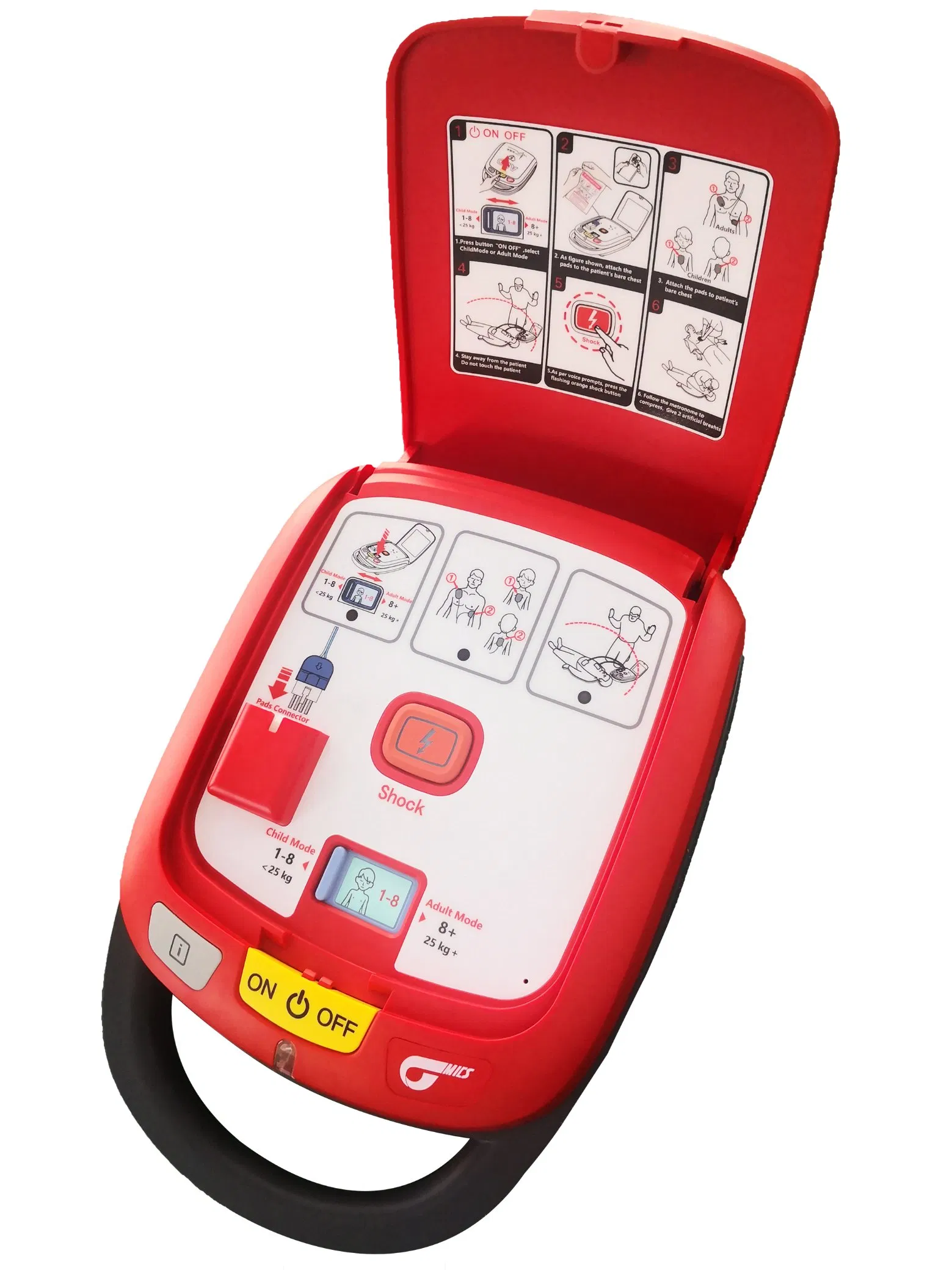

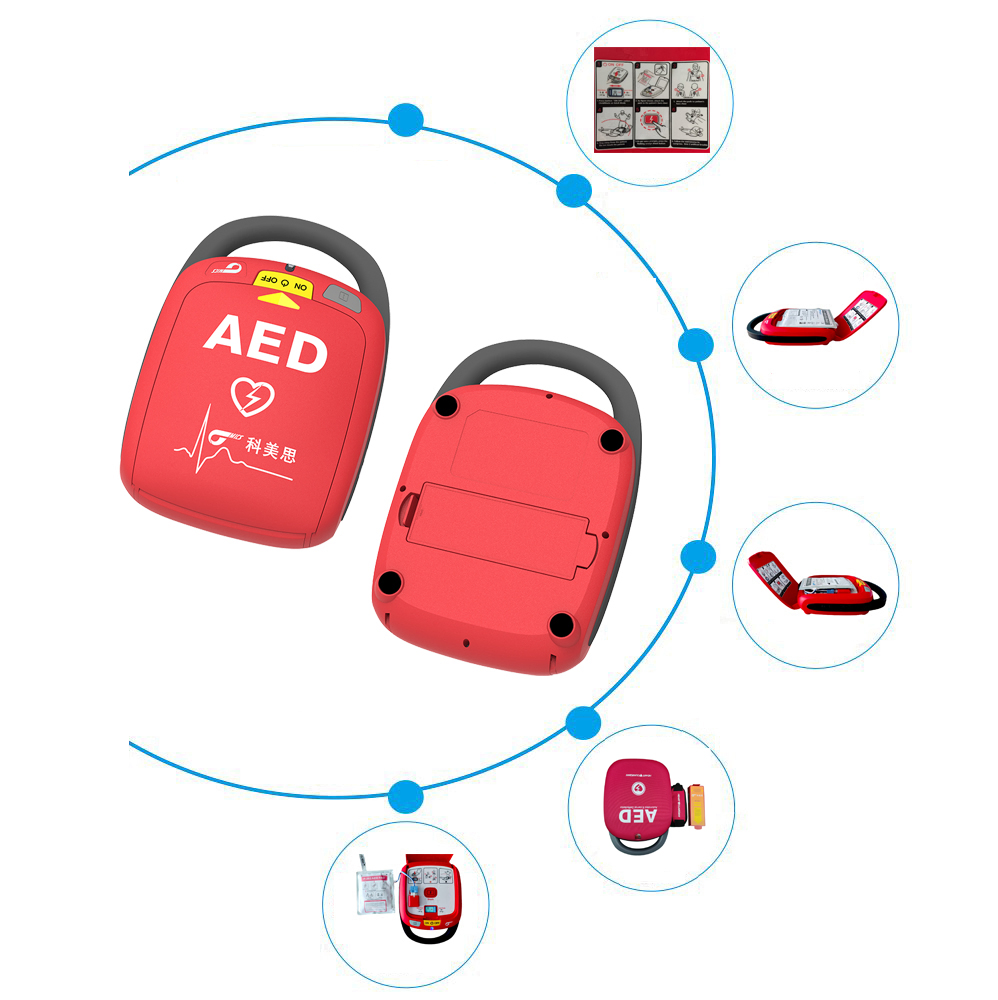

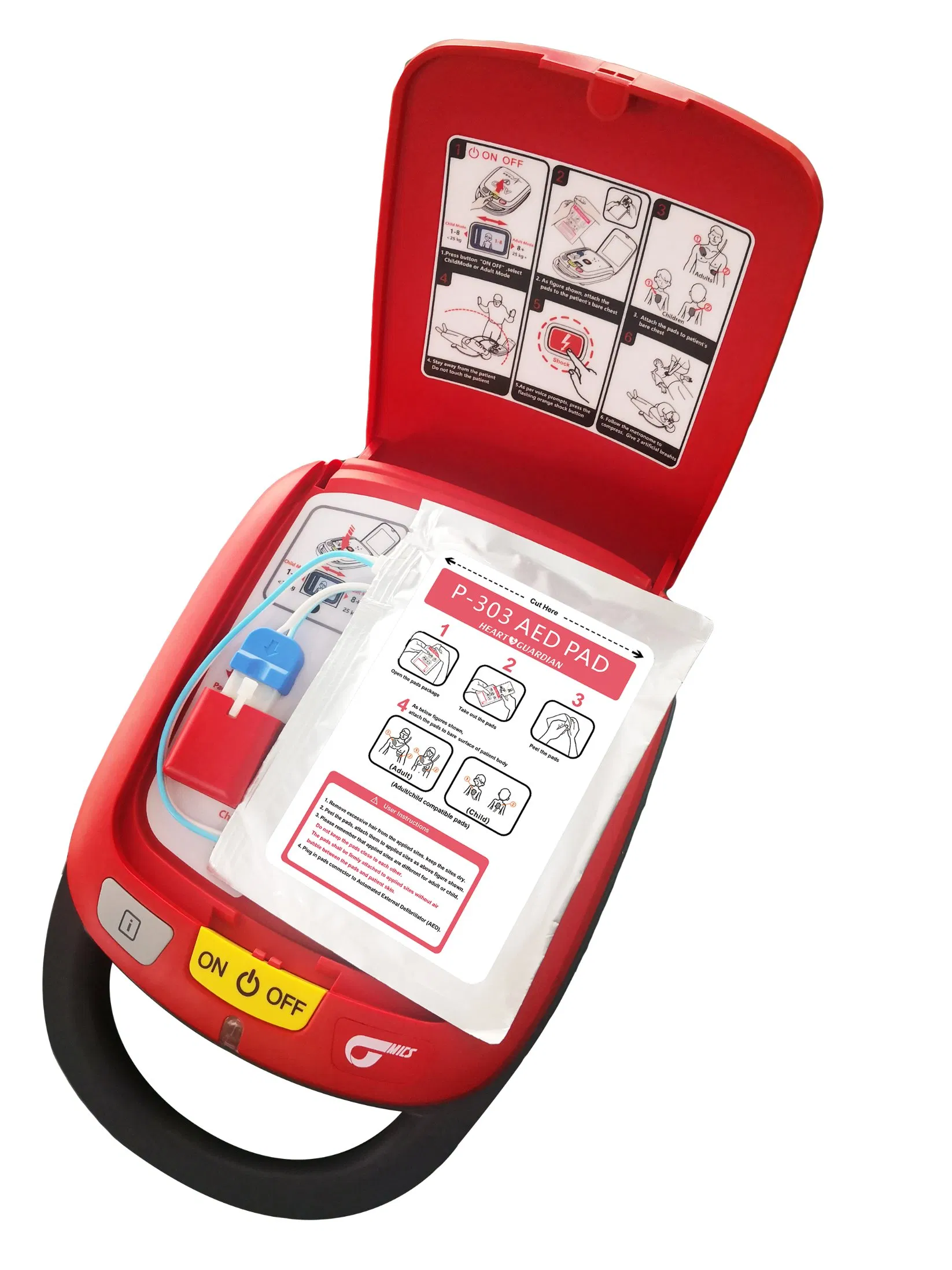

Cmics Aed Automatic External Defibrillator Portable Cardiac Defibrillator
Cmics Aed Automatic External Defibrillator Portable Cardiac Defibrillator
Cmics Aed Automatic External Defibrillator Portable Cardiac Defibrillator
Cmics Aed Automatic External Defibrillator Portable Cardiac Defibrillator
Cmics Aed Automatic External Defibrillator Portable Cardiac Defibrillator
1 / 5
Cmics Aed Automatic External Defibrillator Portable Cardiac Defibrillator
Cmics Aed Automatic External Defibrillator Portable Cardiac Defibrillator
Cmics Aed Automatic External Defibrillator Portable Cardiac Defibrillator
Cmics Aed Automatic External Defibrillator Portable Cardiac Defibrillator
Cmics Aed Automatic External Defibrillator Portable Cardiac Defibrillator

Cmics Aed Automatic External Defibrillator Portable Cardiac Defibrillator

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📊

Basic Information

Model
Altai DP1
Certification
CE, MSDS, ISO13485, FSC
Voice Guide
Customized Languages
Electrode Pads
Adult/Pediatric Compatible
Battery Pack
Non Rechargeable Li-Mn 12V, 6 Ah
Shock Output
50J (Child), 150J (Adult)
Shock Frequency
Not Less Than 200 Times
ECG Analysis
8.5 Seconds
Data Storage
90 Minutes ECG and Sounds
Dimensions
320*230*85 mm
🩺

Product Features

Altai DP1: AED Defibrillator with Low Energy BTE

  • Biphasic Truncated Exponential (BTE) technology to minimize myocardial injury.
  • High capacity Li-MnO2 battery supporting up to 400 shocks.
  • Automatic recording of ECG data and ambient sounds during operation.
  • Preinstalled electrode pads compatible with both adults and children.
  • One-step operation: power on automatically when the cover is opened.
  • Comprehensive daily self-test and automatic power-on self-test.
  • Real-time voice guidance throughout the entire rescue process.
  • Low battery capacity alarm for timely replacement.

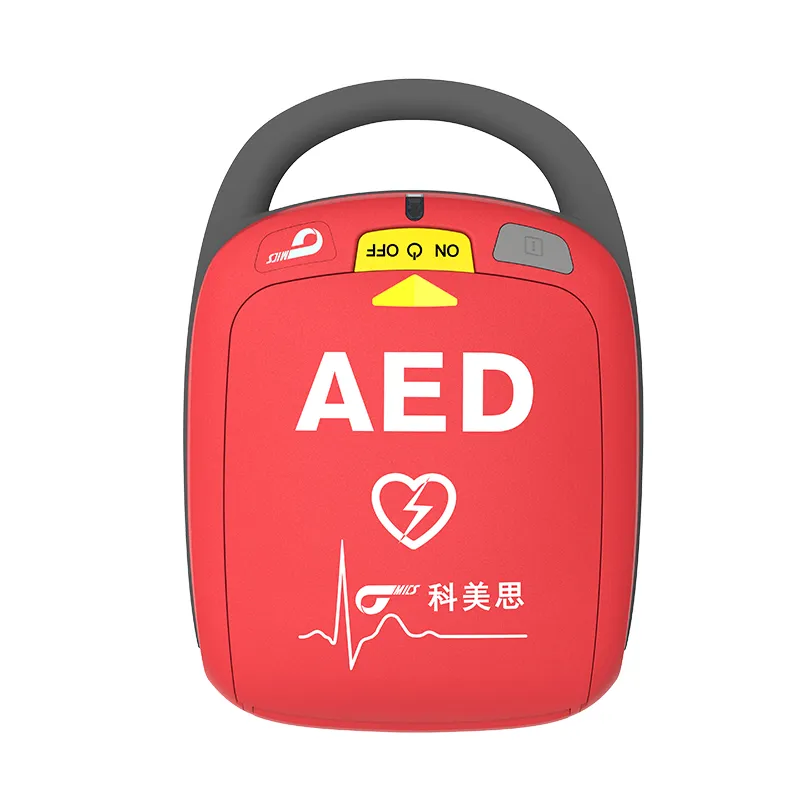

AED Device View 1

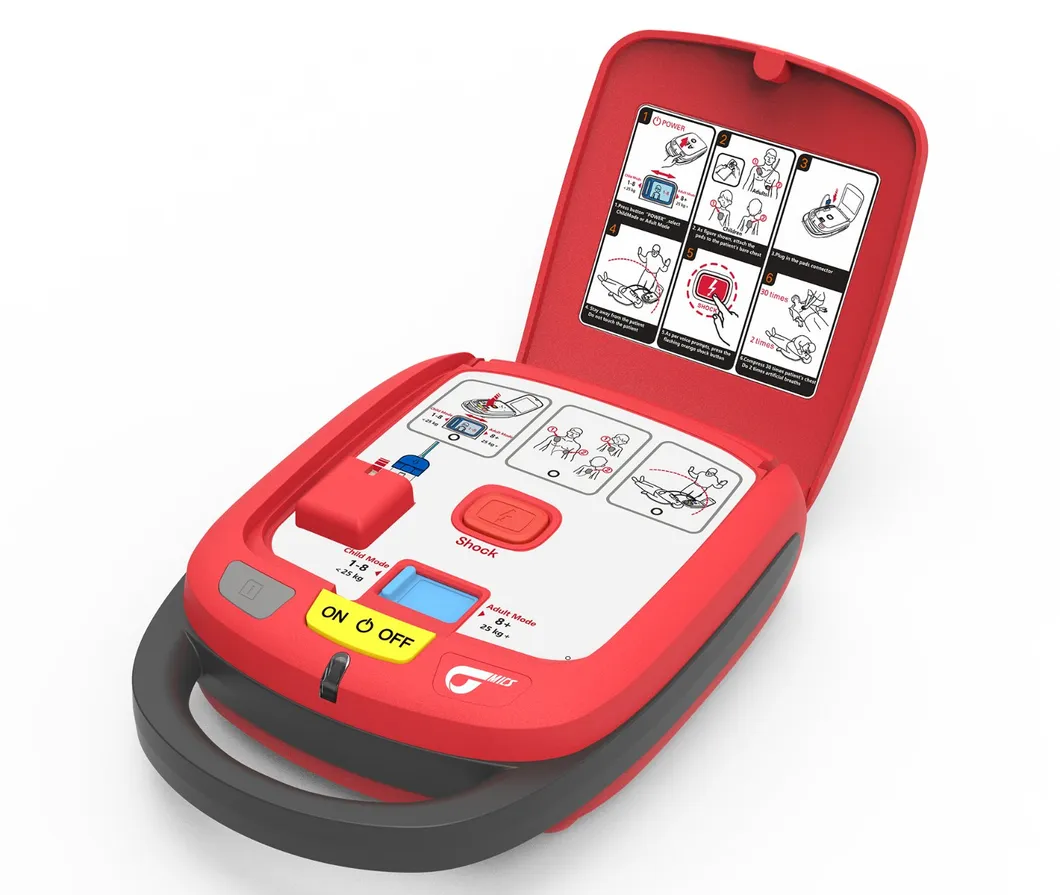

AED Device View 2

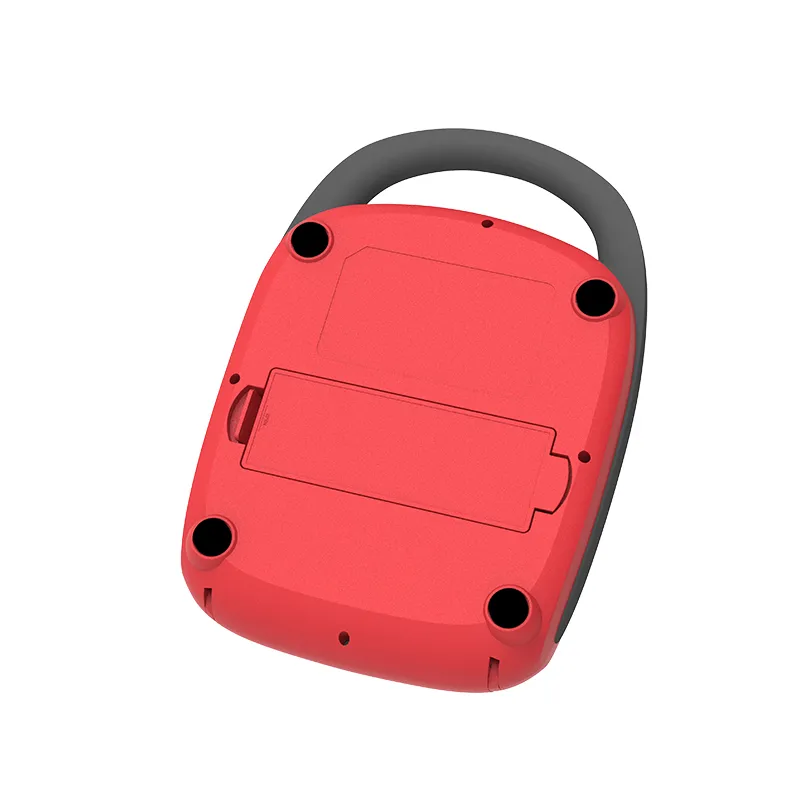

AED Device View 3
⚙️

Technical Parameters

ECG Analysis8.5 Seconds Battery PackNon-rechargeable Li-Mn, 12V, 6000 mAh, 4-year lifetime
Hi-Cap Charging8 Seconds Shock FrequencyNot less than 400 times
Shock Output50 ~ 150 J Electrode PadsDisposable, Adhesive, Preinstalled

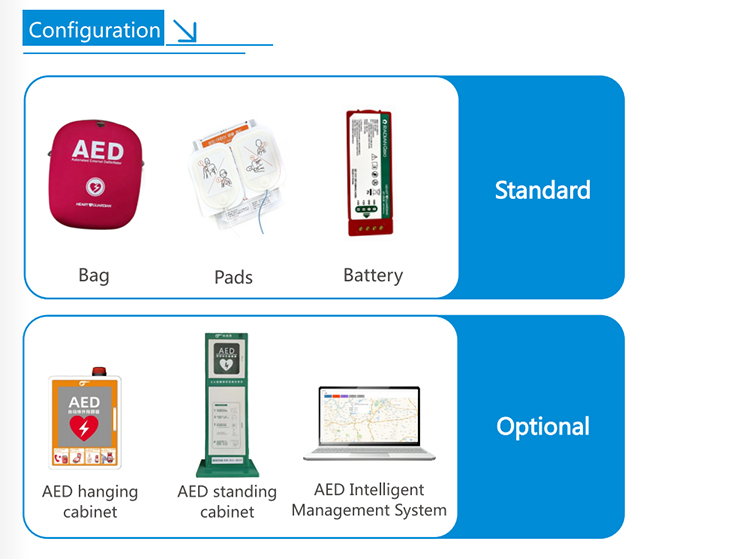

Data Storage90 mins ECG & Sounds Standard KitMain unit, Battery, Pads, Carry case
ConnectivityBluetooth, 4G, GPS Warranty2 Years

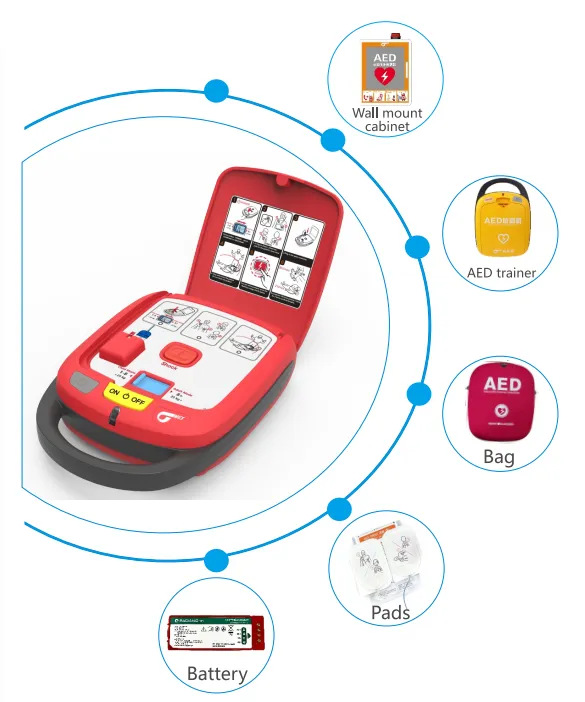

AED Operation
AED Design Detail
🚀

Advantages of Low Energy BTE

  • Automatic waveform adjustment based on load impedance.
  • Simultaneous ECG analysis and precharging for faster response.
  • Higher success rate in defibrillation with minimum injury to myocardium.
  • Enhanced rehabilitation potential for patients.

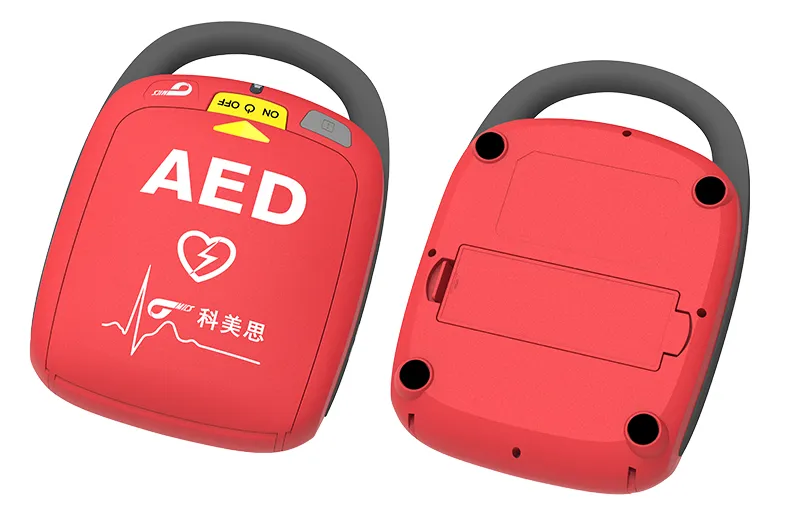

Waveform Advantage
🛡️

Quality Certifications

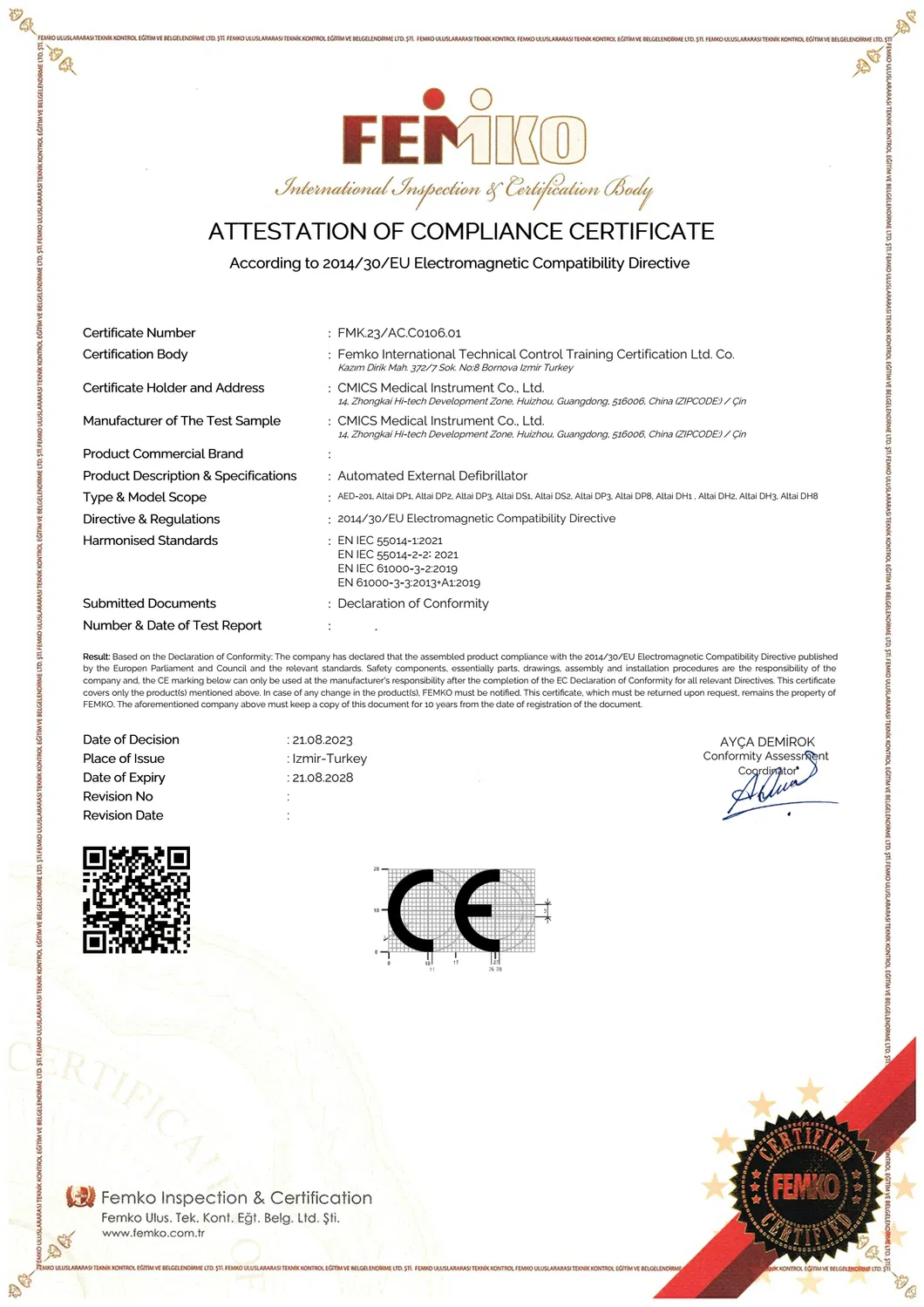

Cert 1

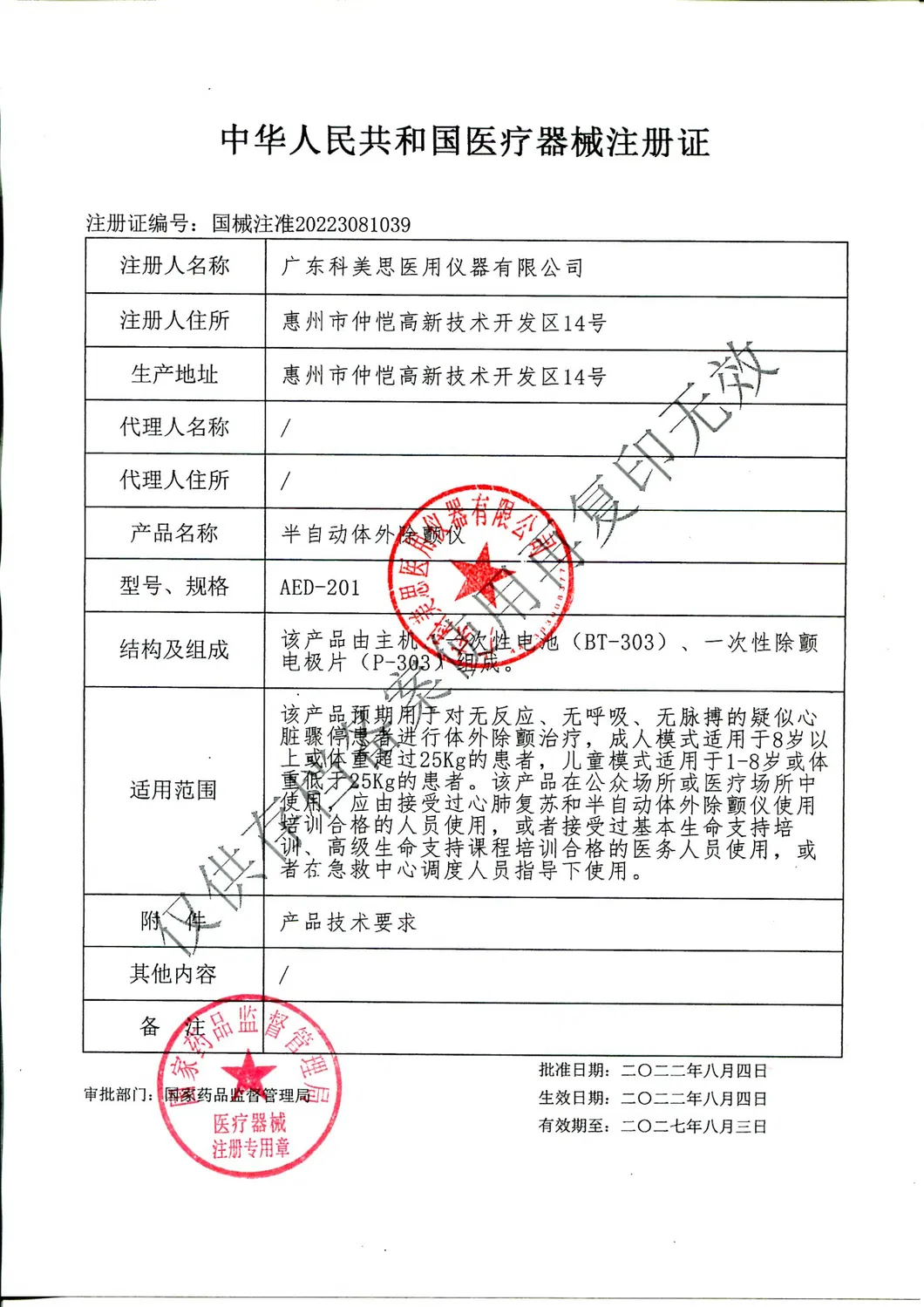

Cert 2

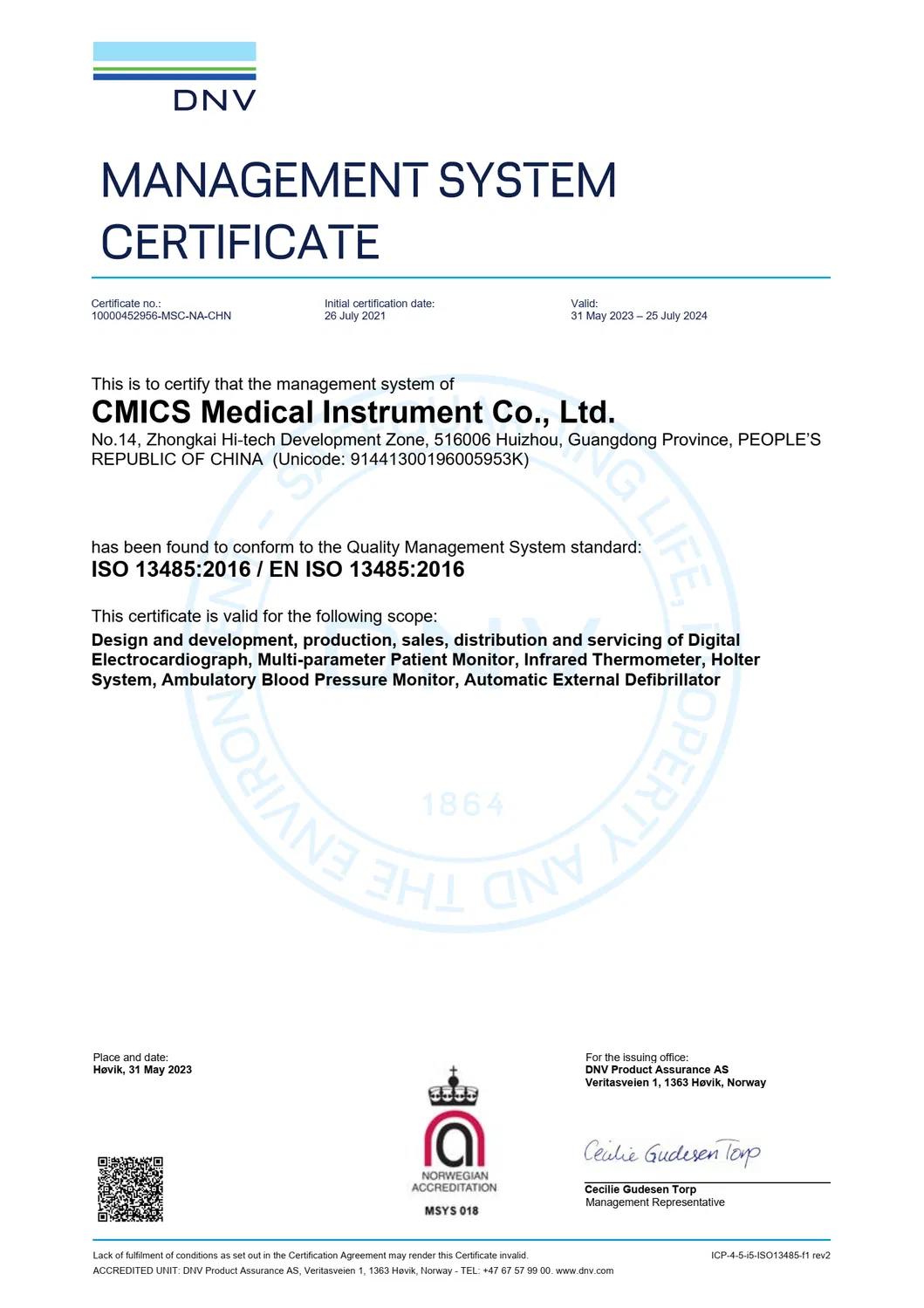

Cert 3
🏭

Manufacturing Facility

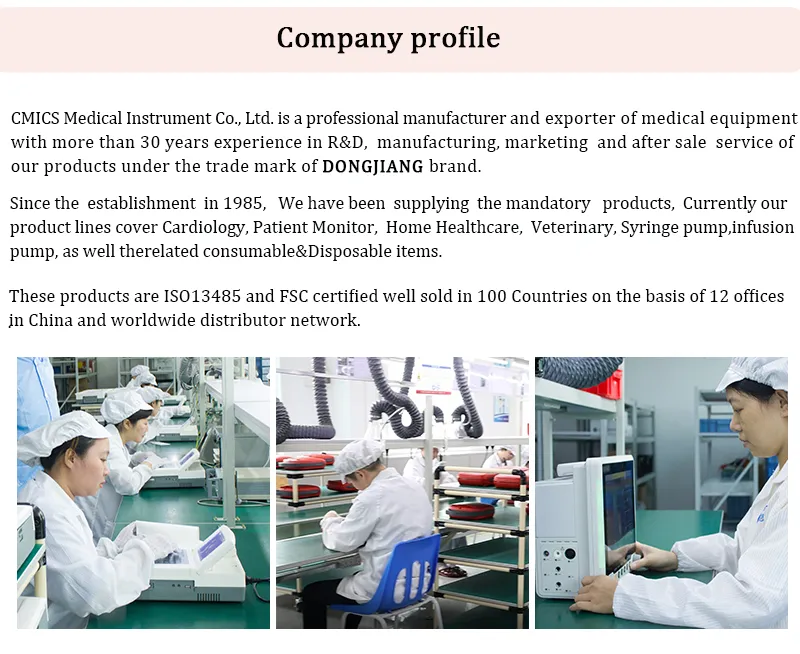

Factory 1

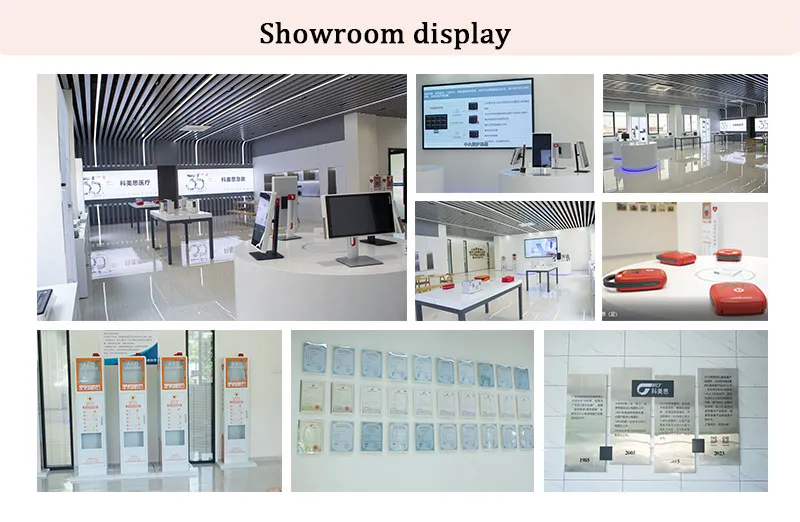

Factory 2
Factory 3

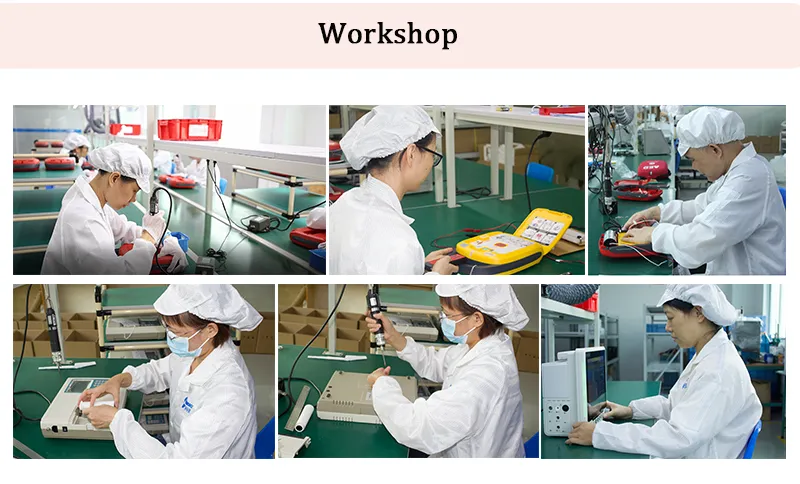

Factory 4
Factory 5
Factory 6
Frequently Asked Questions
How many shocks can the battery support?
The non-rechargeable Li-Mn battery has a high capacity that supports not less than 400 shocks and has a 4-year standby lifetime.
Are the electrode pads suitable for children?
Yes, the Altai DP1 comes with preinstalled electrode pads that are compatible with both adult and pediatric patients.
How long does the device take to analyze ECG?
The device performs ECG analysis in approximately 8.5 seconds and can charge for a shock in about 8 seconds.
Does the device store rescue data?
Yes, the device automatically records and stores up to 90 minutes of ECG data and ambient sounds for post-event review.
What maintenance does the AED require?
The AED features a daily self-test and an automatic self-test upon power-on. It also includes an automatic indication of unit status and a low battery alarm.
What certifications does the Altai DP1 hold?
The device is fully certified with ISO13485, CE, and FSC, ensuring it meets international medical safety standards.
