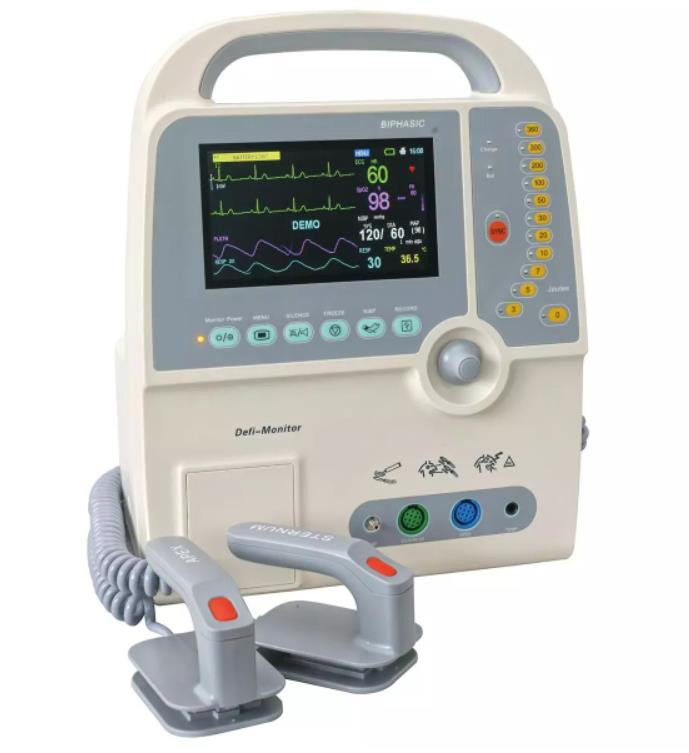

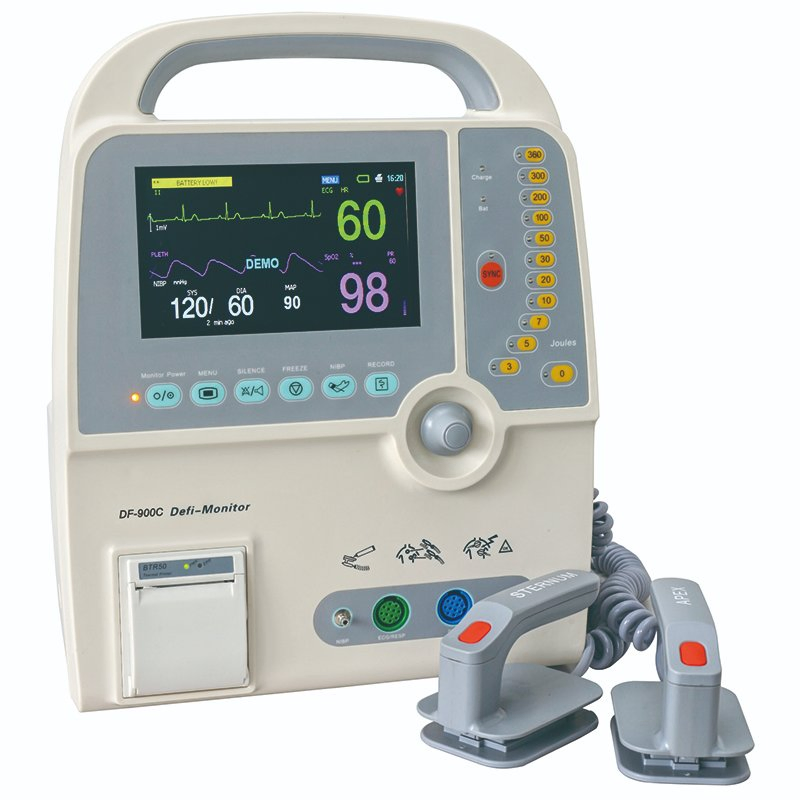

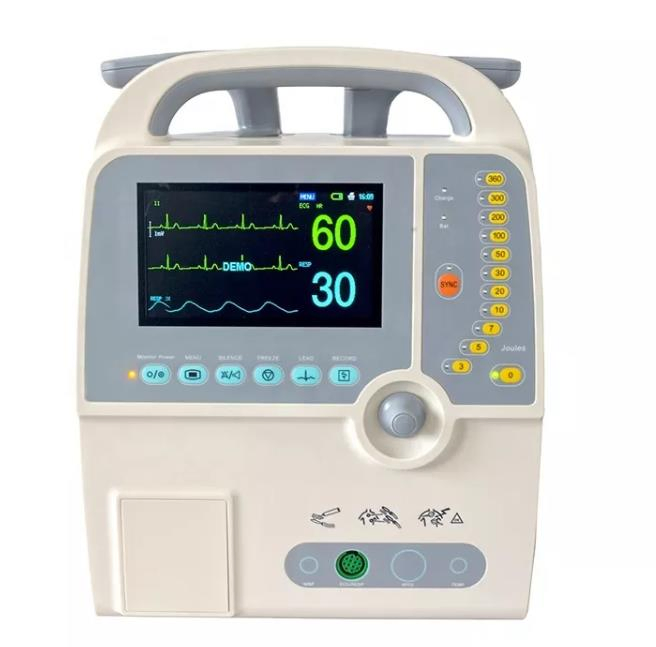

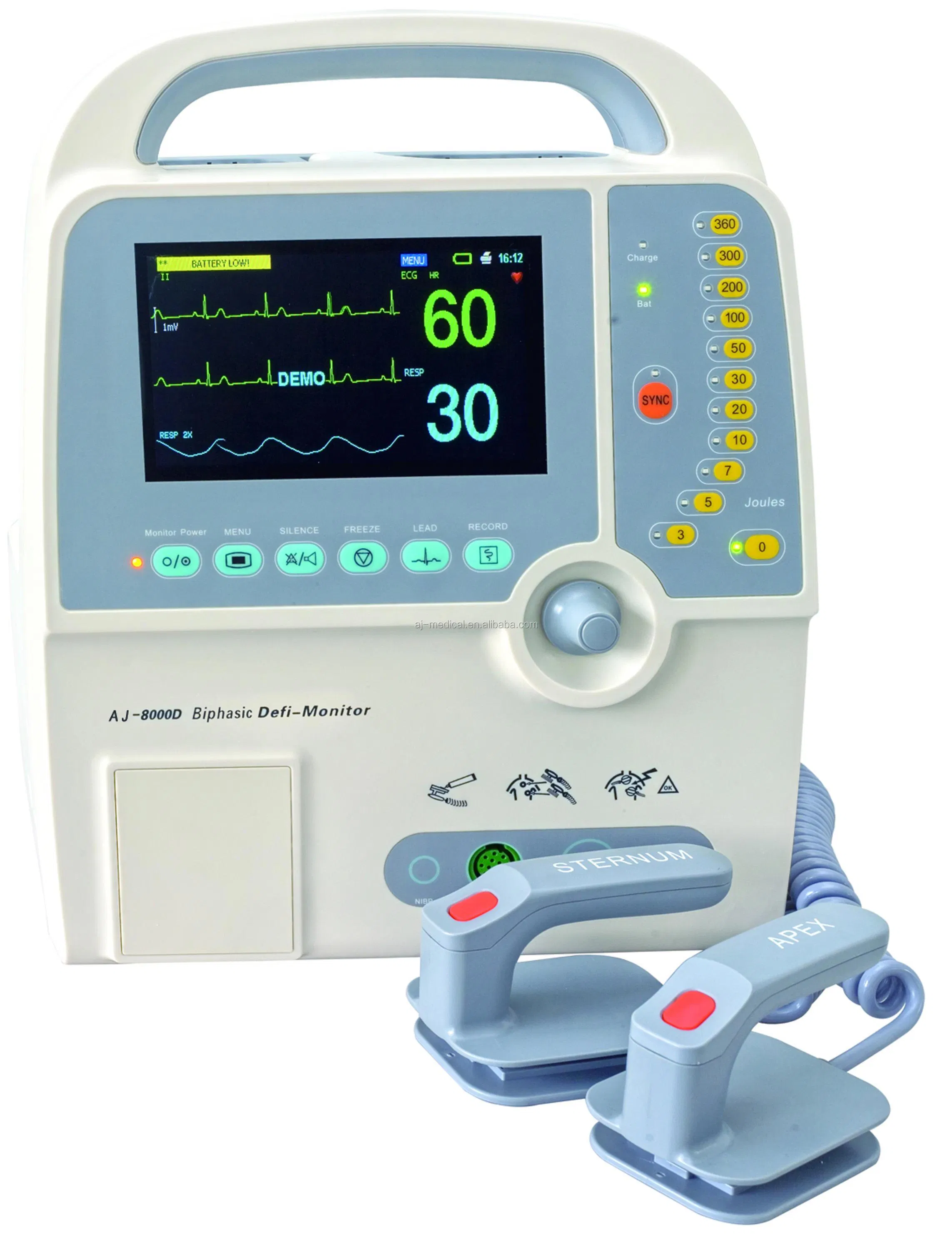

Emergency Room Clinictop Aed Portable Defibrillator with 12 Lead ECG
Emergency Room Clinictop Aed Portable Defibrillator with 12 Lead ECG
Emergency Room Clinictop Aed Portable Defibrillator with 12 Lead ECG
Emergency Room Clinictop Aed Portable Defibrillator with 12 Lead ECG
Emergency Room Clinictop Aed Portable Defibrillator with 12 Lead ECG
1 / 5
Emergency Room Clinictop Aed Portable Defibrillator with 12 Lead ECG
Emergency Room Clinictop Aed Portable Defibrillator with 12 Lead ECG
Emergency Room Clinictop Aed Portable Defibrillator with 12 Lead ECG
Emergency Room Clinictop Aed Portable Defibrillator with 12 Lead ECG
Emergency Room Clinictop Aed Portable Defibrillator with 12 Lead ECG

Emergency Room Clinictop Aed Portable Defibrillator with 12 Lead ECG

Customization: Available
Classification: Defibrillator
Type: Defibrillator
Send Inquiry

Product Description

📋 Basic Specifications
Model NO.
OEM
Certification
CE, ISO13485
Group
Adult & Child
Warranty
1 Year
Power Source
Electricity
Usage
Medical Products
Material
Aluminum Alloy
After-Sale Service
Online Technical Support
Transport Package
Carton
Specification
L320xW205xH410
Origin
China
HS Code
9018909911
💡 Key Features
  • 🔊
    Voice Prompt: Integrated clear voice guidance for emergency operations.
  • ⏺️
    Built-in Recorder: Standard defibrillation discharge trigger recording for data review.
  • 📈
    ECG Monitoring: Supports ECG waveform via paddle electrodes; displays Heart Rate, Lead, and Alarm status.
  • 🖥️
    High-Res Display: 7-inch TFT color display for clear visualization of delivered energy and vitals.
  • 🔋
    Power System: Equipped with a standard high-capacity Li-ion battery.
🛠️ Technical Parameters
Defibrillator Performance
ECG Lead3-lead/5-lead ECG cable, paddles (I, II, III, AVR, AVL, AVF, V)
NIBPAutomatic oscillation; Manual/Automatic modes
TEMP Range20-45ºC
SpO2 DisplayValue, pulse histogram, waveform, pulse
Pulse Range0~300bpm (Accuracy: ±2bpm)
Defibrillation ModeBiphasic, Manual, External Synchronous / Asynchronous
Charge TimeLess than 10 seconds to 360 Joules
Energy Selection0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360 Joules
PaddlesReusable external adult paddles (integrated pediatric paddles)
AED (Optional)Adult: 150J-200J; Children: 30J-75J
Power & Battery
AC Power100V~240V, 50Hz/60 Hz
Vehicle VoltageDC 12V (Optional)
Battery TypeRechargeable Li-ion (Full charge in 4 hours)
Battery Capacity120-min monitoring or 30 discharges at 360 Joules
📸 Product Gallery

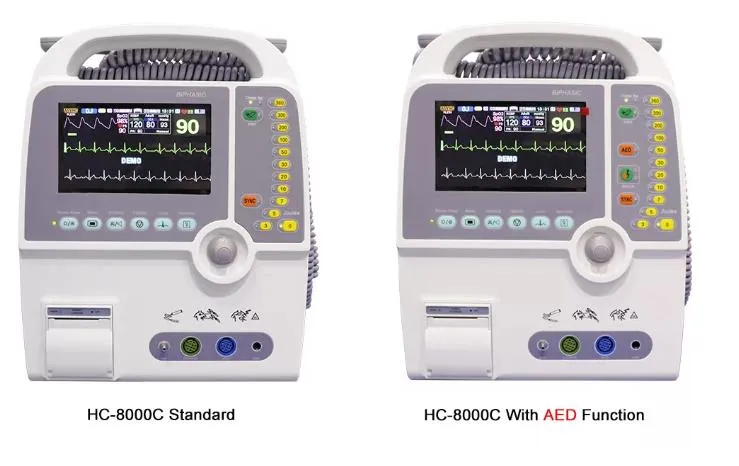

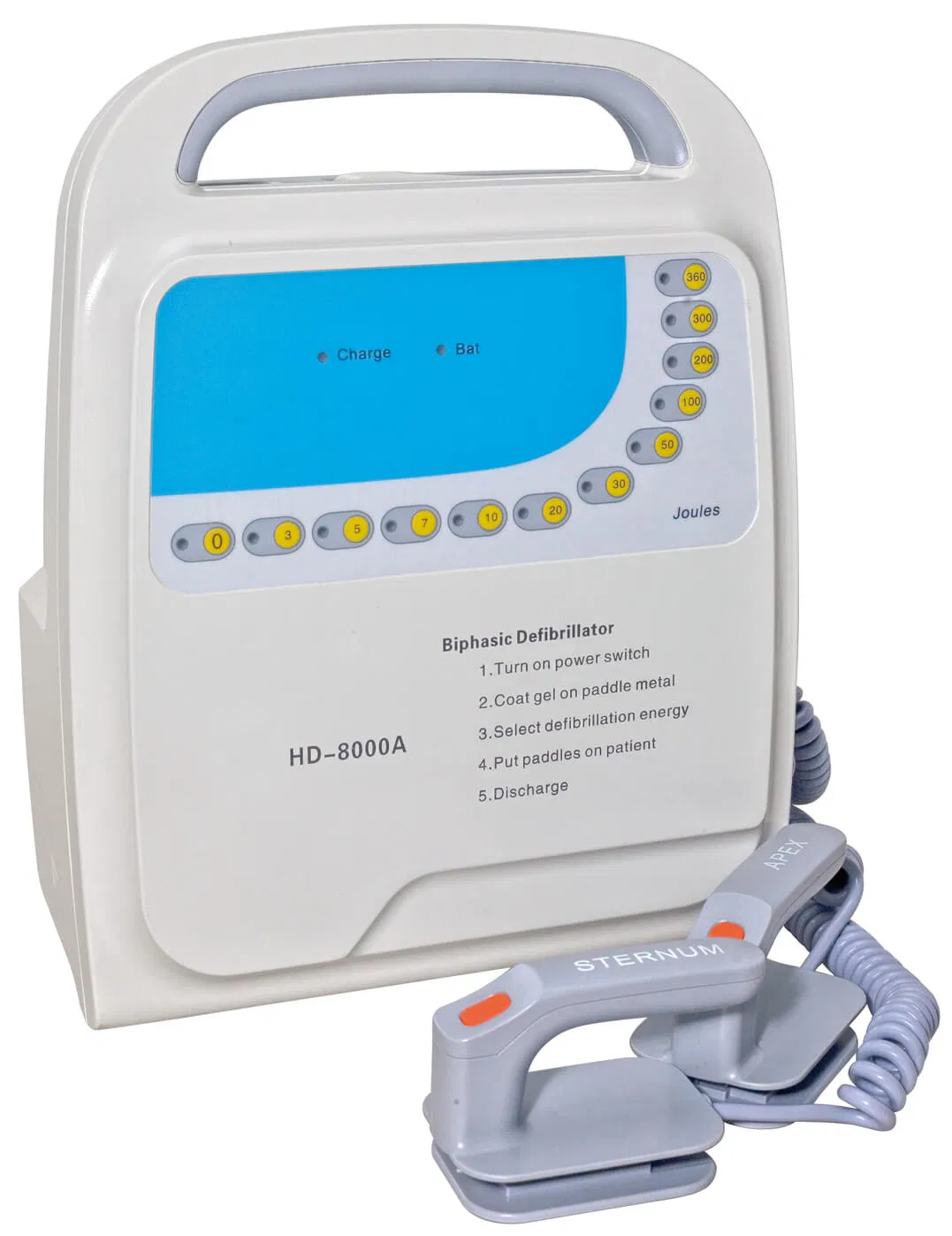

Defibrillator View 1

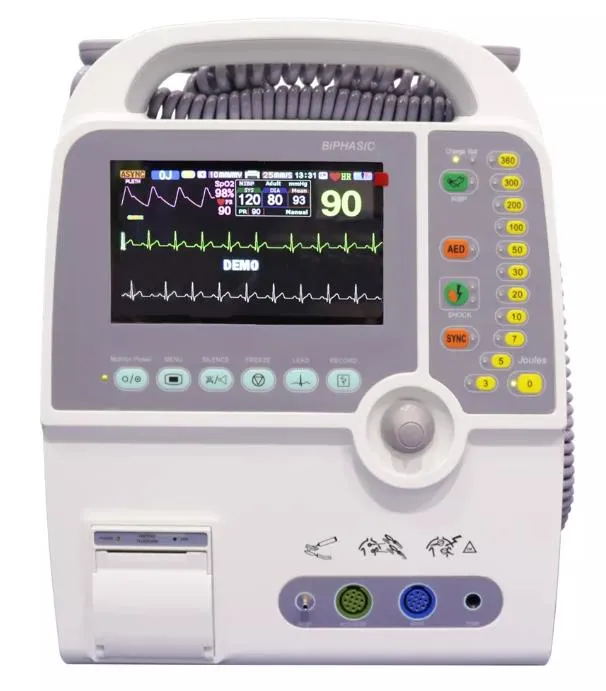

Defibrillator View 2
Defibrillator View 3
Defibrillator View 4
Defibrillator View 5

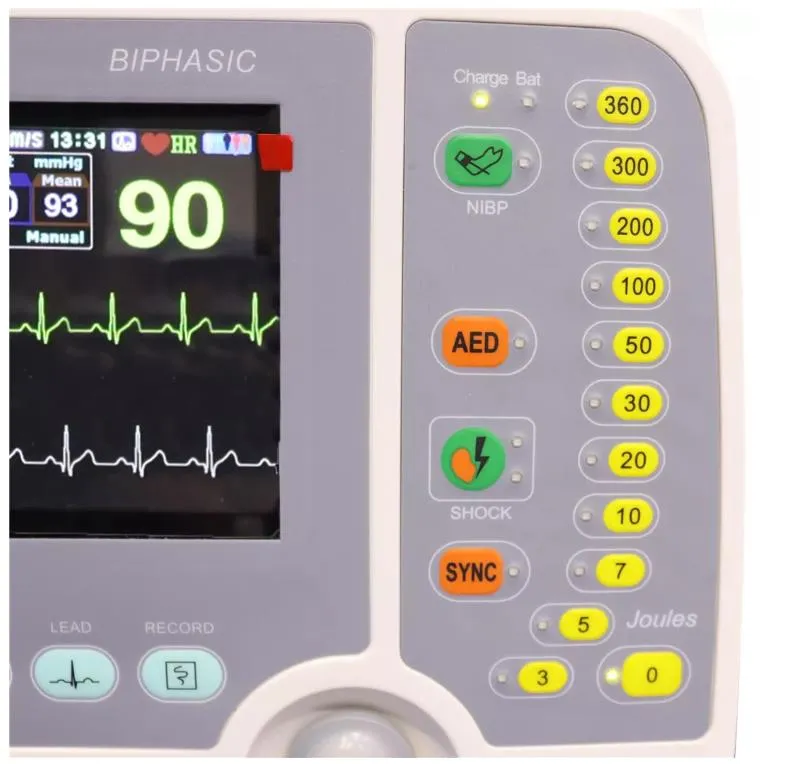

Defibrillator View 6
🏢 Professional Environment

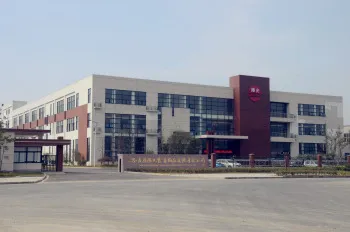

Factory Show

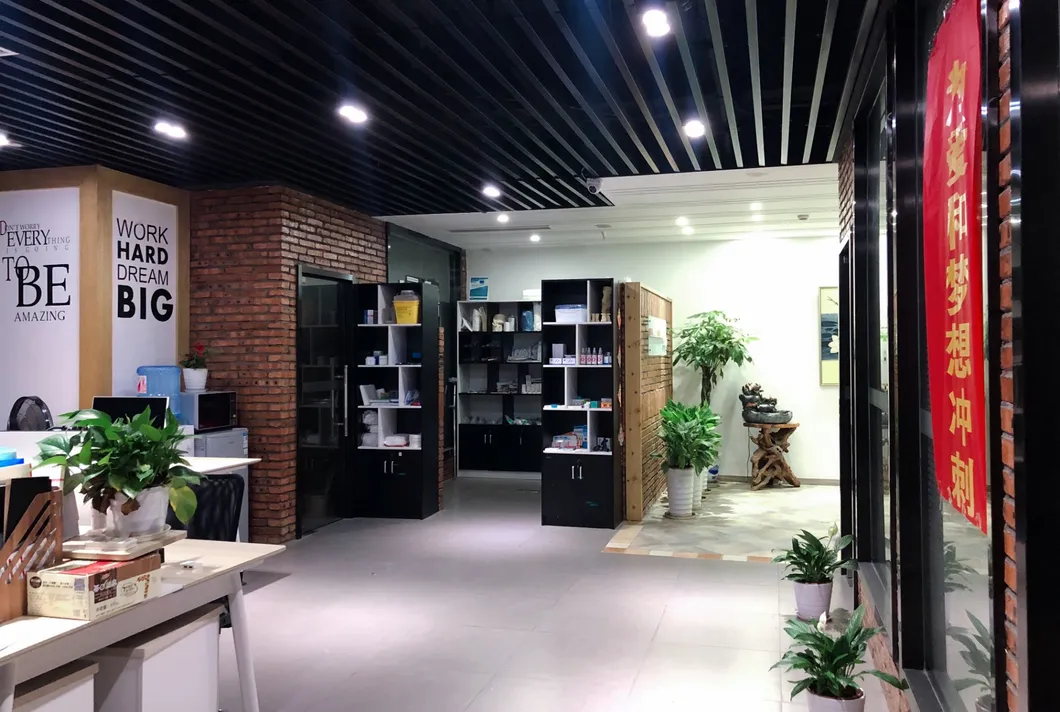

Office Show
Exhibition Show
❓ Frequently Asked Questions
Do you accept OEM or ODM packages?
Of course. We have a professional design team who can assist you in designing the package according to your requirements.
What is the minimum order quantity (MOQ)?
Usually, we accept 1 pc for trial orders. It depends on different items with different materials and sizes.
What certifications do you have?
The product is fully approved with necessary medical certifications including CE and ISO13485.
What information is needed for a quote?
Please provide product specifications such as material, logo requirements, size, and quantity.
What is the delivery date?
Products are normally shipped about 25-35 days after order confirmation.
Is technical support available?
Yes, we provide online technical support as part of our standard after-sale service.
