GMP Standard Horizontal Pulse Vacuum Steam Sterilizer Clean Room Industry

Customization:	Available
Theory:	Pressure Steam
Type:	Pressure Steam Sterilization Equipments

Send Inquiry

Product Description

Basic Specifications

Model NO.

MDH Series

Certification

CE, FDA, EEC, ISO13485

Electric Tension

380V

LCD Display

With LCD Display

Alarms

Ultra High Temperature Alarm

Material

AISI316L/304 for Option

Application

Garments, Surgical Instrument, Tools, Liquids

Loading Capacity

250L to 4000L

Door Type

Single/Pass-Through Double Doors

Origin

China

Product Description

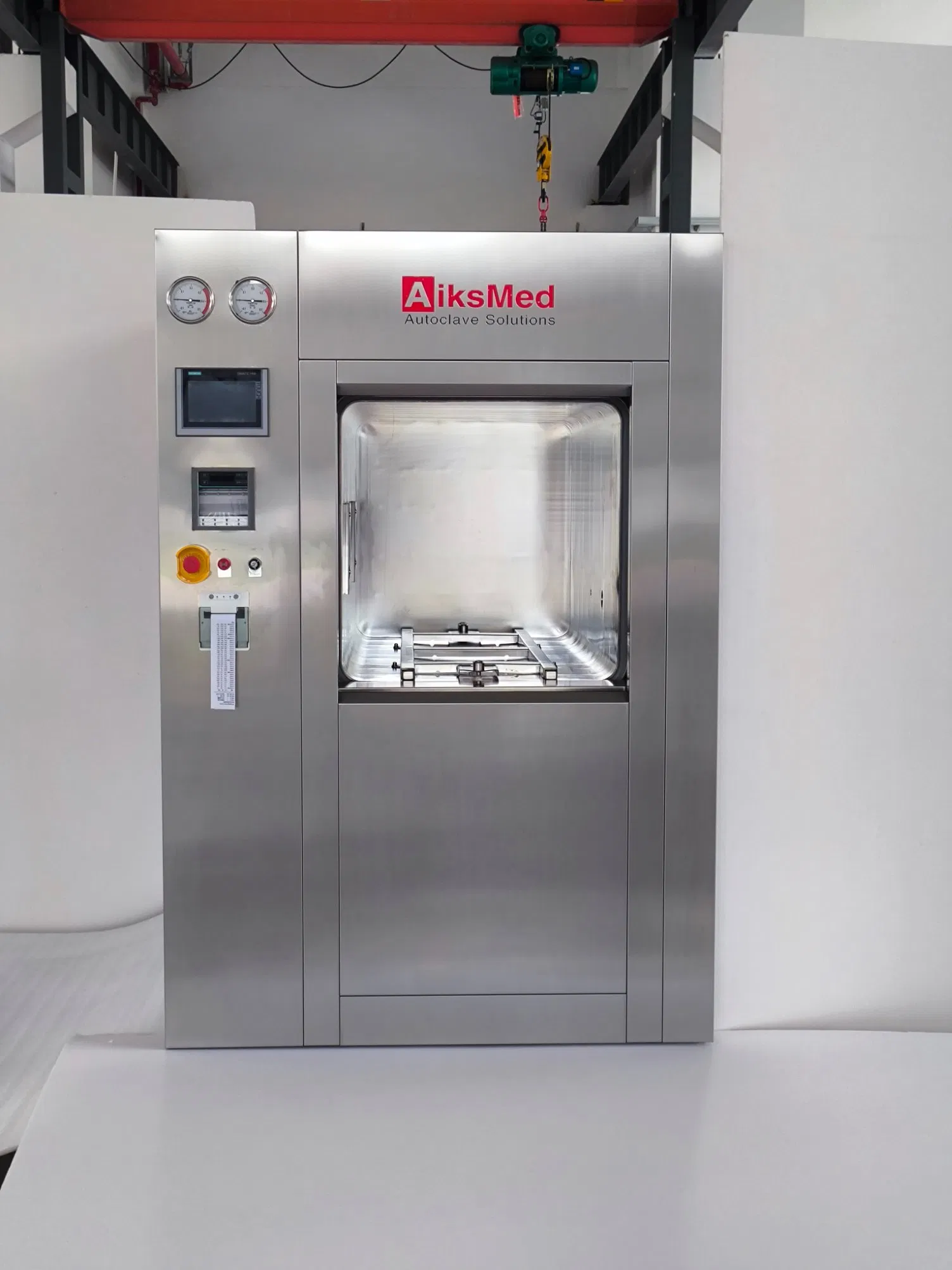

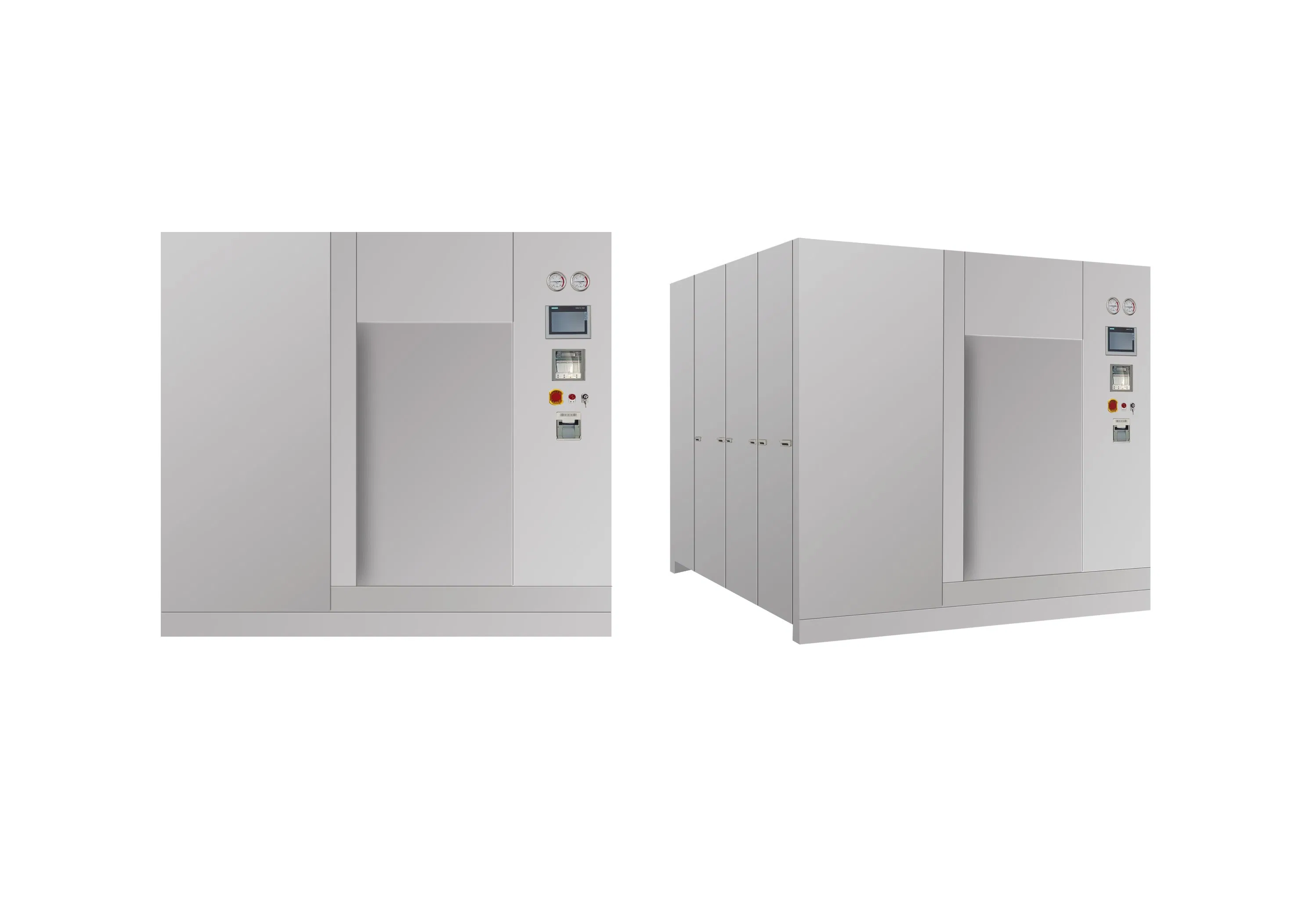

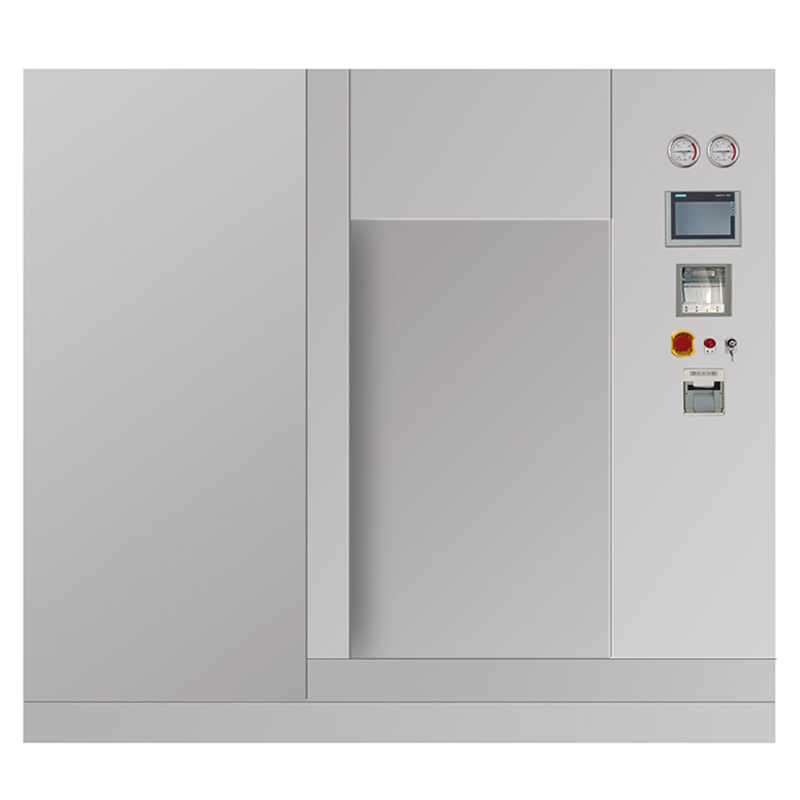

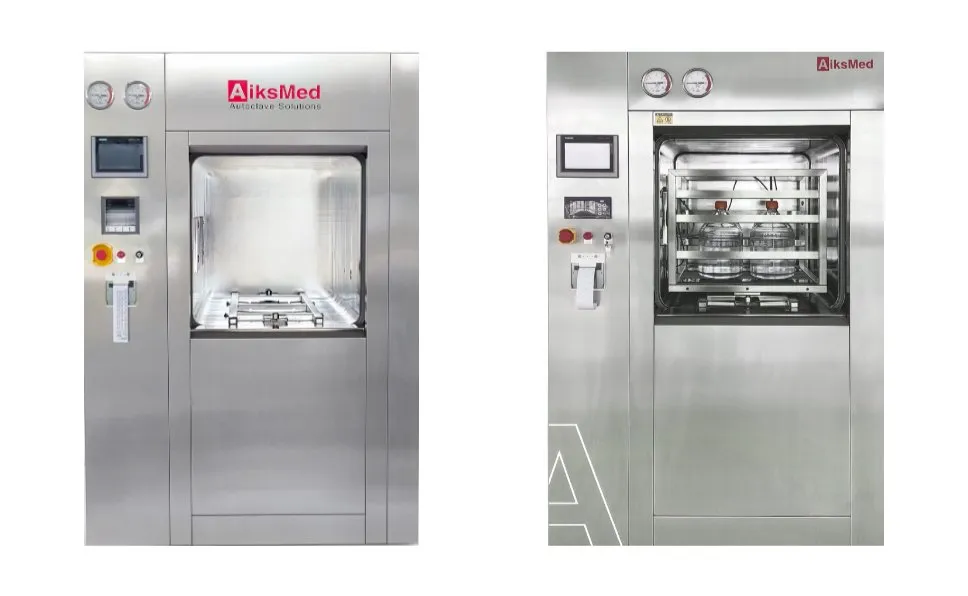

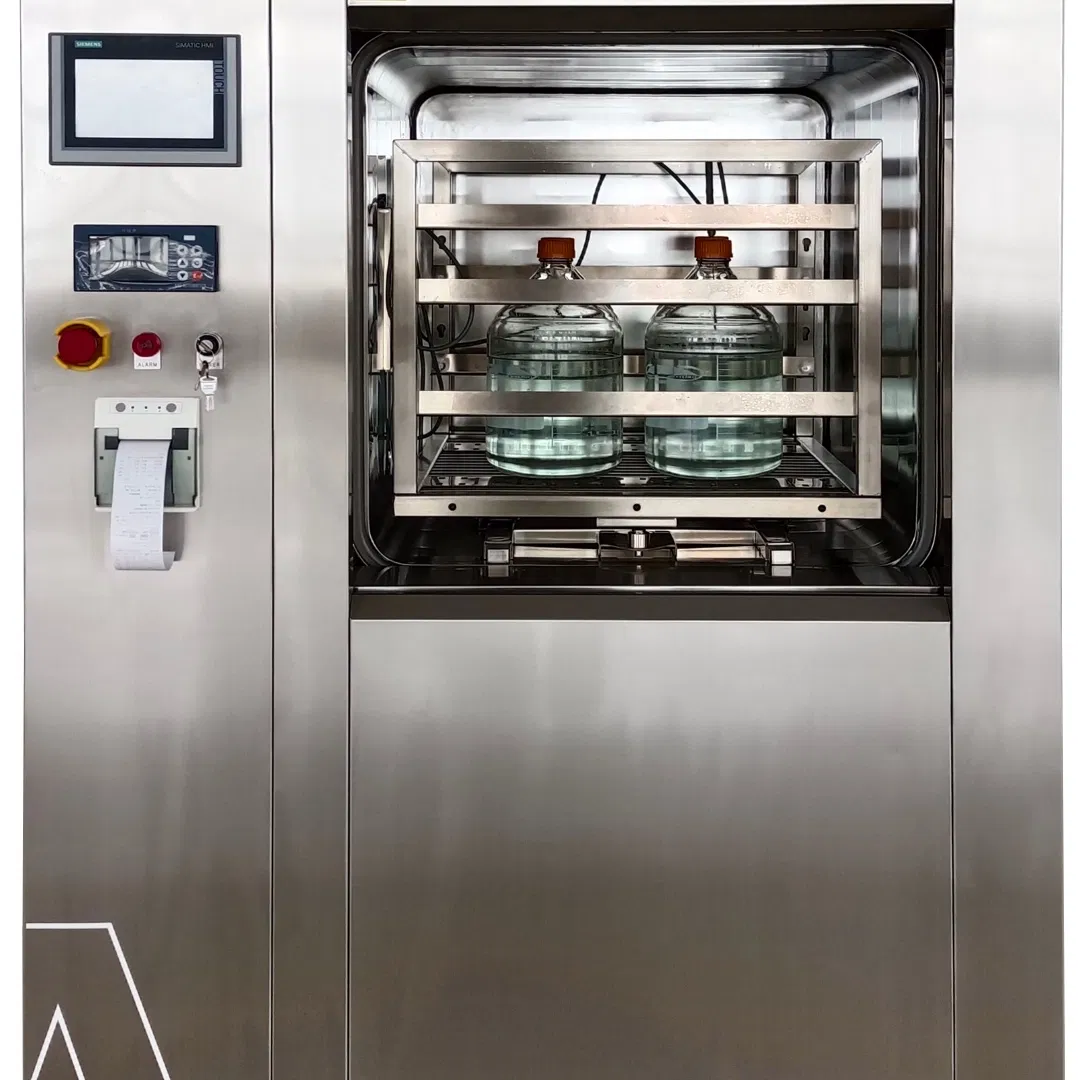

Pulse Vacuum Steam Sterilizer, MDH Model

MDH Series Pulse Vacuum Sterilizer employs intense heat of saturated steam to build up pressure within the chamber and so kill bacterial spores by denaturing and coagulate their cell proteins through hydrolysis, then dry the loading with heat from jacket, while vacuuming out the humidity inside chamber.

Applications

Pharmaceutical industry, biological safety laboratory, SPF animal laboratory, Hospital CSSD.
Garments, tools, apparatus, rubbers, aluminum caps, liquids, culture medium, etc.

Key Configurations

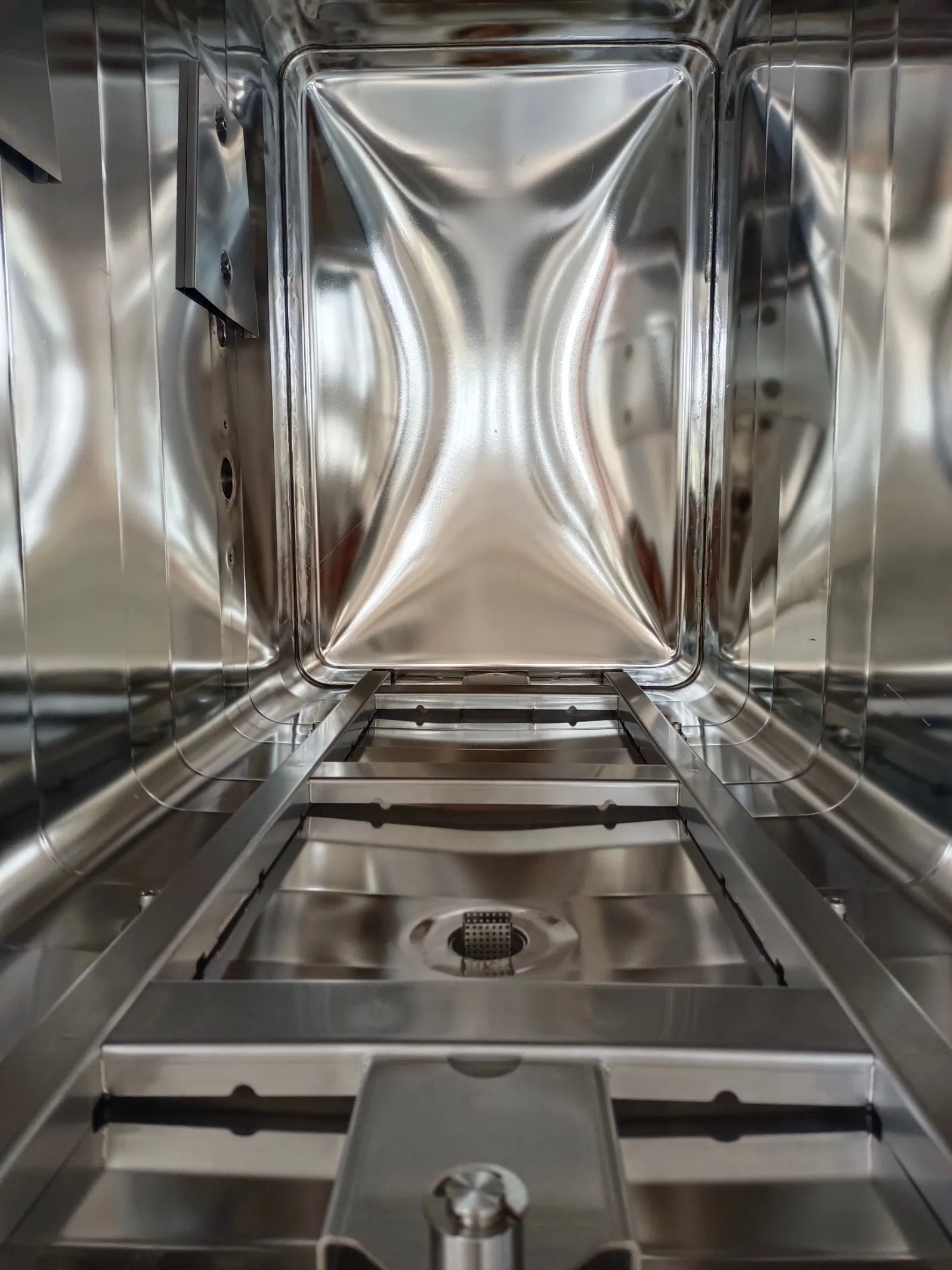

Chamber: Square and horizontal, SS316L/304(Optional), Designed life: 15 years.
Door: Hinged/Sliding doors, Single/Double doors(Optional).
Vacuum Pump: NASH brand for high efficiency.
Pneumatic Valve: High temperature resistant angle seat type.
Control System: PLC+HMI (SIEMENS) for precise operations.
Sensors: Portable and Fixed type PT100.
Printer: Records Time, Temp, Pressure, F0, Batch No.

Technical Specifications

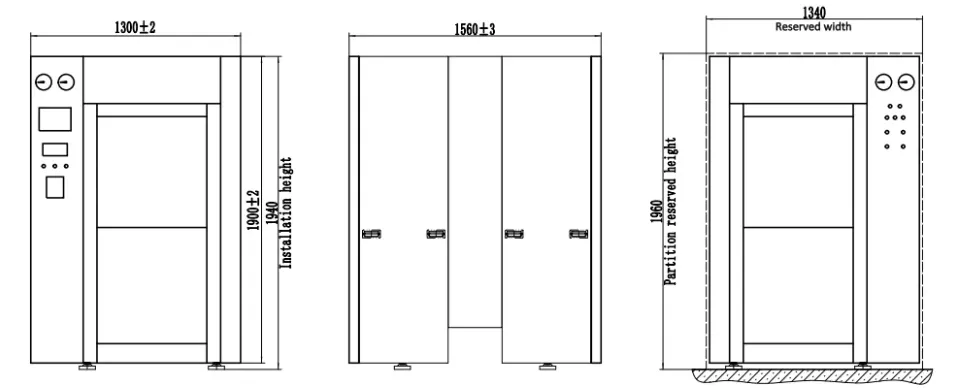

Door	Model	Volume(m³)	Chamber Size(mm)	Overall Size(mm)	Steam(KG)	Power(KW)	N/W(KG)
Vertical	MDH-0.36	0.36	1000×600×600	1320×1200×1740	25	1.2	880
Vertical	MDH-0.55	0.55	1200×675×675	1560×1300×1940	35	1.6	1000
Vertical	MDH-0.8	0.8	1800×675×675	2160×1300×1940	45	2.4	1400
Horizontal	MDH-1.0	1	1250×680×1180	1610×2100×2040	50	2.4	1600
Horizontal	MDH-1.5	1.5	1900×680×1180	2260×2100×2040	70	3.2	1850
Horizontal	MDH-3.2	3.2	2100×1000×1550	2460×2600×2100	110	5.7	3200

After Sales Service

Standard Warranty: 12 months after SAT or 18 months after shipment.
Extended Warranty: Optional coverage up to 24 months.
Global Support: 24/7 technical assistance and spare parts.
Training: On-site or remote operation and maintenance training.

Why Choose Us?

OEM/ODM capabilities with 20+ years expertise.
Competitive pricing & bulk discounts.
Fast shipping & customs clearance support.
Turnkey project solutions for clean room industries.

Frequently Asked Questions

Q1: What's the lead time for orders? A: Standard models ship in 45–60 days; customized units require 60–90 days depending on the complexity.

Q2: Do you provide after-sales service overseas? A: Yes, we provide 24/7 technical assistance and have partnered service centers in key regions to support global users.

Q3: Can I request a customized chamber size? A: Absolutely! We offer tailored chamber volumes and configurations. CAD drawings will be provided for approval.

Q4: What technical documentation is included? A: We provide a complete documentation package including Layout, P&ID, DQ/IQ/OQ/PQ validation files, FAT/SAT reports, and Operation Manuals.

Q5: What is the designed service life of the MDH Series? A: The pressure vessel and chamber are designed with a service life of 15 years under standard maintenance protocols.

Q6: What certifications do these sterilizers hold? A: Our equipment is fully certified with ISO 9001, CE, FDA, and EEC standards to ensure international compliance.
