| Model NO. | LY-SJG1200 | Certification | CE/ISO |
| Automation | Automatic | Scale | Large |
| Principle | Rotary | Structure | Double Layers |
| Energy | Electric | Material | SUS304 Stainless Steel |
| Capacity | 800-1000kg Per Batch | Delivery | 7-45 Days |
Package Size: 380.00cm * 140.00cm * 180.00cm
Gross Weight: 450.000kg
Transport Package: Professional Wooden Case

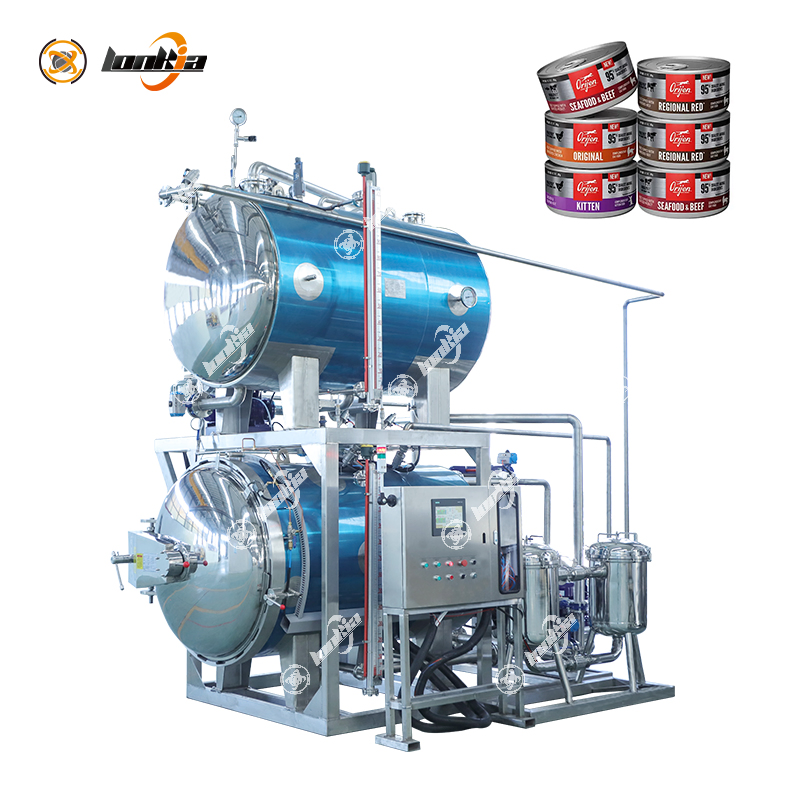

High Pressure Steam Water Retort Machine Food Sterilizer Can Autoclave Sterilization Equipment
The horizontal high-temperature and high-pressure sterilization pot uses the technology of "saturated steam/hot water circulation + back pressure control" to create a sterilization environment of 121-135 ℃ and 0.15-0.3MPa in a closed container. It uses heat to destroy microbial cell membranes and enzyme activity, achieving commercial aseptic standards.
Key Advantages:
| Model | 1000# | 1200# | |||
|---|---|---|---|---|---|
| Cylinder length (mm) | 2400 | 2700 | 3600 | 4000 | 4500 |
| Total length (mm) | 4200 | 4600 | 5600 | 6000 | 6600 |
| Installed power (kw) | 7 | 13 | 13 | 13 | 13 |
| Gas consumption (kg/Pot) | 115 | 200 | 255 | 280 | 300 |
| Design Press (Mpa) | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 |
| Design Temperature (℃) | 147 | 147 | 147 | 147 | 147 |

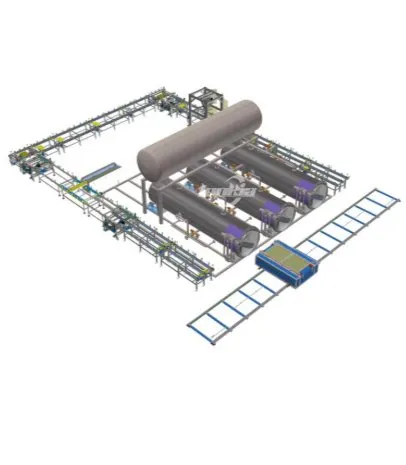

We support the customization of the entire sterilization loading and unloading line, including factory planning to provide the most efficient sterilization production line.
