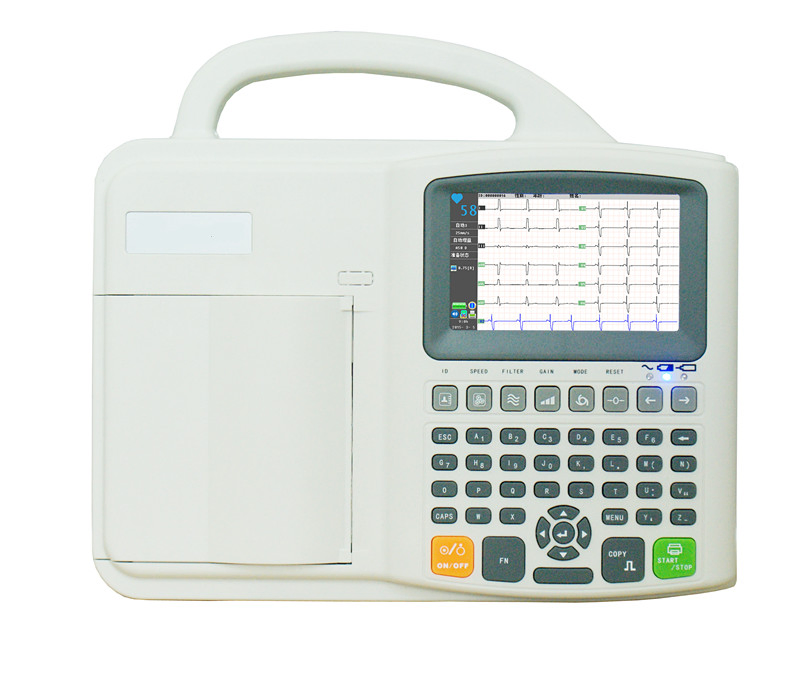

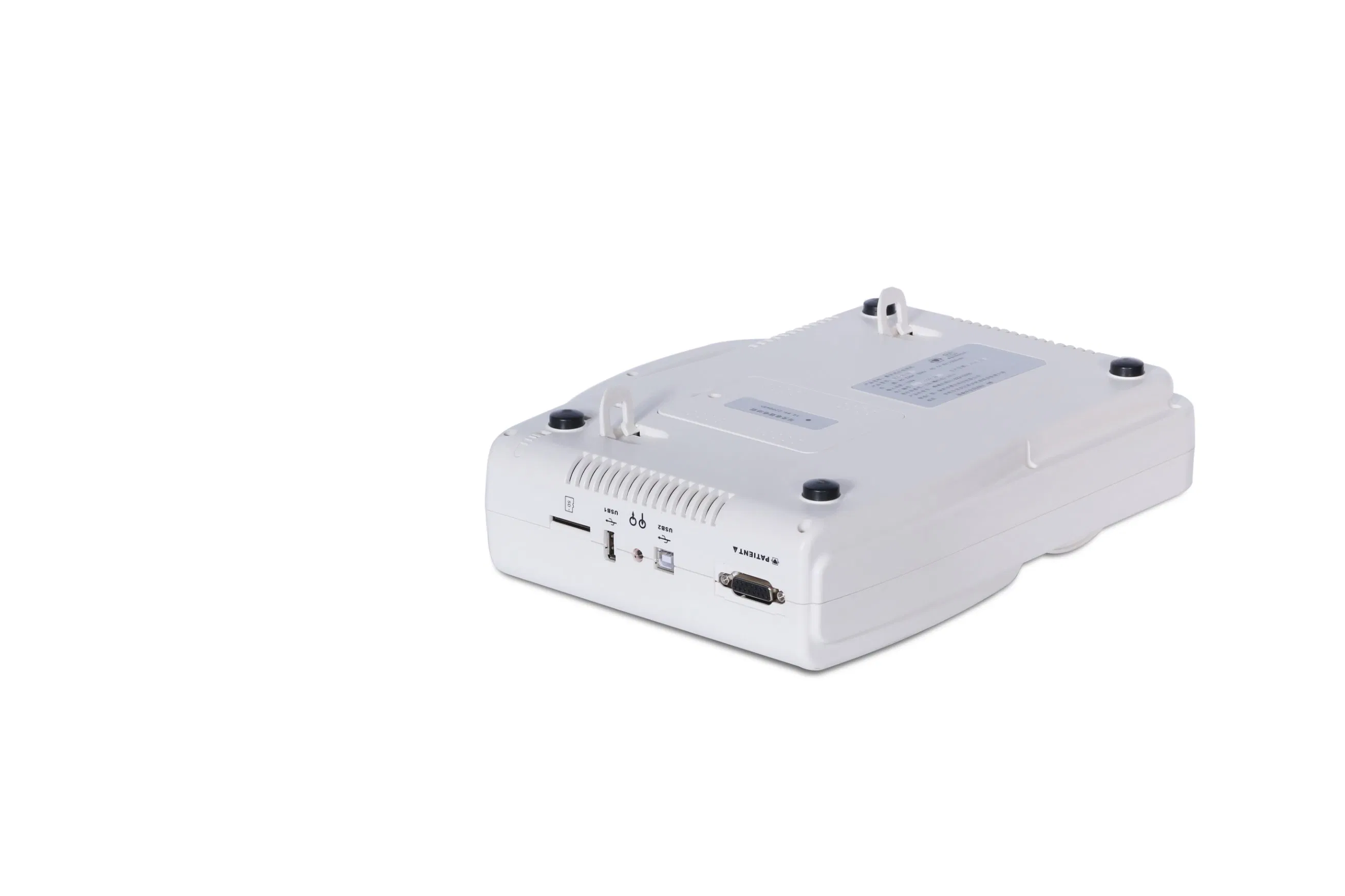

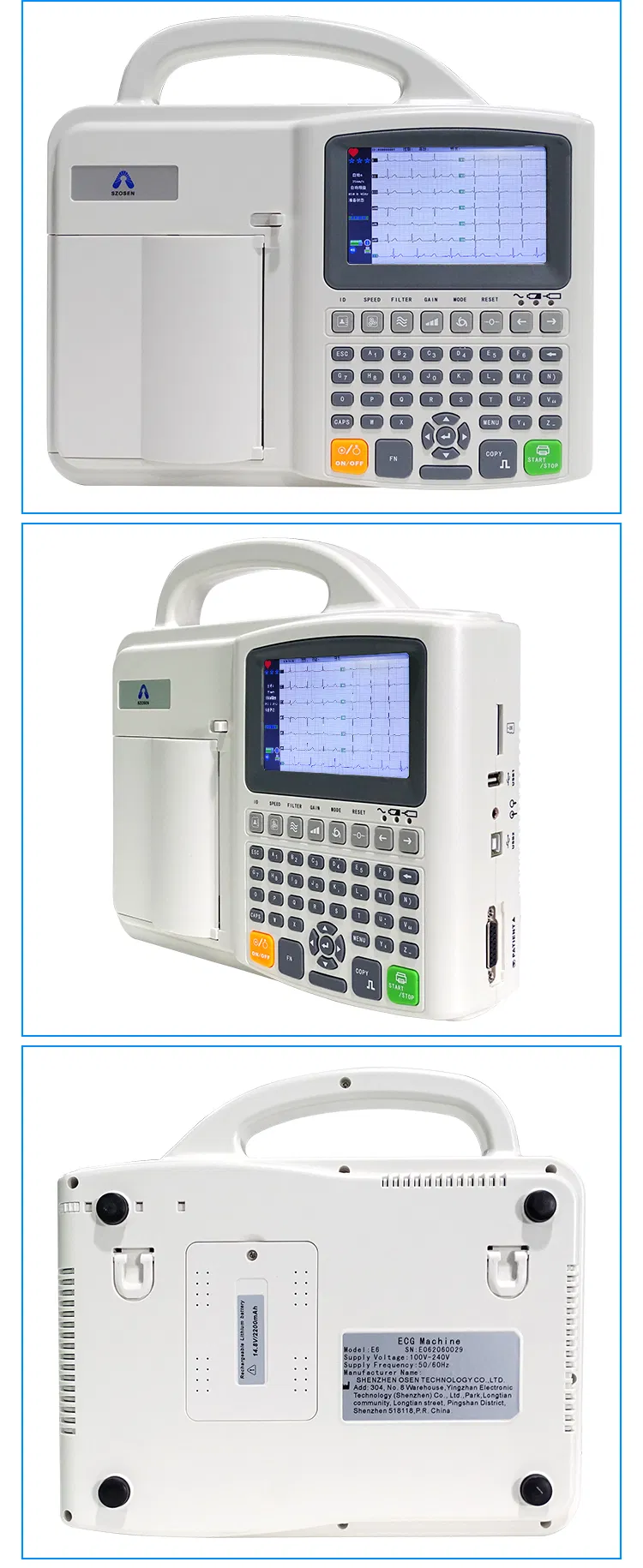

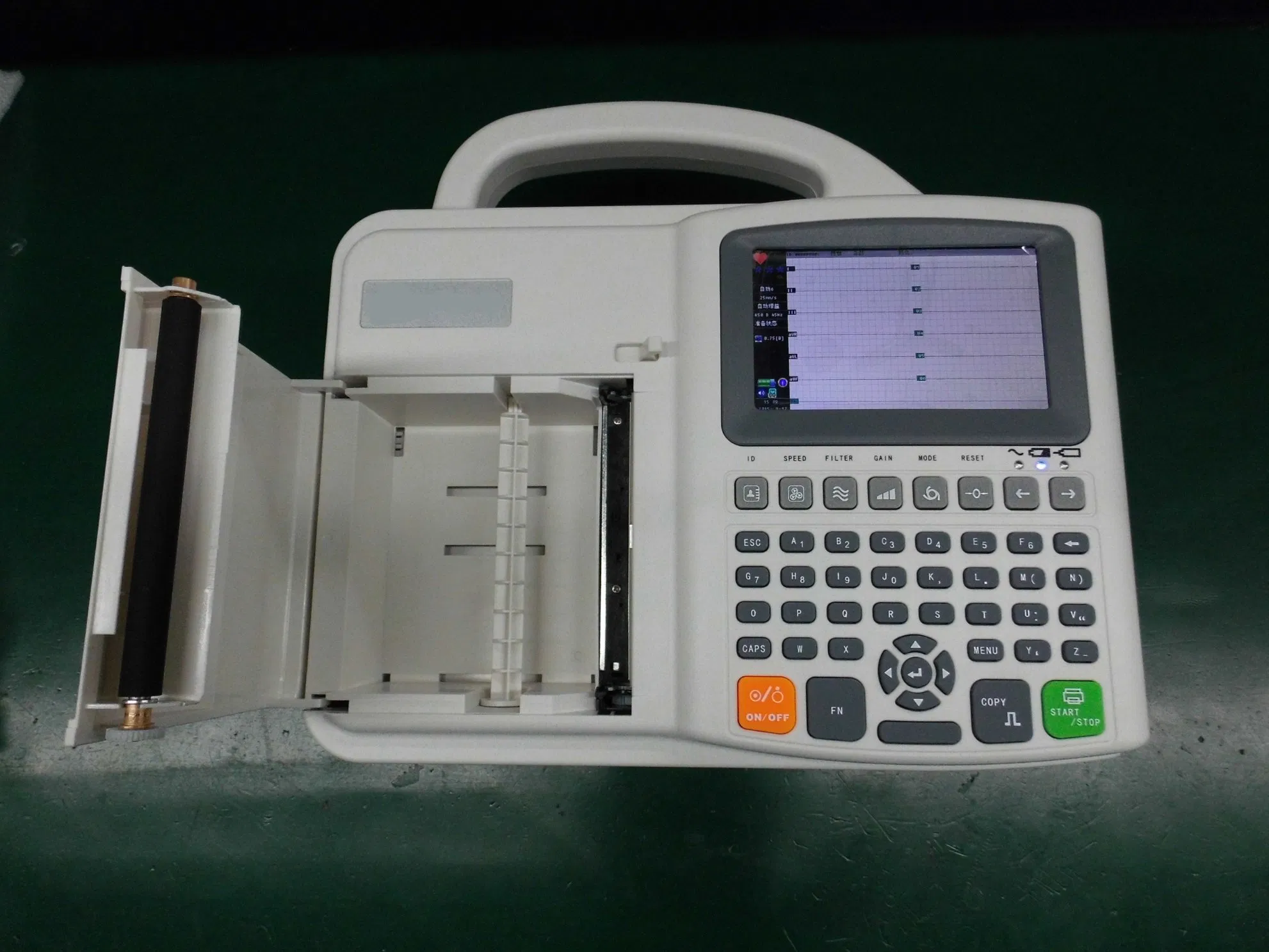

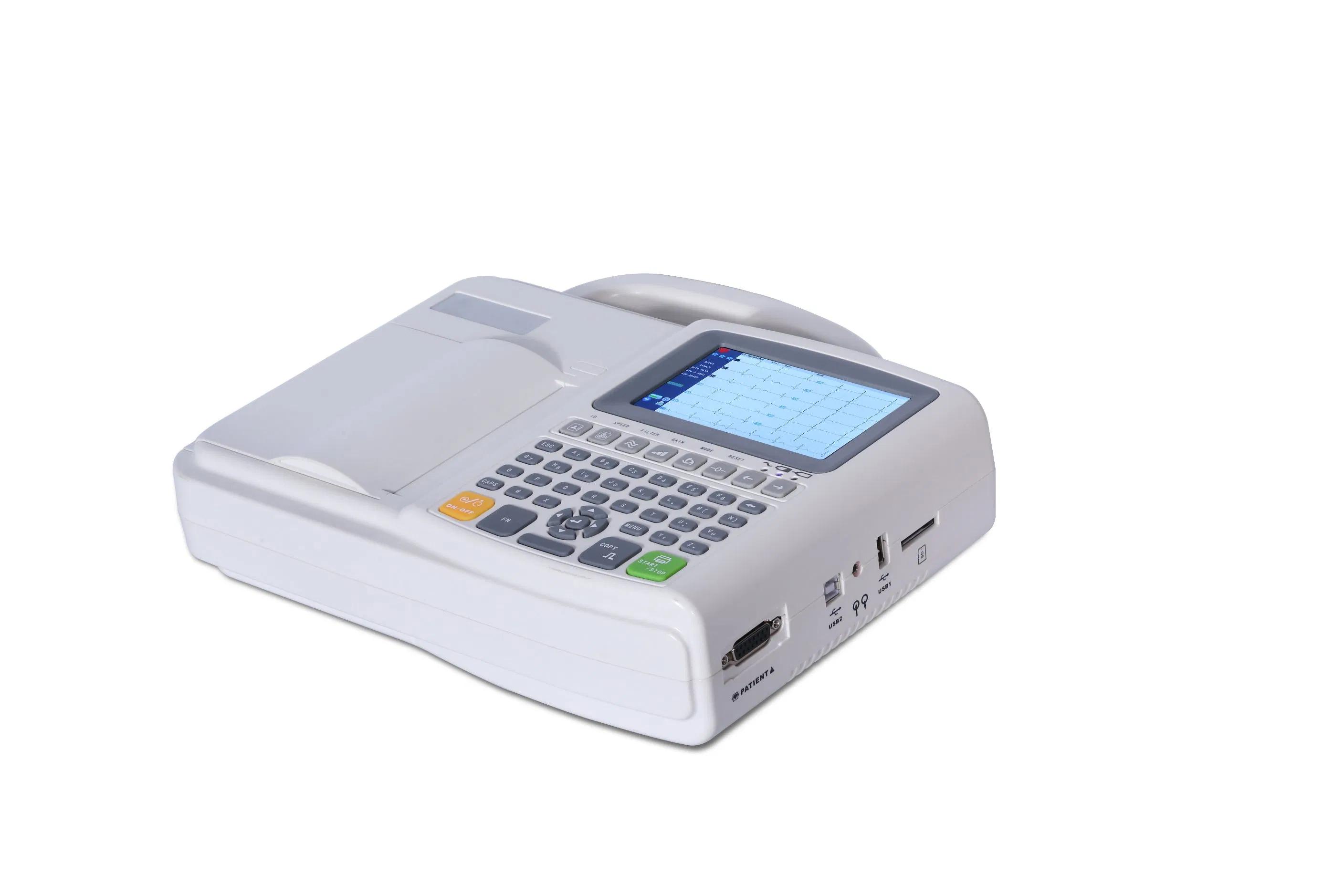

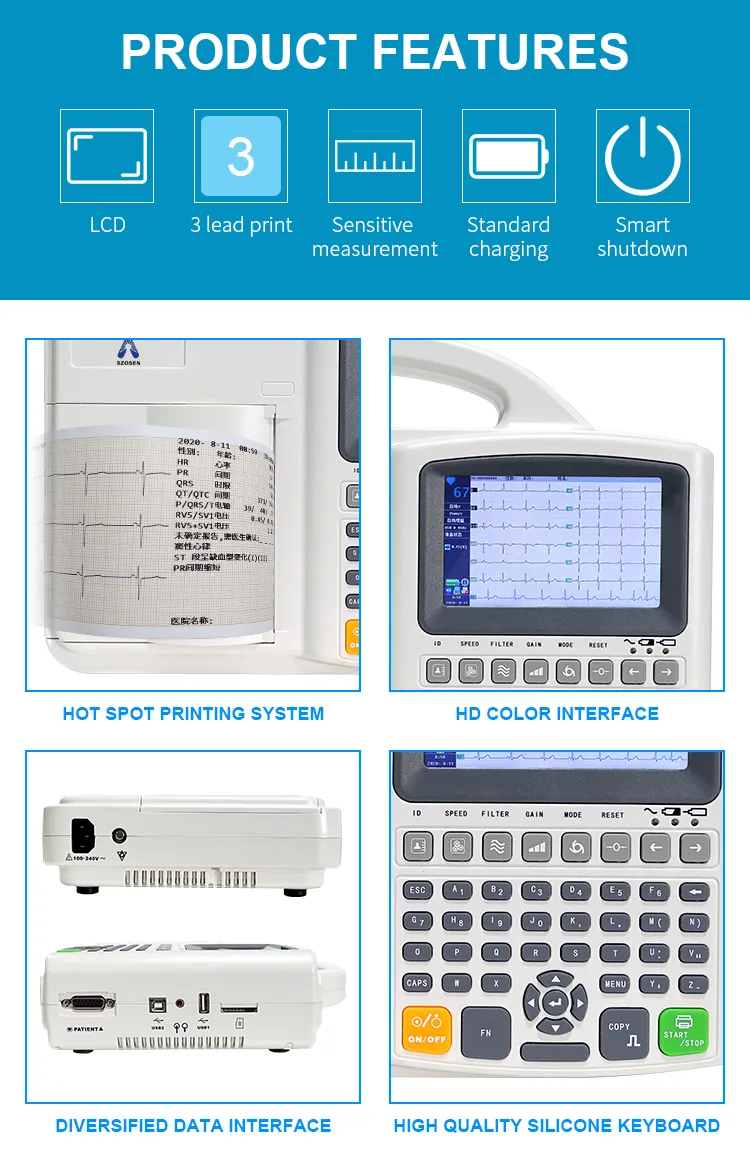

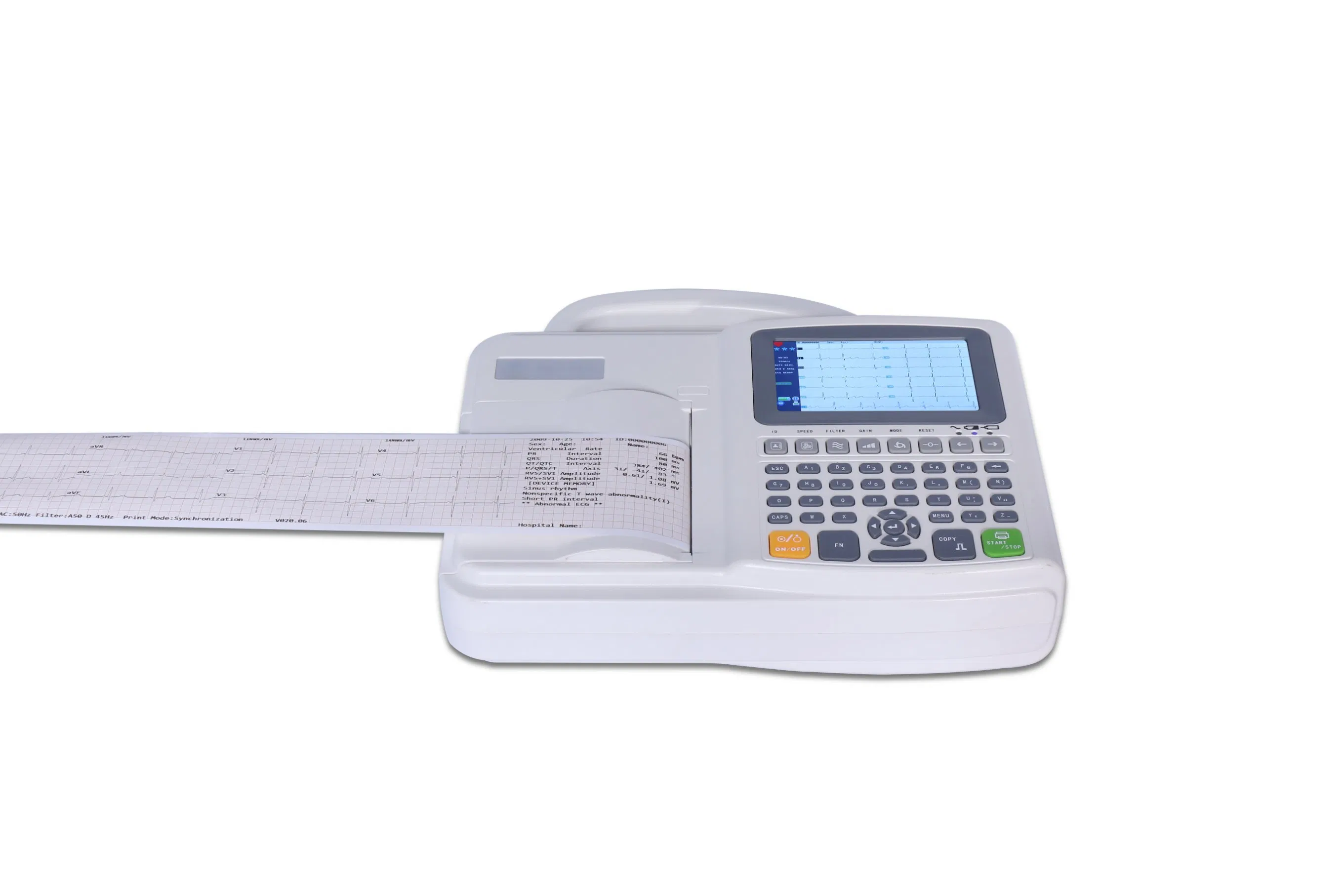

| Med-E3A Technical Parameter List | |
|---|---|
| Lead: Standard 12 leads | Polarization Voltage Tolerance: ≥±500mV |
| Acquisition: Simultaneous 12 leads | Time Constant: ≥3.2s |
| A/D Converter: 14bit | Frequency Response: 0.05 Hz~250Hz |
| Sampling Rate: 1000Hz | Noise Level: <15μVp-p |
| Working Mode: Manual/Auto | Sensitivity Threshold: ≤20μV |
| Interference Filter: AC and EMG Filter | Printer: Thermal printer |
| CMMR: ≥100dB (with AC filter) | Paper: 80mmx20m, roll |
| Input Circuit Current: ≤0.1μA | Page Speed: 6.25, 12.5, 25, 50mm/s |
| Input Circuit: Floating, protection against defibrillator | Sensitivity: 2.5, 5, 10, 20mm/mV |
| Input Impedance: ≥50MΩ | Safe Class: GB9706.1, Class I, Type CF |
| Patient Current Leakage: <10μA | Power Supply: AC 85~265V / DC14.8V (2200mAh) |
| Calibrating Voltage: 1mV±2% | Dimension: 310mm×270mm×73mm, 1.45 kg |

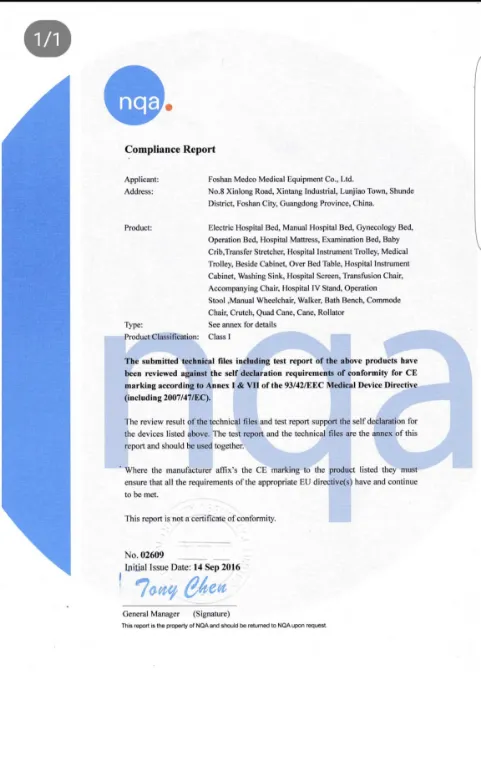

Specializing in medical equipment manufacturing since 2010, our facility operates under ISO9001:2000 and ISO13485:2003 standards. With CE approved products, we maintain a professional customization system and skilled production processes to ensure stable quality for the international market.
