Hospital Automatic Portable Cardiac Defibrillator Machine (THR-MD-800B)
Hospital Automatic Portable Cardiac Defibrillator Machine (THR-MD-800B)
Hospital Automatic Portable Cardiac Defibrillator Machine (THR-MD-800B)
Hospital Automatic Portable Cardiac Defibrillator Machine (THR-MD-800B)
Hospital Automatic Portable Cardiac Defibrillator Machine (THR-MD-800B)
1 / 5
Hospital Automatic Portable Cardiac Defibrillator Machine (THR-MD-800B)
Hospital Automatic Portable Cardiac Defibrillator Machine (THR-MD-800B)
Hospital Automatic Portable Cardiac Defibrillator Machine (THR-MD-800B)
Hospital Automatic Portable Cardiac Defibrillator Machine (THR-MD-800B)
Hospital Automatic Portable Cardiac Defibrillator Machine (THR-MD-800B)

Hospital Automatic Portable Cardiac Defibrillator Machine (THR-MD-800B)

Customization: Available
Type: Defibrillator
Certification: CE
Send Inquiry

Product Description

📋

Basic Information

Model NO.
THR-MD-800B
Defibrillator Type
Manual, Synchronized, Asynchronized
Output Waveform
Biphasic Technology
AC Power Supply
110V, 60 Hz / 220V, 50 Hz
Charging Time
Maximum 8 Seconds to 360 Joules
Display
7'' Diagonal High Resolution True-Color Graphic
Standard Parameter
ECG / Resp / Defibrillator
Optional Parameter
Recorder
Warranty
18 Months
OEM
Available
Transport Package
Standard Export Packing
Specification
CE and ISO
Trademark
THR
Origin
China
Production Capacity
100 Pieces Per Week
🛡️

Product Description

Automatic Portable Cardiac Defibrillator Machine (THR-MD-800B)
Cardiac Defibrillator Machine
⚡ ECG
ECG lead: I, II, III, Avr, Avl, Avf, V1~V6
S-T segment analysis: -2.0~2.0mv
Protection: Withstand 4000vAc/50Hz voltage in isolation and work against electrosurgical interference and defibrillation
ECG lead/cable: General lead/cable for adult, pediatric and neonatal patients
🩺 NIBP
Method: Automatic oscillation
Working mode: Manual/Automatic
Measurement range: Adult 10~250mmHg, Pediatric 10~250mmHg, Neonatal 10~135mmHg
🌡️ Temperature (TEMP)
Measurement range: 20~45° C
Resolution: 0.1° C
🫁 Respiration (RESP)
Measurement method: Thoracic impedance
🩸 SpO2
Display: SpO2 value, pulse histogram, waveform, Pulse
Range: 0~99% for adult, pediatric and neonatal patients
Probe: Standard adult finger clip (Optional pediatric Y-type clip and neonatal wrap)
💓 Pulse
Pulse range: 0~300bpm
Pulse accuracy: ± 2bpm
🚑 Defibrillator
Non-synchronizer: Outlife defibrillator
Sine wave: Monophasic technology
Energy: 0, 20, 50, 100, 160, 250, 300, 360 joule
Charging time: At 360J less than 10 sec

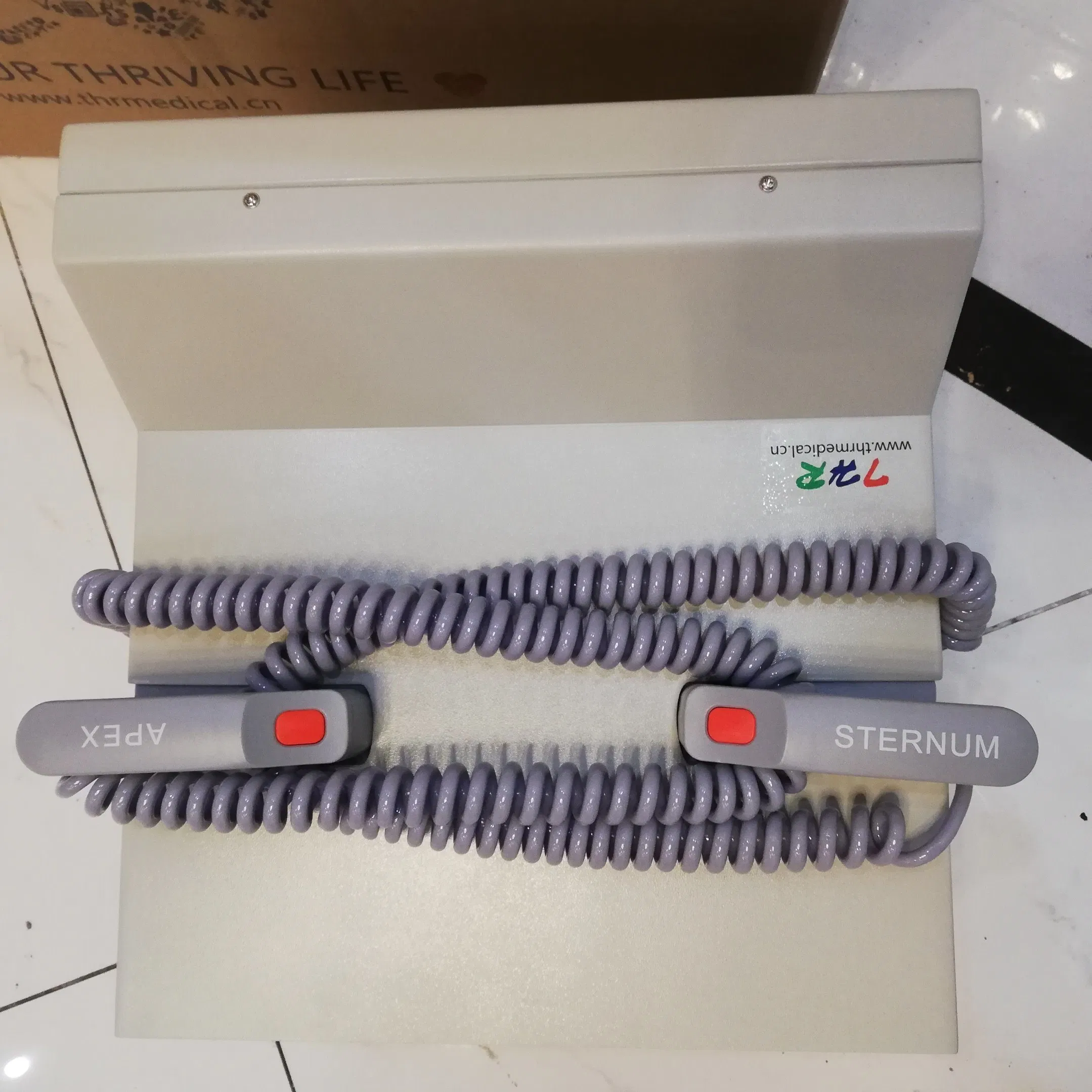

Paddle options: Reusable external adult paddles (pediatric paddles integrated)
🔌 Power
Operates from the mains (AC) and with its internal NIMH battery
📸 More Pictures

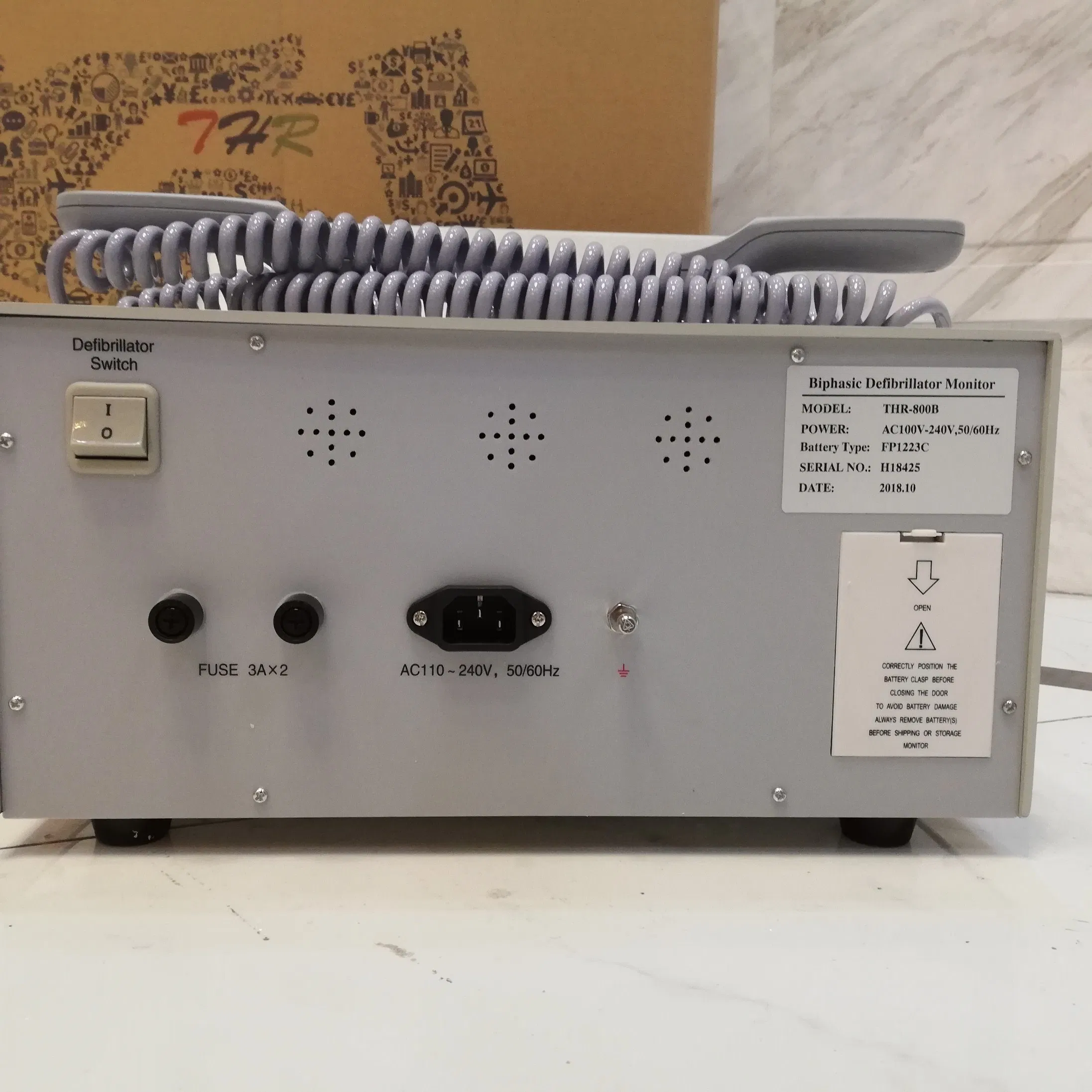

Defibrillator Side View

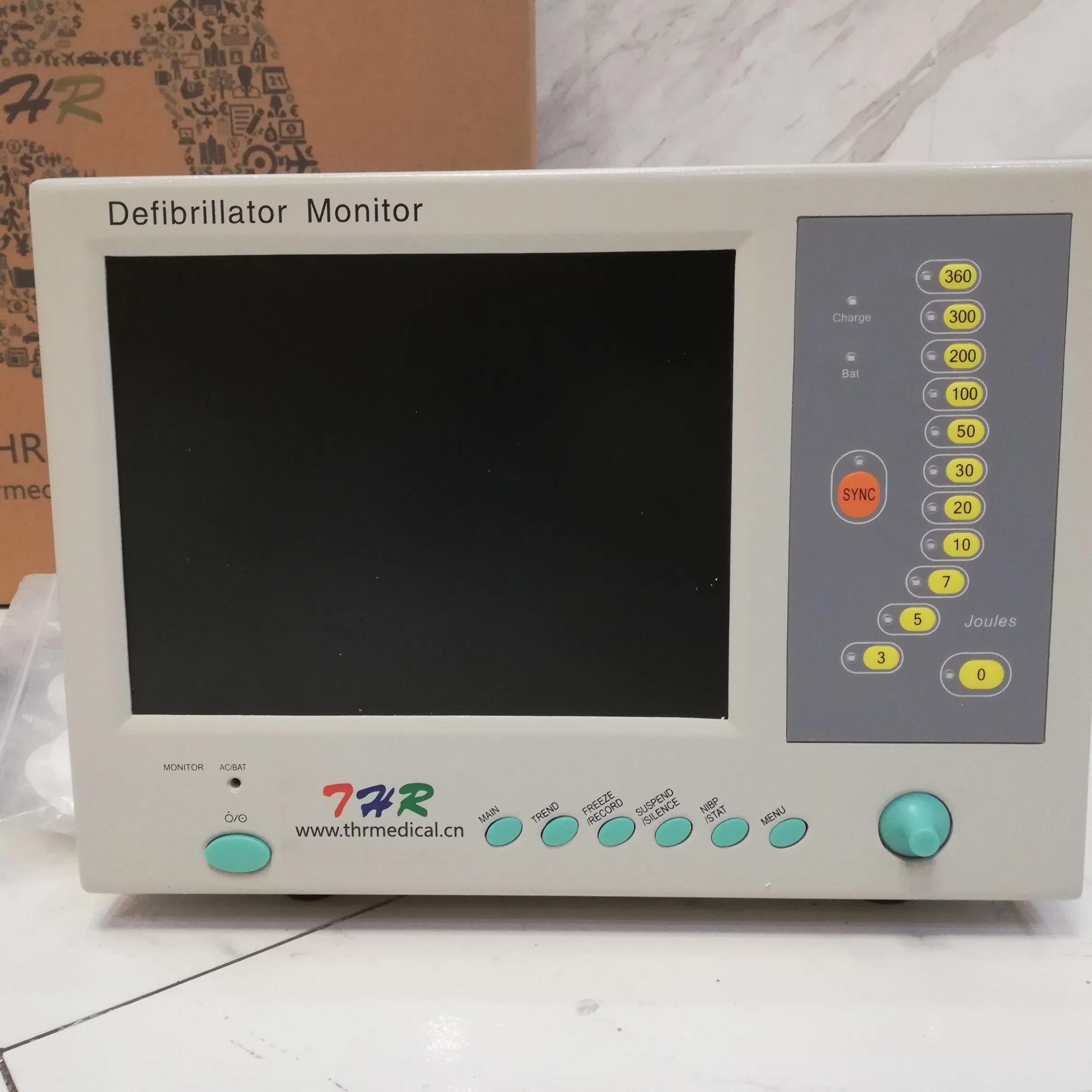

Defibrillator Interface

Frequently Asked Questions

1. How fast can the THR-MD-800B charge to maximum energy?
The device features rapid charging technology, reaching the maximum 360 Joules in 8 to 10 seconds.
2. Does the device support both adult and pediatric patients?
Yes, it includes reusable external adult paddles with integrated pediatric paddles, and supports ECG/NIBP monitoring for neonatal and pediatric use.
3. What monitoring parameters are included as standard?
The standard parameters include ECG, Respiration (RESP), and Defibrillation capabilities. Optional recorders are also available.
4. What type of display does the machine use?
It is equipped with a 7-inch diagonal high-resolution true-color graphic display for clear waveform and data visualization.
5. Can the defibrillator work without a direct AC power connection?
Yes, the THR-MD-800B operates from both the AC mains and its internal rechargeable NIMH battery for portable use.
6. What is the warranty period for this cardiac defibrillator?
The product comes with an 18-month warranty from the date of purchase.
