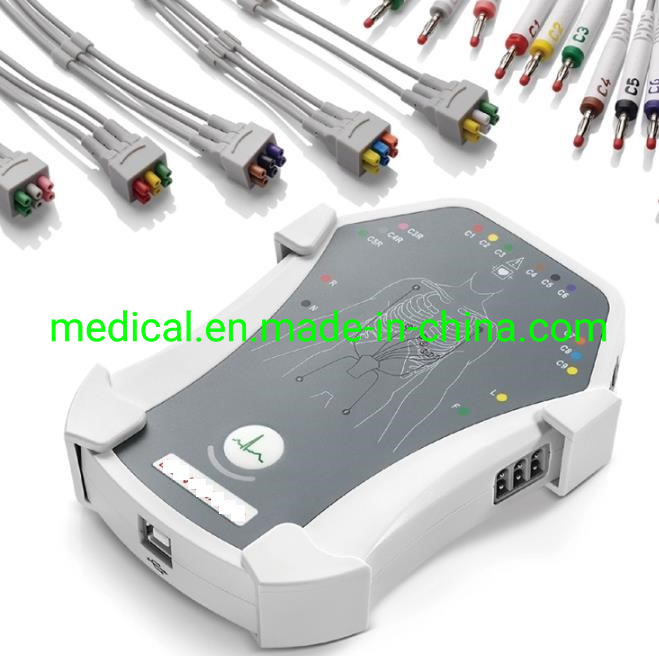

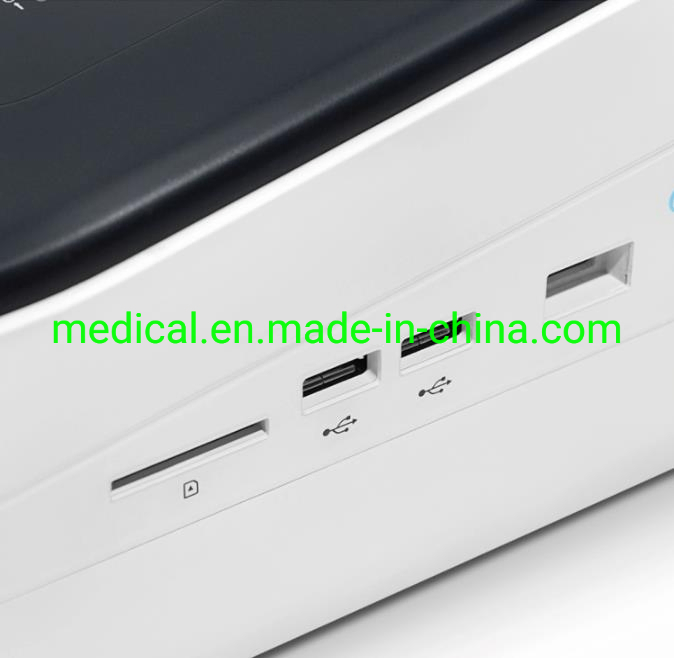

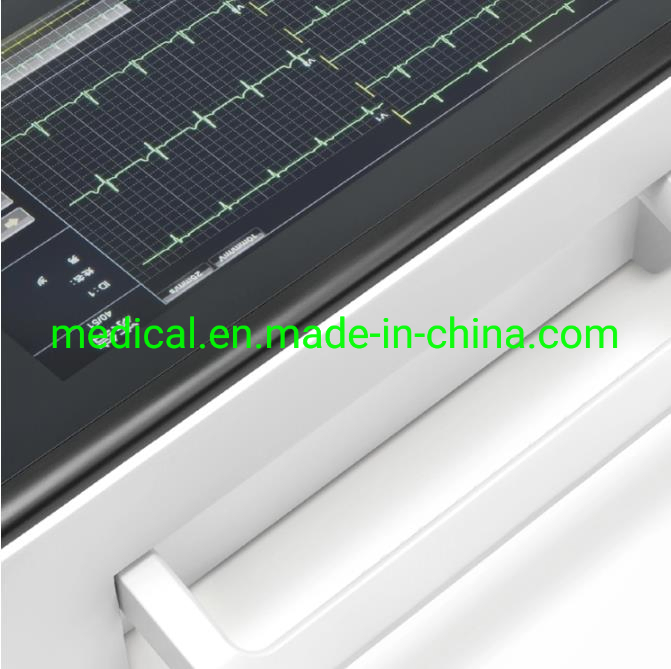

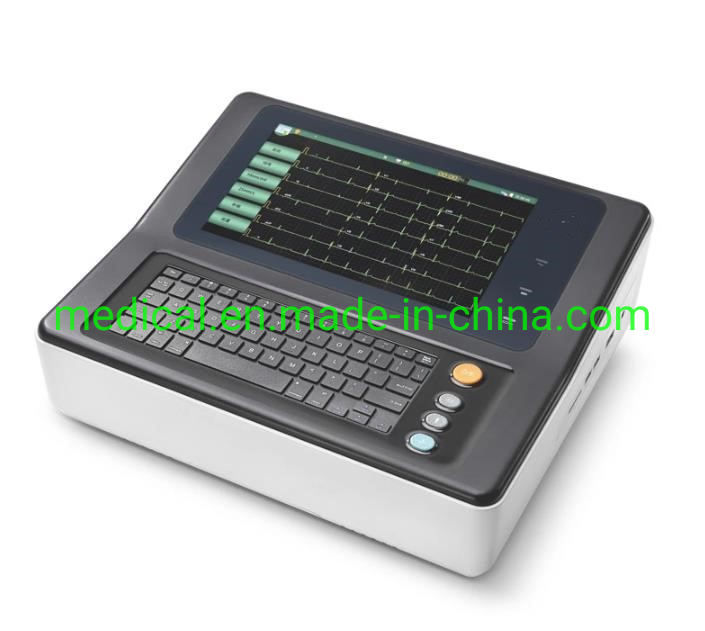

Real Manufacturer 12-Channel ECG-1212 Electrocardiograph Portable ECG Machine
Real Manufacturer 12-Channel ECG-1212 Electrocardiograph Portable ECG Machine
Real Manufacturer 12-Channel ECG-1212 Electrocardiograph Portable ECG Machine
Real Manufacturer 12-Channel ECG-1212 Electrocardiograph Portable ECG Machine
Real Manufacturer 12-Channel ECG-1212 Electrocardiograph Portable ECG Machine
1 / 5
Real Manufacturer 12-Channel ECG-1212 Electrocardiograph Portable ECG Machine
Real Manufacturer 12-Channel ECG-1212 Electrocardiograph Portable ECG Machine
Real Manufacturer 12-Channel ECG-1212 Electrocardiograph Portable ECG Machine
Real Manufacturer 12-Channel ECG-1212 Electrocardiograph Portable ECG Machine
Real Manufacturer 12-Channel ECG-1212 Electrocardiograph Portable ECG Machine

Real Manufacturer 12-Channel ECG-1212 Electrocardiograph Portable ECG Machine

Customization: Available
Classification: Imaging Diagnostic Equipment
Type: ECG
Send Inquiry

Product Description

📋

Basic Information

Model NO.
SC-kms1212
Certification
CE
Group
All
Transport Package
BOX
Specification
CE/ISO/FDA
Origin
China
HS Code
9018
Production Capacity
10,000 sets/year
🩺

Product Description

Real manufacturer 12-channel ECG-1212 electrocardiograph portable ECG machine
Leads 9/12 leads simultaneous acquisition
Sampling Rate 16000Hz/channel/second
A/D Resolution 24bits
HR Range 30~300bpm
Time Constant ≥ 3.2s
Polarizing Voltage ±600mV
Input Impedance >50MΩ
Frequency Response 0.01~300Hz
Noise Level ≤12.5µVp-p
DFT Filter 0.01/0.05/0.32/0.67Hz
EMG Filter / Low Pass 25/35/45/75/100/150/270/300Hz
Pacemaker Detection Amplitude: ±750uV ~ ±700mv, Width 50 us ~ 2.0 ms; Sampling Frequency: 16000Hz

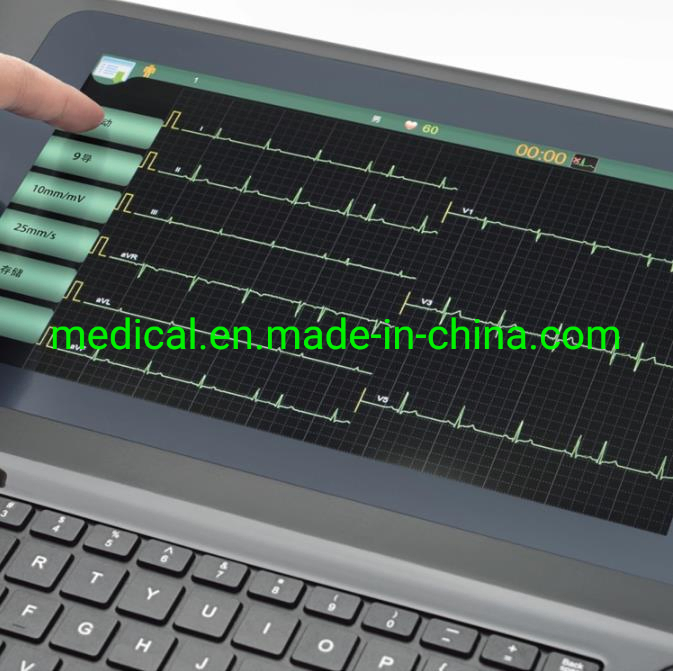

LCD Display 10.1 inch TFT color LCD (1024*600) with touch screen
Power Supply AC input (100~240V, 50/60Hz) & Rechargeable Lithium battery (4400mAH) supporting 400 exams
Recording Speed 5/6.25, 10/12.5/25/50mm/s
Recording Paper Z-fold 210×295mm×100sheets / Roller type 210mm×20/30mm
🖼️

Product Showcase

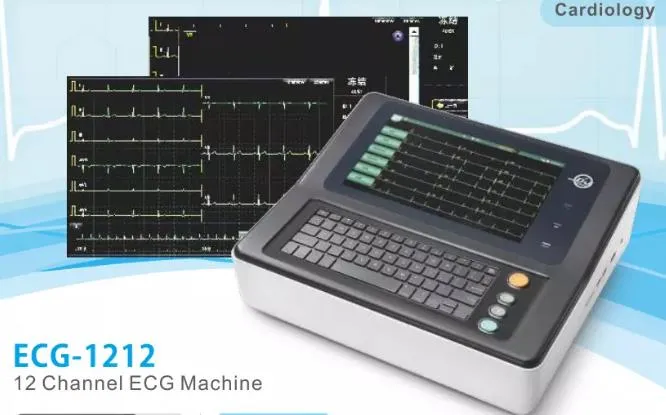

ECG Machine View 1

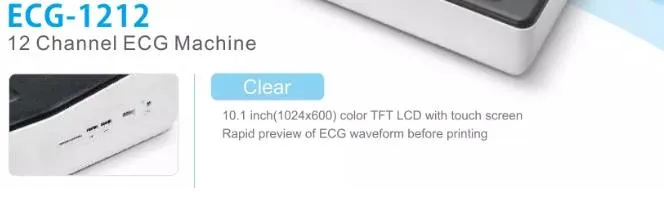

ECG Machine View 2

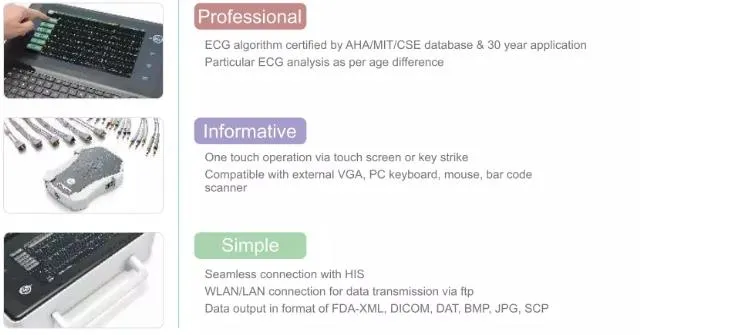

ECG Machine View 3
ECG Machine View 4
ECG Machine View 5

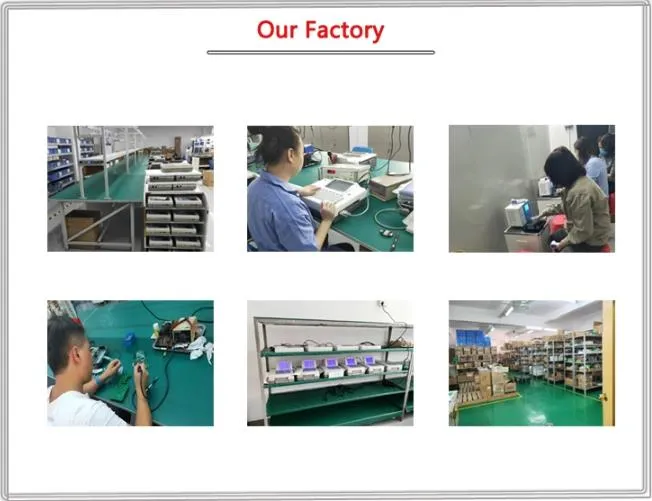

ECG Machine View 6
❓

Frequently Asked Questions

How many leads does the ECG-1212 support?
The device supports 9/12 leads simultaneous acquisition for comprehensive cardiac monitoring.
What are the display specifications?
It features a 10.1-inch TFT color LCD with a resolution of 1024*600 and includes touch screen functionality.
Does the machine have a built-in battery?
Yes, it is equipped with a rechargeable 4400mAH Lithium battery that can support up to 400 exams on a single charge.
Can it detect pacemakers?
Yes, the device includes a pacemaker detection function with a high sampling frequency of 16000Hz.
What type of recording paper is required?
The machine uses Z-fold paper (210×295mm) or roller type paper (210mm) for printing results.
What certifications does this ECG machine hold?
The product is compliant with CE, ISO, and FDA specifications, ensuring high quality and safety standards.
