UV Water Disinfection UV Water Sterilizer Ultraviolet Water Purification 25W

1 / 5

UV Water Disinfection UV Water Sterilizer Ultraviolet Water Purification 25W

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

UV-25W

Application

Household

Capacity

1300L/H

Transport Package

Neutral(Blank) or Customized

HS Code

8543709990

Production Capacity

500,000 pieces/Month

Product Features

💧

Ideal for potable and high purity water applications.

🛡️

304 Stainless Steel construction (electropolished/passivated); 316 Stainless Steel optional.

🔄

Dual heads can be removed and rotated for versatile installation.

💡

Retainer Cap design allows for effortless lamp changes.

🧪

Fused quartz sleeve ensures optimum lamp output at normal water temperatures.

⚠️

Equipped with a lamp operation indicator and alarm system on the ballast.

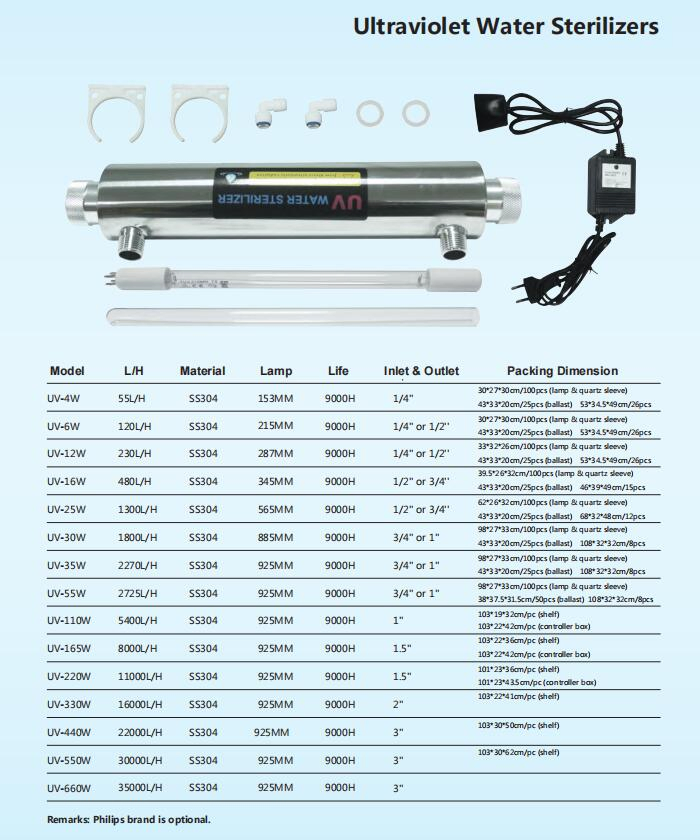

Technical Specifications

Model	Flow Rate (L/H)	Material	Lamp Length	Lamp Life	Inlet & Outlet
UV-4W	55L/H	SS304	153MM	9000H	1/4"
UV-6W	120L/H	SS304	215MM	9000H	1/4" or 1/2"
UV-12W	230L/H	SS304	287MM	9000H	1/4" or 1/2"
UV-16W	480L/H	SS304	345MM	9000H	1/2" or 3/4"
UV-25W	1300L/H	SS304	565MM	9000H	1/2" or 3/4"
UV-30W	1800L/H	SS304	885MM	9000H	3/4" or 1"
UV-35W	2270L/H	SS304	925MM	9000H	3/4" or 1"
UV-55W	2725L/H	SS304	925MM	9000H	3/4" or 1"
UV-110W	5400L/H	SS304	925MM	9000H	1"
UV-165W	8000L/H	SS304	925MM	9000H	1.5"
UV-220W	11000L/H	SS304	925MM	9000H	1.5"
UV-330W	16000L/H	SS304	925MM	9000H	2"
UV-440W	22000L/H	SS304	925MM	9000H	3"
UV-550W	30000L/H	SS304	925MM	9000H	3"
UV-660W	35000L/H	SS304	925MM	9000H	3"

Frequently Asked Questions

What is the lifespan of the UV lamp?

The UV lamp is designed for a long service life of approximately 9,000 hours, ensuring consistent disinfection performance.

What materials are used for the sterilizer chamber?

The standard chamber is made of 304 Stainless Steel, which is electropolished and passivated. 316 Stainless Steel is also available as an optional upgrade.

How do I know if the UV lamp is working correctly?

The system includes a lamp operation indicator and an integrated alarm system on the ballast to notify you of the lamp's status.

Is the installation process flexible?

Yes, the unit features dual heads that can be removed and rotated, providing significant versatility during the installation process.

How difficult is it to replace the UV lamp?

Lamp replacement is effortless thanks to the Retainer Cap design, which allows for quick changes without complex tools.

What is the capacity of the UV-25W model?

The UV-25W model has a treatment capacity of 1,300 Liters per Hour (L/H), making it ideal for household applications.
