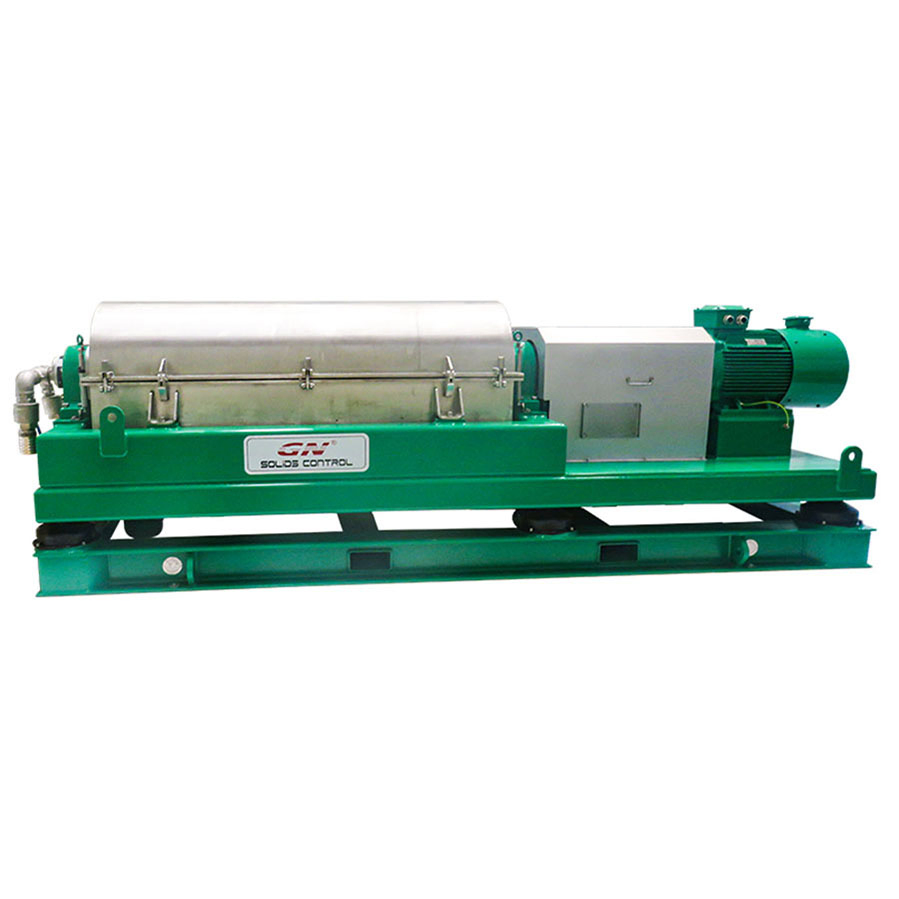

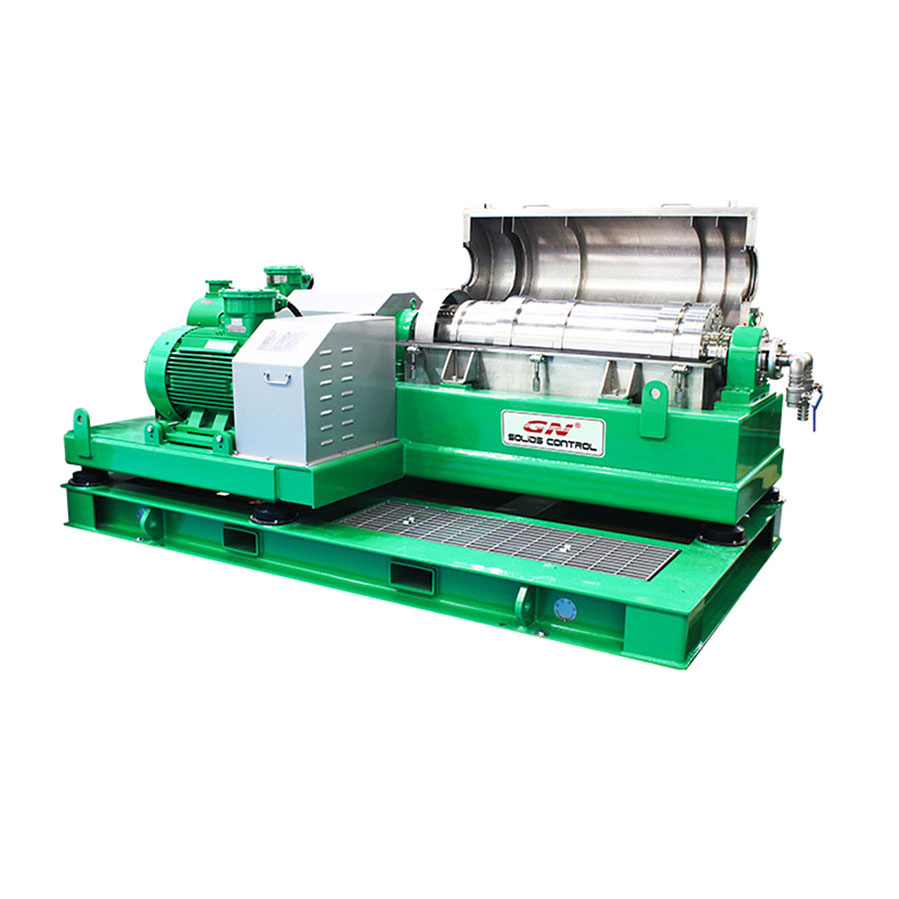

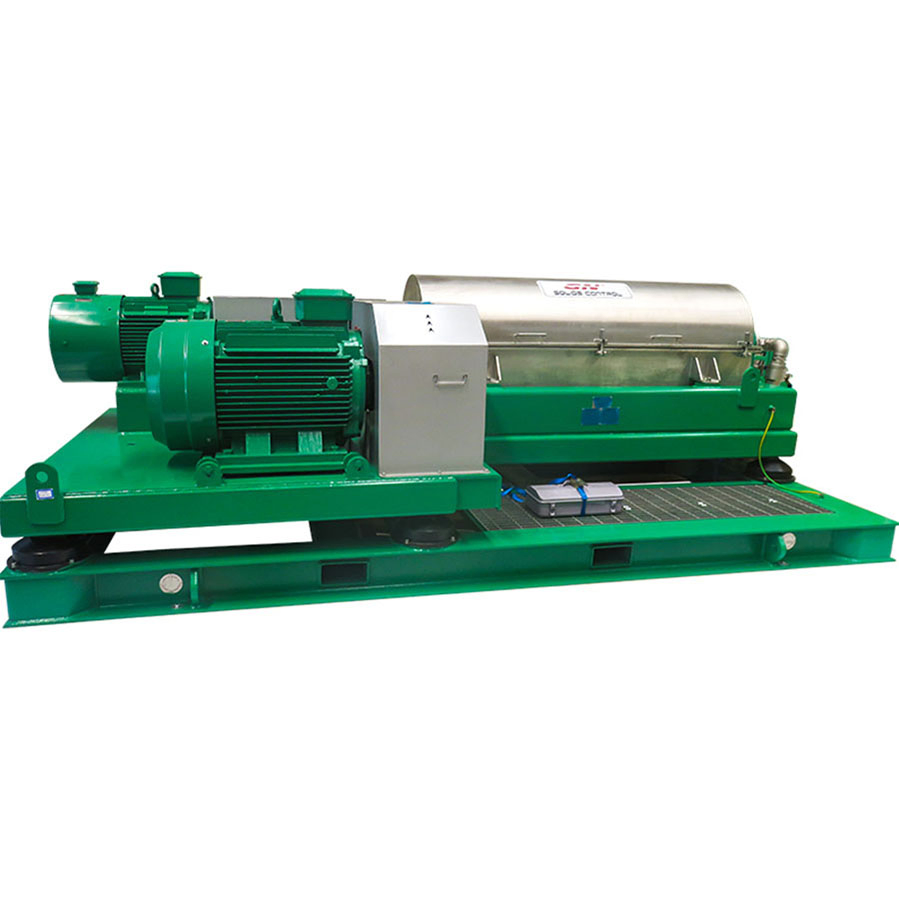

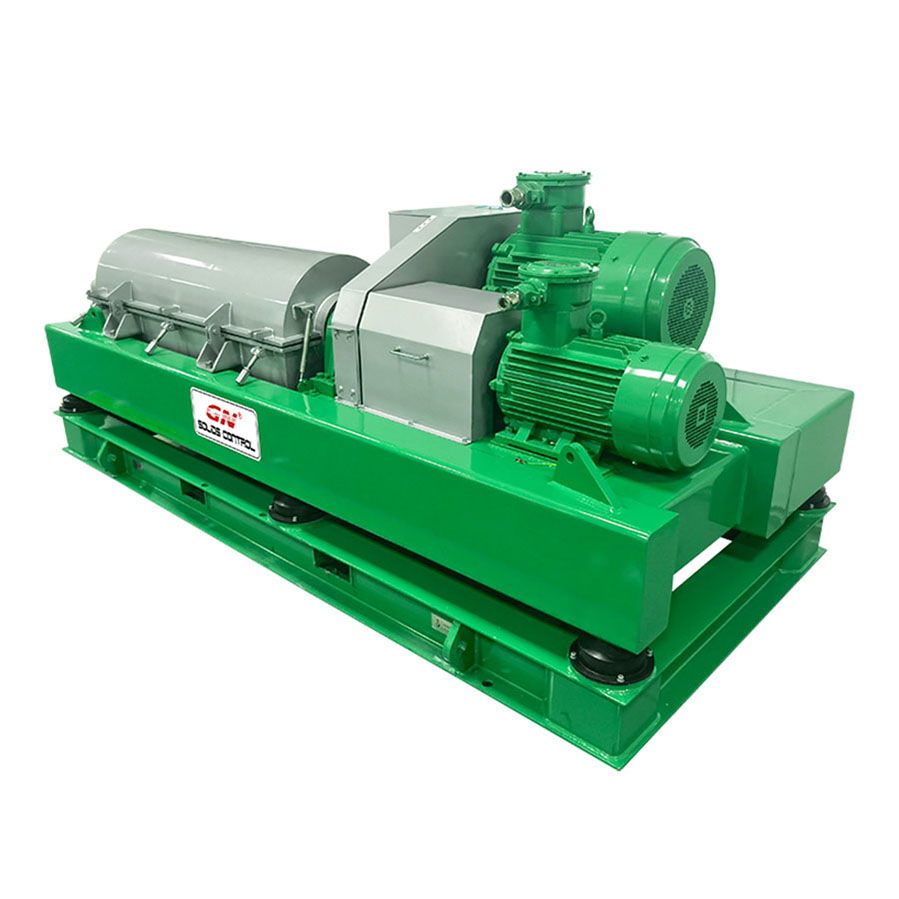

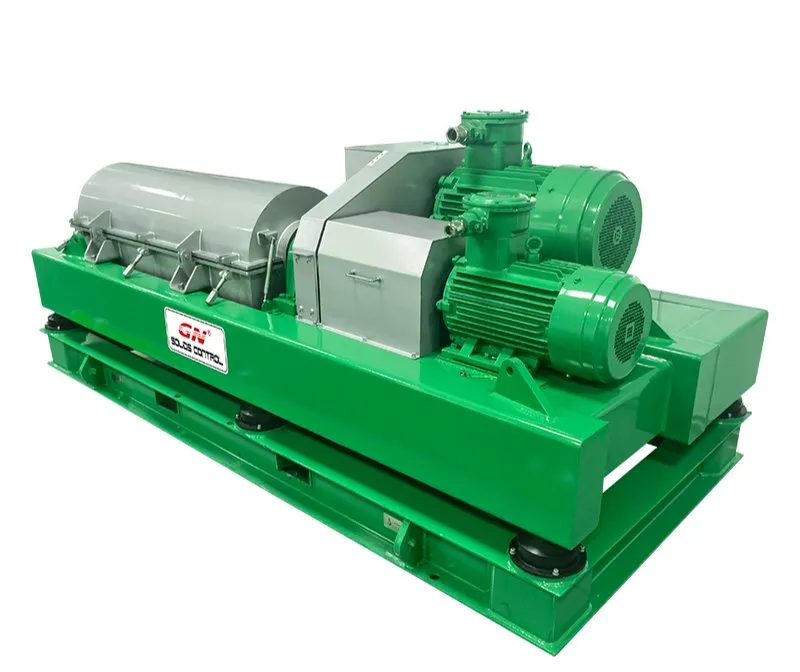

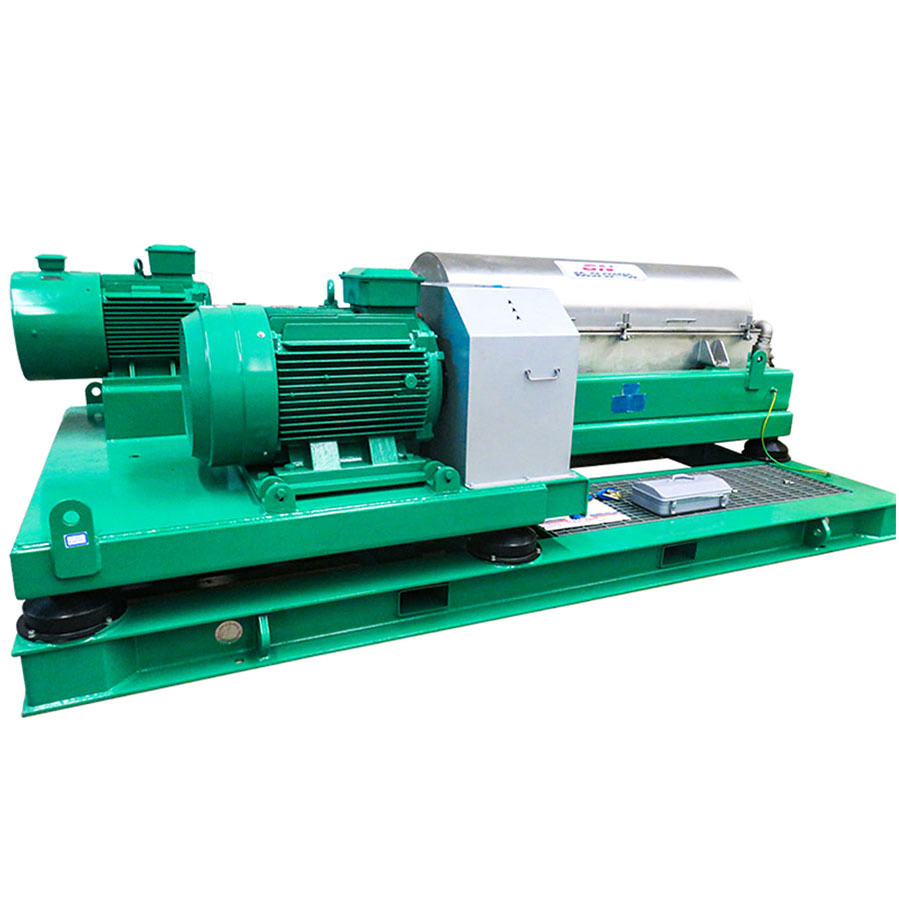

A drilling mud centrifuge is a critical piece of equipment used in the drilling industry to separate solids from liquid in drilling fluids. It is also known as a decanting centrifuge. The drilling mud centrifuge works on the principle of centrifugal force, which separates the heavier and larger solid particles from the liquid phase.
The centrifuge is capable of removing solids as small as 2 to 5 microns in size. This is important because smaller solids can cause significant damage to the drilling equipment, leading to costly repairs and downtime. The drilling mud centrifuge helps to reduce such damage and ensures uninterrupted drilling operations.
One of the most significant advantages of the drilling mud centrifuge is its efficiency and cost-effectiveness in separating solids from drilling fluids. The centrifuge reduces the disposal cost of waste solids and helps to maintain the properties of the drilling fluid. Additionally, it reduces the environmental impact of drilling activities by reducing the amount of waste produced.

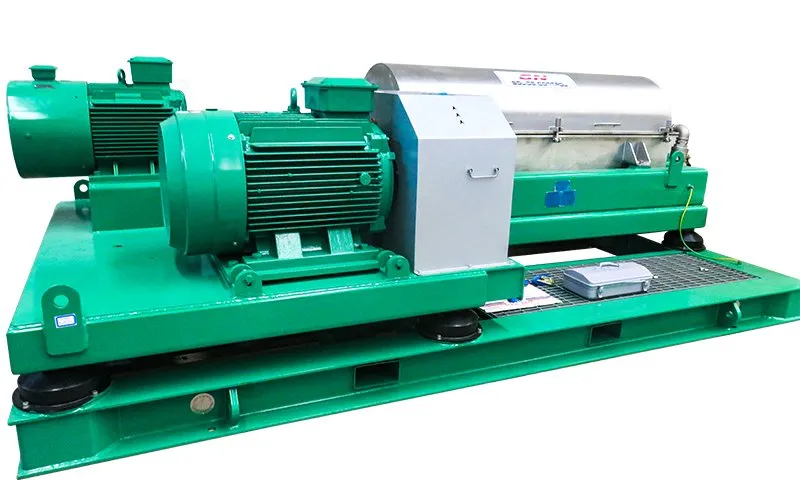

| High Configuration Decanter Centrifuge Parameters | ||||
|---|---|---|---|---|
| Model | LW363D-GP | LW363D-VFD | LW453C-VFD | LW553C-VFD |
| Bowl Diameter | 360mm | 360mm | 450mm | 550mm |
| Max. Capacity | 45m3/h | 45m3/h | 80m3/h | 110m3/h |
| Max Bowl Speed | 3900RPM | 3900RPM | 3200RPM | 3000RPM |
| Max G-Force | 3063 | 3063 | 2578 | 2719 |
| Main Motor | 37KW | 37KW | 55KW | 90KW |
| Economic Configuration Decanter Centrifuge Parameters | |||
|---|---|---|---|
| Model | LW223D | LW224EP-VFD | LW452C-GP |
| Bowl Diameter | 220mm | 220mm | 450mm |
| Bowl Length | 670mm | 924mm | 1105mm |
| Max. Capacity | 9m³/h | 9m³/h | 57m³/h |
| Max Bowl Speed | 4500RPM | 4500RPM | 1800RPM |
| Weight | 850KG | 850KG | 3410KG |

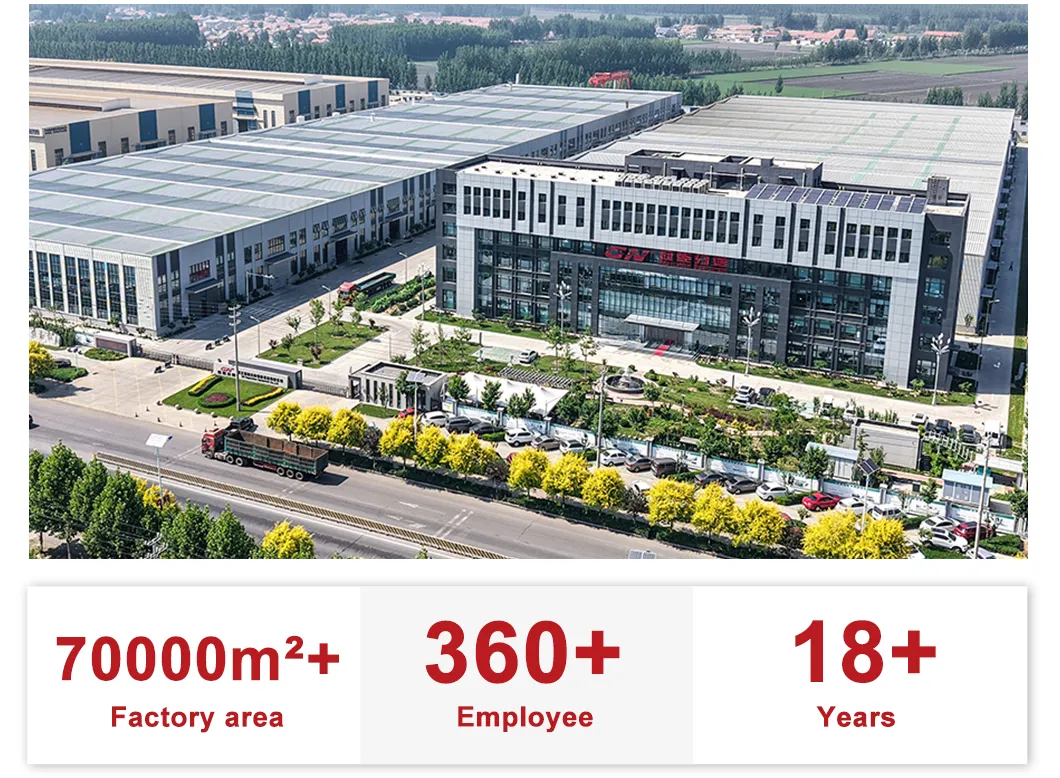

The company is a globally recognized manufacturer specialized in manufacturing separation equipment. The main production lines include decanter centrifuges, mining vibrating screens, drilling fluids solids control equipment, and integrated mud systems. With extensive manufacturing areas and exports to more than 90 countries, the facility is committed to delivering high-performance equipment for mining, environmental, petroleum, and construction industries.
