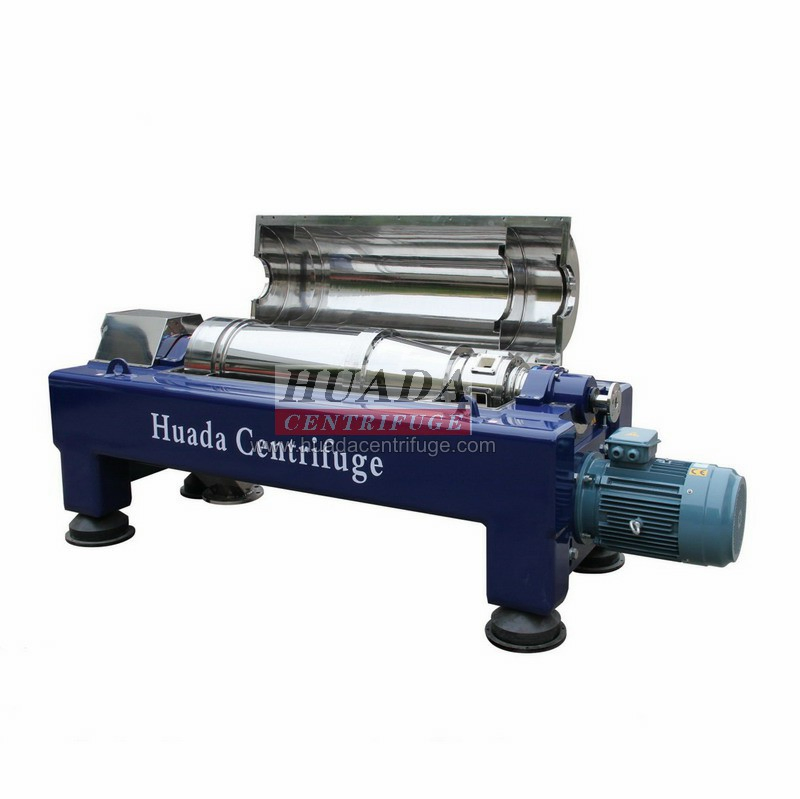

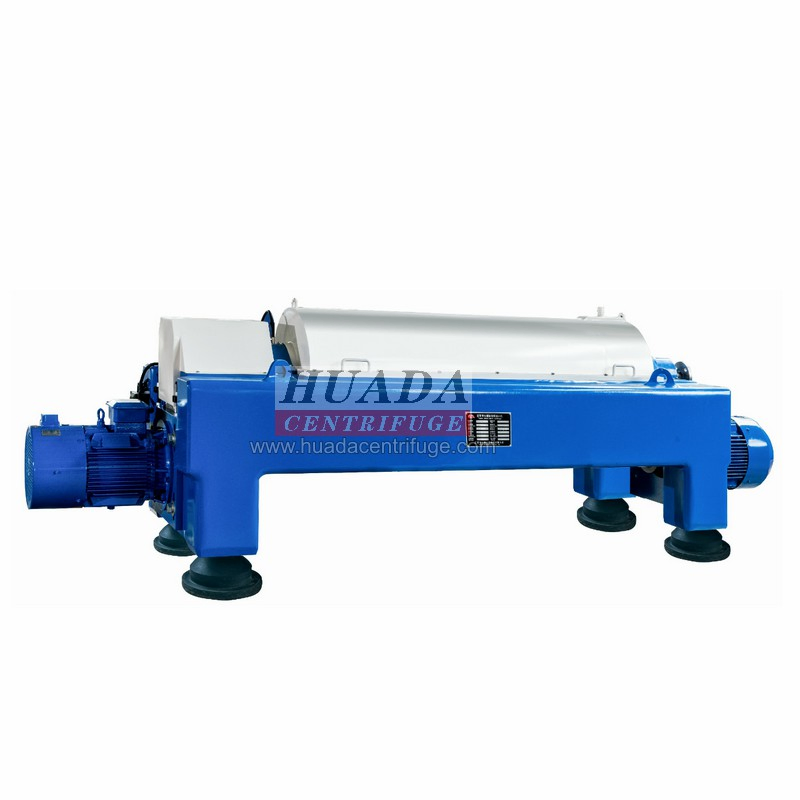

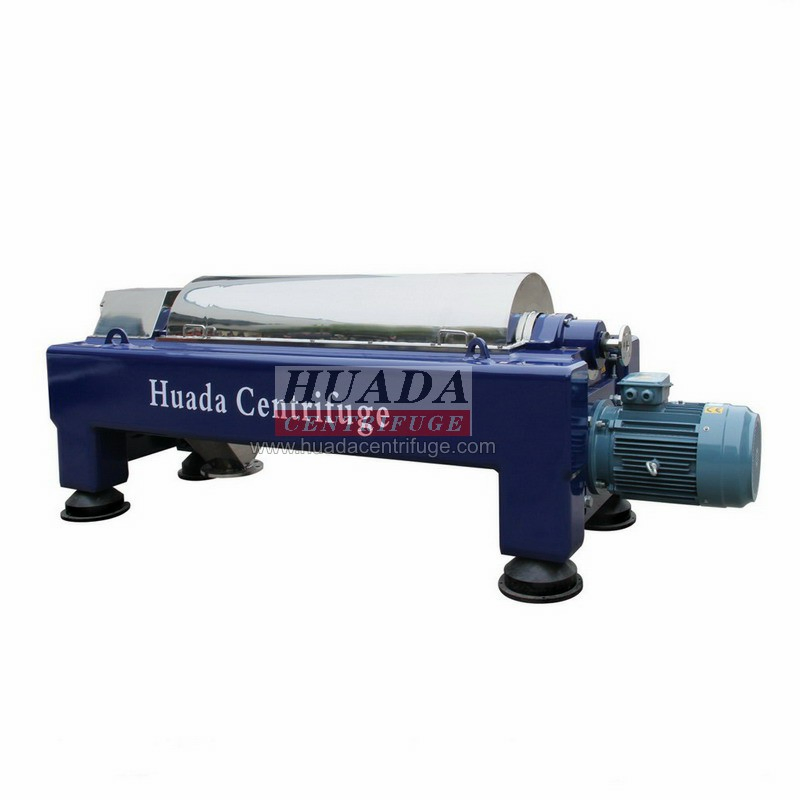

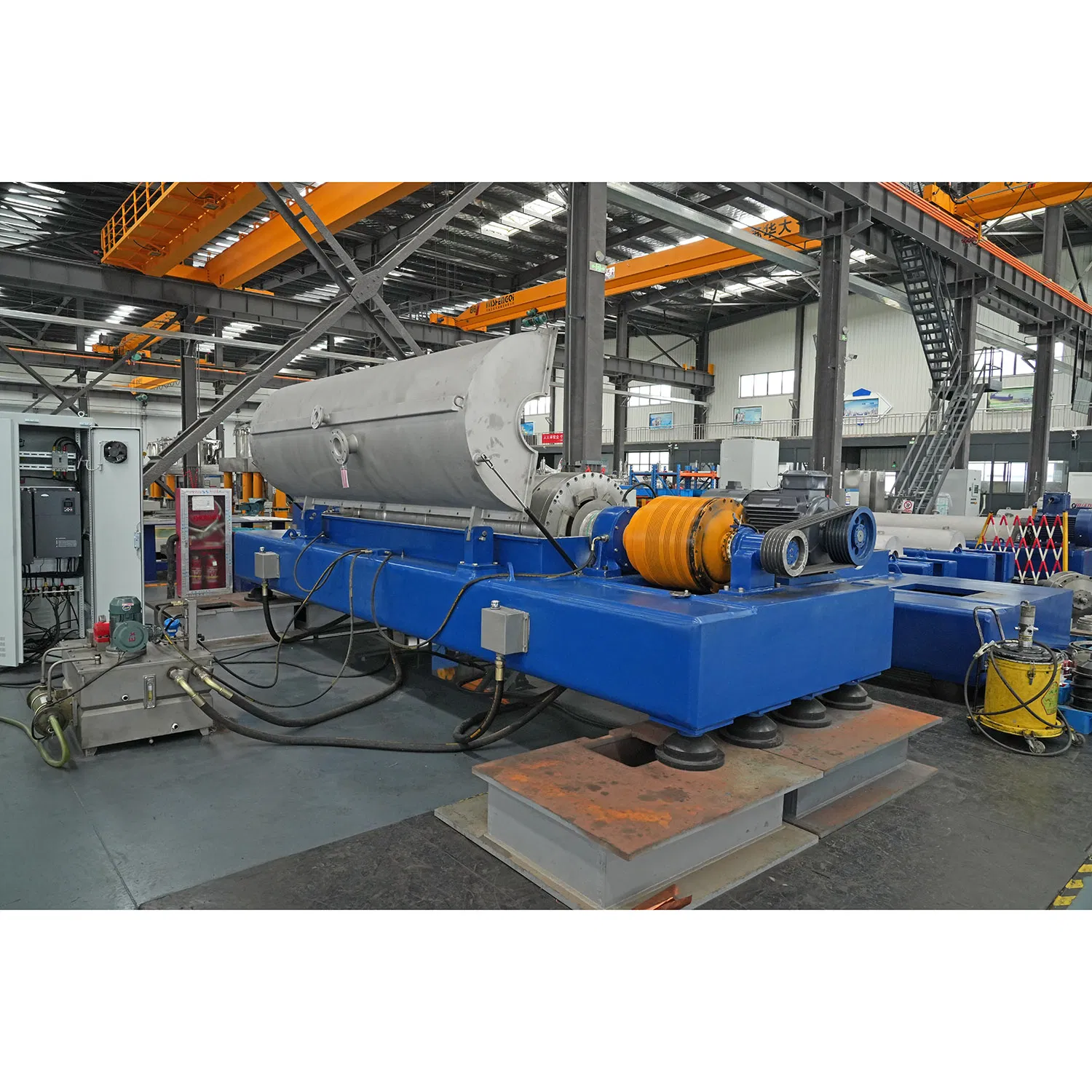

LW Decanter Centrifuges (Standard Type)

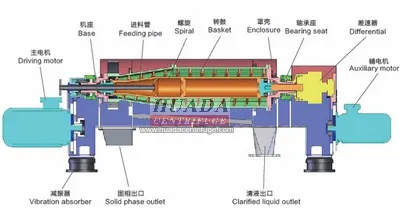

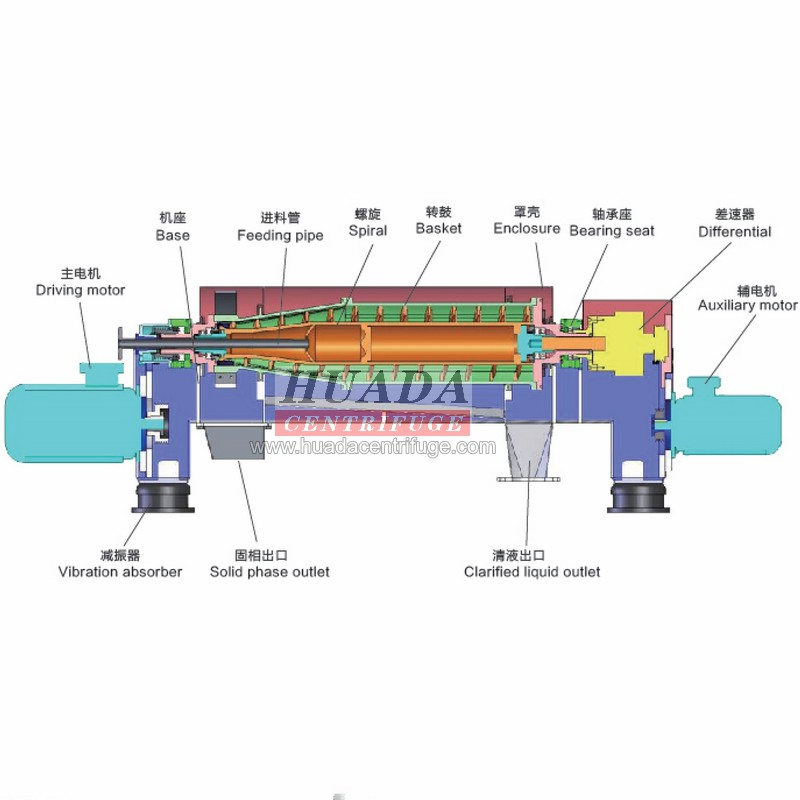

LW series products are decanter centrifuges that can work continuously and are mainly used for solid-liquid separation, dehydration, fractionation, clarification, and concentration of materials. Based on different phase densities, it separates the solid phases and liquid phases under the action of the centrifugal force generated by the high-speed revolution of the Bowl. The solid phases are conveyed to the conical end of the Bowl through a spiral and then discharged, and the liquid phases are discharged out from the overflow port at the big end of the Bowl.

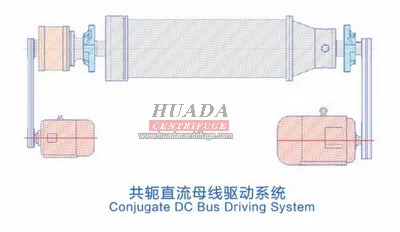

DRIVING TECHNOLOGY

Dual-motor and dual-frequency driving mode is adopted for better differential regulation. It is more adaptive to the change of working conditions to ensure the separation effect; Dynamic feedback design is employed to reduce power consumption effectively.

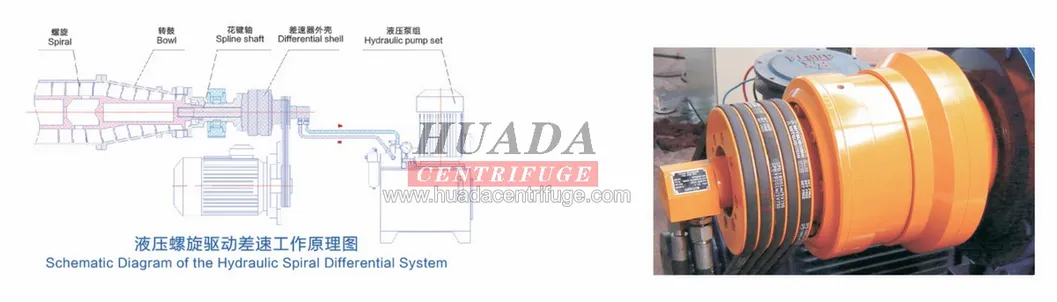

Hydraulic Gearbox System

• Moisture content in the mud cake is always maintained at the minimum
• The liquid after treatment is highly clarified
• The power to transport the solid substances varies with load
• Gearless driving device is applied
• Breakage of parts caused by excess load is avoided
• Torsion-free vibration (flutter)
• "Constant" humidity of mud cake
• Safety pin design ensures operation safety
• Being insensitive to the increase/decrease of feeding quantity, it minimizes the material blocking possibility

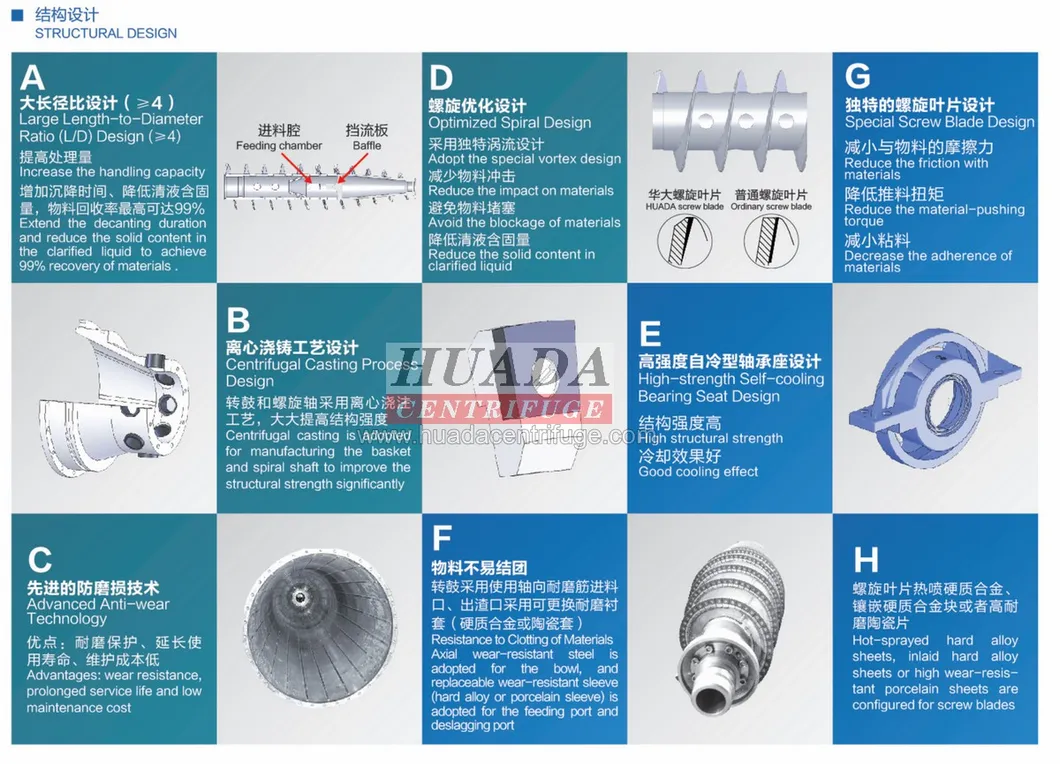

ADVANTAGES OF DECANTER CENTRIFUGE

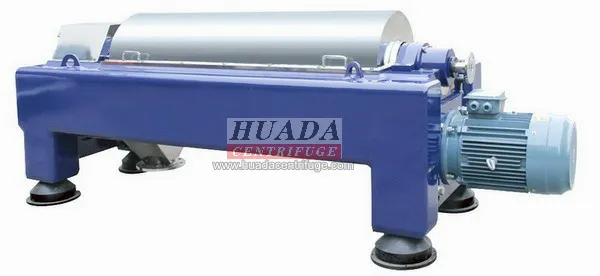

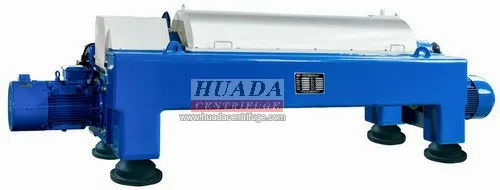

LW DECANTER CENTRIFUGE STANDARD TYPE

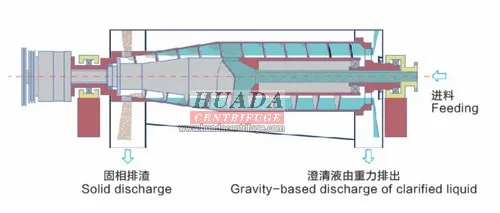

Labyrinth seal is adopted for both ends of the Bowl of the standard type of the LW series, which is simple yet efficient. After separation, the solid phases are pushed to the solid discharge outlet through a spiral and then discharged out of the Bowl under the action of the centrifugal force. Featuring simple operation, stable operation, high efficiency and high automation, and continuous working of 24 hours, this type is widely applied.
