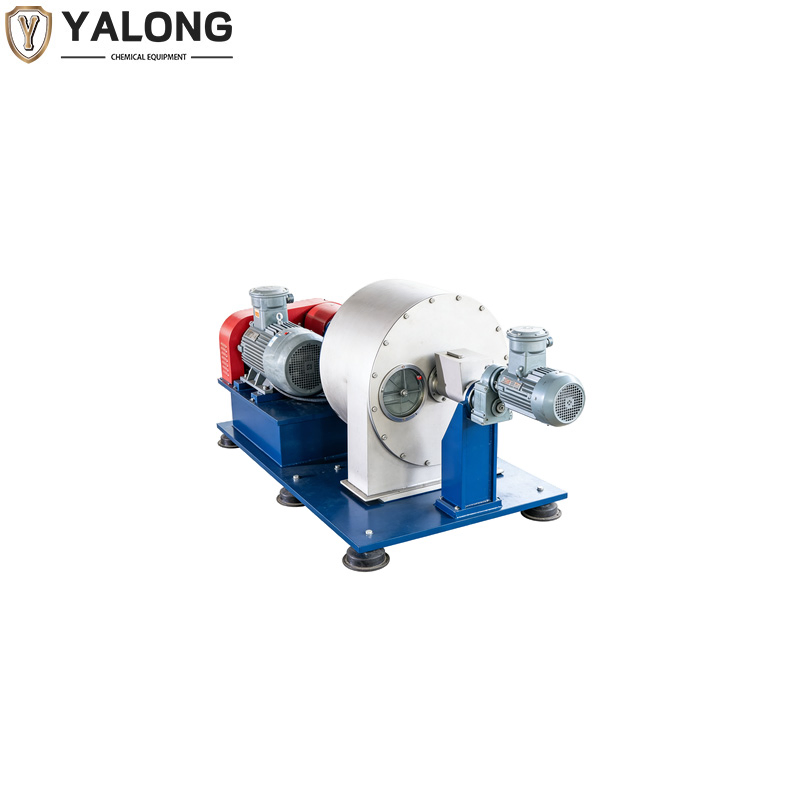

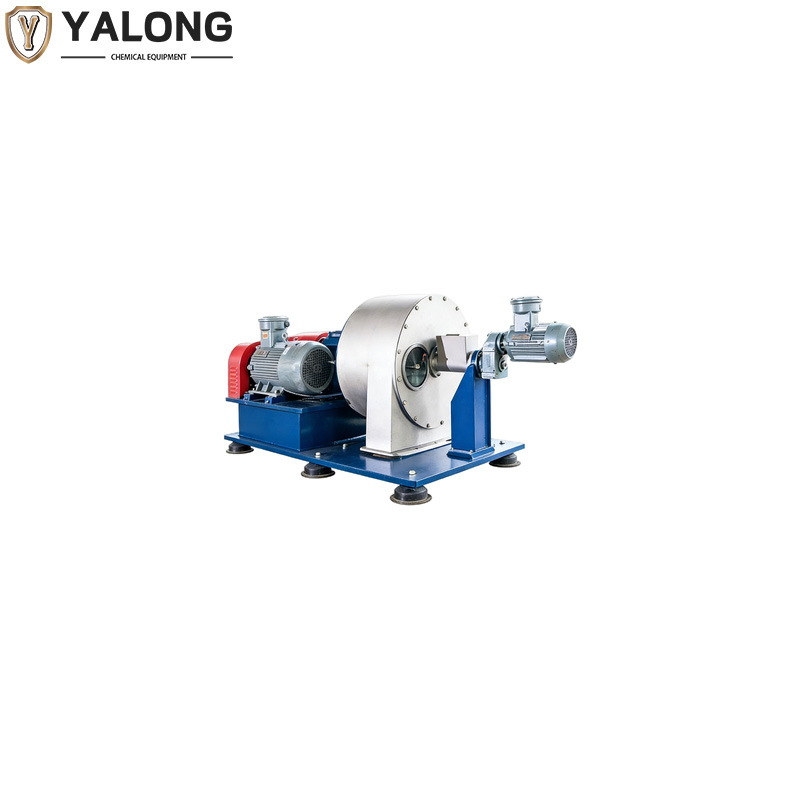

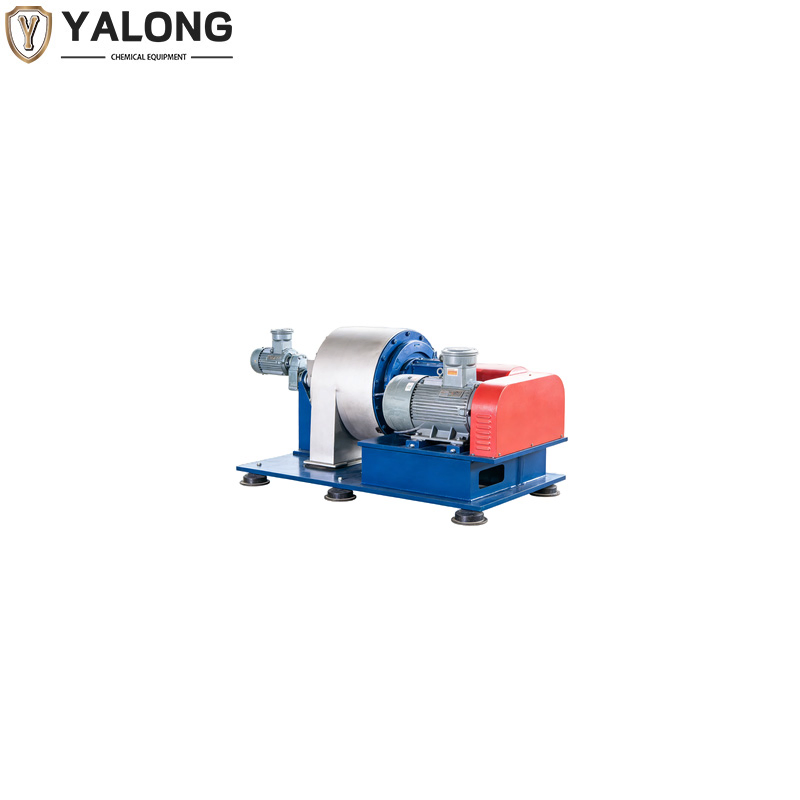

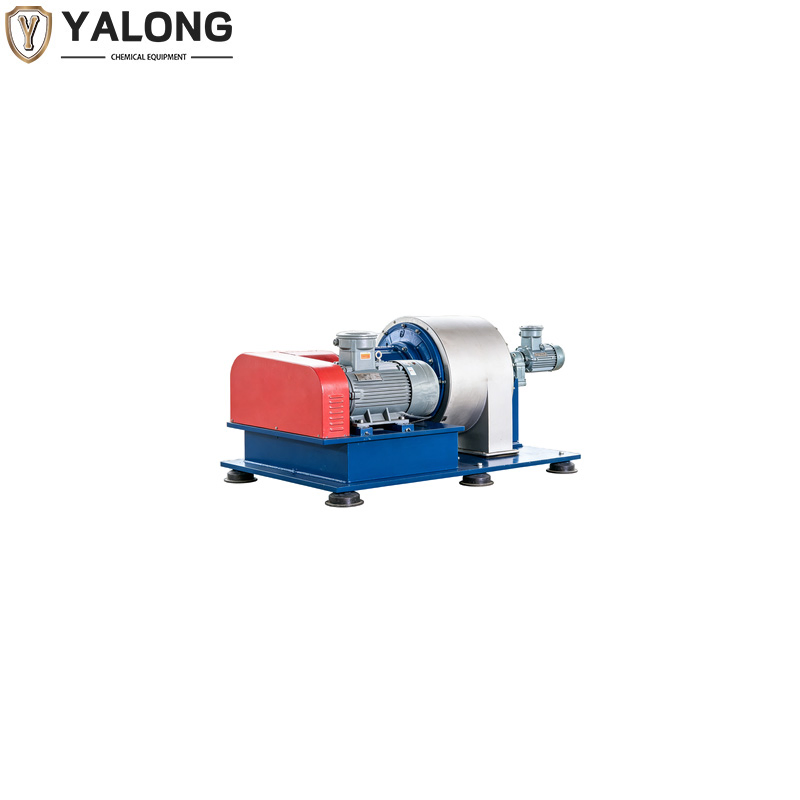

Llw Spiral Feed Type Spiral Discharge Filter Centrifuge

1 / 5

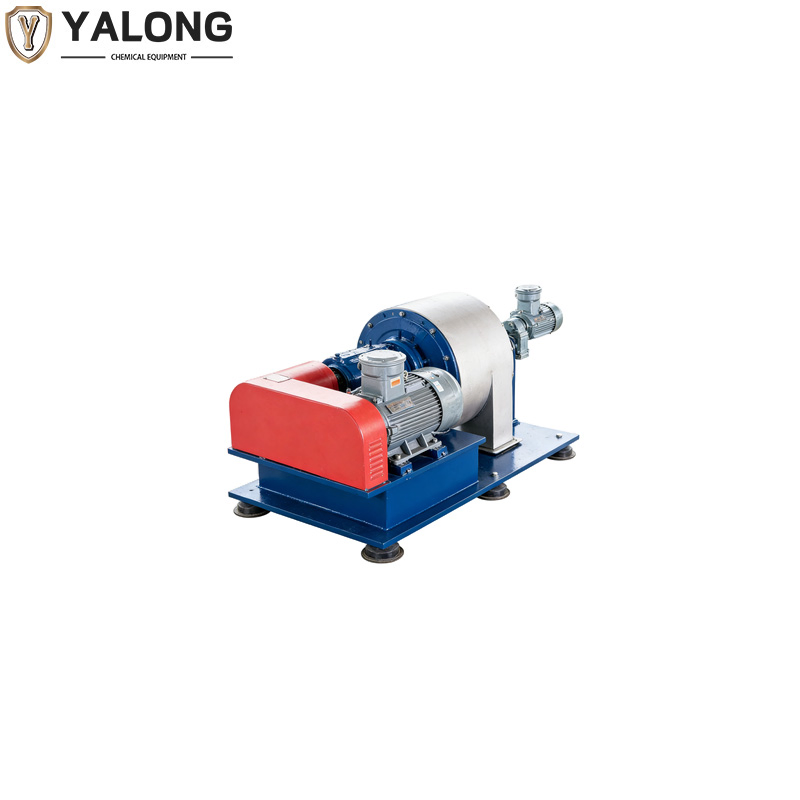

Llw Spiral Feed Type Spiral Discharge Filter Centrifuge

Customization:	Available
After-sales Service:	Online and at Site Support
Warranty:	1 Year Quality Insurance

Send Inquiry

Product Description

📋

Basic Information

Model NO.

LLW

Type

Centrifuge

Installation

Horizontal

Separation Factor

1765

Main Motor Power

11 Kw

Transport Package

Wooden Case

⚙️

Product Introduction

LLW spiral feed type spiral discharge filter centrifuge is an advanced solid-liquid separation equipment with low energy consumption, high performance, and continuous operation capabilities. It is widely applied in chemical industry, food processing, mining, and pharmaceutical sectors, especially for high-salt wastewater treatment.

Working Principle: Under centrifugal force generated by high-speed rotation, the liquid phase is discharged through the filter screen while solids form a filter cake. A relative differential speed pushes the solids via screw into the discharge port for continuous separation.

📊

Technical Specifications

Model	LLW350LX	LLW450LX
Drum Diameter (mm)	350	450
Rotational Speed (r/min)	2500	2500
Separation Factor	1765	1575
Production Capacity (N/min)	1-5	2-8
Main Motor Power (kW)	11	22
Dimension (LxWxH mm)	2300x1180x1000	2360x1210x1040

🌟

Key Features & Service

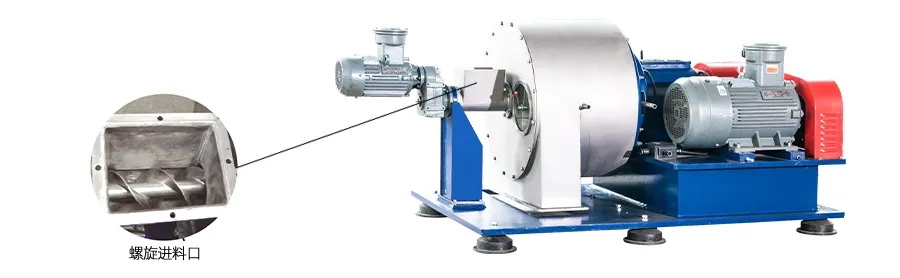

Stable Operation: Spiral feeding is reliable with minimal vibration.
Simple Maintenance: Simplified overall structure for convenient operation.
Warranty: 12 months or 2,000 operating hours standard warranty.
Support: 24/7 technical assistance and global spare parts supply.

📦

Packaging & Delivery

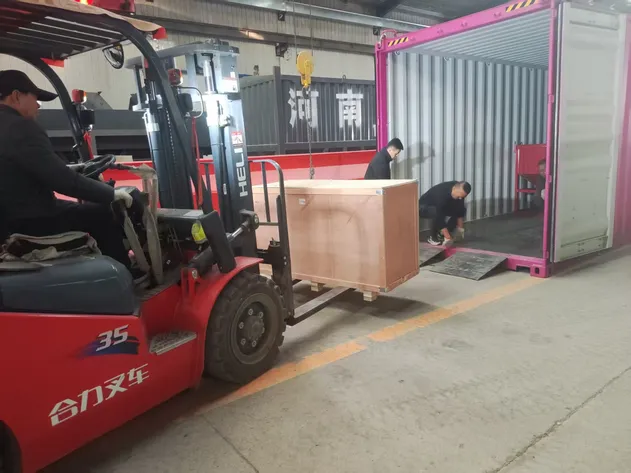

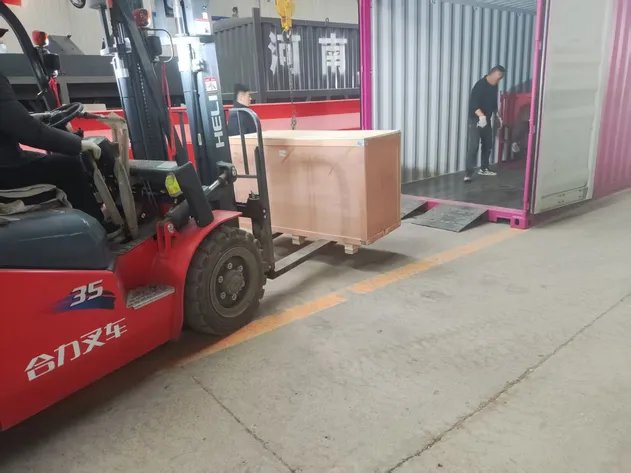

Professional export packaging using robust wooden cases for high structural resistance. Cases are wrapped with stretch film for dust and moisture protection. Integrated pallet bases allow for efficient forklift handling.

❓

Frequently Asked Questions

1. What types of chemical equipment do you supply? We mainly supply reactors, mixing tanks, distillation units, dryers, centrifuges, and heat exchangers.

2. What is the Minimum Order Quantity (MOQ)? The MOQ for our equipment is 1 set.

3. What are your typical delivery times? The lead time for a single unit is typically 30-40 days, depending on the chosen shipping method and configuration.

4. What payment methods are accepted? We accept T/T, L/C, and D/P. Generally, a 30% deposit is required upfront, with the balance due before shipment.

5. How do you ensure safe transport for international shipping? We use professional export-grade wooden cases and support various shipping modes including LCL, FCL, and bulk cargo via sea or rail.

6. Do you provide training for the equipment? Yes, we provide both on-site and remote operation and maintenance training for our global customers.
