| Model | Decanter Centrifuge | Type | Centrifuge |
|---|---|---|---|
| Separation Mode | Decanter Centrifuge | Operating Type | Continuous Type |
| Installation | Horizontal | Bowl Diameter | 220mm-760mm |
| Bowl Length | 924-3328 mm | Max G Force | 2900g-3200g |
| Main Motor | 11kw-160kw | Typical Capacity | 40m³/H-120m³/H |

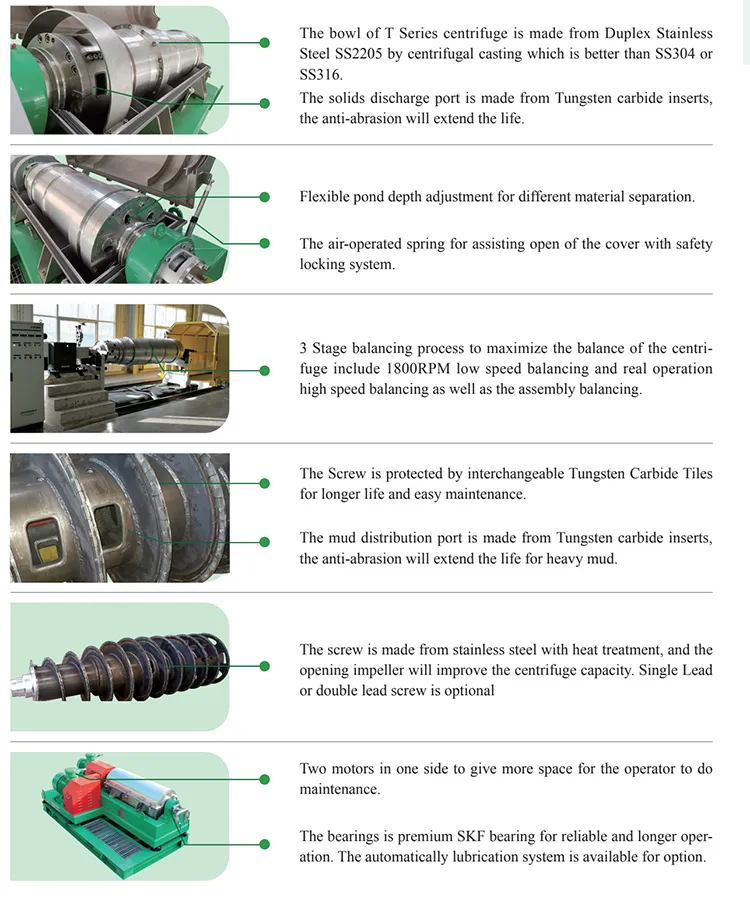

| Drive Type | VFD+PLC+HMI | Screw Material | Duplex Stainless SS2205/SS316 |
| Certification | CE, ISO9001 | Origin | China |

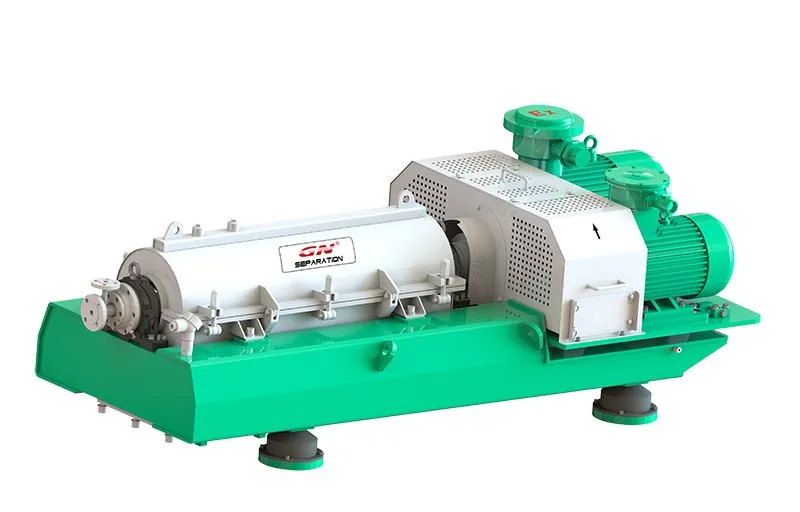

A 2-phase decanter, also known as a 2-phase centrifuge or a 2-phase separator, is an essential industrial equipment utilized for separating two immiscible phases, typically involving a liquid and a solid. It is widely employed across various industries, including oil and gas, chemical, pharmaceutical, and wastewater treatment.

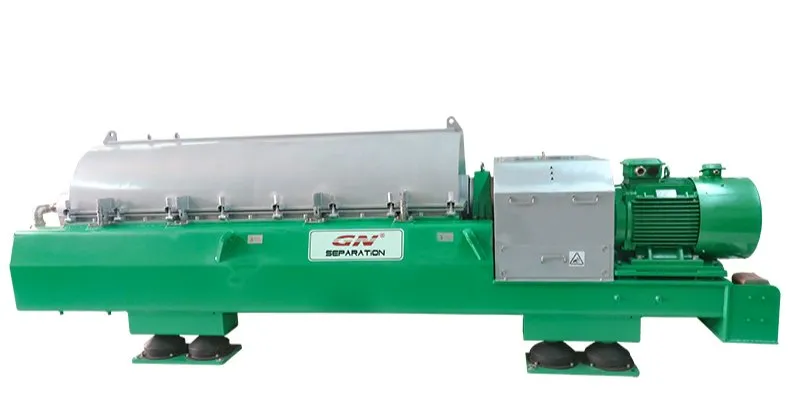

3-phase Decanter Centrifuge, also known as Tricanter, is a type of centrifuge used for the separation of three immiscible phases within a mixture. Operating on the principle of centrifugal force, this centrifuge efficiently divides complex mixtures into three distinct components, offering superior separation capabilities compared to its 2-phase counterpart.
| Model | GNLW-224F | GNLW-364F | GNLW-454F | GNLW-554F | GNLW-654E |
|---|---|---|---|---|---|
| Bowl Diameter | 220 mm | 360 mm | 450 mm | 550 mm | 650 mm |
| Bowl Length | 924 mm | 1512 mm | 1890 mm | 2310 mm | 2730 mm |
| Max Bowl Speed | 5099 RPM | 3986 RPM | 3452 RPM | 3123 RPM | 2873 RPM |
| Max G Force | 3200 G | 3200 G | 3000 G | 3000 G | 3000 G |
| Main Motor | 11 KW | 22/30/37 KW | 37/45/55 KW | 55/90 KW | 90/110 KW |
The 3-phase decanter centrifuge excels in dividing complex mixtures into oil, water, and solids simultaneously. It is an indispensable tool for:
| Model | GNLWS-364 | GNLWS-454 | GNLWS-554 |
|---|---|---|---|
| Capacity | 5 m³/h | 10 m³/h | 15 m³/h |
| Max Speed | 3986 RPM | 3452 RPM | 3123 RPM |
| Max G Force | 3200 G | 3000 G | 3000 G |
| Main Drive | 22/30 KW | 37/45 KW | 55/75 KW |
| Feed Material | Solids < 10% and Particle Size < 2mm | ||

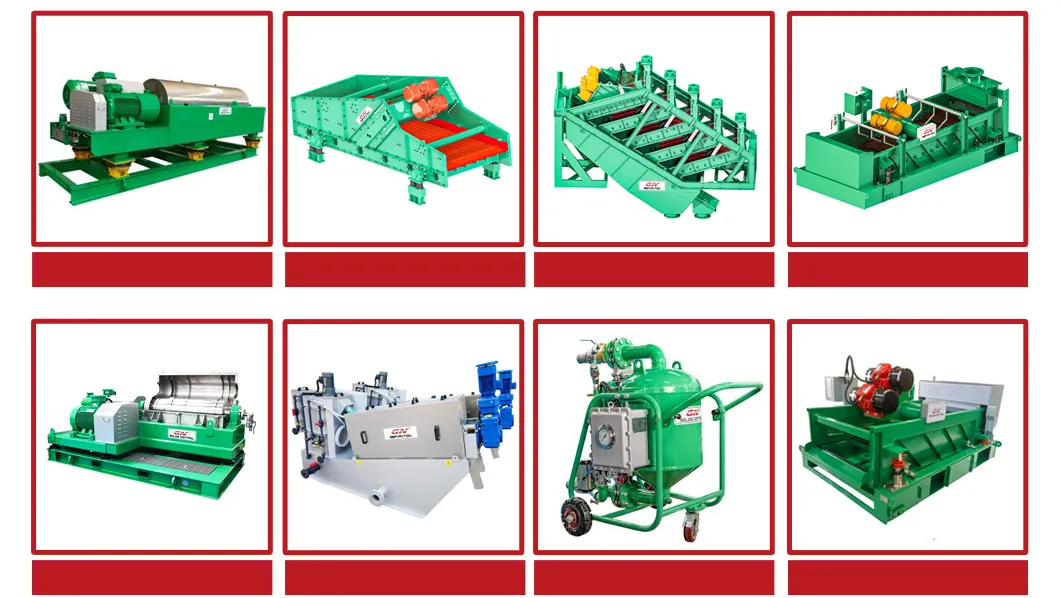

Our manufacturing plant is specialized in separation equipment, including decanter centrifuges, mining vibrating screens, and drilling fluids solids control equipment. With over 140,000 sqm of manufacturing area and exports to more than 90 countries, we are committed to delivering high-performance equipment for mining, environmental, petroleum, and construction industries.
