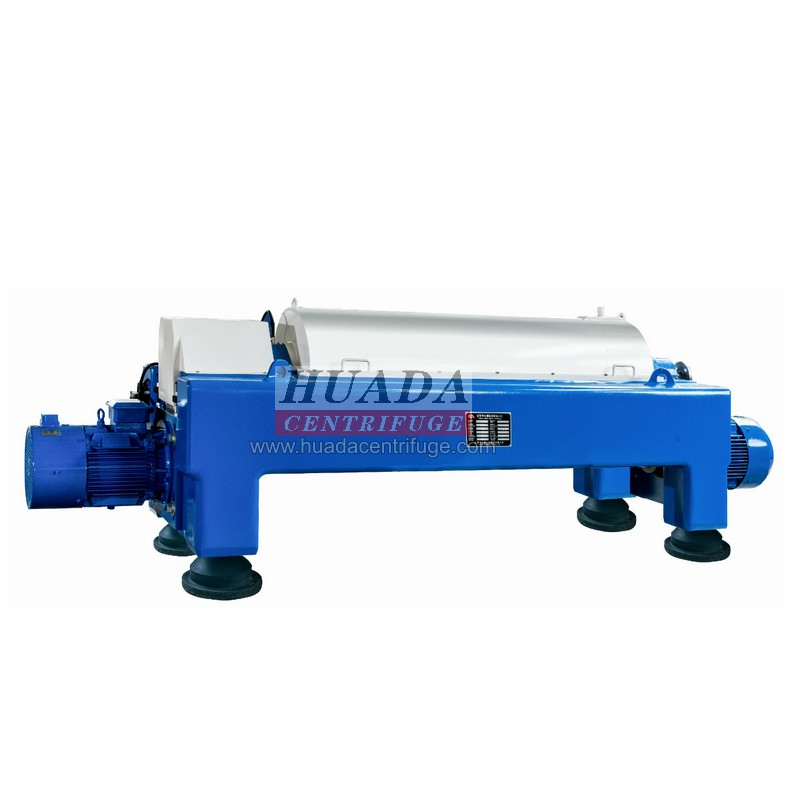

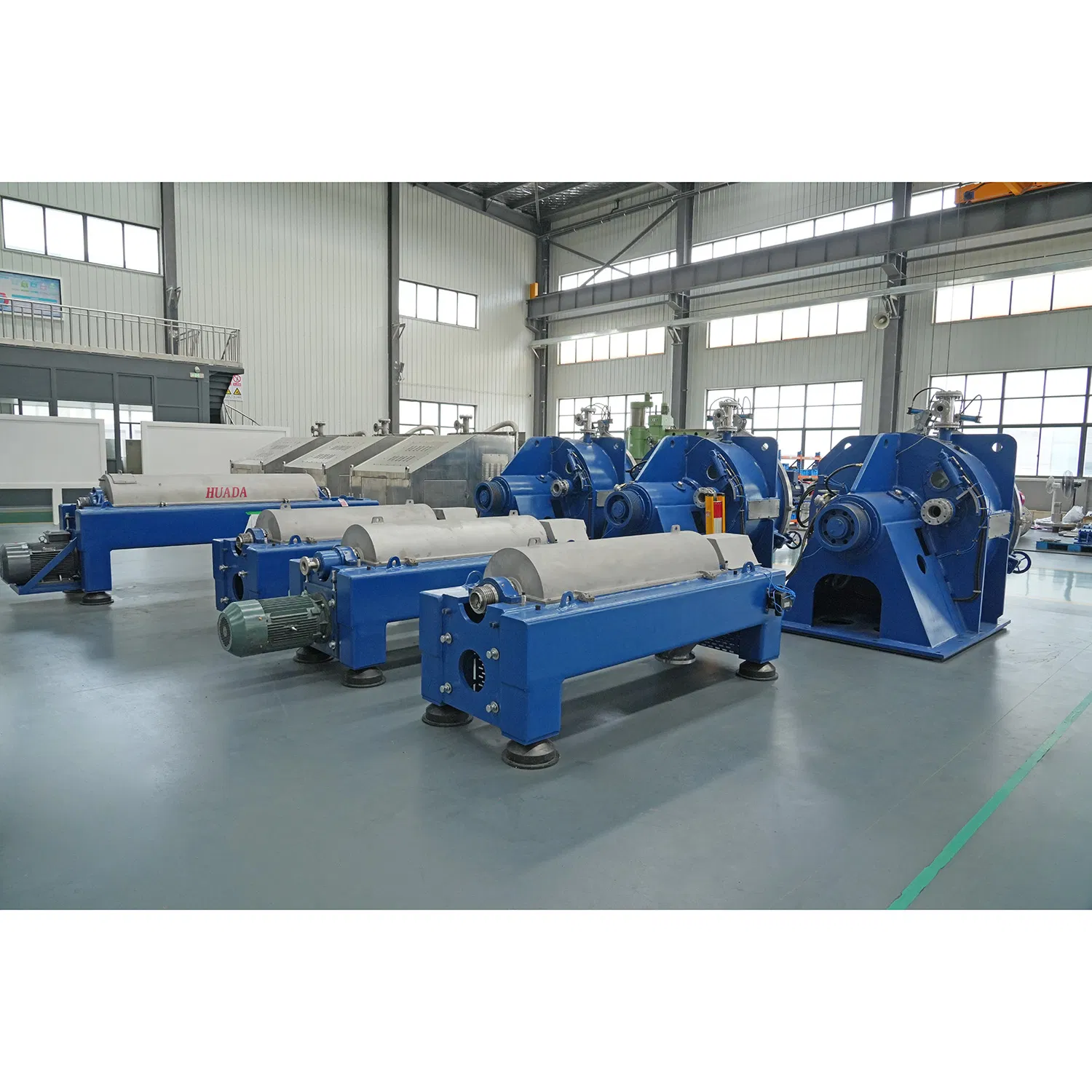

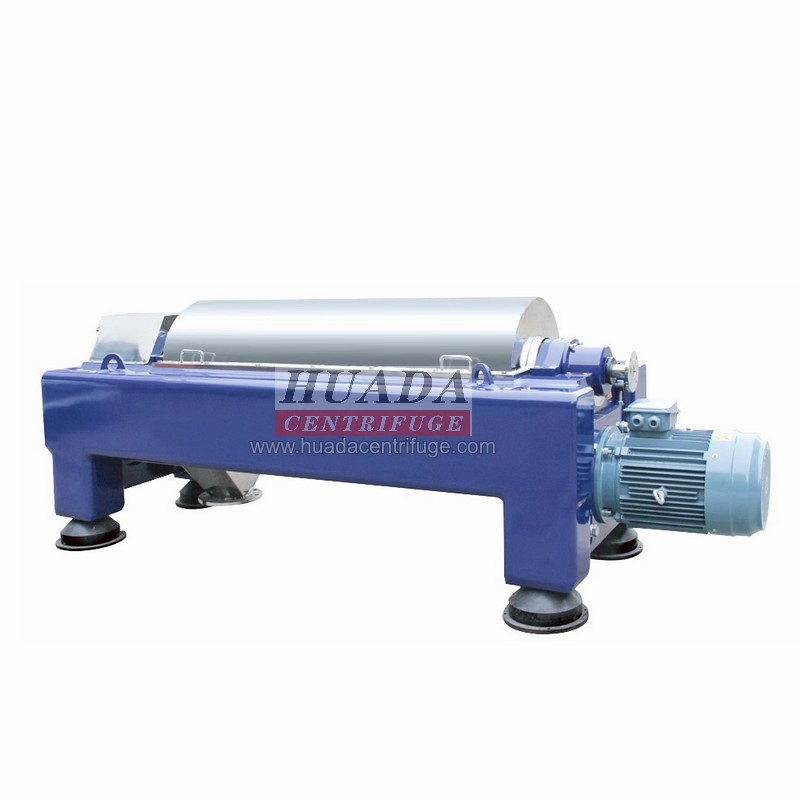

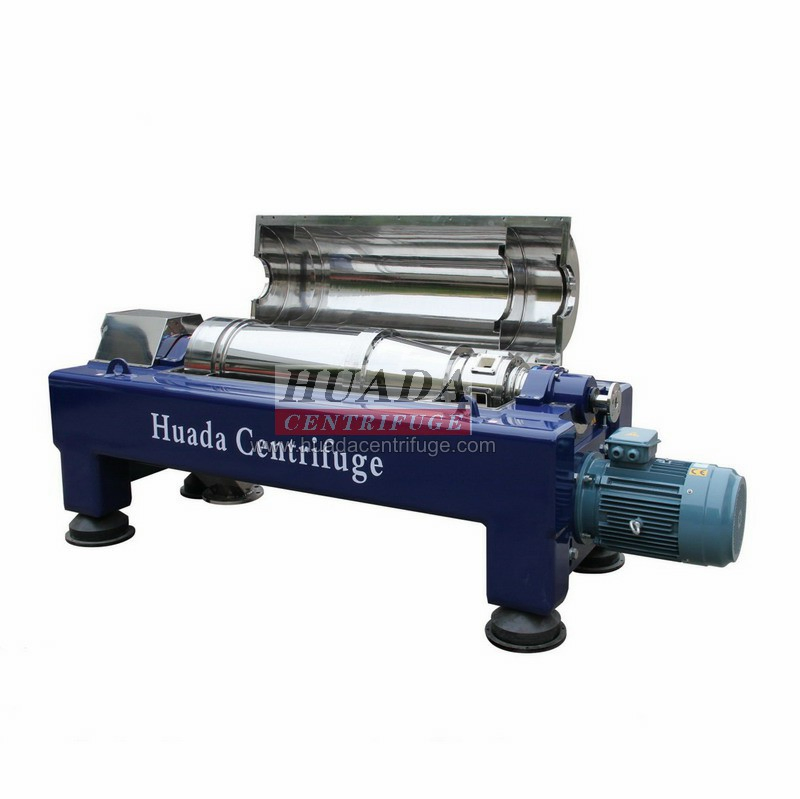

Lw Horizontal Decanter Centrifuge for Wastewater Treatment Drilling Mud Oil Sludge

1 / 5

Lw Horizontal Decanter Centrifuge for Wastewater Treatment Drilling Mud Oil Sludge

Customization:	Available
After-sales Service:	Provided
Warranty:	1 Year

Send Inquiry

Product Description

📊

Basic Specifications

Model NO.	LW
Type	Centrifuge
Object	Solid Liquid Separation Centrifuge
Separation Mode	Sedimentation Type
Operating Type	Continuous Type
Installation	Horizontal
Centrifuge Type	Decanter Centrifuge
Pressure	Low Pressure
Condition	New
Control	PLC Control
MOC	SS321 / 316L
Motor	Frequency Control
Guarantee	12 Month
Automation	Automatic Decanter Centrifuge
Usage	Industrial / Chemical
Origin	China

📦

Packaging & Delivery

Package Size	2500.00cm * 1100.00cm * 1500.00cm
Gross Weight	2500.000kg
Transport Package	Standard with Wooden Pallet and Poly Film Wrapping

⚙️

Product Overview

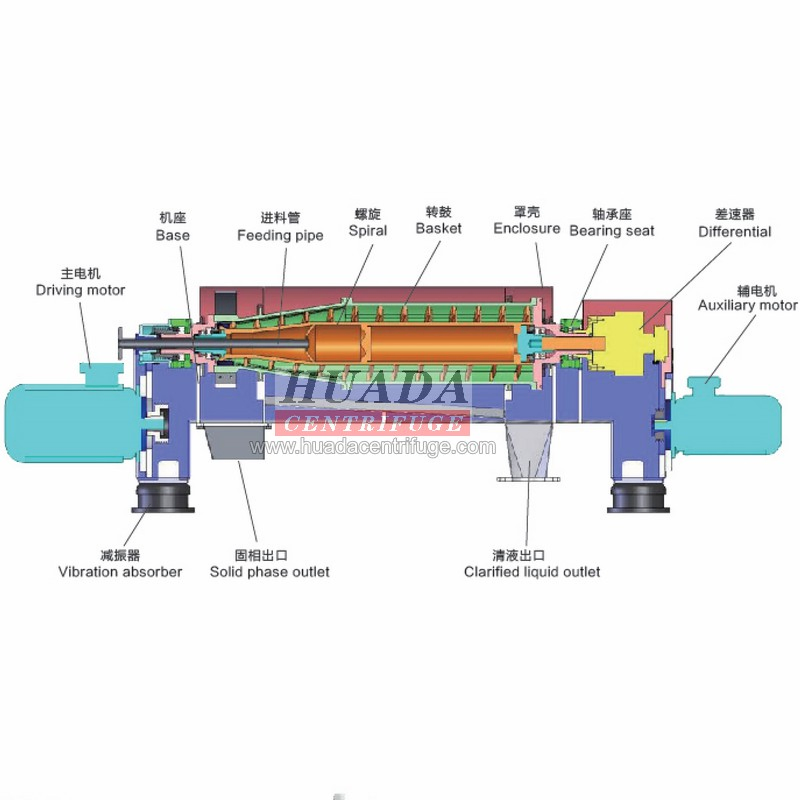

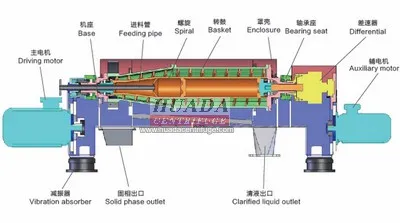

LW series products are decanter centrifuges designed for continuous operation. They are primarily utilized for solid-liquid separation, dehydration, fractionation, clarification, and concentration of various materials. Utilizing high-speed centrifugal force, the system effectively separates solid and liquid phases based on their different densities. The solid phases are conveyed and discharged through a spiral, while liquid phases exit via the overflow port.

⚡

Driving Technology

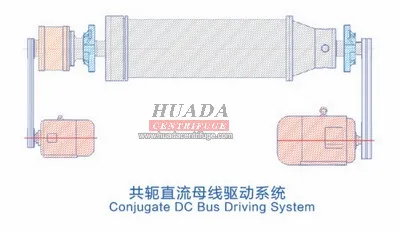

Dual-Motor & Dual-Frequency Driving

Optimized differential regulation for versatile working conditions.
Enhanced separation efficiency through adaptive control.
Dynamic feedback design to effectively reduce power consumption.

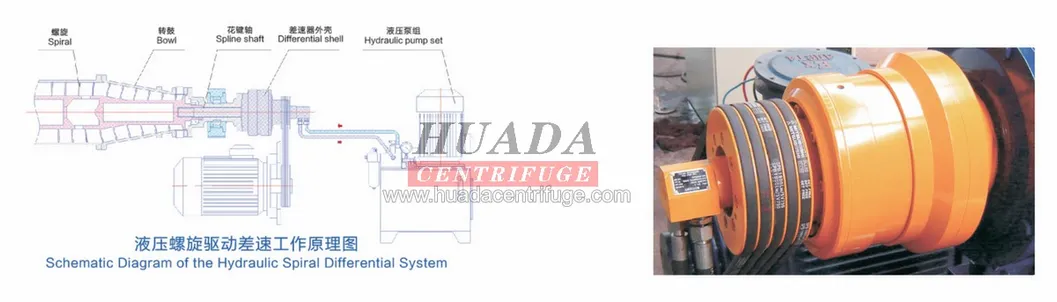

Hydraulic Gearbox System

Maintains minimum moisture content in mud cakes.
Produces highly clarified liquid after treatment.
Load-based power adjustment for transporting solid substances.
Gearless driving device eliminates risk of overload breakage.
Torsion-free vibration (flutter) and constant humidity of mud cake.
Safety pin design ensures operational security.
Resistant to fluctuations in feeding quantity, minimizing blocking risks.

💎

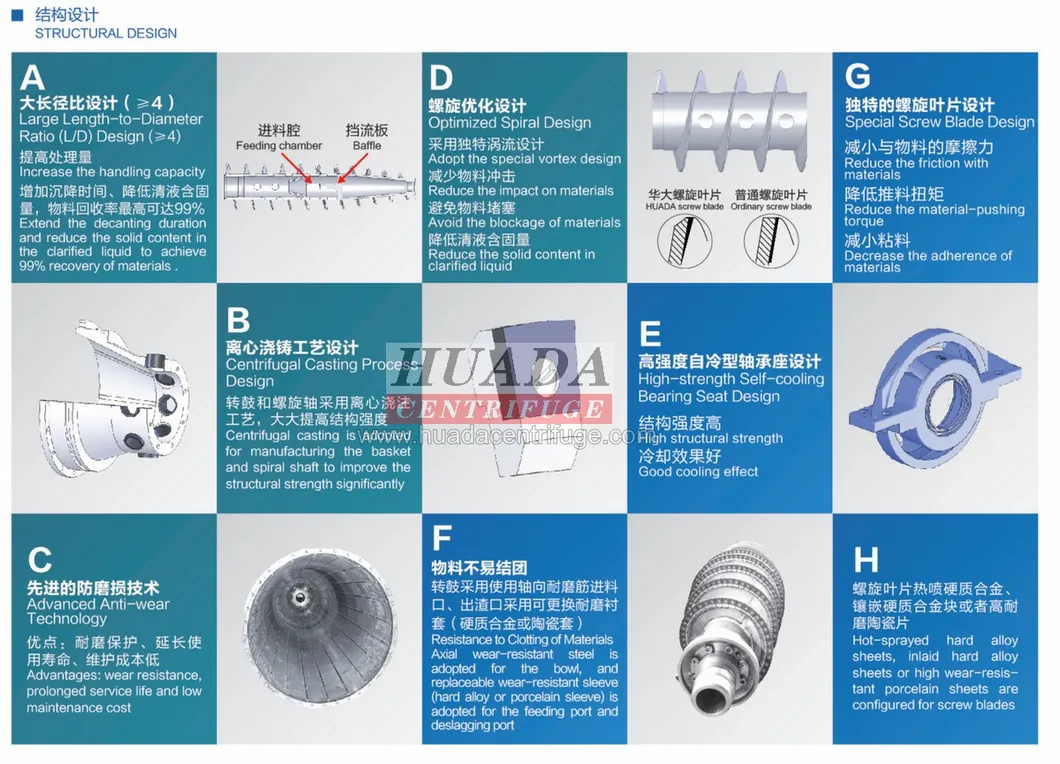

Key Advantages

Standard LW Type Features

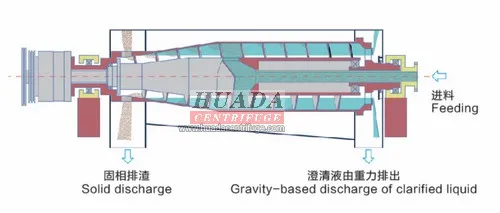

The standard LW series features a highly efficient labyrinth seal on both ends of the bowl. It is characterized by simple operation, stable performance, and high levels of automation. This model supports 24-hour continuous operation, making it ideal for large-scale industrial applications.

📋

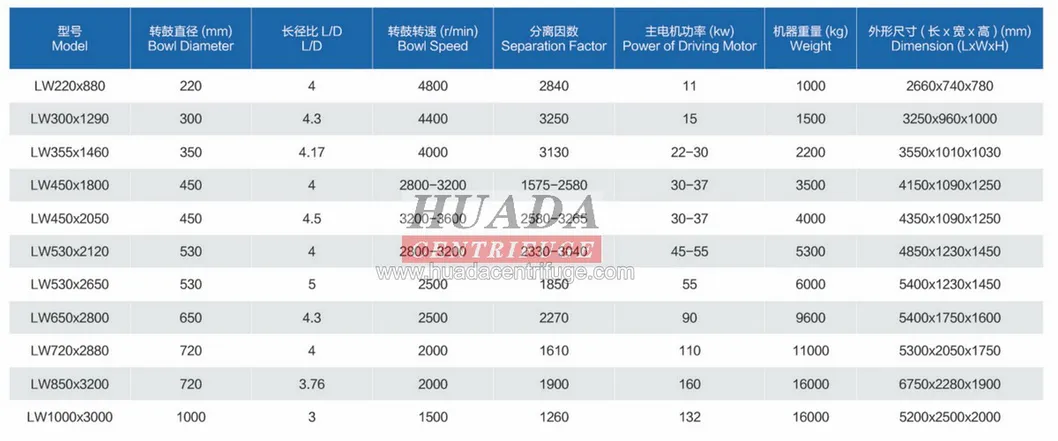

Main Technical Parameters

❓

Frequently Asked Questions

1. What are the primary applications of the LW Decanter Centrifuge?

The LW series is widely used in chemical, pharmaceutical, environmental protection, food, mining, and energy industries for solid-liquid separation, dehydration, clarification, and concentration.

2. What materials is the centrifuge constructed from?

The standard MOC (Material of Construction) includes high-grade Stainless Steel 321 or 316L, ensuring durability and corrosion resistance in industrial environments.

3. What is the advantage of the Dual-motor driving mode?

It provides better differential regulation and adaptively adjusts to changing working conditions, ensuring optimal separation while reducing power consumption via dynamic feedback.

4. How does the Hydraulic Gearbox System improve performance?

It ensures that moisture content in the mud cake is kept at a minimum and prevents breakage caused by excess load, while also offering torsion-free vibration during operation.

5. Does the machine support continuous operation?

Yes, the LW Decanter Centrifuge is designed for 24-hour continuous automated operation with high efficiency and stability.

6. What type of sealing is used in the standard model?

The standard LW series utilizes a labyrinth seal at both ends of the bowl, which is simple, efficient, and requires low maintenance.
